POINT I/O Platform
The 1734-OE2V is an analog output module for the Allen-Bradley POINT I/O distributed I/O platform.

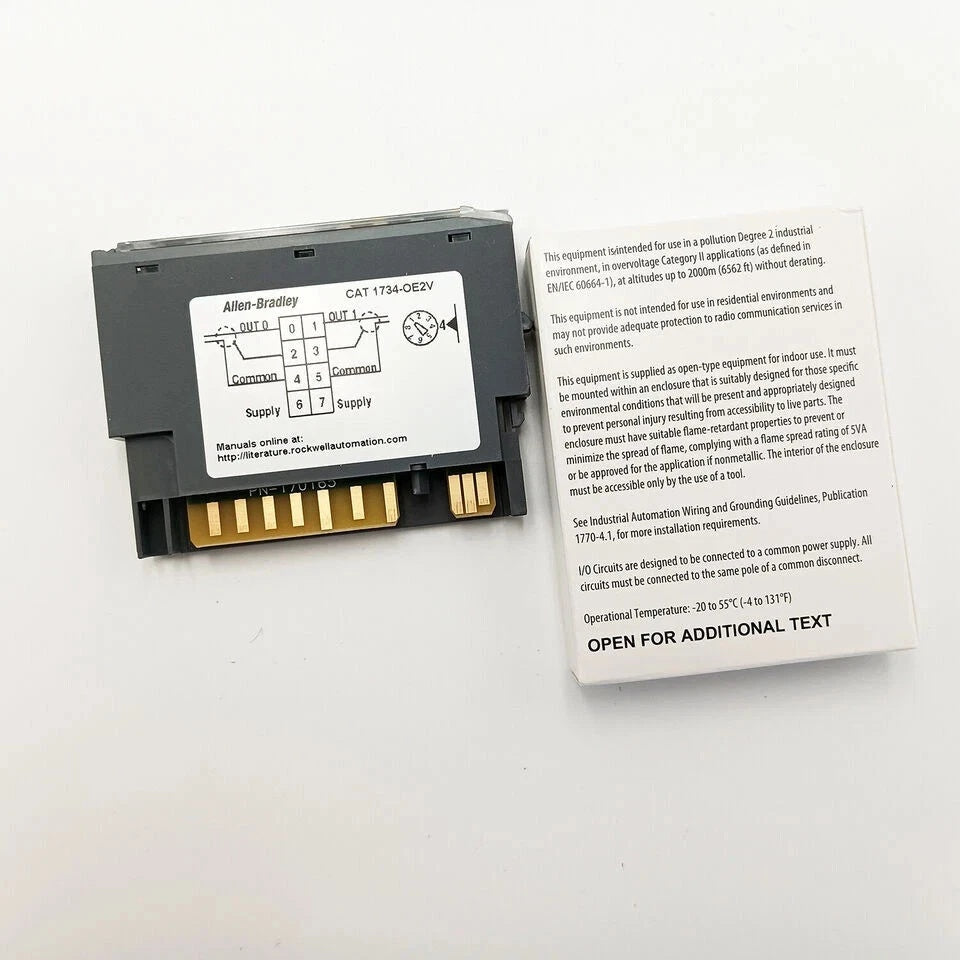

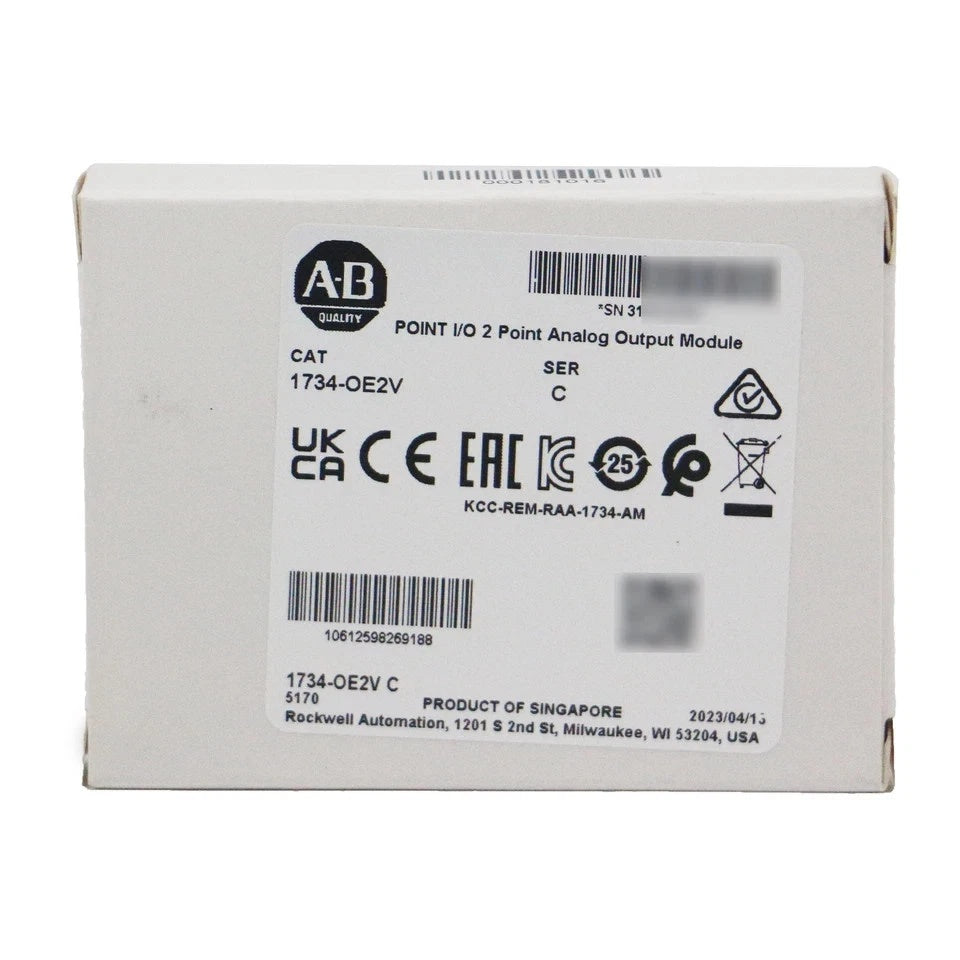

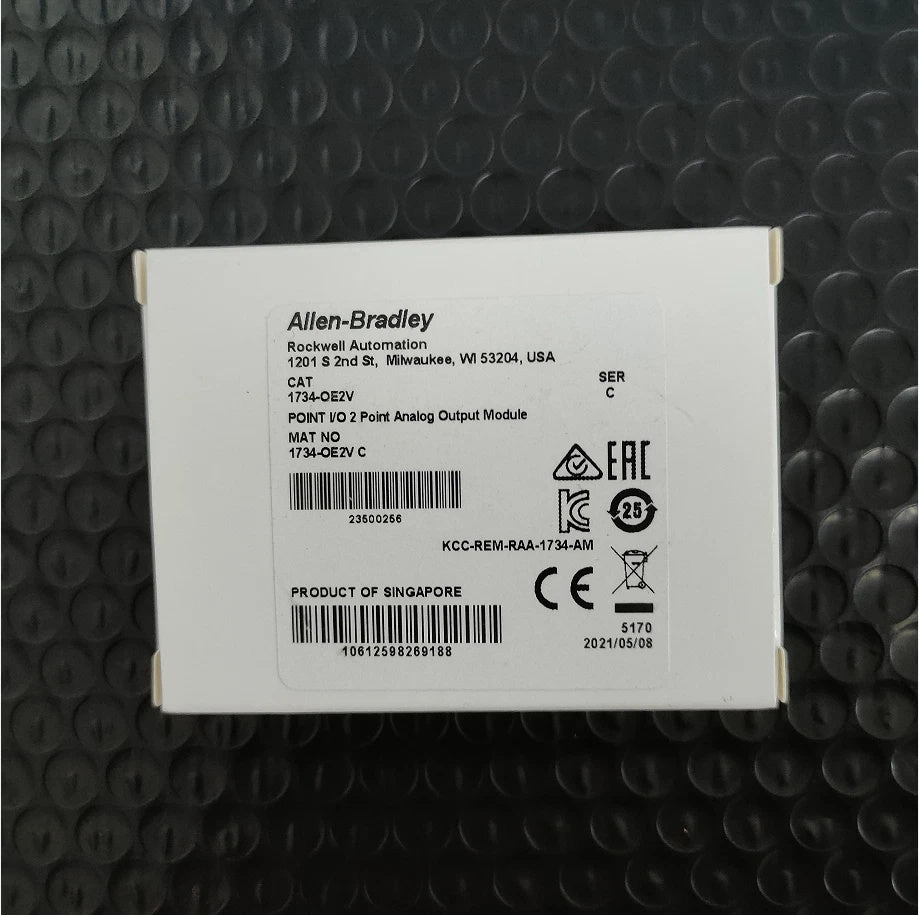

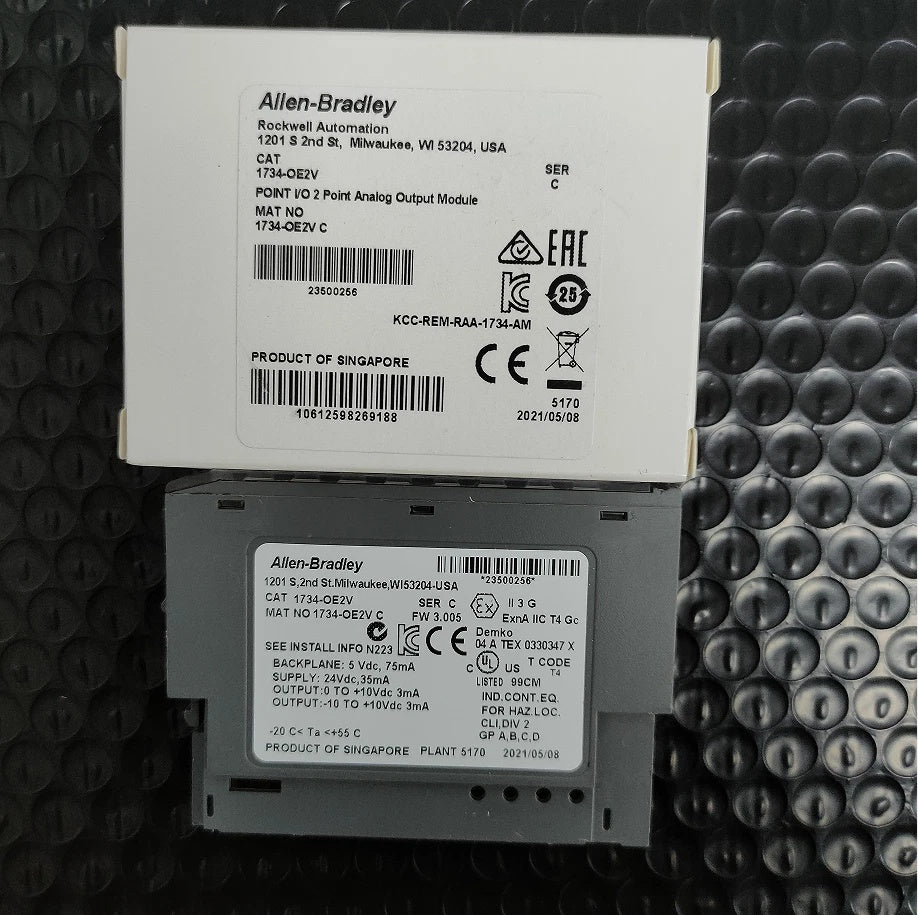

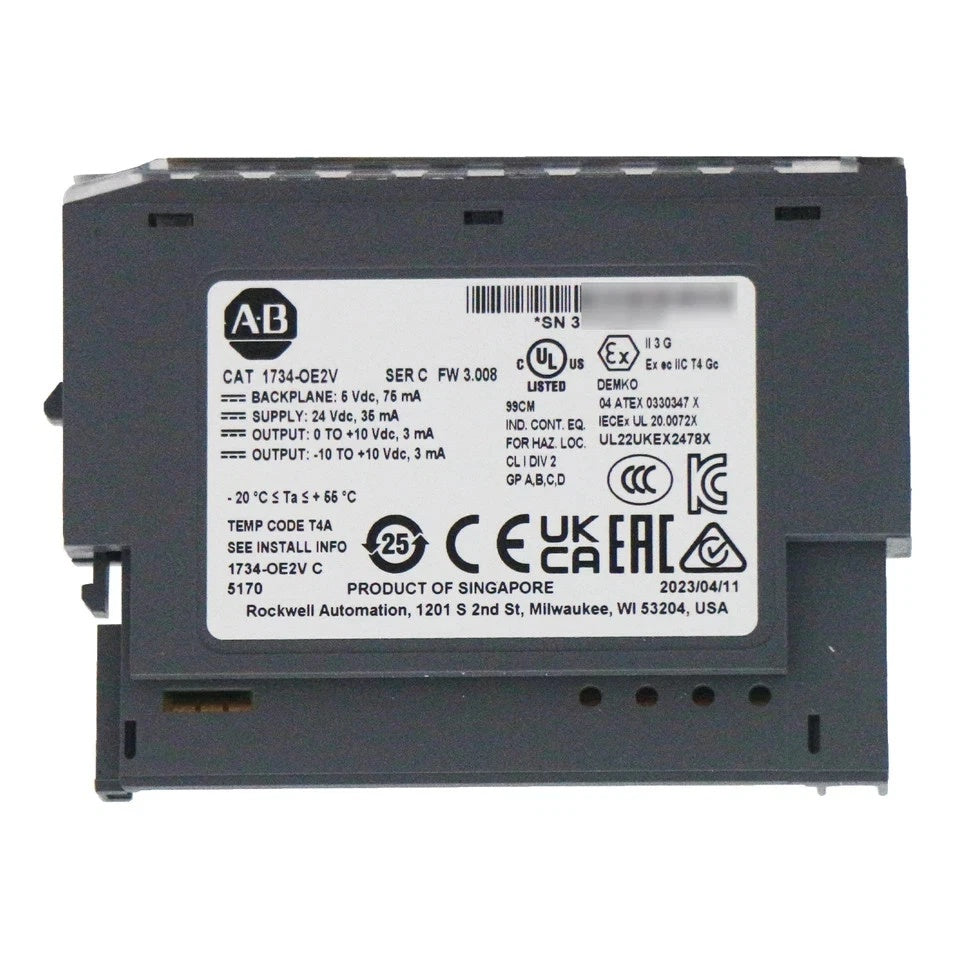

Allen-Bradley 1734-OE2V POINT I/O Output Module 2-Channel ±10V DC
Available in stock (400)
Regular price
$130.48
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 1734-OE2V |
| Product Category | Output Module |
| Product Family | POINT I/O |
| Module Type | Analog Voltage Output |
| Number of Outputs | 2 |
| Output Signal Range | ±10 V DC |
| Output Resolution | 15-bit plus sign |
| Conversion Type | Digital-to-Analog Converter |
| Absolute Accuracy | 0.1% full scale at 25°C |
| POINTBus Current | 75 mA at 5 V DC |
| External DC Supply | 10-28.8 V DC |
| Open Wire Detection | Yes |
| Output Fault Detection | Yes |
Key Features
Two Analog Outputs
The module provides two analog voltage output channels for transmitting control signals to field devices.
±10 V DC Output
Each output channel supports a bipolar voltage signal range up to ±10 V DC.
15-Bit Plus Sign Resolution
The analog output conversion provides 15-bit plus sign resolution for voltage control applications.
Output Diagnostics
The module supports diagnostic functions including open-wire and output-fault detection.
POINTBus Interface
The module interfaces with the POINT I/O system through POINTBus and has a documented POINTBus current requirement of 75 mA at 5 V DC.
Applications
- Analog actuator command signals
- Variable-speed drive reference signals
- Valve and damper position control
- Industrial process control systems
- Machine automation systems
- Distributed analog output applications
- Production equipment control
- Industrial control panel I/O systems
Purchase Information
We support online purchase of the Allen-Bradley 1734-OE2V Output Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 1734-OE2V?
It is a two-channel analog voltage output module for the POINT I/O platform.
How many output channels does 1734-OE2V have?
The module provides two analog output channels.
What output signal does the module provide?
The documented analog output range is ±10 V DC.
What is the output resolution?
The documented resolution is 15-bit plus sign.
What is the absolute accuracy?
The documented absolute accuracy is 0.1% of full scale at 25°C.
What POINTBus current does 1734-OE2V require?
The documented POINTBus current is 75 mA at 5 V DC.
What external DC supply range is used?
The documented external DC supply range is 10 to 28.8 V DC.
Does 1734-OE2V provide open-wire detection?
Yes. Open-wire detection is included among the module diagnostic functions.
What is this module typically used for?
Typical applications include sending analog voltage reference or command signals to industrial control devices and actuators.
Is 1734-OE2V a digital output module?
No. It is an analog voltage output module with two output channels.
Can 1734-OE2V replace another POINT I/O analog module?
It can be considered after the complete model number and technical requirements have been checked. Signal type, output range, channel count, resolution, power and POINT I/O system requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete catalog number, two-channel requirement, ±10 V DC signal range, external supply requirements, POINTBus requirements, terminal base and existing control-system requirements should be checked before ordering.
