26 A AC-3 Rating
Rated at 26 A for AC-3 motor-control applications at 400 V and 60°C, with an 11 kW three-phase motor rating.

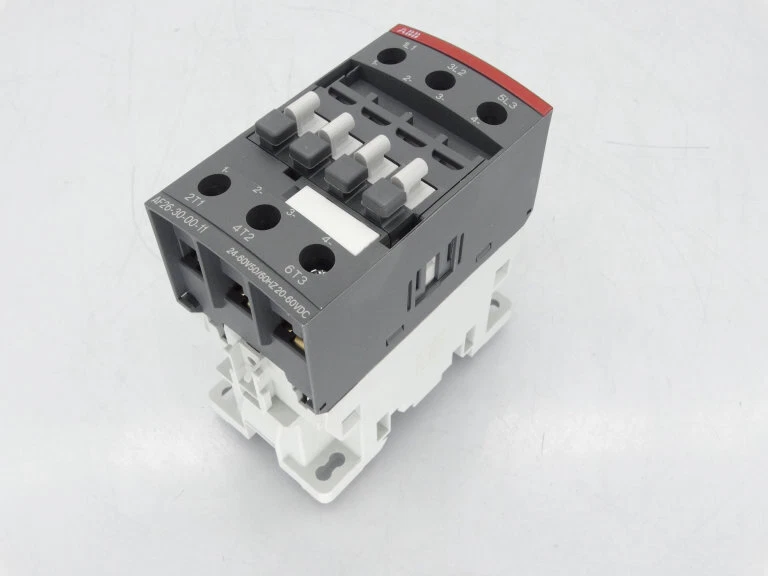

ABB AF26-30-00-11 3-Pole Contactor 26A 24-60VAC 20-60VDC
Available in stock (400)
Regular price
$63.94
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ABB |
| Model Number | AF26-30-00-11 |
| Product Category | 3-Pole Contactor |
| Product Series | AF26 |
| Order Code | 1SBL237001R1100 |
| Number of Main Poles | 3 |
| Main Contacts | 3 Normally Open |
| Built-In Auxiliary Contacts | 0 NO + 0 NC |
| Rated Operational Current AC-3 | 26 A at 400 V, 60°C |
| Rated Operational Current AC-1 | 45 A at 690 V, 40°C |
| Rated Motor Power AC-3 | 11 kW at 400 V |
| Rated Motor Power UL/CSA | 15 hp at 480 V |
| Rated Operational Voltage | Up to 690 VAC |
| AC Control Voltage | 24–60 VAC, 50/60 Hz |
| DC Control Voltage | 20–60 VDC |
| Terminal Type | Screw Terminals |
| Surge Protection | Built-In |
| Product Weight | 0.310 kg |
| Maximum Operating Altitude | 3000 m |
| RoHS Status | Following EU Directive 2011/65/EU |
Key Features
Wide-Range AC/DC Coil
The electronic coil interface accepts 24–60 VAC at 50/60 Hz or 20–60 VDC, accommodating different control-supply voltages.
Three Normally Open Main Contacts
Three main poles provide switching for three-phase motor circuits and other suitable industrial power loads.
Built-In Surge Protection
The AF series incorporates surge protection in its electronic coil interface, eliminating the need for a separate coil surge suppressor.
Electronic Coil Interface
The electronic interface manages variations in control voltage and reduces coil pull-in and holding consumption.
Screw Terminal Connections
Screw terminals provide the electrical connections for the main and control circuits. This model has no built-in auxiliary contacts.
Applications
- Three-phase motor switching
- Industrial motor control panels
- Conveyor motor control circuits
- Pump motor switching
- Ventilation fan motor control
- Industrial machinery power control
- Non-inductive load switching
- Slightly inductive load control
Purchase Information
We support online purchase of the ABB AF26-30-00-11 3-Pole Contactor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the ABB AF26-30-00-11?
It is a three-pole AF26 series contactor designed for controlling three-phase motors and suitable industrial power loads.
What is its AC-3 current rating?
The contactor is rated at 26 A for AC-3 operation at 400 V and 60°C.
What AC control voltage does it accept?
The electronic coil accepts 24–60 VAC at 50/60 Hz.
What DC control voltage does it accept?
The supported DC control-voltage range is 20–60 VDC.
How many main contacts does it have?
It has three normally open main contacts.
Does this model include auxiliary contacts?
No. AF26-30-00-11 has no built-in normally open or normally closed auxiliary contacts.
What motor power can it control?
Its documented AC-3 motor rating is 11 kW at 400 V. The UL/CSA three-phase motor rating is 15 hp at 480 V.
Does it include surge protection?
Yes. The AF series incorporates surge protection within the electronic coil interface.
Can it be controlled directly by a PLC output?
ABB states that AF26-30-00-11 is not suitable for direct control by a PLC output. Select the control interface according to the applicable electrical requirements.
What is the ABB order code?
The order code for AF26-30-00-11 is 1SBL237001R1100.
What type of terminals does it use?
The contactor uses screw terminals.
What should be checked before ordering?
Confirm the full model number, 24–60 VAC or 20–60 VDC coil supply, 26 A AC-3 rating, three normally open main contacts, absence of built-in auxiliary contacts and the electrical requirements of the intended application.
