500 mm Centrifugal Impeller

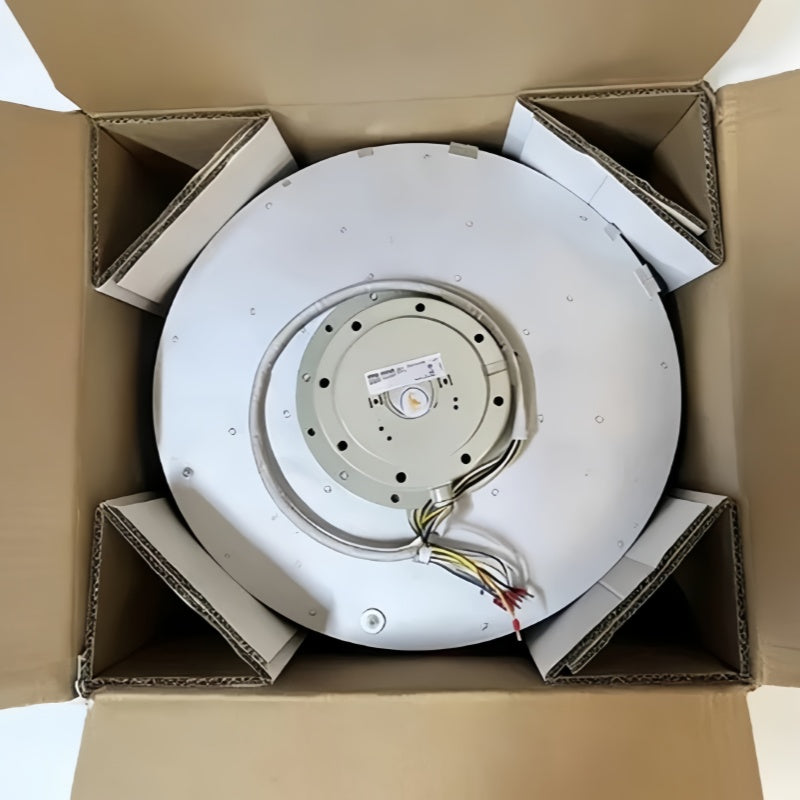

The RH50E-4DK.6K.1R is a single-inlet motorized centrifugal impeller with a documented diameter of 500 mm.
ZIEHL-ABEGG RH50E-4DK.6K.1R Centrifugal Fan 400VAC 1.5kW 1300RPM
Available in stock (200)
Regular price
$754.62
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH50E-4DK.6K.1R |
| Product Category | Centrifugal Fan |
| Article Number | 129560 |
| Fan Design | Single-Inlet Motorized Centrifugal Impeller |
| Rated Voltage | 3~ 400 VAC ±10% |
| Rated Frequency | 50 Hz |
| Power Input | 1.5 kW |
| Rated Current | 2.9 A |
| Speed | 1300 RPM |
| Impeller Diameter | 500 mm |
| Protection Rating | IP54 |
| Weight | 22 kg |
| Connection Diagram | 106XA |
Key Features
400 VAC Three-Phase Supply
The documented rated electrical supply is three-phase 400 VAC ±10% at 50 Hz.
1.5 kW Power Input
The documented power input is 1.5 kW with a rated current of 2.9 A.
1300 RPM Speed
The documented rotational speed at the rated operating point is 1300 RPM.
IP54 Protection
The documented degree of protection for RH50E-4DK.6K.1R is IP54.
60°C Maximum Ambient
The documented maximum ambient temperature at the rated operating point is 60°C.
Applications
- Industrial air handling equipment
- Industrial ventilation systems
- Industrial machinery cooling
- Equipment air circulation
- Electrical equipment ventilation
- Air handling units
- Equipment heat removal
- Industrial airflow systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH50E-4DK.6K.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH50E-4DK.6K.1R?
ZIEHL-ABEGG RH50E-4DK.6K.1R is a single-inlet motorized centrifugal impeller for industrial air movement applications.
What is the article number for RH50E-4DK.6K.1R?
The documented article number is 129560.
What voltage does RH50E-4DK.6K.1R use?
The documented rated supply is three-phase 400 VAC ±10%.
What frequency does RH50E-4DK.6K.1R use?
The documented rated frequency is 50 Hz.
What is the power input of RH50E-4DK.6K.1R?
The documented power input is 1.5 kW.
What is the rated current of RH50E-4DK.6K.1R?
The documented rated current is 2.9 A.
What is the speed of RH50E-4DK.6K.1R?
The documented rotational speed is 1300 RPM.
What is the impeller diameter of RH50E-4DK.6K.1R?
The documented impeller diameter is 500 mm.
What is the protection rating of RH50E-4DK.6K.1R?
The documented degree of protection is IP54.
What is the documented weight of RH50E-4DK.6K.1R?
The documented weight is 22 kg.
What applications can RH50E-4DK.6K.1R be considered for?
It can be considered for industrial air handling, ventilation, machinery cooling and equipment air circulation after the required electrical, airflow and installation conditions have been checked.
What should be checked before ordering RH50E-4DK.6K.1R?
Check the complete model number, three-phase 400 VAC supply, 50 Hz frequency, 1.5 kW power input, 2.9 A current, 500 mm impeller diameter and mechanical installation requirements before ordering.
