3-Finger Parallel Gripping

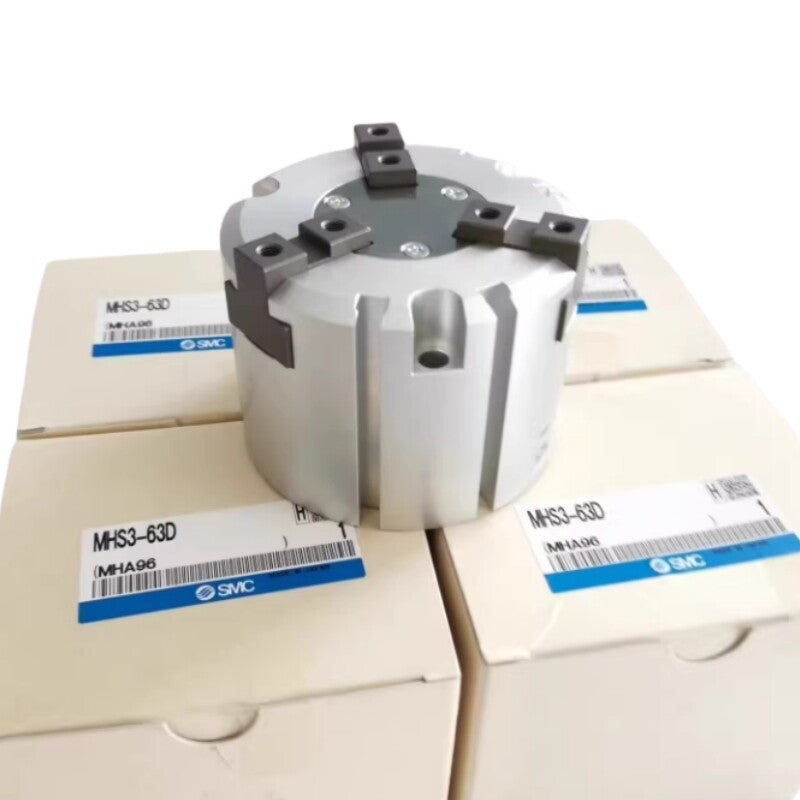

The MHS3-63D uses a three-finger parallel opening and closing configuration with a slide-guide mechanism for cylindrical workpiece gripping.
1 / 8
SMC

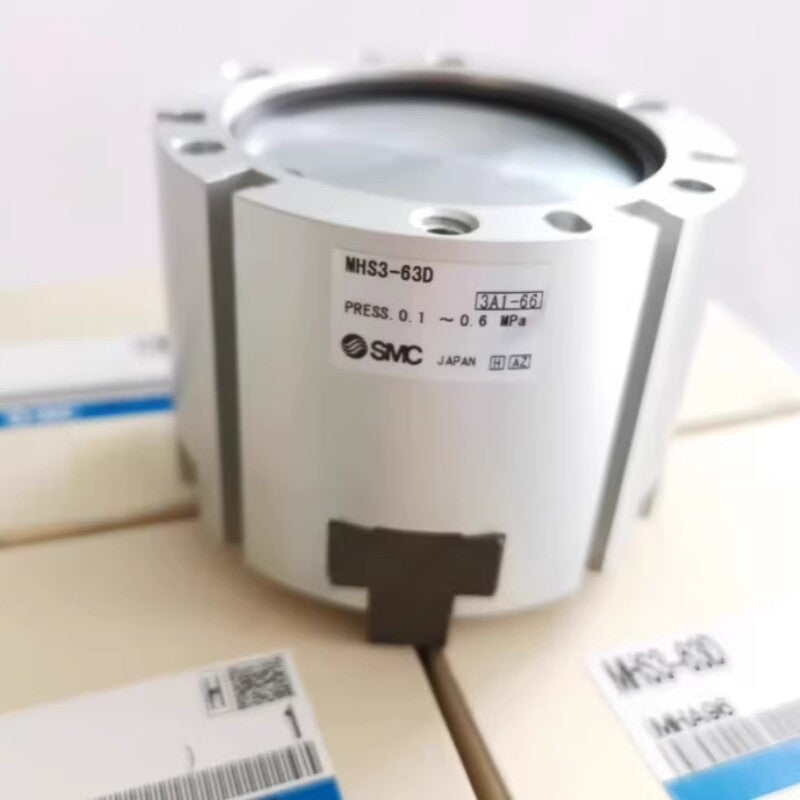

SMC MHS3-63D Air Gripper 63 mm Bore 335/359 N ±0.01 mm
PRODUCT PRICE
USD
$78.65
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | MHS3-63D |
| Product Category | Air Gripper |
| Series | MHS3 |
| Gripper Type | Parallel Style, Slide Guide, Round Body |
| Number of Fingers | 3 |
| Bore Size | 63 mm |
| Action | Double Acting |
| Fluid | Air |
| Operating Pressure | 0.1-0.6 MPa |
| Repeatability | ±0.01 mm |
| Opening / Closing Stroke | 16 mm |
| External Gripping Force | 335 N at 0.5 MPa |
| Internal Gripping Force | 359 N at 0.5 MPa |
| Maximum Operating Frequency | 60 c.p.m. |
| Port Size | M5 x 0.8 |
| Auto Switch | Without Auto Switch |
Key Features
63 mm Bore Size
The documented cylinder bore size for the MHS3-63D is 63 mm.
Double-Acting Operation
The gripper uses double-acting pneumatic operation with air as the operating fluid.
±0.01 mm Repeatability
SMC specifies gripping repeatability of ±0.01 mm for the MHS3 Series.
335 N External Gripping Force
The effective external gripping force is specified as 335 N per finger at an operating pressure of 0.5 MPa.
359 N Internal Gripping Force
The effective internal gripping force is specified as 359 N per finger at an operating pressure of 0.5 MPa.
Applications
- Cylindrical workpiece gripping
- Industrial pick-and-place systems
- Robotic handling applications
- Machine loading and unloading
- Workpiece positioning
- Automated assembly equipment
- Press-fitting related handling
- Industrial material handling systems
Purchase Information
We support online purchase of the SMC MHS3-63D Air Gripper. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SMC MHS3-63D?
SMC MHS3-63D is an MHS3 Series three-finger parallel air gripper with a slide-guide mechanism and round-body configuration.
What bore size does MHS3-63D use?
The documented cylinder bore size is 63 mm.
Is MHS3-63D double acting?
Yes. The gripper uses double-acting pneumatic operation.
What operating pressure is specified?
The documented operating pressure range is 0.1-0.6 MPa.
What is the repeatability of MHS3-63D?
SMC specifies repeatability of ±0.01 mm.
What is the opening and closing stroke?
The documented opening and closing stroke for the 63 mm bore model is 16 mm.
What external gripping force does MHS3-63D provide?
The effective external gripping force is specified as 335 N per finger at 0.5 MPa.
What internal gripping force does MHS3-63D provide?
The effective internal gripping force is specified as 359 N per finger at 0.5 MPa.
What is the maximum operating frequency?
The documented maximum operating frequency for MHS3-63D is 60 cycles per minute.
Does MHS3-63D include an auto switch?
The MHS3-63D configuration is specified without an auto switch.
What applications can MHS3-63D be considered for?
Its three-finger parallel gripping configuration can be considered for cylindrical workpiece handling, automated assembly, pick-and-place and related pneumatic handling applications after gripping requirements have been checked.
What should be checked before ordering MHS3-63D?
Check the complete model number, 63 mm bore requirement, operating pressure, gripping direction, required gripping force, 16 mm stroke, M5 x 0.8 port requirement and auto-switch requirements against the machine design before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
