1.5 kW Low-Overload Rating
The SINAMICS G120C provides a 1.5 kW low-overload rating with defined short-duration overload capability for applicable motor-drive applications.

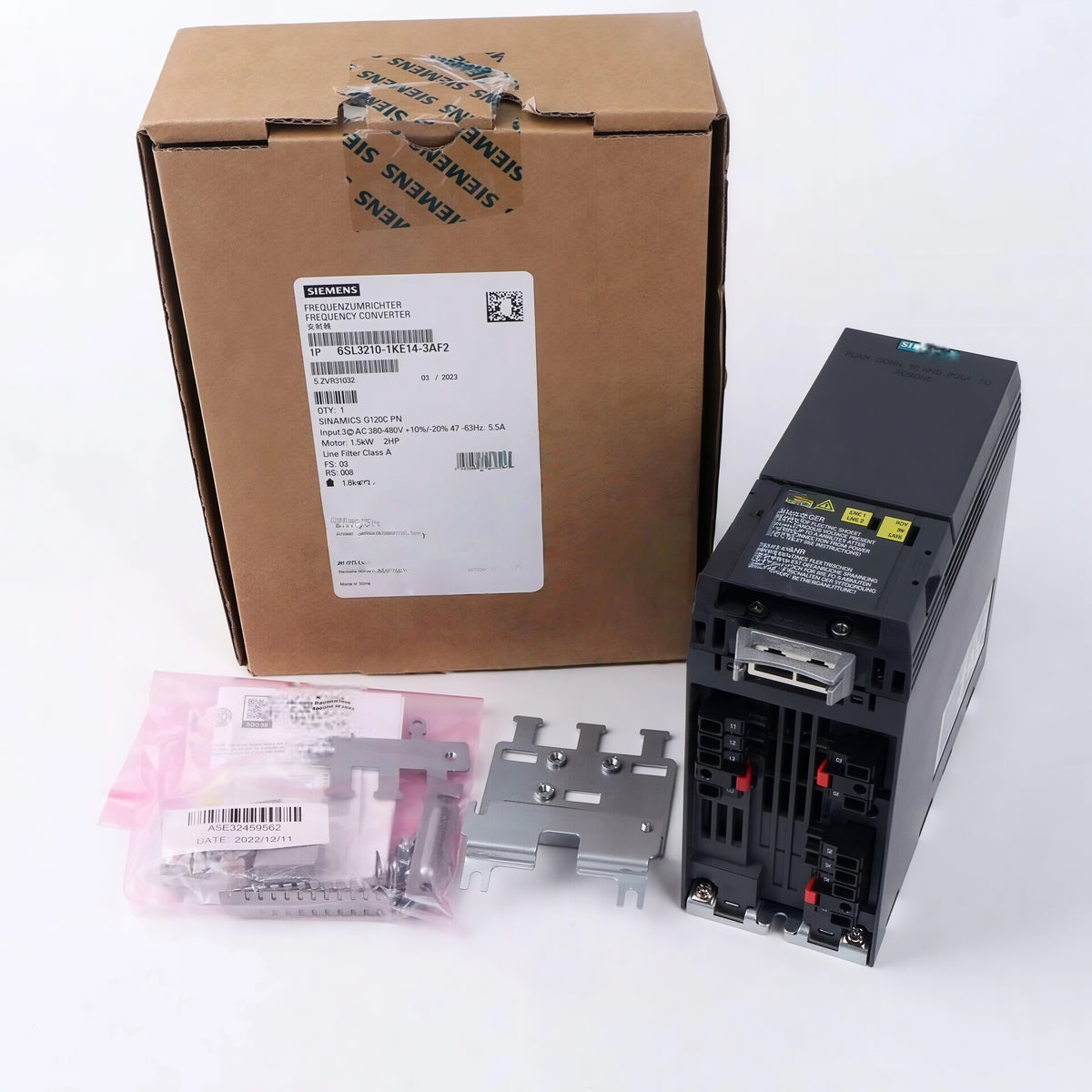

SIEMENS 6SL3210-1KE14-3AF2 SINAMICS G120C Inverter 1.5kW 380-480VAC PROFINET
Available in stock (400)
Regular price
$234.13
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6SL3210-1KE14-3AF2 |
| Product Category | Inverter |
| Product Family | SINAMICS G120C |
| Converter Type | Compact Converter |
| Input Voltage | 3 AC 380-480 V +10% / -20% |
| Input Frequency | 47-63 Hz |
| Rated Power, Low Overload | 1.5 kW |
| Rated Power, High Overload | 1.1 kW |
| Low Overload | 150% for 3 s, 110% for 57 s, 100% for 240 s |
| High Overload | 200% for 3 s, 150% for 57 s, 100% for 240 s |
| Integrated Line Filter | Class A |
| External Electronics Supply | 24 VDC |
| Digital Inputs | 6 |
| Digital Outputs | 2 |
| Analog Inputs | 1 |
| Analog Outputs | 1 |
| Motor Temperature Input | 1 |
| Safety Function | Safe Torque Off Integrated |
| Fieldbus | PROFINET PN |
| Degree of Protection | IP20 / UL Open Type |
| Frame Size | FSAA |
| Dimensions | 173 x 73 x 160 mm (H x W x D) |
| Net Weight | 1.4 kg |
Key Features
380-480 VAC Input
The compact converter operates from a three-phase 380-480 VAC supply with a documented input frequency range of 47-63 Hz.
Integrated PROFINET
The 6SL3210-1KE14-3AF2 includes integrated PROFINET PN fieldbus communication for connection to applicable industrial automation networks.
Integrated I/O
The converter provides six digital inputs, two digital outputs, one analog input, one analog output and one motor-temperature input.
Safe Torque Off
Safe Torque Off is integrated into the converter for use within appropriately engineered machine safety functions.
Compact FSAA Design
The FSAA construction measures 173 x 73 x 160 mm and provides an IP20 / UL Open Type enclosure classification.
Applications
- Industrial motor speed control
- Conveyor drive systems
- Pump and fan control systems
- Production machinery
- Material handling equipment
- Machine automation systems
- PROFINET-connected drive systems
- Industrial control cabinets
Purchase Information
We support online purchase of the SIEMENS 6SL3210-1KE14-3AF2 Inverter. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6SL3210-1KE14-3AF2?
It is a SINAMICS G120C compact inverter for three-phase motor drive applications.
What is the rated power of 6SL3210-1KE14-3AF2?
The documented low-overload rating is 1.5 kW, while the high-overload rating is 1.1 kW.
What input voltage does this SINAMICS G120C use?
The documented input is three-phase 380-480 VAC with a tolerance of +10% / -20%.
What input frequency is supported?
The documented input frequency range is 47-63 Hz.
Does 6SL3210-1KE14-3AF2 support PROFINET?
Yes. PROFINET PN fieldbus communication is integrated.
Does the converter include Safe Torque Off?
Yes. Safe Torque Off is integrated into the converter.
What I/O is integrated?
The documented interface includes six digital inputs, two digital outputs, one analog input, one analog output and one motor-temperature input.
Does the converter have an integrated line filter?
Yes. This article number is specified with an integrated Class A line filter.
What is the frame size?
The 6SL3210-1KE14-3AF2 uses the compact FSAA frame size.
What are the dimensions?
The documented dimensions are 173 x 73 x 160 mm, measured as height x width x depth.
Can 6SL3210-1KE14-3AF2 be considered for an existing motor-drive application?
It can be considered after the exact article number, motor power and current, overload requirement, 380-480 VAC supply, PROFINET communication, I/O, safety function and installation requirements have been checked.
What should be checked before ordering?
Check the complete 6SL3210-1KE14-3AF2 article number together with the required motor rating, three-phase supply voltage, overload duty, integrated Class A filter, PROFINET interface, FSAA dimensions and control-system requirements before ordering.
