FastConnect Cable Preparation
The 6GK1901-1GA00 is designed specifically for stripping Industrial Ethernet FastConnect cables during connector and network installation work.

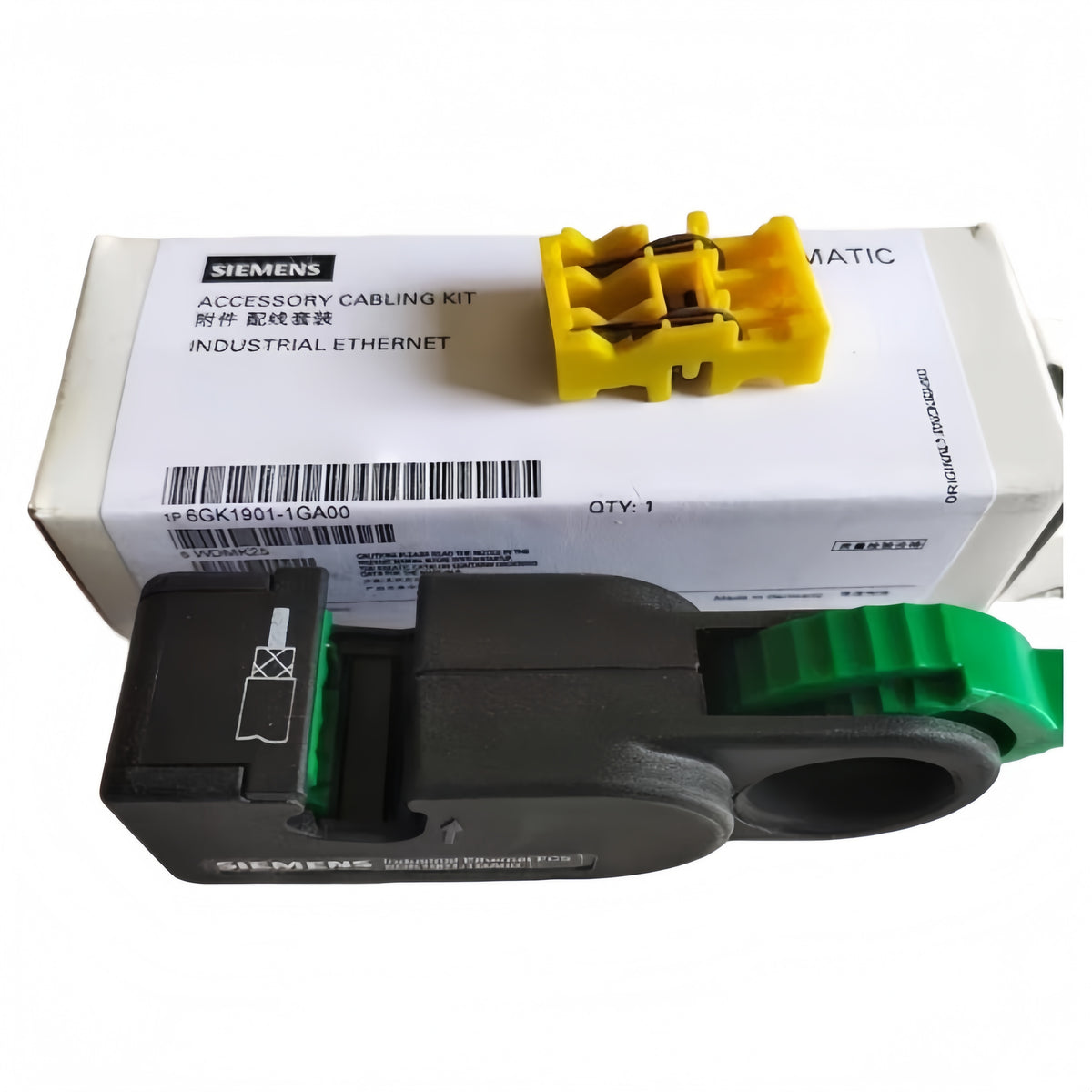

SIEMENS 6GK1901-1GA00 IE FastConnect Stripping Tool 5mm 12mm Blades
Available in stock (400)
Regular price
$79.32
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6GK1901-1GA00 |
| Product Category | Stripping Tool |
| Product Type | IE FastConnect Stripping Tool |
| Product Family | Industrial Ethernet FastConnect |
| Tool Function | Stripping IE FastConnect Cables |
| Tool Configuration | Preset Insulation Stripping Tool |
| Blade Cassette | Replaceable |
| 5 mm Blade Cassette | For IE FC RJ45 Plugs and IE FC Modular Outlet |
| 12 mm Blade Cassette | For Applicable IE FC Outlet and Connector Preparations |
| Cutting Depth | Adjustable After Blade Cassette Change |
| Reference Code | HLB according to IEC 81346-2:2019 |
Key Features
Preset Stripping Tool
The tool uses a preset stripping arrangement to prepare applicable IE FastConnect cables for subsequent connector assembly.
Replaceable Blade Cassettes
Different blade cassettes can be installed to provide the stripping dimensions required by applicable FastConnect connector configurations.
5 mm Blade Configuration
The 5 mm blade cassette is specified for preparation associated with applicable IE FastConnect RJ45 plugs and the IE FastConnect modular outlet.
12 mm Blade Configuration
A 12 mm blade cassette can be used for applicable FastConnect outlet and connector preparation requirements.
Adjustable Cutting Depth
After changing the blade cassette, the cutting depth can be adjusted using the tool's adjustment mechanism to suit the required cable preparation.
Applications
- Industrial Ethernet cable preparation
- IE FastConnect cable stripping
- Industrial network installation
- FastConnect RJ45 plug assembly
- FastConnect modular outlet preparation
- PROFINET cabling installation
- Machine network commissioning
- Industrial control cabinet wiring
Purchase Information
We support online purchase of the SIEMENS 6GK1901-1GA00 Stripping Tool. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6GK1901-1GA00?
It is an Industrial Ethernet FastConnect stripping tool designed for stripping IE FastConnect cables.
What type of cable is the tool designed for?
The tool is designed for applicable Siemens Industrial Ethernet FastConnect cables.
What is the main function of 6GK1901-1GA00?
Its main function is to prepare IE FastConnect cables by removing the required cable layers before connector assembly.
Is 6GK1901-1GA00 a preset stripping tool?
Yes. Siemens describes it as a preset insulation stripping tool for IE FC cables.
Does the tool use replaceable blade cassettes?
Yes. The stripping tool is designed to accept replaceable blade cassettes for different cable preparation requirements.
What is the 5 mm blade cassette used for?
It is specified for applicable IE FastConnect RJ45 plugs and the IE FastConnect modular outlet.
What is the 12 mm blade cassette used for?
It is used for applicable FastConnect outlet and connector preparation configurations requiring a 12 mm knife distance.
Can the cutting depth be adjusted?
Yes. Siemens instructions specify adjustment of the cutting depth after changing the blade cassette.
Can the tool be used during PROFINET cabling installation?
It can be used where the installation uses compatible Industrial Ethernet FastConnect cables and connector configurations.
Can 6GK1901-1GA00 be considered for an existing FastConnect cabling system?
It can be considered after the exact article number, cable type, connector type and required blade cassette configuration have been checked.
What should be checked before ordering?
Check the complete 6GK1901-1GA00 article number together with the Industrial Ethernet FastConnect cable type, connector configuration and required 5 mm or 12 mm blade cassette arrangement before ordering.
