RJ45 Industrial Ethernet Connector
The 6GK1901-1BB10-2AA0 is an IE FC RJ45 Plug 180 (2x2) designed for Industrial Ethernet connections.

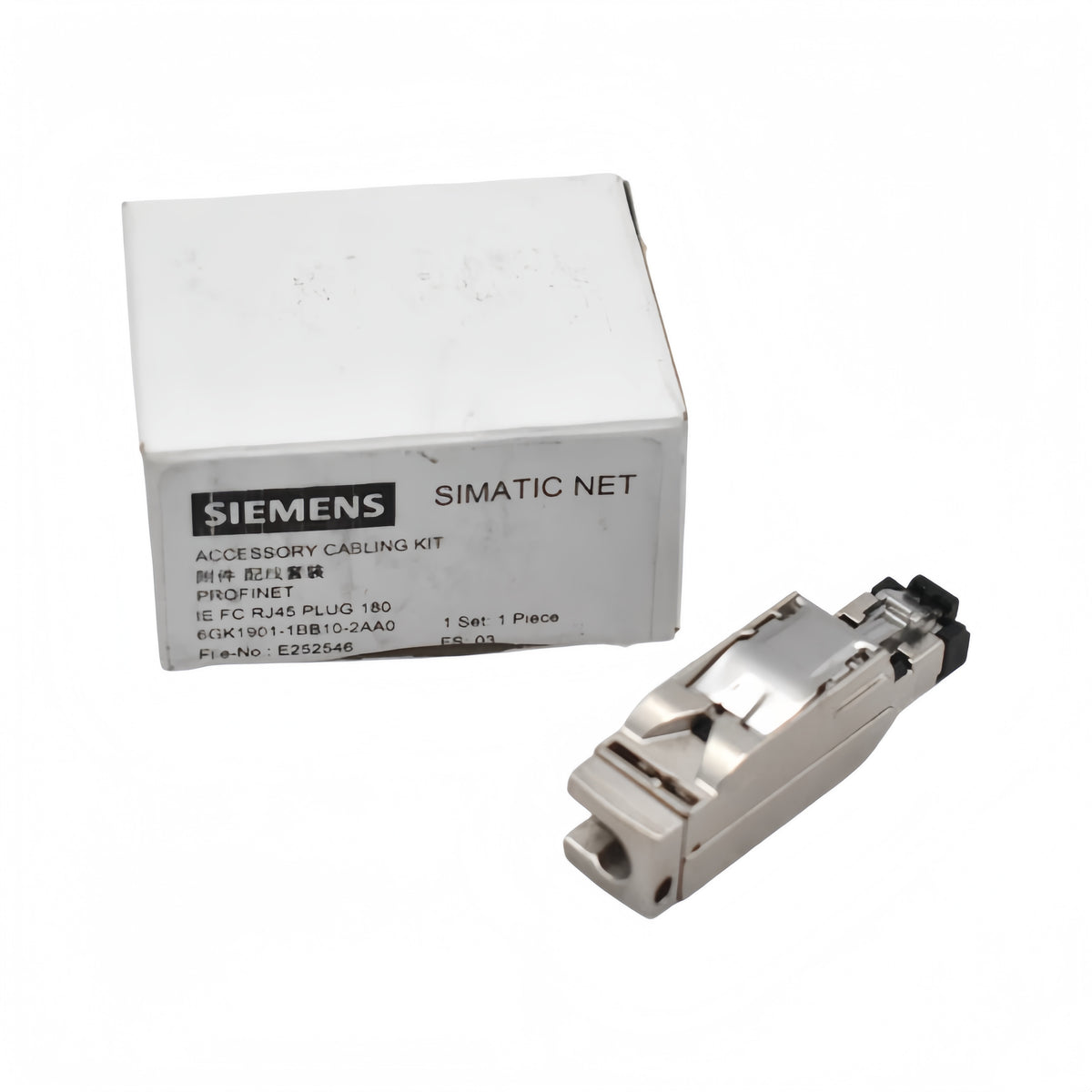

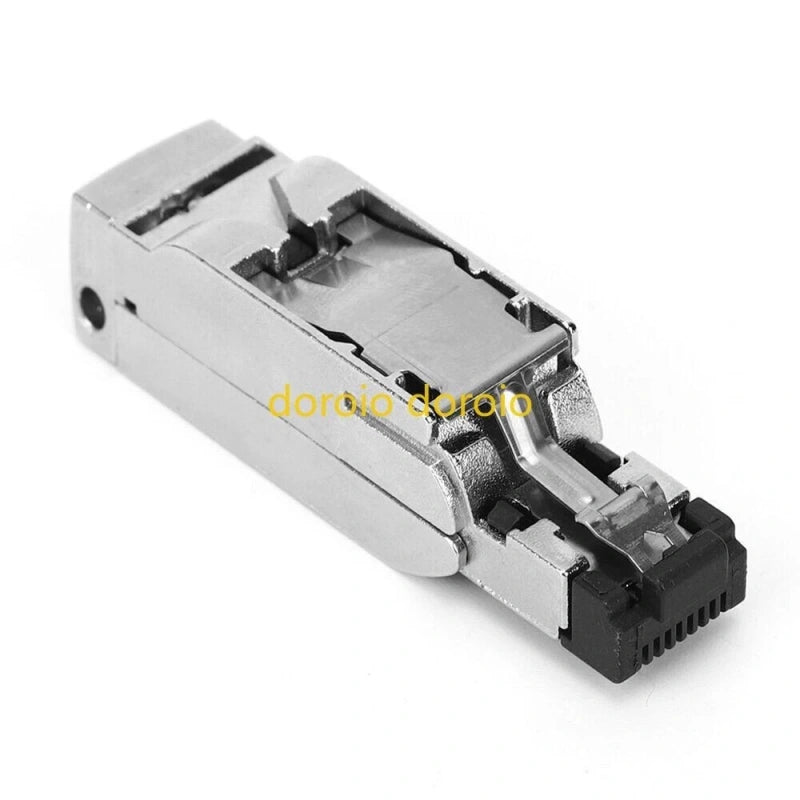

SIEMENS 6GK1901-1BB10-2AA0 Ethernet Connector RJ45 10/100Mbit/s 180°
Available in stock (400)
Regular price
$8.72
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6GK1901-1BB10-2AA0 |
| Product Category | Ethernet Connector |
| Product Type Designation | IE FC RJ45 Plug 180 (2x2) |
| Connector Type | RJ45 Data Connector |
| Network Type | Industrial Ethernet |
| Transfer Rate | 10 / 100 Mbit/s |
| Cable Type | IE FC TP Cable 2x2 |
| Connection System | FastConnect |
| Cable Outlet | 180° |
| Enclosure Material | Metal |
| Cable Connection | Integrated Cut-and-Clamp Contacts |
| Conductor Cross-Section | 0.33 mm² |
| Dimensions | 13.7 x 16 x 55 mm (W x H x D) |
| PoE Capability | Yes |
Key Features
10/100 Mbit/s
The documented Industrial Ethernet transfer rates are 10 and 100 Mbit/s.
FastConnect System
The connector uses the FastConnect system with integrated cut-and-clamp contacts for 4-wire TP FC installation cable.
180° Cable Outlet
The connector has a straight 180° cable outlet for connection to IE FC TP cables 2x2.
Metal Enclosure
The connector uses a metal enclosure and has documented dimensions of 13.7 x 16 x 55 mm.
PoE and PoE+ Capability
The documented product features include both PoE and PoE+ capability.
Applications
- Industrial Ethernet cabling
- PROFINET network connections
- Factory automation networks
- Industrial control networks
- Machine Ethernet connections
- Control cabinet networking
- Industrial communication systems
- IE FC TP cable termination
Purchase Information
We support online purchase of the SIEMENS 6GK1901-1BB10-2AA0 Ethernet Connector. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6GK1901-1BB10-2AA0?
SIEMENS 6GK1901-1BB10-2AA0 is an Industrial Ethernet FastConnect RJ45 plug with a 180° cable outlet.
What connector type is 6GK1901-1BB10-2AA0?
It is an RJ45 data connector identified as the IE FC RJ45 Plug 180 (2x2).
What transfer rates does 6GK1901-1BB10-2AA0 support?
The documented Industrial Ethernet transfer rates are 10 and 100 Mbit/s.
What cable is 6GK1901-1BB10-2AA0 intended for?
It is intended for connection to IE FC TP cables 2x2 using the FastConnect system.
What type of cable outlet does the connector have?
The documented cable outlet is 180°.
What is the enclosure material?
The documented enclosure material is metal.
What are the dimensions of 6GK1901-1BB10-2AA0?
The documented dimensions are 13.7 mm wide, 16 mm high and 55 mm deep.
What is the operating temperature range?
The documented operating temperature range is -40°C to +85°C.
What degree of protection is specified?
The documented degree of protection is IP20.
Does 6GK1901-1BB10-2AA0 support PoE and PoE+?
Yes. Siemens lists both PoE and PoE+ capability for this connector.
What applications can 6GK1901-1BB10-2AA0 be considered for?
It can be considered for Industrial Ethernet and PROFINET cabling applications using suitable IE FC TP cables after network requirements have been checked.
What should be checked before ordering 6GK1901-1BB10-2AA0?
Check the complete model number, RJ45 connection requirement, cable type, 10/100 Mbit/s network requirements, 180° cable outlet and installation requirements against the existing network documentation.
