DP/DP Network Coupling
The 6ES7158-0AD01-0XA0 is a SIMATIC DP coupling module designed to connect two independent PROFIBUS DP networks.

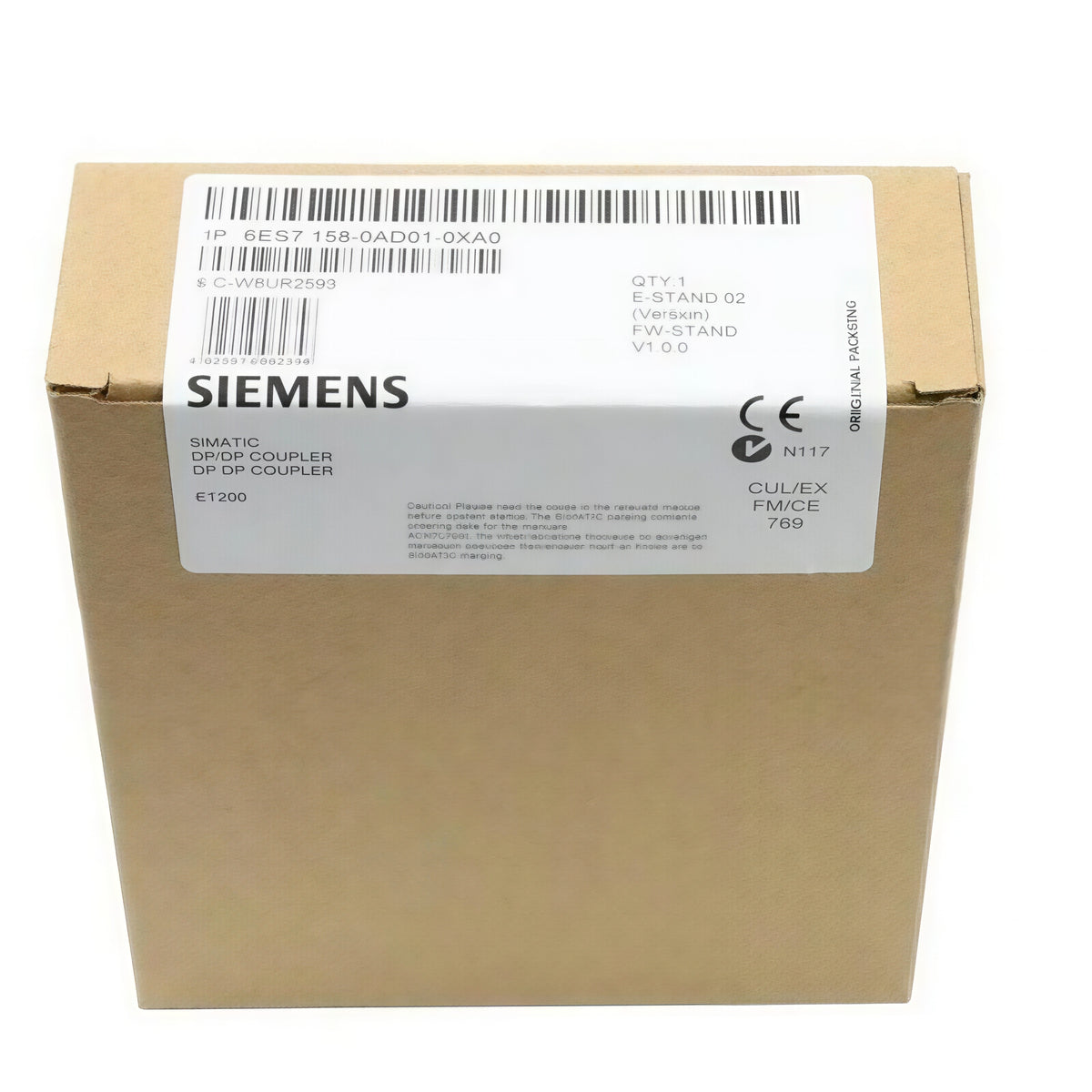

SIEMENS 6ES7158-0AD01-0XA0 SIMATIC DP/DP Coupler 24VDC PROFIBUS DP
Available in stock (400)
Regular price
$134.76
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7158-0AD01-0XA0 |
| Product Category | DP/DP Coupler |
| Product Family | SIMATIC DP |
| Function | Coupling of Two PROFIBUS DP Networks |
| Protocol | PROFIBUS DP |
| Rated Supply Voltage | 24 VDC |
| Permissible Supply Range | 20.4-28.8 VDC |
| Power Supply | Redundant Current Infeed |
| Current Consumption | 90 mA Typical |
| Power Loss | 2 W Typical |
| Status Indicator | Yes |
| Diagnostic Function | Yes |
| Degree of Protection | IP20 |
| Width | 40 mm |
| Height | 127 mm |
| Depth | 117 mm |
| Net Weight | 0.303 kg |
Key Features
PROFIBUS DP Protocol
The coupler provides PROFIBUS DP communication on both network sides for data exchange between separate DP systems.
Redundant Power Infeed
The module supports redundant current infeed to provide two power supply paths for the DP/DP coupling application.
24 VDC Supply
The coupler operates at a rated 24 VDC with a documented permissible supply range of 20.4 to 28.8 VDC.
Status and Diagnostics
Integrated status indication and diagnostic functions support commissioning and monitoring of the coupling module.
Compact IP20 Module
The module measures 40 x 127 x 117 mm and is specified with an IP20 degree of protection for applicable control-cabinet installations.
Applications
- Coupling two PROFIBUS DP networks
- Machine-to-machine data exchange
- Distributed automation systems
- Production line communication
- Industrial control cabinets
- Separate PLC network interconnection
- Factory automation systems
- PROFIBUS DP communication architectures
Purchase Information
We support online purchase of the SIEMENS 6ES7158-0AD01-0XA0 DP/DP Coupler. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ES7158-0AD01-0XA0?
It is a SIMATIC DP DP/DP coupler designed for connecting two PROFIBUS DP networks.
What communication protocol does the coupler support?
The documented communication protocol is PROFIBUS DP.
What is the rated supply voltage?
The rated supply voltage is 24 VDC.
What is the permissible voltage range?
The documented permissible supply range is 20.4 to 28.8 VDC.
Does 6ES7158-0AD01-0XA0 support redundant power infeed?
Yes. Siemens specifies redundant current infeed for this DP/DP coupler.
What is the typical current consumption?
The documented typical current consumption is 90 mA.
What is the typical power loss?
The documented typical power loss is 2 W.
Does the module provide diagnostic functions?
Yes. Status indication and diagnostic functions are supported.
What is the protection rating?
The documented degree of protection is IP20.
What is the operating temperature range?
The documented operating temperature range is 0 to 60 °C.
What are the dimensions of the module?
The documented dimensions are 40 mm wide, 127 mm high and 117 mm deep.
Can 6ES7158-0AD01-0XA0 be considered for an existing PROFIBUS system?
It can be considered after the exact article number, PROFIBUS DP network architecture, 24 VDC power supply, configuration and communication requirements have been checked.
