24 VDC Supply
The LOGO! 24CEo operates from a documented 24 VDC supply with a permissible range of 20.4-28.8 VDC.

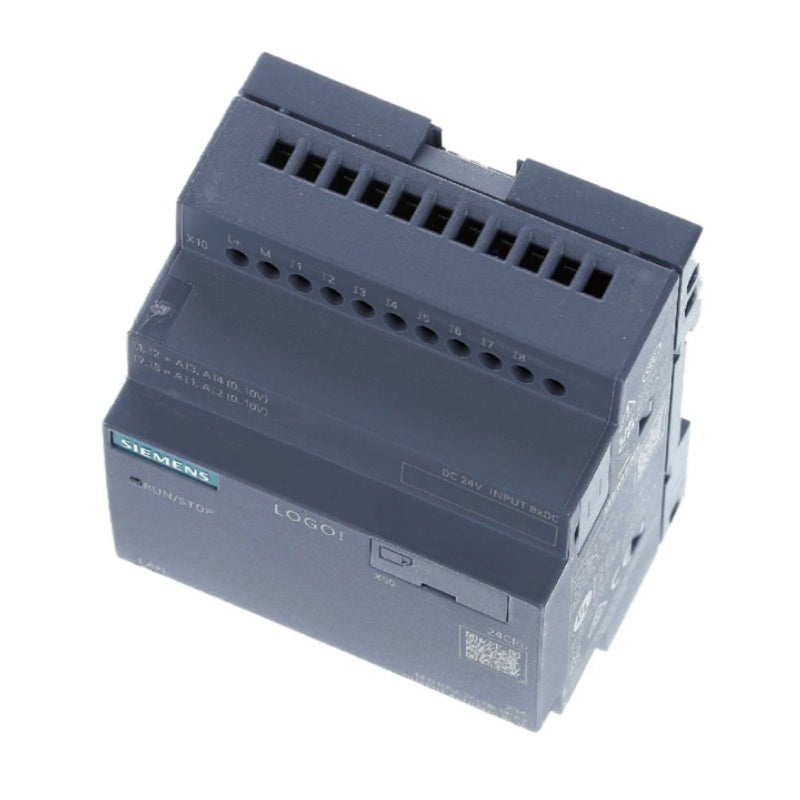

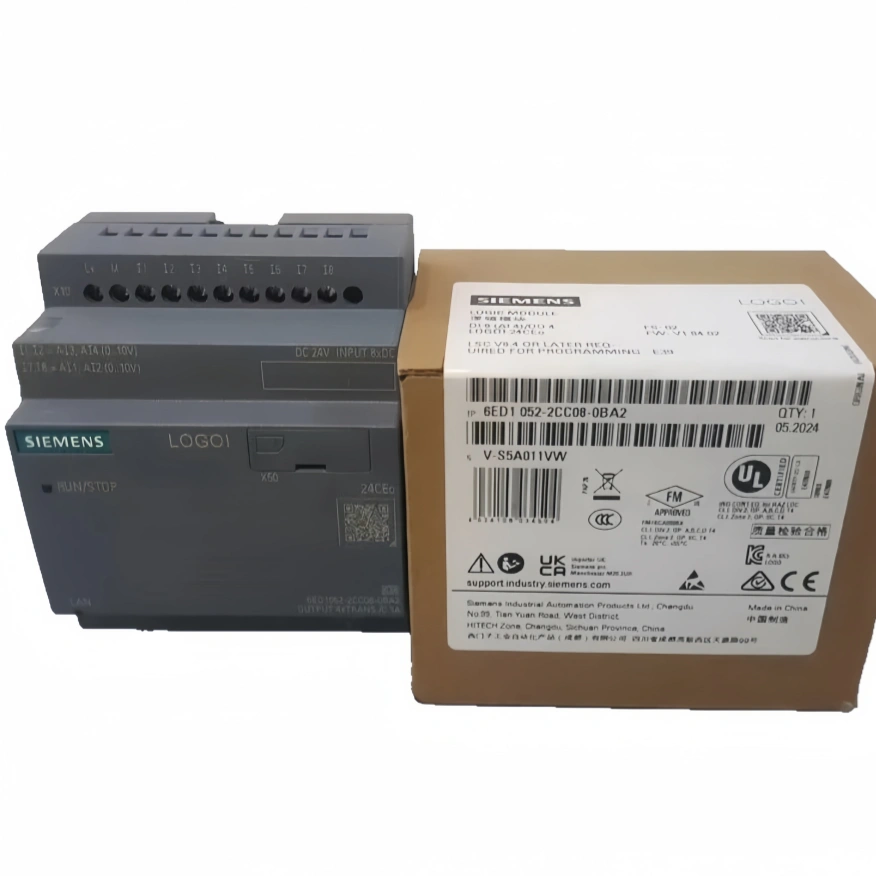

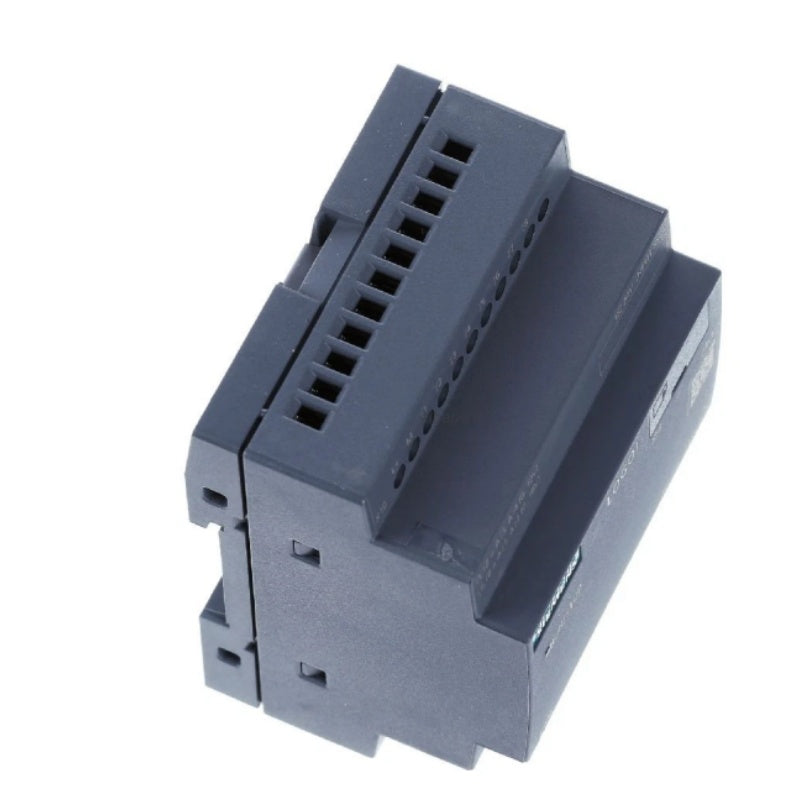

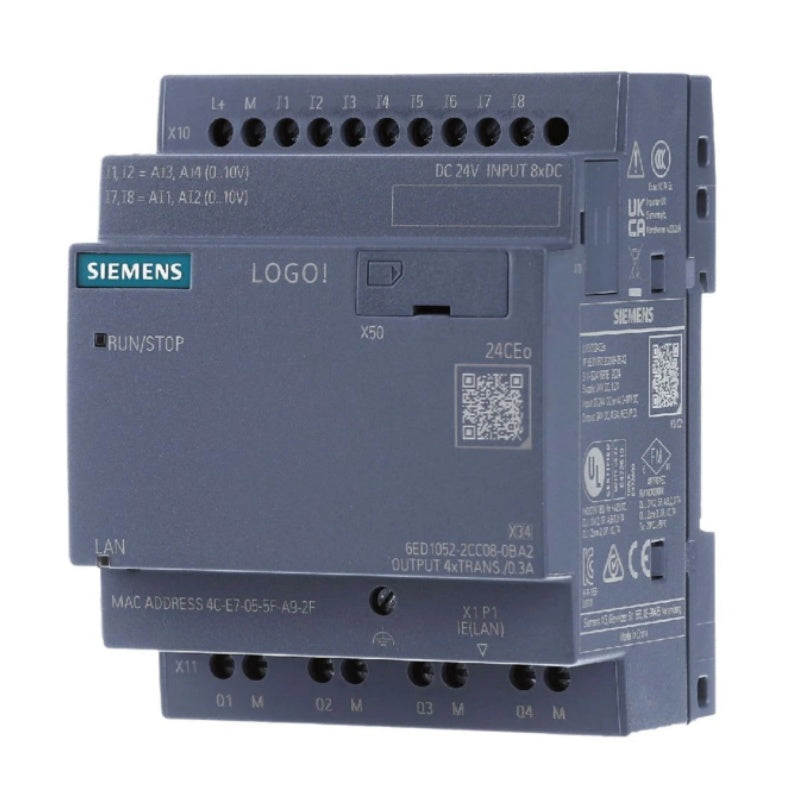

SIEMENS 6ED1052-2CC08-0BA2 Logic Control Module 24VDC 8DI(4AI) 4DO
Available in stock (400)
Regular price
$115.21
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ED1052-2CC08-0BA2 |
| Product Category | Logic Control Module |
| Display | Without Display |
| Supply Voltage | 24 VDC |
| Permissible DC Supply Range | 20.4-28.8 VDC |
| Digital Inputs | 8 |
| Analog-Capable Inputs | 4 of 8 Digital Inputs |
| Digital Outputs | 4 Transistor Outputs |
| Program Capacity | 400 Blocks |
| Expansion | Modularly Expandable |
| Communication | Ethernet |
| Web Server | Integrated |
| Data Logging | Supported |
| Memory Card | Standard microSD Card |
| Cloud Connection | Supported |
| MQTT | Supported |
| Mounting | 35 mm DIN Rail, 4 Spacing Units |
Key Features
8 Digital Inputs
The logic module provides eight digital inputs, with four inputs also available for analog input functions.
4 Transistor Outputs
Four transistor digital outputs are provided for applicable control and switching tasks.
400-Block Program Capacity
The documented program capacity supports up to 400 function blocks for programmable LOGO! control tasks.
Ethernet and Web Server
Ethernet communication and an integrated web server are included for supported networking and web-based functions.
Cloud and MQTT Functions
The LOGO! 8.4 basic unit supports cloud connection and MQTT functions as documented by Siemens.
Applications
- Machine control applications
- Industrial automation control
- Pump control systems
- Building automation functions
- Lighting control applications
- Time-based control systems
- Small equipment control panels
- Industrial process control tasks
Purchase Information
We support online purchase of the SIEMENS 6ED1052-2CC08-0BA2 Logic Control Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ED1052-2CC08-0BA2?
SIEMENS 6ED1052-2CC08-0BA2 is the LOGO! 24CEo logic module without display, designed with 24 VDC supply, integrated I/O and Ethernet functions.
Does 6ED1052-2CC08-0BA2 have a display?
No. Siemens identifies the LOGO! 24CEo as a logic module without display.
What supply voltage does 6ED1052-2CC08-0BA2 use?
The documented rated supply is 24 VDC, with a permissible DC range of 20.4-28.8 VDC.
How many digital inputs does the module provide?
The module provides eight digital inputs, four of which can also be used as analog inputs.
How many digital outputs are included?
The module provides four transistor digital outputs.
What is the program capacity?
Siemens specifies a program capacity of up to 400 blocks.
Does 6ED1052-2CC08-0BA2 support Ethernet?
Yes. Ethernet communication is integrated into the LOGO! 24CEo module.
Does the module include a web server?
Yes. Siemens documents an integrated web server and support for user-defined web pages.
Can a microSD card be used?
Yes. Siemens specifies support for a standard microSD card for supported LOGO! software and data functions.
Does 6ED1052-2CC08-0BA2 support MQTT?
Yes. Siemens lists MQTT functionality for LOGO! 8.4 basic units, including this catalog number.
How is 6ED1052-2CC08-0BA2 mounted?
The module is designed for installation on a 35 mm DIN rail and occupies four spacing units.
What should be checked before ordering 6ED1052-2CC08-0BA2?
Check the complete model number, 24 VDC power requirements, required digital and analog I/O, transistor output requirements, Ethernet functions, mounting space and system documentation before ordering.
