8 Digital Inputs
The module provides eight digital inputs, with four inputs also usable for 0-10 V analog signals.

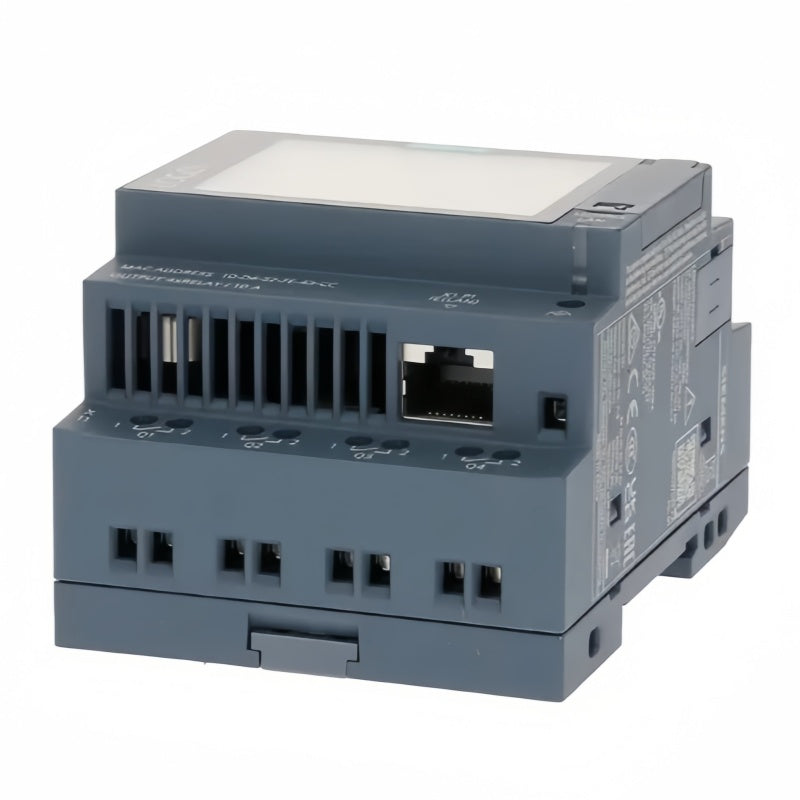

SIEMENS 6ED1052-1MD08-0BA3 Logic Module 12/24 VDC 8 DI 4 Relay DO
Available in stock (200)
Regular price
$131.65
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ED1052-1MD08-0BA3 |
| Product Category | Logic Module |
| Product Family | LOGO! 9 |
| Product Designation | LOGO! 12/24RCE |
| Display | Integrated Display |
| Supply Voltage | 12/24 VDC |
| Permissible Supply Range | 10.8-28.8 VDC |
| Digital Inputs | 8 |
| Analog-Capable Inputs | 4 of 8 Digital Inputs |
| Analog Input Range | 0-10 V |
| Digital Outputs | 4 |
| Output Type | Relay |
| Program Memory | 800 Blocks |
| Communication | Ethernet |
| Interface | RJ45 |
| Storage Media | Standard microSD Card |
| Engineering Software | LOGO! Soft Comfort V9.0 or Higher |
| Dimensions | 71.5 x 90 x 58.5 mm |
| Protection Rating | IP20 |
Key Features
4 Relay Outputs
The documented output configuration consists of four digital relay outputs.
12/24 VDC Supply
The module operates from a 12/24 VDC supply with a documented permissible range of 10.8-28.8 VDC.
800-Block Memory
The documented maximum program memory supports up to 800 blocks.
Ethernet Interface
An RJ45 Ethernet interface supports programming and documented network functions of the LOGO! 9 platform.
Web and Data Functions
The documented functions include an integrated web server, data logging, user-defined web pages, cloud connectivity and MQTT.
Applications
- Industrial machine control
- Manufacturing process control
- Compact automation systems
- Building control applications
- Pump control systems
- Filter system control
- Time-program control applications
- Ethernet-connected automation control
Purchase Information
We support online purchase of the SIEMENS 6ED1052-1MD08-0BA3 Logic Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ED1052-1MD08-0BA3?
SIEMENS 6ED1052-1MD08-0BA3 is a LOGO! 9 12/24RCE logic module with an integrated display, eight digital inputs and four relay outputs.
What supply voltage does 6ED1052-1MD08-0BA3 use?
The module is specified for 12/24 VDC supply, with a documented permissible range of 10.8-28.8 VDC.
How many digital inputs does 6ED1052-1MD08-0BA3 provide?
It provides eight digital inputs.
Can 6ED1052-1MD08-0BA3 accept analog input signals?
Four of its eight digital inputs can also be used as analog inputs for 0-10 V signals.
How many outputs does 6ED1052-1MD08-0BA3 provide?
The module provides four digital relay outputs.
What is the program memory capacity?
The documented maximum program memory is 800 blocks.
Does 6ED1052-1MD08-0BA3 support Ethernet?
Yes. The module provides Ethernet connectivity through an RJ45 interface.
What web and communication functions are documented?
The documented functions include an integrated web server, user-defined web pages, cloud connectivity and MQTT.
Does the module support data logging?
Yes. Data logging is documented using internal memory or an SD card.
What engineering software is specified?
The documented engineering software is LOGO! Soft Comfort V9.0 or higher.
What are the dimensions of 6ED1052-1MD08-0BA3?
The documented dimensions are 71.5 x 90 x 58.5 mm.
What should be checked before ordering 6ED1052-1MD08-0BA3?
Check the complete model number, 12/24 VDC supply requirements, required digital and analog signals, relay output requirements, Ethernet functions and engineering environment against the project documentation before purchasing.
