115/230 V Operation
The LOGO! 230RCE configuration is specified with 115 V / 230 V power supply and relay I/O.

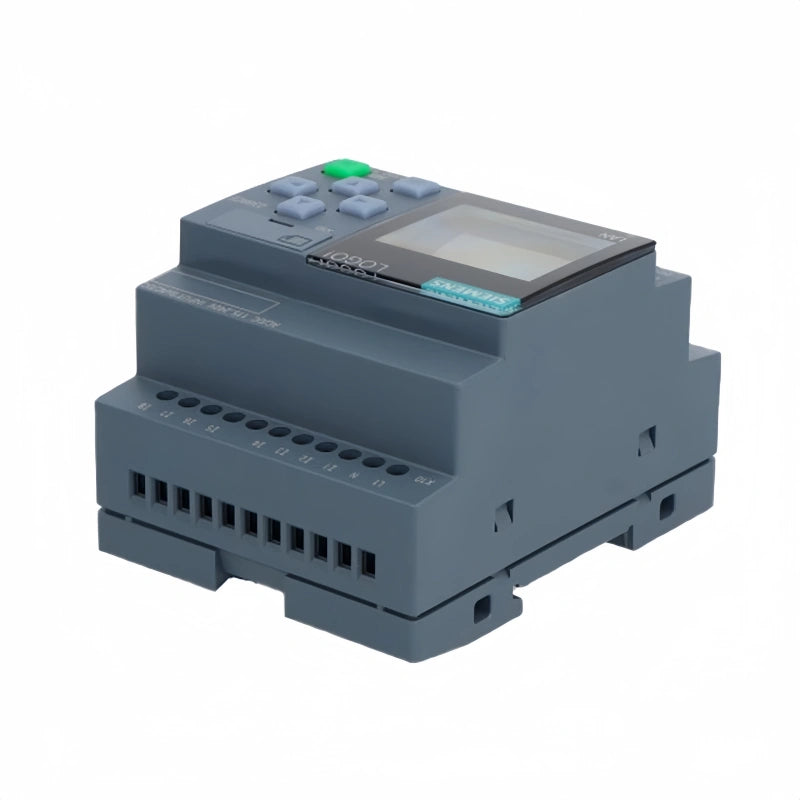

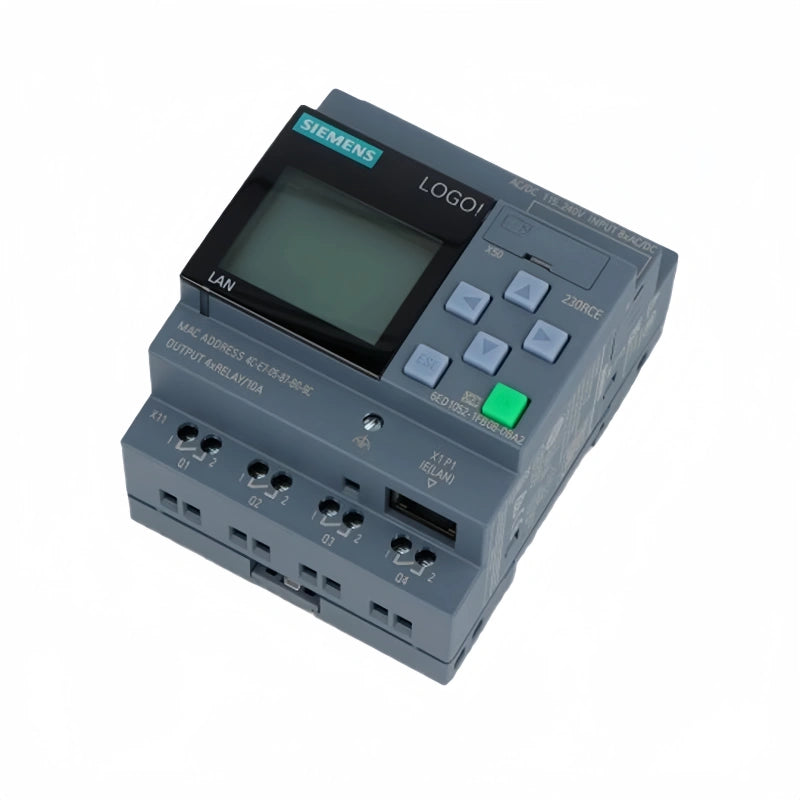

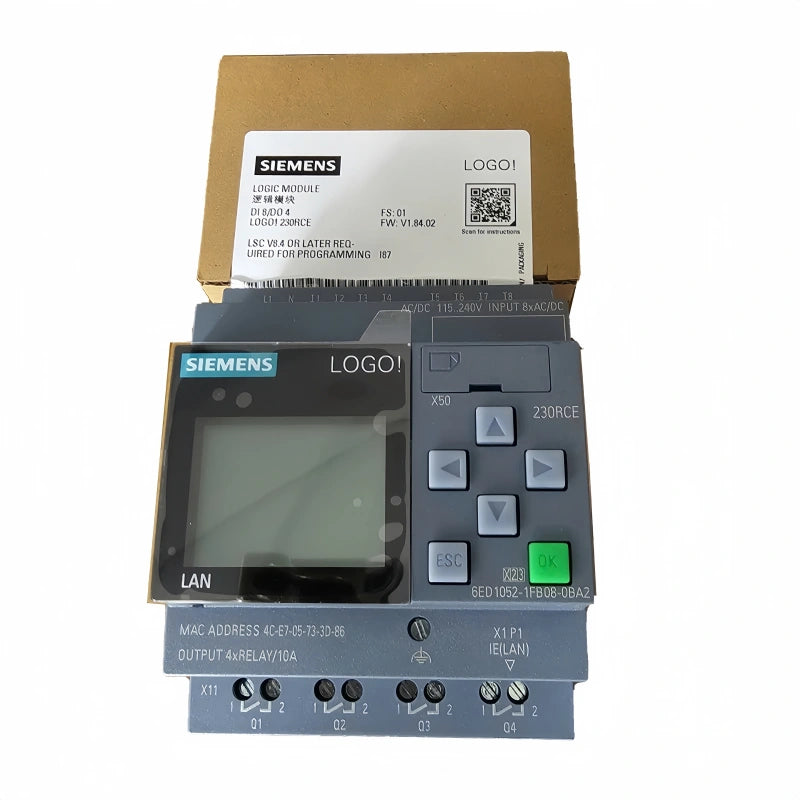

SIEMENS 6ED1052-1FB08-0BA2 Logic Control Module 115/230V 8DI 4DO
Available in stock (400)
Regular price
$107.97
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ED1052-1FB08-0BA2 |
| Product Category | Logic Control Module |
| Product Family | LOGO! Basic Modules with Display |
| Product Type | LOGO! 230RCE Logic Module |
| Power Supply / I/O | 115 V / 230 V / Relay |
| Digital Inputs | 8 |
| Digital Outputs | 4 |
| Output Type | Relay |
| Program Memory | 400 Blocks |
| Communication Interface | Ethernet |
| Web Server | Integrated |
| Data Logging | Supported |
| Memory Card | Standard microSD Card |
| Engineering Software | LOGO! Soft Comfort V8.4 or Higher |
| Cloud Connection | Supported |
| MQTT | Supported |
Key Features
8 Digital Inputs
The logic module provides eight integrated digital inputs for control and monitoring functions.
4 Relay Outputs
The documented I/O configuration includes four relay digital outputs.
400-Block Memory
The published product description specifies memory capacity for 400 function blocks.
Ethernet and Web Server
The module includes Ethernet communication and an integrated web server for supported network functions.
Data Logging and MQTT
The LOGO! 8.4 basic unit supports data logging, cloud connection and MQTT functions.
Applications
- Small machine control systems
- Building automation applications
- Lighting control systems
- Pump control applications
- Time-based control functions
- Equipment status monitoring
- Relay output control applications
- Network-connected logic control
Purchase Information
We support online purchase of the SIEMENS 6ED1052-1FB08-0BA2 Logic Control Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6ED1052-1FB08-0BA2?
SIEMENS 6ED1052-1FB08-0BA2 is a LOGO! 230RCE logic control module with display.
What power supply is specified for 6ED1052-1FB08-0BA2?
Siemens identifies the LOGO! 230RCE configuration with 115 V / 230 V power supply and relay I/O.
How many digital inputs does 6ED1052-1FB08-0BA2 provide?
The module provides eight digital inputs.
How many digital outputs does the module provide?
The documented configuration includes four digital outputs.
What output type does 6ED1052-1FB08-0BA2 use?
The outputs are specified as relay outputs.
What is the program memory capacity?
Siemens specifies memory capacity for 400 function blocks.
Does 6ED1052-1FB08-0BA2 support Ethernet?
Yes. Ethernet communication is included in the published product configuration.
Does the module include a web server?
Yes. Siemens specifies an integrated web server and support for user-defined web pages.
Does 6ED1052-1FB08-0BA2 support data logging?
Yes. Data logging is included in the documented functionality.
What memory card can be used with the module?
Siemens specifies support for a standard microSD card.
What engineering software is specified?
The current published product description specifies LOGO! Soft Comfort V8.4 or higher while also stating that older projects can be executed.
What should be checked before ordering 6ED1052-1FB08-0BA2?
Check the complete model number, 115 V / 230 V supply requirements, eight digital inputs, four relay outputs, required Ethernet functions and engineering software requirements against the intended system.
