7-Inch Touch Display
The SMART 700 IE V3 provides a 7-inch widescreen TFT display with touch operation for industrial machine control and process visualization.

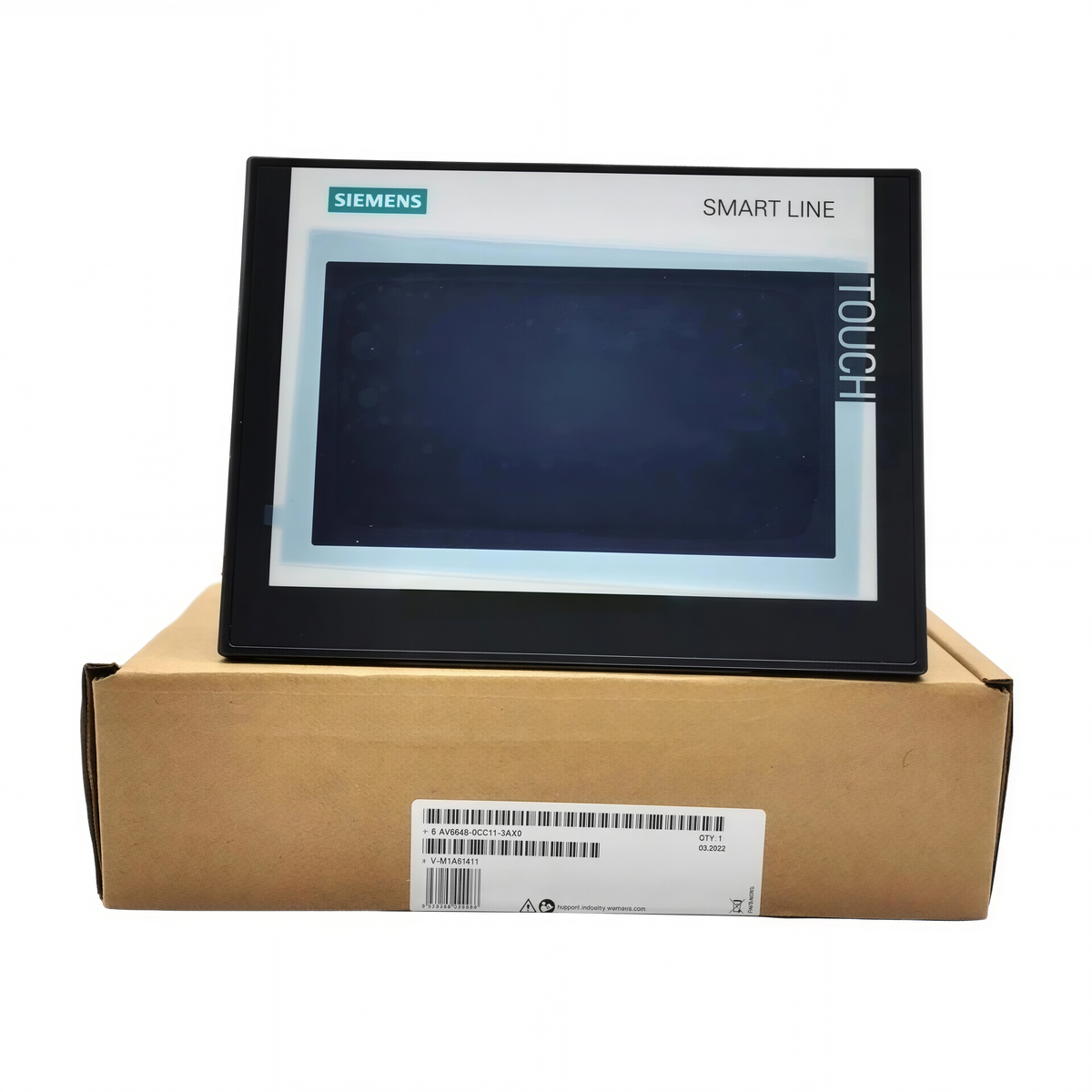

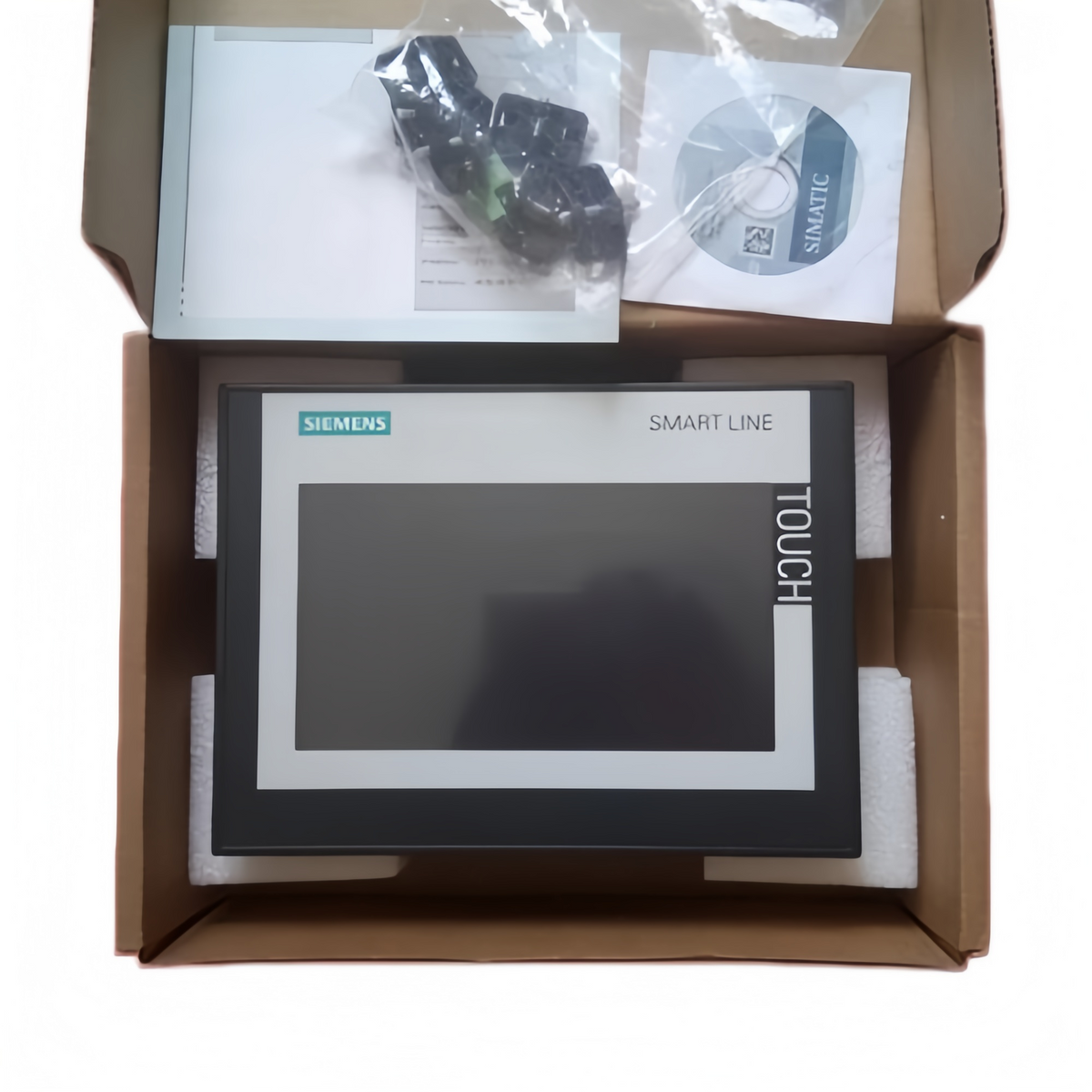

SIEMENS 6AV6648-0CC11-3AX0 SMART 700 IE V3 HMI Touch Panel 7in 24VDC
Available in stock (400)
Regular price
$143.03
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6AV6648-0CC11-3AX0 |
| Product Category | HMI Touch Panel |
| Product Type | SIMATIC HMI SMART 700 IE V3 |
| Product Family | SIMATIC HMI SMART Panel |
| Operation | Touch |
| Display Type | Widescreen TFT |
| Screen Diagonal | 7 in |
| Display Resolution | 800 x 480 Pixels |
| Display Colors | 65,536 |
| Rated Supply Voltage | 24 VDC |
| Communication Interface | RS422/485 |
| Ethernet Interface | RJ45 |
| USB Interface | USB Host Type A |
| Real-Time Clock | Supported |
| Configuration Software | WinCC flexible SMART |
Key Features
800 x 480 Resolution
The widescreen display provides 800 x 480 pixel resolution and supports 65,536 colors for graphical HMI applications.
Industrial Communication
The panel provides an RS422/485 serial interface together with an Ethernet RJ45 interface for applicable automation communication configurations.
24 VDC Supply
The SMART 700 IE V3 uses a 24 VDC power supply for integration into industrial control systems.
USB Host Interface
A USB host Type A interface is provided for applicable USB storage and HMI data functions supported by the panel configuration.
RTC Support
The panel includes real-time clock support for time-related functions within configured HMI applications.
Applications
- Industrial machine operator interfaces
- PLC monitoring and control systems
- Factory automation equipment
- Production line visualization
- Machine status monitoring
- Industrial control panels
- Process visualization systems
- RS422/485 and Ethernet automation networks
Purchase Information
We support online purchase of the SIEMENS 6AV6648-0CC11-3AX0 HMI Touch Panel. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6AV6648-0CC11-3AX0?
It is a SIMATIC HMI SMART 700 IE V3 touch-operated SMART Panel for industrial operator control and visualization.
What is the display size of the SMART 700 IE V3?
The panel has a 7-inch widescreen TFT display.
What is the display resolution?
The documented resolution is 800 x 480 pixels.
How many colors does the display support?
The display supports 65,536 colors.
What supply voltage does 6AV6648-0CC11-3AX0 use?
The panel uses a rated 24 VDC power supply.
Does the panel provide Ethernet connectivity?
Yes. An Ethernet RJ45 interface is provided.
Does 6AV6648-0CC11-3AX0 have a serial interface?
Yes. The panel provides an RS422/485 interface.
Does the SMART 700 IE V3 provide a USB interface?
Yes. It provides a USB host Type A interface.
Does the panel support a real-time clock?
Yes. RTC support is included in the documented product configuration.
Which software is used to configure 6AV6648-0CC11-3AX0?
The panel is configurable with WinCC flexible SMART.
Can 6AV6648-0CC11-3AX0 be considered for an existing HMI system?
It can be considered after the exact article number, 7-inch panel dimensions, 24 VDC supply, RS422/485 and Ethernet communication requirements, controller configuration and HMI project requirements have been checked.
What should be checked before ordering?
Check the complete 6AV6648-0CC11-3AX0 article number together with the 7-inch display requirement, 24 VDC supply, communication interfaces, mounting arrangement and WinCC flexible SMART project requirements before ordering.
