5.7-Inch Touchscreen
The TP177B provides a 5.7-inch touch-operated display with 320 x 240 pixel resolution for machine operation and process visualization.

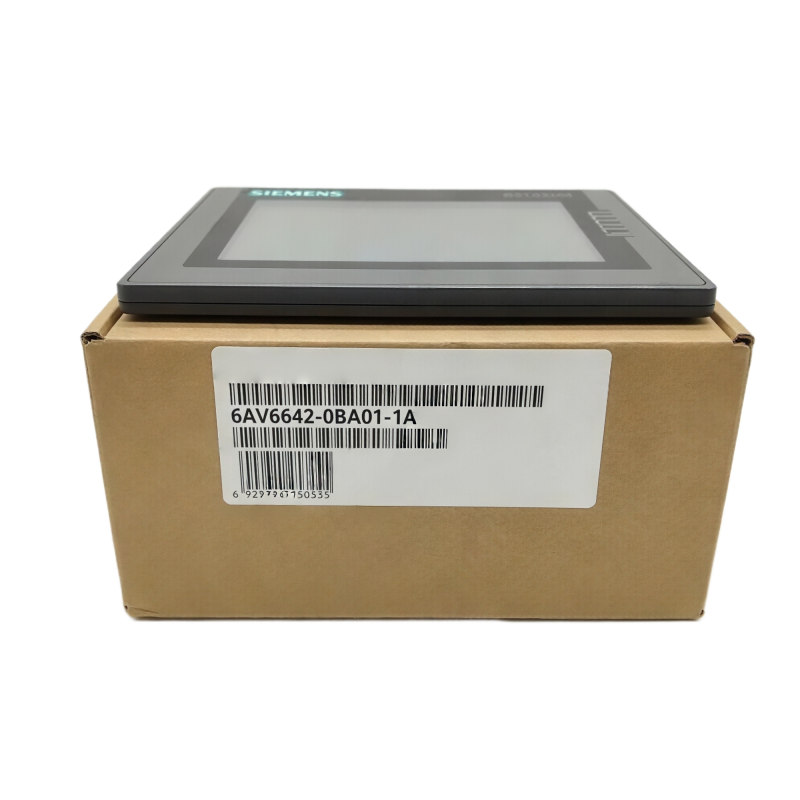

SIEMENS 6AV6642-0BA01-1AX1 TP177B HMI Touch Panel 5.7in 24VDC
Available in stock (400)
Regular price
$445.98
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6AV6642-0BA01-1AX1 |
| Product Category | HMI Touch Panel |
| Product Type | SIMATIC TP177B 6 inch PN/DP |
| Product Family | SIMATIC HMI 170 Series |
| Operation | Touchscreen |
| Display Type | STN Display |
| Screen Size | 5.7 in |
| Display Resolution | 320 x 240 Pixels |
| Display Colors | 256 |
| Rated Supply Voltage | 24 VDC |
| Permissible Supply Range | 20.4-28.8 VDC |
| PROFINET Interface | 1 x Ethernet RJ45 |
| MPI / PROFIBUS DP Interface | 1 x RS485 |
| USB Interface | 1 x USB |
| Configuration Memory | 2 MB |
| Degree of Protection, Front | IP65 |
| Configuration Software | WinCC flexible |
Key Features
PROFINET Connectivity
An integrated Ethernet RJ45 interface supports PROFINET communication for applicable industrial automation network configurations.
MPI / PROFIBUS DP
The panel provides an RS485 interface for applicable MPI and PROFIBUS DP communication within Siemens automation systems.
24 VDC Supply
The HMI operates from a rated 24 VDC supply with a documented permissible voltage range of 20.4 to 28.8 VDC.
2 MB Configuration Memory
The TP177B provides 2 MB of configuration memory for storing the configured HMI project and associated visualization data.
IP65 Front Protection
The front of the operator panel is specified with IP65 protection when installed according to the applicable mounting requirements.
Applications
- Industrial machine operator interfaces
- PLC monitoring and control systems
- Production line visualization
- Factory automation equipment
- PROFINET automation networks
- MPI and PROFIBUS DP systems
- Industrial control panels
- Process monitoring applications
Purchase Information
We support online purchase of the SIEMENS 6AV6642-0BA01-1AX1 HMI Touch Panel. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6AV6642-0BA01-1AX1?
It is a SIMATIC TP177B 6 inch PN/DP touch-operated HMI panel for industrial operator control and visualization.
What is the display size?
The TP177B uses a 5.7-inch display.
What is the display resolution?
The documented display resolution is 320 x 240 pixels.
How many colors does the display support?
The display supports 256 colors.
What supply voltage does 6AV6642-0BA01-1AX1 use?
The rated supply voltage is 24 VDC, with a documented permissible range of 20.4 to 28.8 VDC.
Does the TP177B support PROFINET?
Yes. The panel provides an Ethernet RJ45 interface for applicable PROFINET communication.
Does it support PROFIBUS DP?
Yes. The RS485 interface supports applicable MPI and PROFIBUS DP communication.
Does 6AV6642-0BA01-1AX1 provide a USB interface?
Yes. A USB interface is provided.
How much configuration memory is available?
The documented configuration memory capacity is 2 MB.
What is the front protection rating?
The front of the panel is specified with IP65 protection when correctly installed.
Can 6AV6642-0BA01-1AX1 be considered for an existing HMI system?
It can be considered after the exact article number, display requirements, 24 VDC supply, PROFINET or PROFIBUS communication, panel cutout, configuration software and existing HMI project have been checked.
What should be checked before ordering?
Check the complete 6AV6642-0BA01-1AX1 article number together with the 5.7-inch display, 24 VDC supply, communication interfaces, mounting dimensions and WinCC flexible project requirements before ordering.
