10.4 in Touchscreen
The TP 270 provides a 10.4-inch touchscreen for operator input and visualization in industrial automation applications.

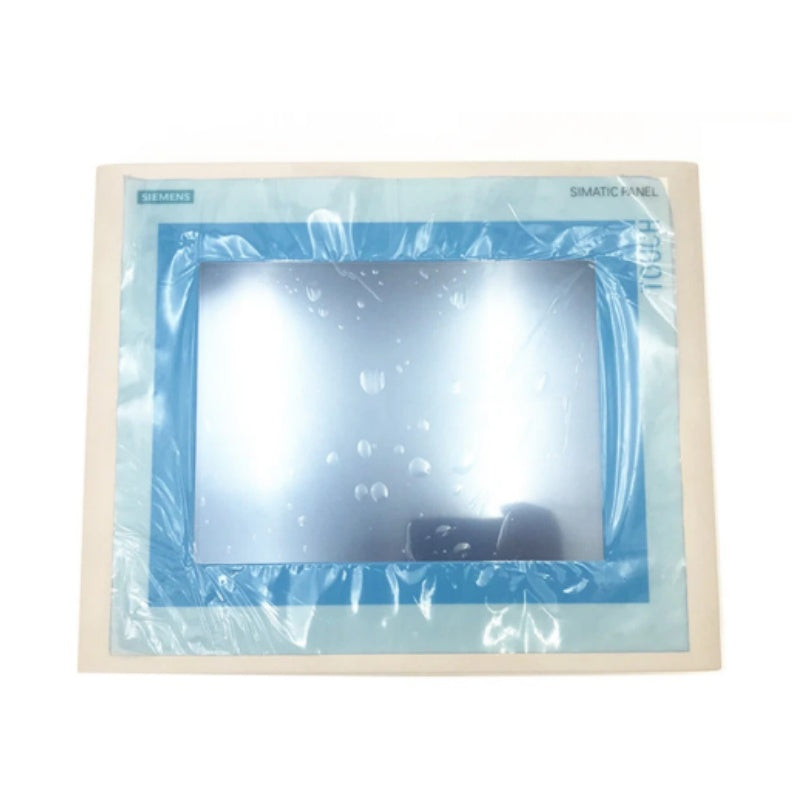

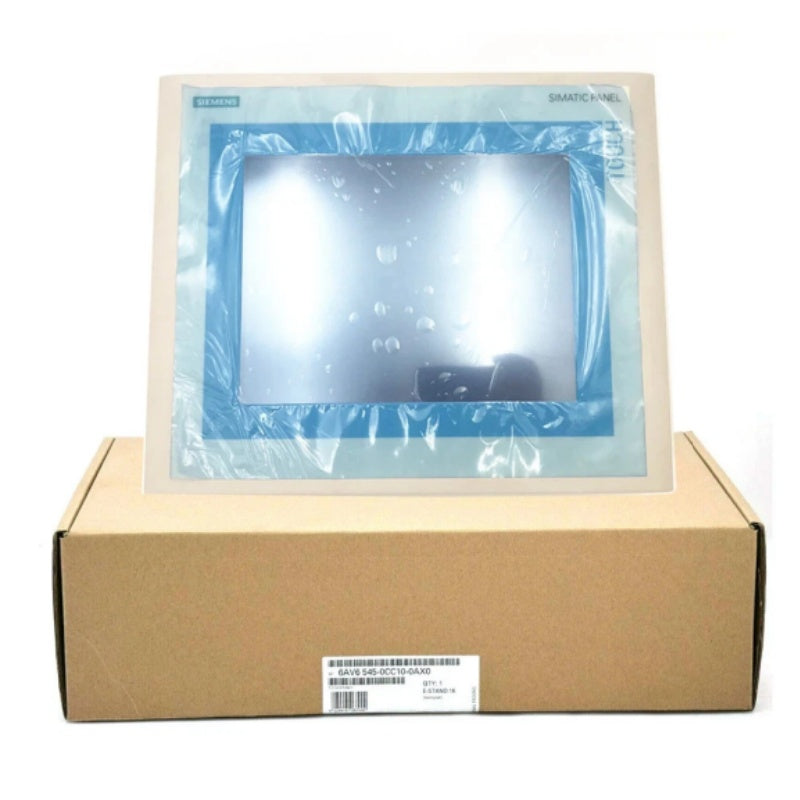

SIEMENS 6AV6545-0CC10-0AX0 TP270 HMI Touch Panel 10.4in 640x480 2MB
Available in stock (400)
Regular price
$291.49
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6AV6545-0CC10-0AX0 |
| Product Category | HMI Touch Panel |
| Product Family | SIMATIC HMI |
| Panel Type | TP 270 10 |
| Display Type | STN Color, 256 Colors |
| Screen Size | 10.4 in |
| Resolution | 640 x 480 Pixels |
| Operator Control | Touchscreen |
| Configuration Memory | 2 MB |
| Configuration Software | ProTool V6.0 or Later |
| Interfaces | 2 x RS232, 1 x RS422, 1 x RS485 |
| Maximum Interface Transmission Rate | 12 Mbps |
| Front Dimensions | 335 x 275 mm |
| Mounting Cutout | 310 x 248 mm |
| Overall Depth | 59 mm |
Key Features
640 x 480 Resolution
The STN color display provides a documented resolution of 640 x 480 pixels and supports 256 colors.
2 MB Configuration Memory
The 6AV6545-0CC10-0AX0 provides 2 MB of configuration memory for HMI project data.
ProTool Configuration
Siemens specifies configuration with ProTool software from version V6.0.
Serial Interfaces
The documented interface configuration includes two RS232 interfaces, one RS422 interface and one RS485 interface.
SIMATIC HMI TP 270
The complete article number identifies the device as a SIMATIC HMI TP 270 10 touch panel.
Applications
- Industrial machine visualization
- Machine operator control
- Production process monitoring
- Industrial process visualization
- Equipment status monitoring
- Operator data entry
- Industrial automation HMI applications
- Machine and system diagnostics
Purchase Information
We support online purchase of the SIEMENS 6AV6545-0CC10-0AX0 HMI Touch Panel. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6AV6545-0CC10-0AX0?
SIEMENS 6AV6545-0CC10-0AX0 is a SIMATIC HMI TP 270 10 touch panel for industrial operator control and visualization.
What screen size does 6AV6545-0CC10-0AX0 have?
The documented screen diagonal is 10.4 inches.
What display technology does the TP 270 use?
The panel uses an STN color display supporting 256 colors.
What is the display resolution?
The documented resolution is 640 x 480 pixels.
How is the TP 270 operated?
The operator control element is a touchscreen.
How much configuration memory does 6AV6545-0CC10-0AX0 provide?
The panel provides 2 MB of configuration memory.
Which configuration software is specified for this panel?
Siemens specifies configuration with ProTool from version V6.0.
What interfaces are provided on 6AV6545-0CC10-0AX0?
The documented interface configuration includes two RS232 interfaces, one RS422 interface and one RS485 interface.
What are the front dimensions of the panel?
The documented housing front dimensions are 335 x 275 mm.
What mounting cutout is specified?
The documented mounting cutout is 310 x 248 mm.
What applications can this TP 270 panel be considered for?
It can be considered for industrial machine visualization, operator control, process monitoring and related HMI applications after system requirements have been checked.
What should be checked before ordering 6AV6545-0CC10-0AX0?
Check the complete article number, 10.4-inch display requirement, 640 x 480 resolution, communication interfaces, ProTool project requirements and mechanical installation dimensions before ordering.
