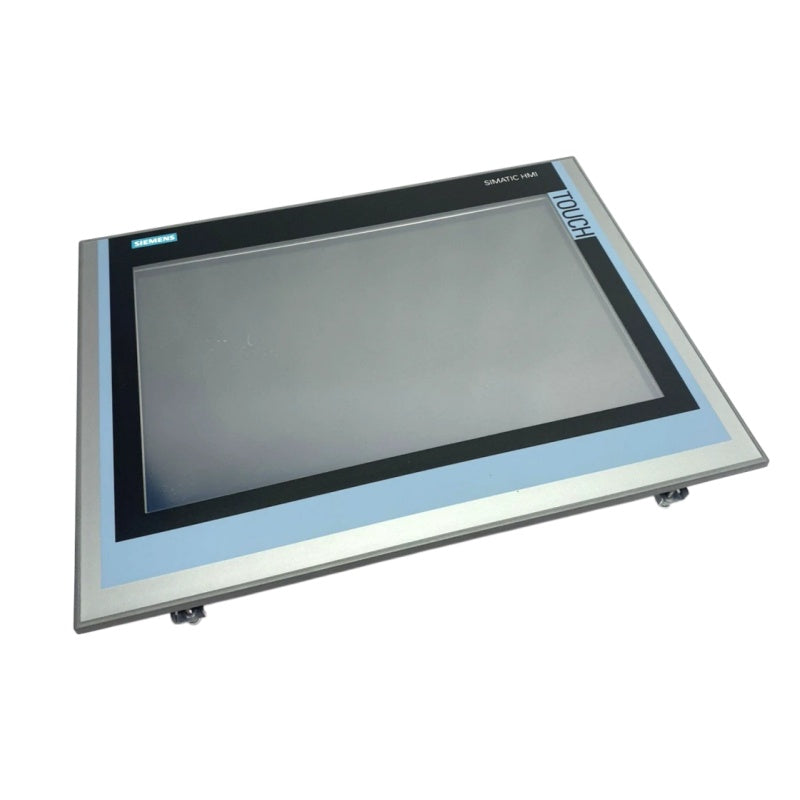

15.4-Inch TFT Display
The TP1500 Comfort uses a 15.4-inch widescreen TFT display with 1280 x 800 pixel resolution.

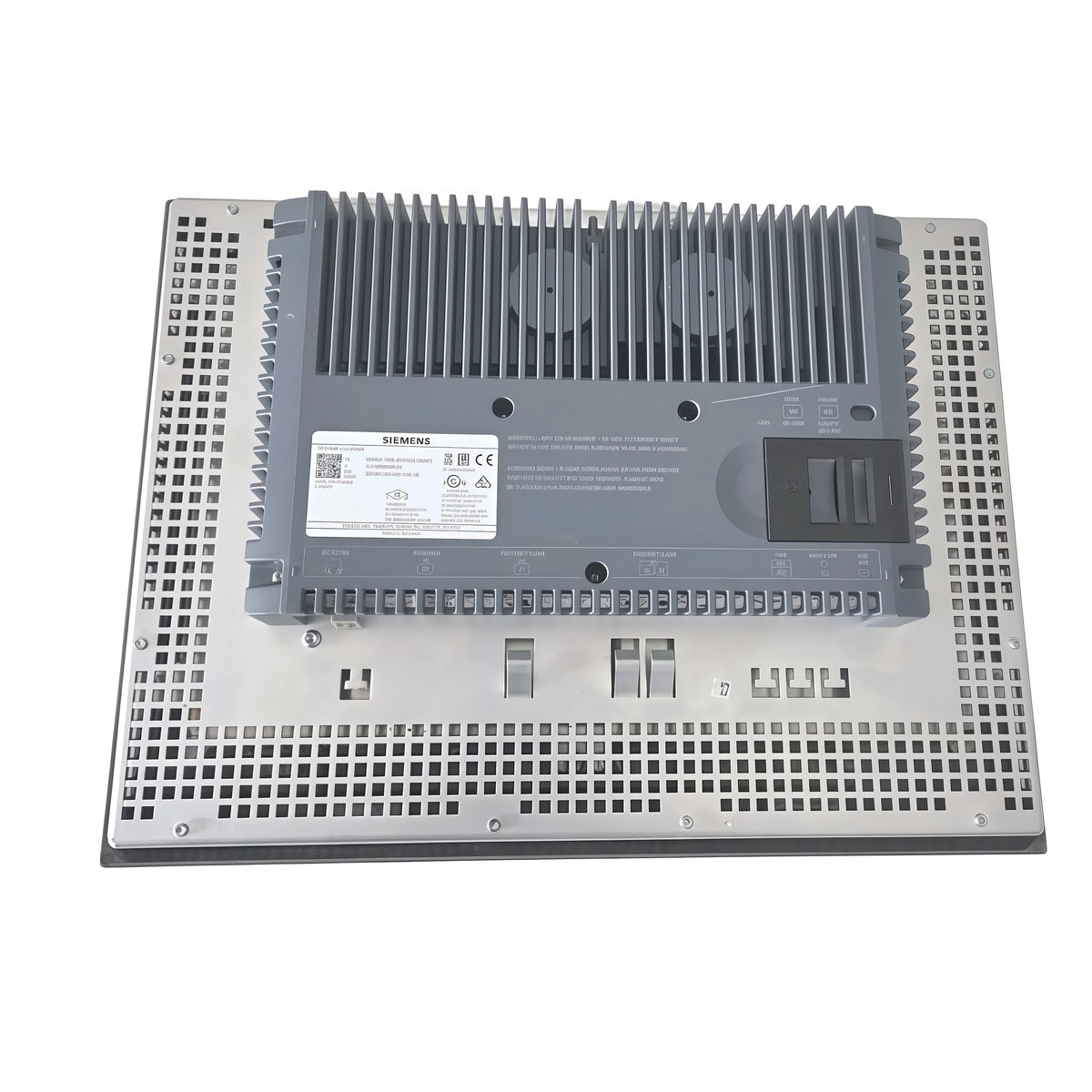

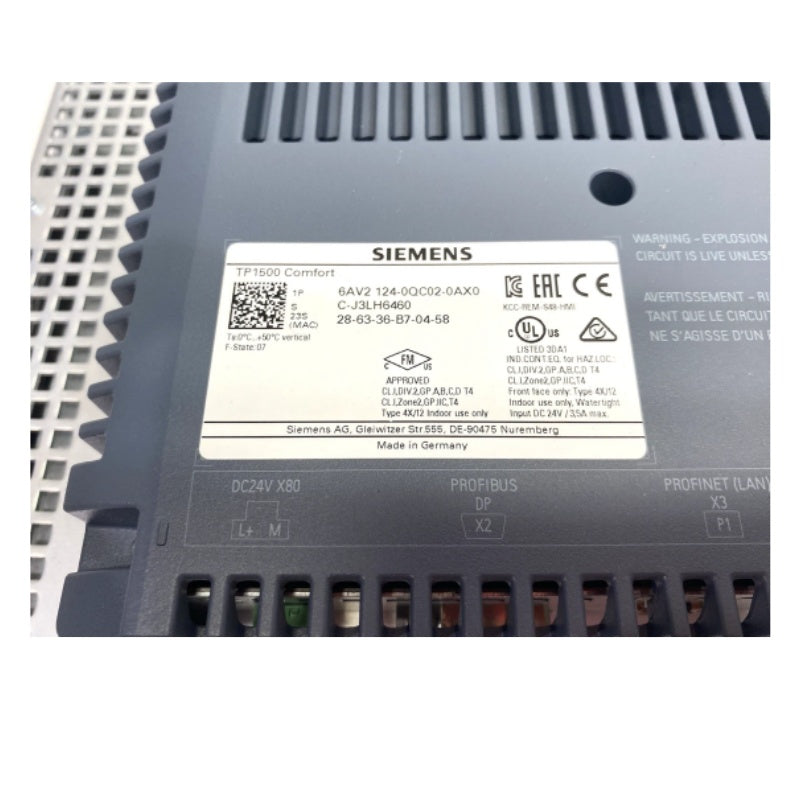

SIEMENS 6AV2124-0QC02-0AX0 HMI Touch Panel 15.4in 1280x800 24VDC
Available in stock (400)
Regular price
$2,463.98
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6AV2124-0QC02-0AX0 |
| Product Category | HMI Touch Panel |
| Product Type Designation | TP1500 Comfort |
| Panel Type | SIMATIC HMI Comfort Panel |
| Display Type | TFT Widescreen |
| Screen Diagonal | 15.4 in |
| Display Resolution | 1280 x 800 pixels |
| Number of Colors | 16,777,216 |
| Touch Technology | Analog-Resistive |
| Rated Supply Voltage | 24 VDC |
| Permissible Supply Voltage | 19.2-28.8 VDC |
| Rated Current Consumption | 1.5 A |
| Typical Active Power Input | 36 W |
| Configuration Memory | 24 MB |
| Communication Interfaces | PROFINET, MPI/PROFIBUS DP |
| Operating System | Windows CE 6.0 |
| Engineering Software | WinCC Comfort V11 SP2 or Higher |
Key Features
Analog-Resistive Touch
The panel provides analog-resistive touchscreen operation for operator interaction with configured HMI functions.
16.7 Million Colors
The display supports 16,777,216 colors for visualization of configured process screens and operating information.
24 VDC Supply
The panel is rated for 24 VDC with a documented permissible supply voltage range of 19.2-28.8 VDC.
Industrial Communication
The documented communication interfaces include PROFINET and MPI/PROFIBUS DP.
24 MB Configuration Memory
The TP1500 Comfort provides 24 MB of configuration memory and is configurable with WinCC Comfort V11 SP2 or higher.
Applications
- Industrial machine visualization
- Operator control interfaces
- Factory automation systems
- Process status monitoring
- Production line operator panels
- Industrial equipment control
- PROFINET automation networks
- PROFIBUS-based control systems
Purchase Information
We support online purchase of the SIEMENS 6AV2124-0QC02-0AX0 HMI Touch Panel. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6AV2124-0QC02-0AX0?
SIEMENS 6AV2124-0QC02-0AX0 is a SIMATIC HMI TP1500 Comfort touch-operated Comfort Panel for industrial visualization and operator control.
What is the screen size of 6AV2124-0QC02-0AX0?
The TP1500 Comfort has a documented screen diagonal of 15.4 inches.
What display resolution does the TP1500 Comfort provide?
The documented display resolution is 1280 x 800 pixels.
What type of touchscreen does 6AV2124-0QC02-0AX0 use?
The panel uses an analog-resistive touchscreen.
What supply voltage does 6AV2124-0QC02-0AX0 use?
The rated supply voltage is 24 VDC with a documented permissible range of 19.2-28.8 VDC.
What communication interfaces are provided?
The documented interfaces include PROFINET and MPI/PROFIBUS DP.
How much configuration memory does the panel provide?
The documented configuration memory is 24 MB.
What operating system does the TP1500 Comfort use?
This model uses Windows CE 6.0.
Which engineering software is specified for this HMI?
The panel is configurable with WinCC Comfort V11 SP2 or higher.
What applications can 6AV2124-0QC02-0AX0 be considered for?
It can be considered for industrial visualization, machine operator interfaces, process monitoring and automation control applications after system requirements have been checked.
What should be checked before ordering 6AV2124-0QC02-0AX0?
Check the complete model number, display requirements, 24 VDC supply, communication interfaces, engineering software and installation requirements against the existing system documentation.
