10.1-Inch Widescreen TFT
The MTP1000 Unified Basic Panel uses a 10.1-inch widescreen TFT display for HMI visualization and touch-based operator interaction.

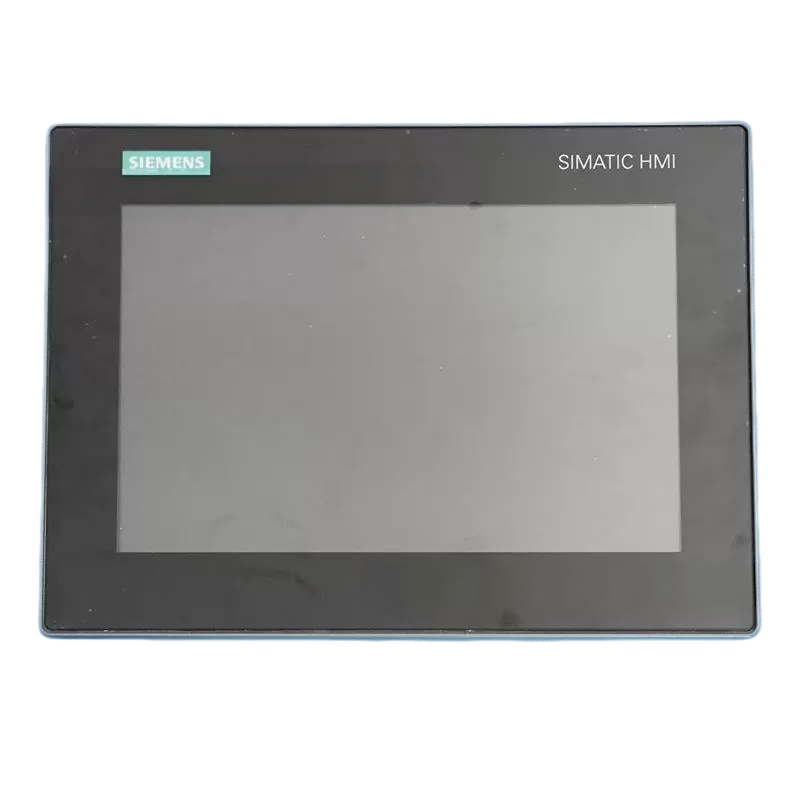

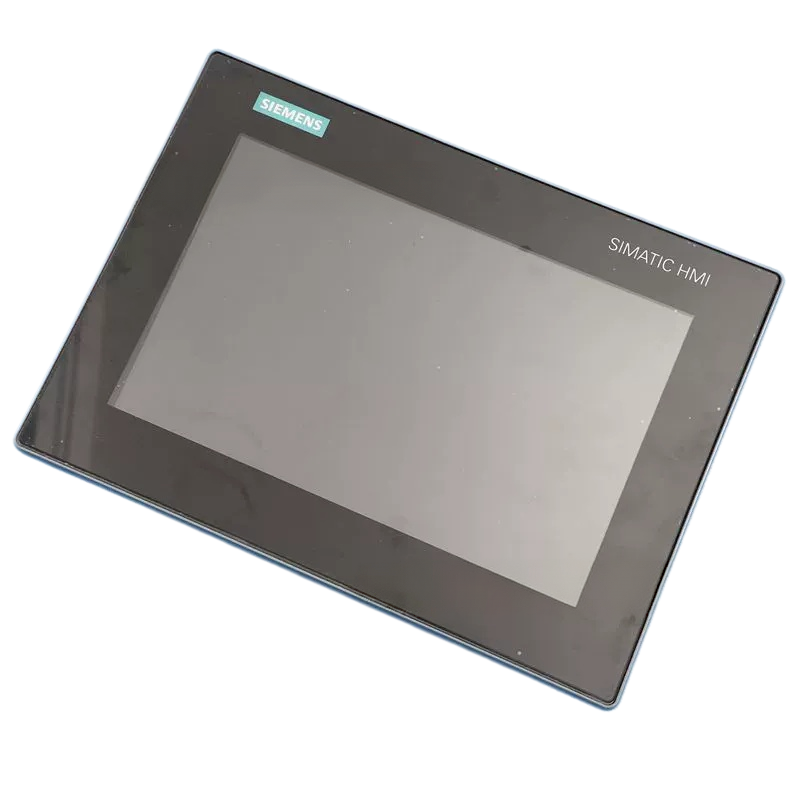

SIEMENS 6AV2123-3KB32-0AW0 HMI 10.1-Inch TFT 1280x800
Available in stock (400)
Regular price
$577.09
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6AV2123-3KB32-0AW0 |
| Product Category | HMI |
| Product Designation | SIMATIC HMI MTP1000 Unified Basic Panel |
| Product Family | SIMATIC HMI Unified Basic Panels Standard |
| Operation | Touch Operation |
| Display | 10.1-Inch Widescreen TFT |
| Display Resolution | 1280 x 800 Pixels |
| Display Colors | 16 Million |
| Interface | Gigabit Ethernet IE/PN, RJ45 |
| PROFINET | Yes |
| USB Interfaces | 2 x USB 2.0 |
| Rated Supply Voltage | 24 VDC |
| Active Power Input, Typical | 9.3 W |
| Front Protection | IP65 |
| Rear Protection | IP20 |
| Mounting Cutout | 264 x 189 mm |
| Configuration Software | WinCC Unified Basic V18 Update 3 or Later |
Key Features
1280 x 800 Resolution
The documented display resolution is 1280 x 800 pixels for configured HMI visualization content.
16 Million Colors
The display supports 16 million colors for graphical HMI screen elements.
Gigabit Ethernet IE/PN
The panel provides one Gigabit Ethernet industrial Ethernet interface with an RJ45 connection.
Two USB 2.0 Interfaces
The documented interface configuration includes two USB 2.0 interfaces.
IP65 Front Protection
The documented protection rating is IP65 at the front and IP20 at the rear.
Applications
- Industrial machine visualization
- Operator control interfaces
- Production equipment monitoring
- Process status visualization
- Industrial automation systems
- Machine operating panels
- PROFINET-based automation interfaces
- Equipment status and alarm visualization
Purchase Information
We support online purchase of the SIEMENS 6AV2123-3KB32-0AW0 HMI. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6AV2123-3KB32-0AW0?
SIEMENS 6AV2123-3KB32-0AW0 is the SIMATIC HMI MTP1000 Unified Basic Panel with touch operation and a 10.1-inch widescreen TFT display.
What display size does 6AV2123-3KB32-0AW0 use?
The panel has a documented 10.1-inch widescreen TFT display.
What is the display resolution?
The documented display resolution is 1280 x 800 pixels.
How many colors does the display support?
The display supports 16 million colors.
What communication interface does 6AV2123-3KB32-0AW0 provide?
The documented interface is one Gigabit Ethernet industrial Ethernet interface with RJ45 connection, and PROFINET is supported.
How many USB interfaces are provided?
The panel provides two USB 2.0 interfaces.
What supply voltage does 6AV2123-3KB32-0AW0 use?
The documented rated supply voltage is 24 VDC.
What is the typical active power input?
The documented typical active power input is 9.3 W.
What protection ratings are specified?
The documented protection rating is IP65 at the front and IP20 at the rear.
What configuration software is specified?
The Siemens product documentation specifies configuration with WinCC Unified Basic V18 Update 3 or later.
What is the mounting cutout for 6AV2123-3KB32-0AW0?
The documented mounting cutout is 264 x 189 mm.
What should be checked before ordering 6AV2123-3KB32-0AW0?
Check the complete model number, display requirements, 24 VDC supply requirements, network and USB interface requirements, configuration software and installation requirements against the existing system documentation.
