12-Inch Widescreen Display
The KTP1200 Basic uses a 12-inch TFT widescreen display with LED backlighting and a 1280 x 800 pixel resolution for industrial visualization.

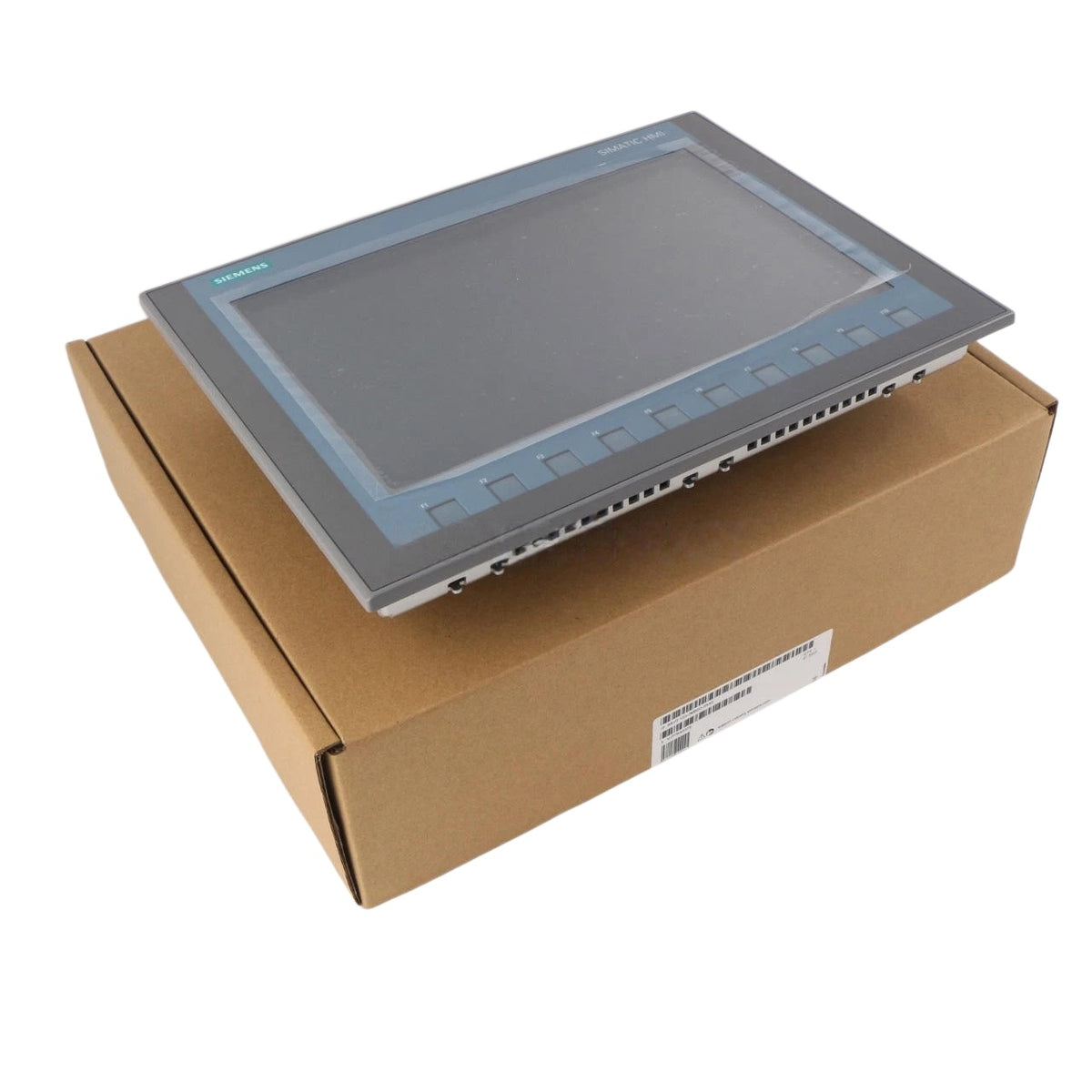

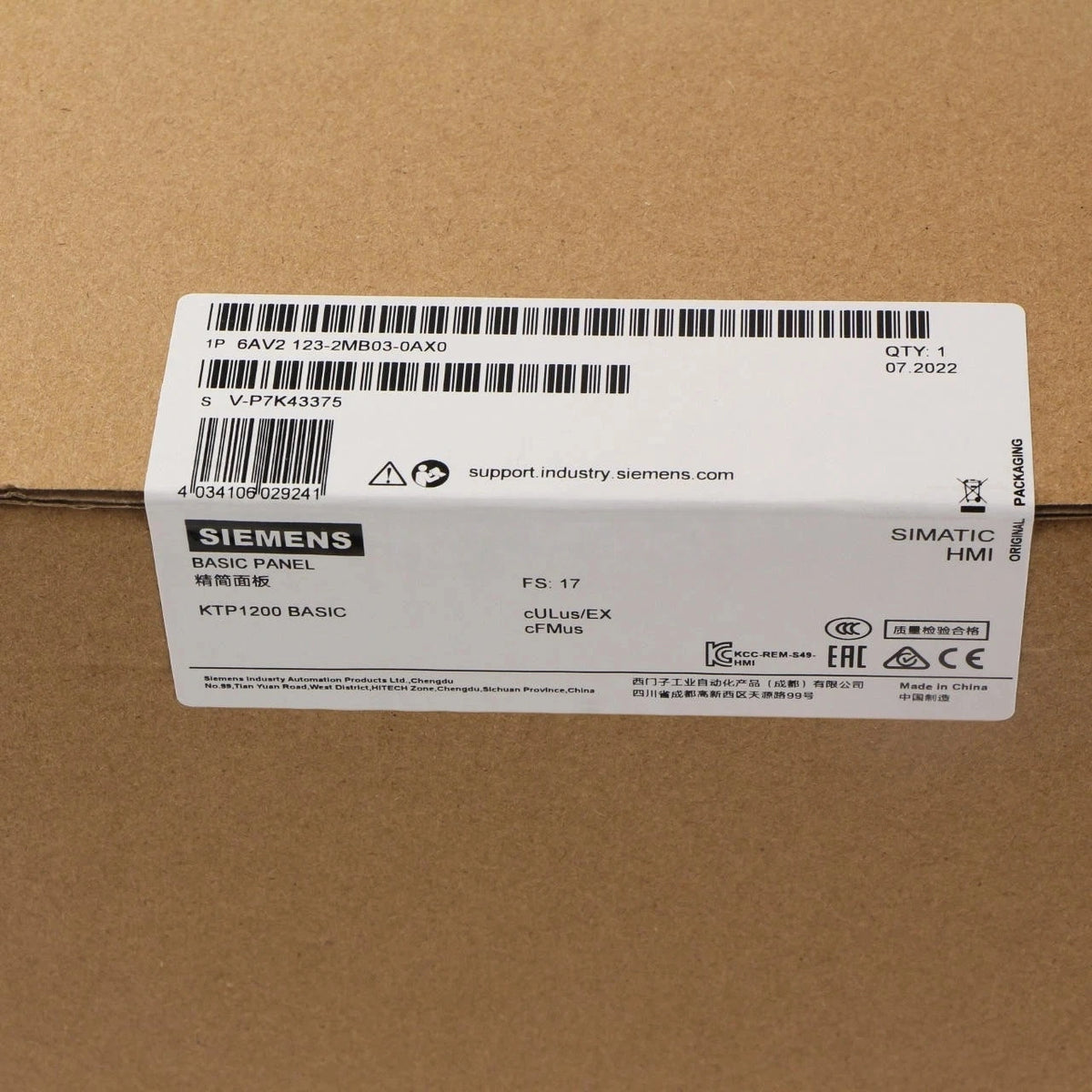

SIEMENS 6AV2123-2MB03-0AX0 KTP1200 Basic HMI Touch Panel 12in 24VDC
Available in stock (400)
Regular price
$680.12
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6AV2123-2MB03-0AX0 |
| Product Category | HMI Touch Panel |
| Product Type | SIMATIC HMI KTP1200 Basic Color PN |
| Product Family | SIMATIC HMI Basic Panels 2nd Generation |
| Operation | Key / Touch Operation |
| Display Type | TFT Widescreen Display with LED Backlighting |
| Screen Diagonal | 12 in |
| Display Area | 261.1 x 163.2 mm |
| Display Resolution | 1280 x 800 Pixels |
| Display Colors | 65,536 |
| Touchscreen Type | Analog-Resistive |
| Function Keys | 10 |
| Rated Supply Voltage | 24 VDC |
| Permissible Supply Range | 19.2-28.8 VDC |
| Rated Current Consumption | 510 mA |
| Communication Interface | PROFINET |
| Configuration Software | WinCC Basic V13 / STEP 7 Basic V13 or Later |
Key Features
Key and Touch Operation
The panel combines an analog-resistive touchscreen with ten physical function keys for operator interaction in machine and process applications.
65,536 Display Colors
The TFT display supports 65,536 colors for graphical process screens, status indications and configured HMI visualization elements.
PROFINET Interface
The 6AV2123-2MB03-0AX0 provides a PROFINET interface for communication within applicable industrial automation networks.
24 VDC Supply
The panel operates from a rated 24 VDC supply with a documented permissible input range of 19.2 to 28.8 VDC.
TIA Portal Configuration
The KTP1200 Basic can be configured from WinCC Basic V13 or STEP 7 Basic V13 for applicable HMI projects.
Applications
- Industrial machine operator interfaces
- PLC monitoring and control systems
- Production line visualization
- Factory automation equipment
- PROFINET automation networks
- Industrial control panels
- Machine status monitoring
- Process visualization systems
Purchase Information
We support online purchase of the SIEMENS 6AV2123-2MB03-0AX0 HMI Touch Panel. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6AV2123-2MB03-0AX0?
It is a SIMATIC HMI KTP1200 Basic Color PN operator panel with key and touch operation.
What is the screen size of the KTP1200 Basic?
The panel has a 12-inch TFT widescreen display.
What is the display resolution?
The documented display resolution is 1280 x 800 pixels.
How many colors does the display support?
The TFT display supports 65,536 colors.
What type of touchscreen does it use?
The KTP1200 Basic uses an analog-resistive touchscreen.
Does 6AV2123-2MB03-0AX0 have physical function keys?
Yes. The panel provides ten function keys in addition to touch operation.
What supply voltage does the panel use?
The rated supply voltage is 24 VDC, with a documented permissible range of 19.2 to 28.8 VDC.
What is the rated current consumption?
The documented rated current consumption is 510 mA.
Does the KTP1200 Basic support PROFINET?
Yes. This PN version provides a PROFINET interface.
Which software can be used to configure the panel?
The panel is configurable from WinCC Basic V13 or STEP 7 Basic V13.
Can 6AV2123-2MB03-0AX0 be considered for an existing HMI system?
It can be considered after the exact article number, 12-inch display requirement, 24 VDC supply, PROFINET interface, mounting arrangement and HMI project requirements have been checked.
What should be checked before ordering?
Check the complete 6AV2123-2MB03-0AX0 article number together with the 12-inch display, 1280 x 800 resolution, 24 VDC supply, PROFINET communication and WinCC Basic project requirements before ordering.
