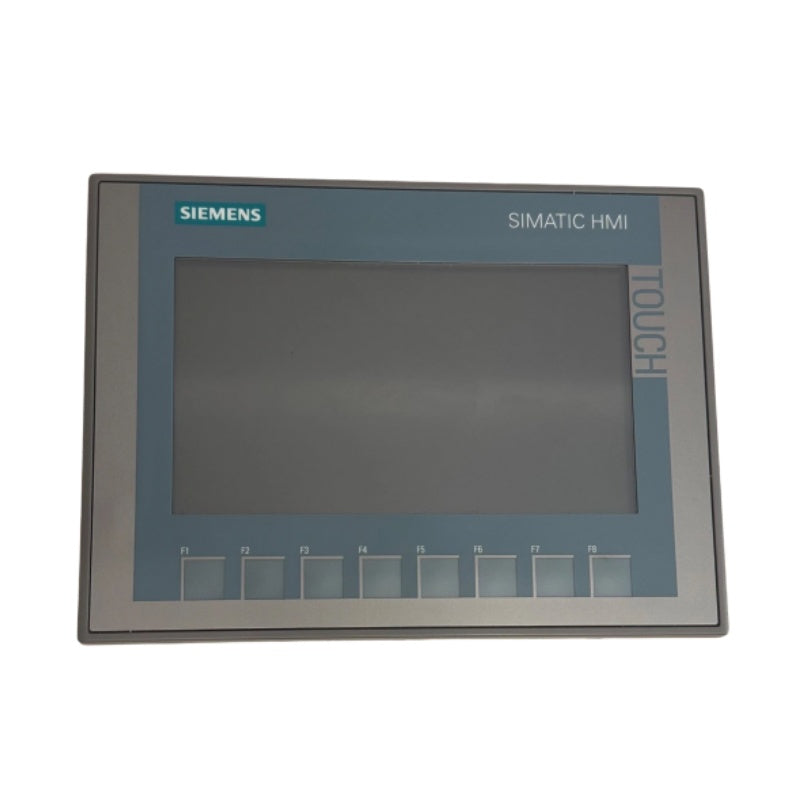

7-Inch TFT Display
The KTP700 Basic DP uses a 7-inch widescreen TFT display with LED backlighting for configured HMI visualization.

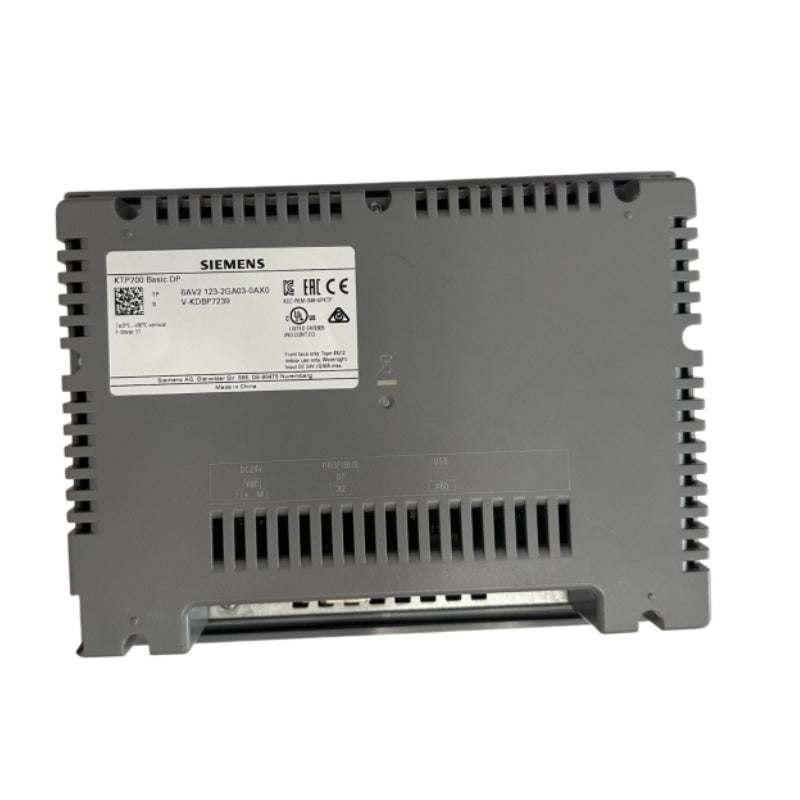

SIEMENS 6AV2123-2GA03-0AX0 HMI 7-Inch TFT 800x480 PROFIBUS
Available in stock (400)
Regular price
$352.02
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6AV2123-2GA03-0AX0 |
| Product Category | HMI |
| Product Designation | SIMATIC HMI KTP700 Basic DP |
| Product Family | Standard Devices 2nd Generation |
| Panel Type | Basic Panel |
| Operation | Key / Touch Operation |
| Display | 7-Inch TFT Widescreen, LED Backlighting |
| Display Resolution | 800 x 480 Pixels |
| Display Colors | 65,536 |
| Display Area | 154.1 x 85.9 mm |
| Function Keys | 8 |
| Touch Screen | Analog-Resistive |
| Interface | PROFIBUS |
| Rated Supply Voltage | 24 VDC |
| Permissible Supply Range | 19.2-28.8 VDC |
| Configuration Software | WinCC Basic V13 / STEP 7 Basic V13 or Later |
Key Features
800 x 480 Resolution
The documented display resolution is 800 x 480 pixels with support for 65,536 colors.
Key / Touch Operation
The panel combines eight function keys with an analog-resistive touch screen for operator interaction.
PROFIBUS Interface
Model 6AV2123-2GA03-0AX0 is the KTP700 Basic DP variant with a documented PROFIBUS interface.
24 VDC Supply
The documented rated supply voltage is 24 VDC with a permissible range of 19.2-28.8 VDC.
WinCC Basic Configuration
Siemens specifies configuration from WinCC Basic V13 or STEP 7 Basic V13.
Applications
- Industrial machine visualization
- Operator control interfaces
- Production equipment monitoring
- Process status visualization
- Industrial automation systems
- Machine operating panels
- PROFIBUS-based automation interfaces
- Equipment status and alarm visualization
Purchase Information
We support online purchase of the SIEMENS 6AV2123-2GA03-0AX0 HMI. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 6AV2123-2GA03-0AX0?
SIEMENS 6AV2123-2GA03-0AX0 is a SIMATIC HMI KTP700 Basic DP panel with key and touch operation.
What display size does 6AV2123-2GA03-0AX0 use?
The panel has a documented 7-inch widescreen TFT display with LED backlighting.
What is the display resolution?
The documented display resolution is 800 x 480 pixels.
How many colors does the display support?
The display supports 65,536 colors.
How is the KTP700 Basic DP operated?
The panel supports key and touch operation, including eight function keys and an analog-resistive touch screen.
What communication interface does 6AV2123-2GA03-0AX0 use?
The documented communication interface is PROFIBUS.
What supply voltage does 6AV2123-2GA03-0AX0 use?
The documented rated supply voltage is 24 VDC with a permissible range of 19.2-28.8 VDC.
Which configuration software is specified?
Siemens specifies configuration from WinCC Basic V13 or STEP 7 Basic V13.
What is the active display area?
The documented display area is 154.1 mm wide and 85.9 mm high.
Can 6AV2123-2GA03-0AX0 be considered for PROFIBUS-based systems?
The panel provides a PROFIBUS interface, but communication, electrical and installation requirements should be verified against the existing system before use.
What applications can 6AV2123-2GA03-0AX0 be considered for?
It can be considered for machine visualization, operator control, process status display and PROFIBUS-based automation interfaces after system requirements have been checked.
What should be checked before ordering 6AV2123-2GA03-0AX0?
Check the complete model number, display requirements, 24 VDC supply, PROFIBUS interface, configuration software and installation requirements against the existing system documentation.
