22 mm Illuminated Pushbutton
The 3SB3001-0AA21 is a round 22 mm illuminated pushbutton actuator for SIRIUS 3SB3 command and signaling applications.

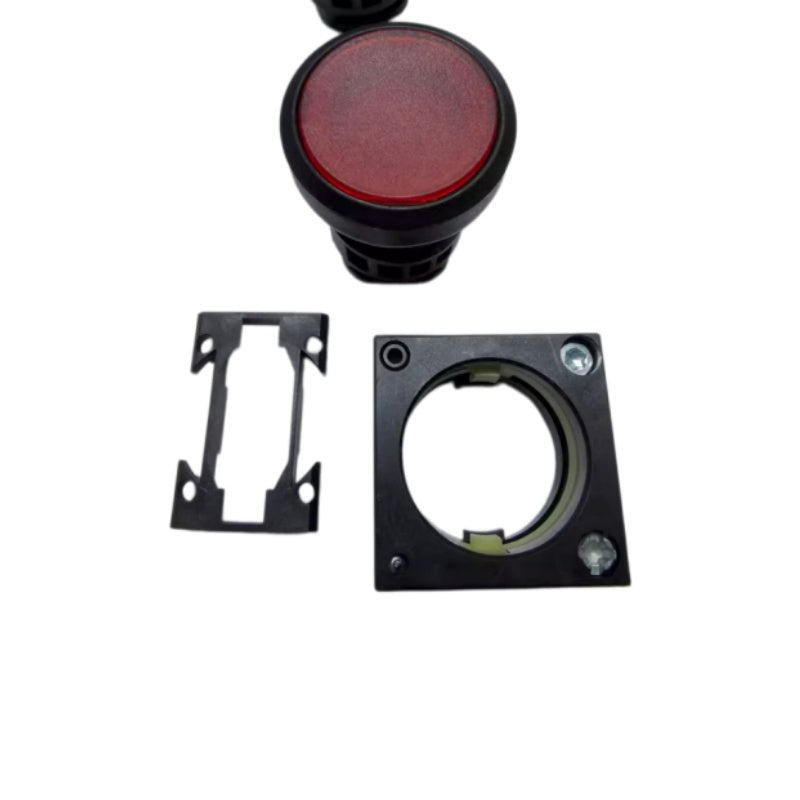

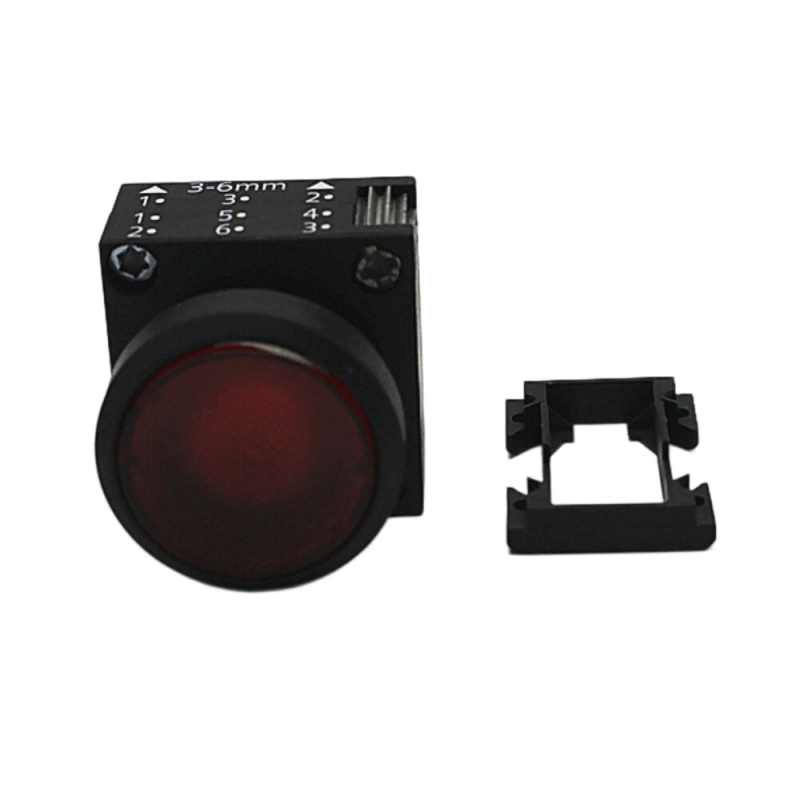

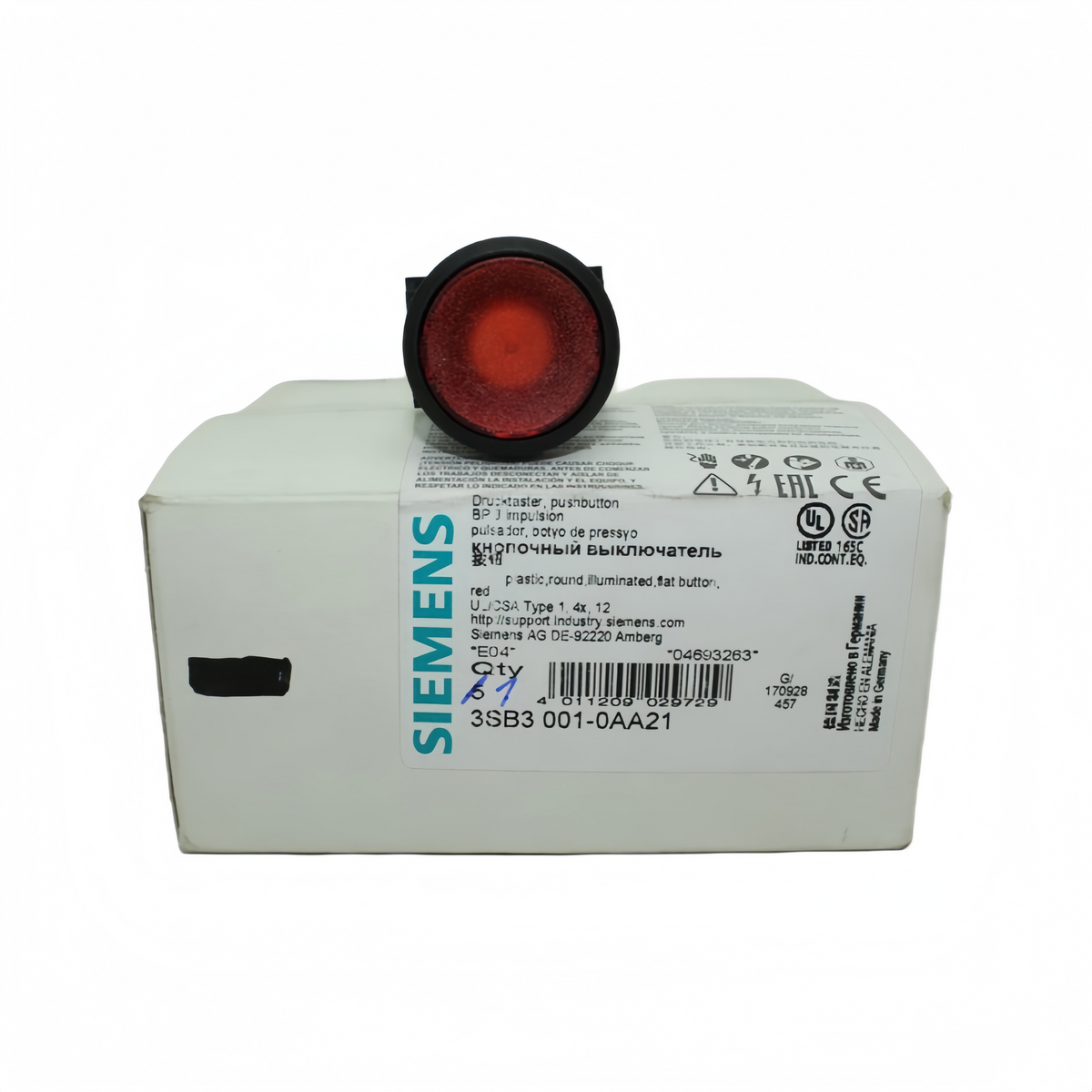

SIEMENS 3SB3001-0AA21 SIRIUS Illuminated Pushbutton 22mm Red IP66
Available in stock (400)
Regular price
$21.96
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 3SB3001-0AA21 |
| Product Category | Illuminated Pushbutton |
| Product Series | SIRIUS 3SB3 |
| Design | Single Device, Round |
| Actuating Element | Illuminated Pushbutton |
| Operating Principle | Momentary Contact Type |
| Actuator Color | Red |
| Actuator Material | Plastic |
| Actuator Shape | Flat Pushbutton |
| Mounting Size | 22 mm |
| Actuator Outer Diameter | 28.5 mm |
| Switching Positions | 2 |
| Front Ring | Black Plastic, Standard Design |
| Holder | Included, for 3 Elements |
| Optional Light Source | Yes |
| Degree of Protection | IP66 |
| Maximum Operating Frequency | 1,000 Operations/h |
| Mechanical Service Life | 3,000,000 Operating Cycles Typical |
Key Features
Red Flat Actuator
The operating element uses a red plastic flat pushbutton with a documented outer diameter of 28.5 mm.
Momentary Operation
The actuator uses a momentary operating principle and provides two switching positions for applicable control functions.
Holder for Three Elements
The assembly includes a plastic holder designed to accommodate up to three applicable switching or signaling elements.
Illumination Capability
The actuator is designed for illumination and can be combined with an applicable light source and associated signaling components.
IP66 Protection
The documented IP66 protection rating supports installation in appropriately configured industrial operator and control panels.
Applications
- Industrial machine control panels
- Operator control stations
- Command and signaling assemblies
- Production machinery controls
- Industrial automation equipment
- Control cabinet operator panels
- Visual status and command functions
- SIRIUS 3SB3 control-device assemblies
Purchase Information
We support online purchase of the SIEMENS 3SB3001-0AA21 Illuminated Pushbutton. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 3SB3001-0AA21?
It is a SIRIUS 3SB3 round illuminated pushbutton actuator for 22 mm command and signaling applications.
What color is the pushbutton?
The actuating element is red and the front ring is black.
What material is the actuator made from?
The actuating element and front ring are made from plastic.
What is the mounting size?
The pushbutton is designed for the 22 mm command-device format.
What is the actuator diameter?
The documented outer diameter of the actuating element is 28.5 mm.
Is 3SB3001-0AA21 a momentary pushbutton?
Yes. The documented operating principle is momentary contact type.
Can the pushbutton be illuminated?
Yes. It is an illuminated pushbutton design and supports an applicable light source.
Is a holder included?
Yes. The product includes a holder designed for three applicable elements.
What is the protection rating?
The documented degree of protection is IP66.
What is the operating temperature range?
The documented operating temperature range is -25 to +70 °C.
What is the typical mechanical service life?
The documented typical mechanical service life is 3,000,000 operating cycles.
What should be checked before ordering?
Check the complete 3SB3001-0AA21 model number together with the 22 mm mounting requirement, red illuminated actuator, holder arrangement and required switching and light elements before ordering.
