3 Pole Construction
Three-pole design designed for three-phase motor circuit protection applications.

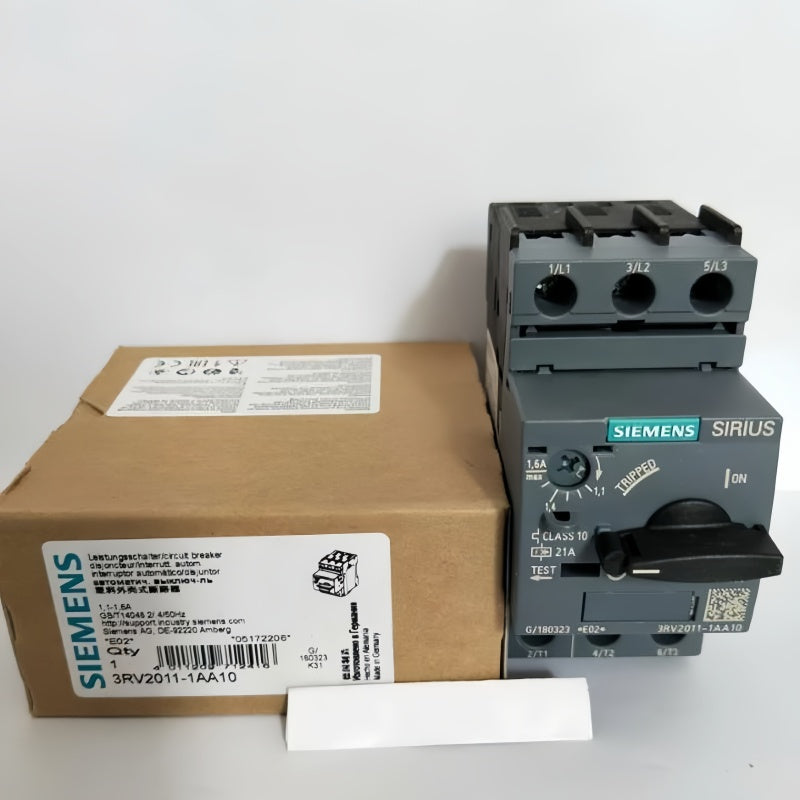

SIEMENS 3RV2011-1AA10 Circuit Breaker 3 Pole 1.1-1.6A 690VAC
Available in stock (200)
Regular price
$52.68
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 3RV2011-1AA10 |
| Product Category | Circuit Breaker |
| Product Series | SIRIUS 3RV2 |
| Product Type | Motor Protection Circuit Breaker |
| Number of Poles | 3 Pole |
| Adjustable Current Range | 1.1 A to 1.6 A |
| Rated Operating Voltage | 690 VAC |
| Short-Circuit Instantaneous Release | 21 A Fixed |
| Trip Class | Class 10 |
| Breaking Capacity | 100 kA @ 690 VAC |
| Terminal Connection Type | Screw Connection |
| Mounting Standard | 35 mm DIN Rail / Screw Mount |
| Protection Class | IP20 |
| Operating Temperature | -20°C to +60°C |
| Frame Size | S00 |
Key Features
1.1–1.6A Adjustable Overload Range
Rotary adjustable thermal release covers 1.1 A to 1.6 A motor full load current matching.
690 VAC Rated Voltage
Rated for maximum operating voltage up to 690 VAC for industrial three-phase loads.
Fixed 21A Magnetic Short-Circuit Trip
Integrated fixed instantaneous magnetic release delivers short-circuit fault protection at 21 A.
DIN Rail & Screw Mount Compatible
Supports standard 35 mm DIN rail snap-on installation or direct screw mounting on panels.
Class 10 Thermal Trip Characteristic
Class 10 trip curve matches standard three-phase motor startup inrush current profiles.
Applications
- Small three-phase motor overload protection
- HVAC pump motor branch circuit protection
- Compact conveyor drive control panels
- Low-power compressor motor feeders
- DOL starter motor protection assemblies
- OEM compact motor control enclosures
- Industrial machinery small motor circuits
- Panel builder motor feeder distribution
Purchase Information
We support online purchase of the SIEMENS 3RV2011-1AA10 Circuit Breaker. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 3RV2011-1AA10?
SIEMENS 3RV2011-1AA10 is a 3-pole SIRIUS 3RV2 series motor protection circuit breaker with 1.1–1.6 A adjustable thermal release range.
How many poles does 3RV2011-1AA10 feature?
This circuit breaker is constructed with 3 poles for three-phase electrical circuit protection.
What adjustable current range does 3RV2011-1AA10 offer?
The thermal overload release can be adjusted continuously between 1.1 A and 1.6 A.
What is the rated operating voltage of 3RV2011-1AA10?
The rated maximum operating voltage is 690 VAC for AC three-phase load circuits.
What is the short-circuit trip current for this model?
The instantaneous magnetic release is factory fixed at 21 A for short-circuit fault cut-off.
What trip class does 3RV2011-1AA10 follow?
The unit implements Class 10 thermal trip characteristic for standard industrial motor loads.
What mounting methods are compatible with this breaker?
It can be snapped onto standard 35 mm DIN rails or secured directly with screws inside control panels.
What operating temperature range is specified?
Approved operating ambient temperature spans -20°C to +60°C for continuous use.
Can this breaker be used for three-phase small motor protection?
Its thermal and magnetic protection functions are designed specifically for low-power three-phase industrial motors after load current verification.
What should be checked before ordering 3RV2011-1AA10?
Verify full catalog model number, motor full load current, system operating voltage, DIN rail panel layout and terminal wiring specifications prior to purchase.
Is 3RV2011-1AA10 suitable for OEM compact control cabinets?
The S00 compact frame size fits space-restricted OEM motor control assemblies after cabinet dimension checks.
