3-Pole Motor Protection Design
Three-pole structure built for three-phase induction motor protection within industrial control cabinets.

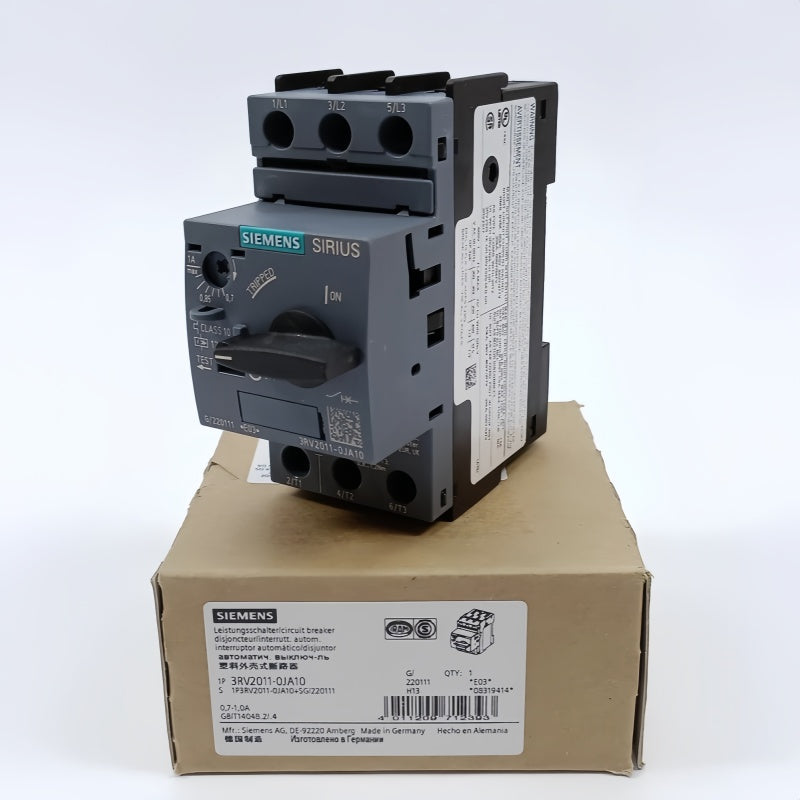

SIEMENS 3RV2011-0JA10 Circuit Breaker 3P 0.7-1A 690V
Available in stock (200)
Regular price
$82.51
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 3RV2011-0JA10 |
| Product Category | Circuit Breaker |
| Product Family | SIRIUS 3RV2 |
| Type | Motor Protection Circuit Breaker |
| Frame Size | S00 |
| Number of Poles | 3 |
| Adjustable Current Range | 0.7 A to 1 A |
| Rated Insulation Voltage | 690 V |
| Trip Class | CLASS 10 |
| Short-Circuit Instantaneous Trip Current | 13 A |
| Terminal Type | Screw Terminal |
| IP Rating | IP20 |
| Breaking Capacity at 400V | 100 kA |
| Net Weight | 0.340 kg |
| Dimensions | 97 mm × 45 mm × 91 mm |
| Mounting Method | DIN Rail Snap-On / Screw Mount |
Key Features
0.7-1 A Adjustable Thermal Trip
Adjustable thermal release covering 0.7 A to 1 A for matching small motor full load currents.
CLASS 10 Trip Characteristic
Class 10 overload trip curve compliant with standard motor protection specifications.
Screw Terminal Connection
Standard screw type terminals for secure copper wire wiring on main circuit connections.
DIN Rail Mountable S00 Frame
S00 compact frame compatible with standard 35 mm DIN mounting rail for cabinet installation.
690 V Rated Insulation Voltage
690 V insulation rating suitable for global low-voltage three-phase industrial power systems.
Applications
- Small three-phase motor protection
- Industrial control cabinet motor starters
- 0.5 hp three-phase motor control systems
- Machine tool auxiliary motor circuits
- Conveyor small drive motor protection
- Pump and fan miniature motor control
- Low voltage industrial automation panels
- Equipment overload and short-circuit safeguarding
Purchase Information
We support online purchase of the SIEMENS 3RV2011-0JA10 Circuit Breaker. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 3RV2011-0JA10?
SIEMENS 3RV2011-0JA10 is an S00 frame three-pole motor protection circuit breaker from the SIRIUS 3RV2 product family.
How many poles does 3RV2011-0JA10 have?
This circuit breaker features a 3-pole main circuit design for three-phase motor circuits.
What adjustable current range does 3RV2011-0JA10 offer?
The thermal release can be adjusted from 0.7 A to 1 A for small motor load matching.
What trip class is 3RV2011-0JA10 rated to?
It is built with CLASS 10 overload trip characteristic for standard motor protection.
What terminal type is equipped on 3RV2011-0JA10?
The unit uses standard screw terminals for main circuit wiring connections.
What rated voltage is specified for 3RV2011-0JA10?
The rated insulation voltage of this circuit breaker is 690 V for low voltage industrial systems.
What mounting methods are compatible with 3RV2011-0JA10?
It supports snap-on mounting on standard 35 mm DIN rail and direct screw mounting to flat surfaces.
What IP rating does 3RV2011-0JA10 carry?
The device has an IP20 protection rating for installation inside enclosed control cabinets.
What applications suit the 3RV2011-0JA10 circuit breaker?
It is designed for overload and short-circuit protection of small three-phase industrial motors including pumps, fans and machine tool auxiliary drives.
What should be checked before ordering 3RV2011-0JA10?
Verify full catalog number, motor full load current, three-phase pole requirement, DIN rail space and cabinet voltage specifications before purchase.
Can 3RV2011-0JA10 be used for existing cabinet expansion projects?
It can be considered after frame size, current range, pole count, mounting and wiring requirements are verified against existing panel hardware.
What is the instantaneous short-circuit trip current of 3RV2011-0JA10?
The magnetic short-circuit release triggers at 13 A instantaneous trip current for fast fault isolation.
