12 A AC-3e / AC-3 Rating
SIEMENS specifies a rated operational current of 12 A at 400 V for AC-3e and AC-3 applications.

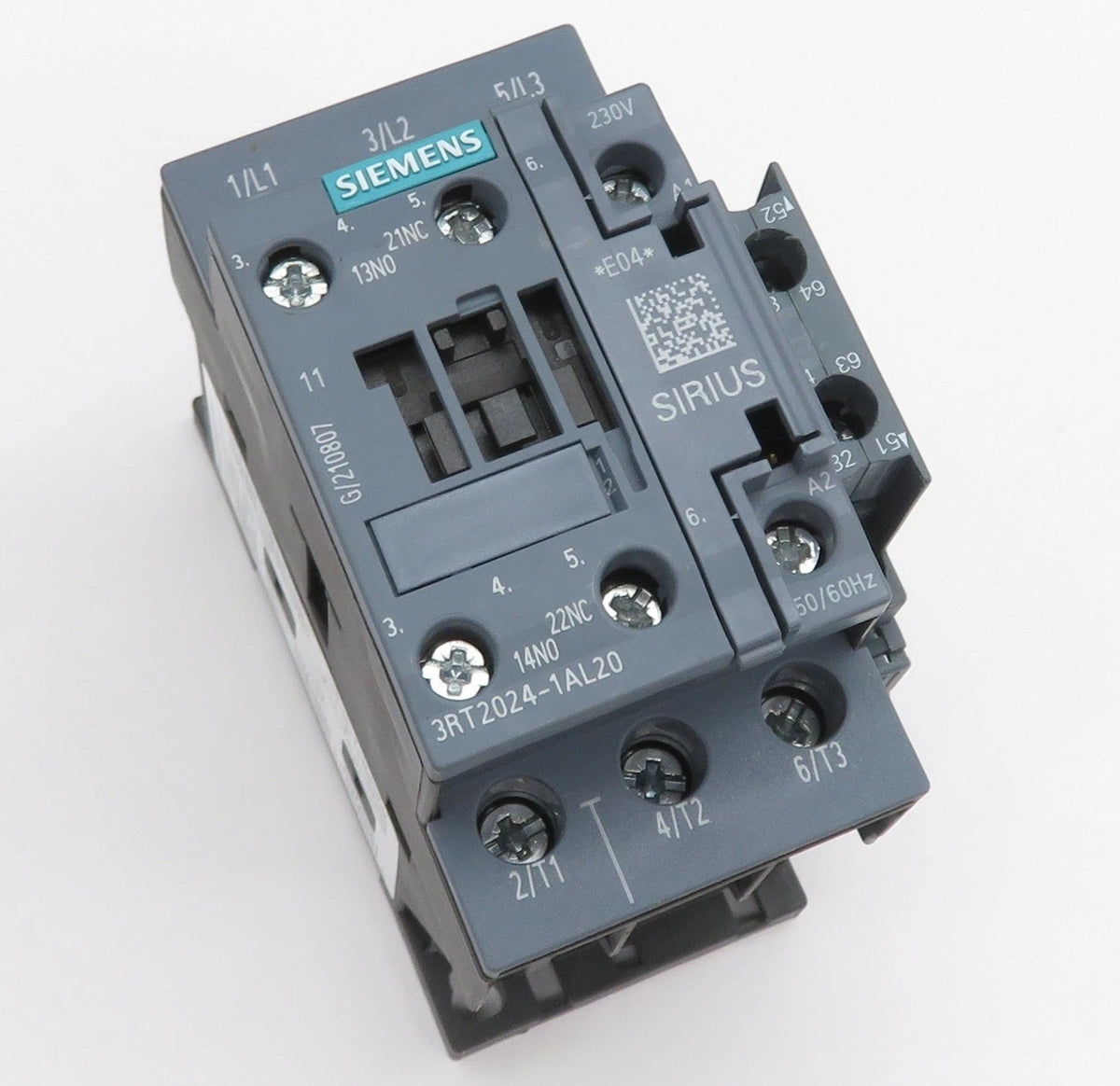

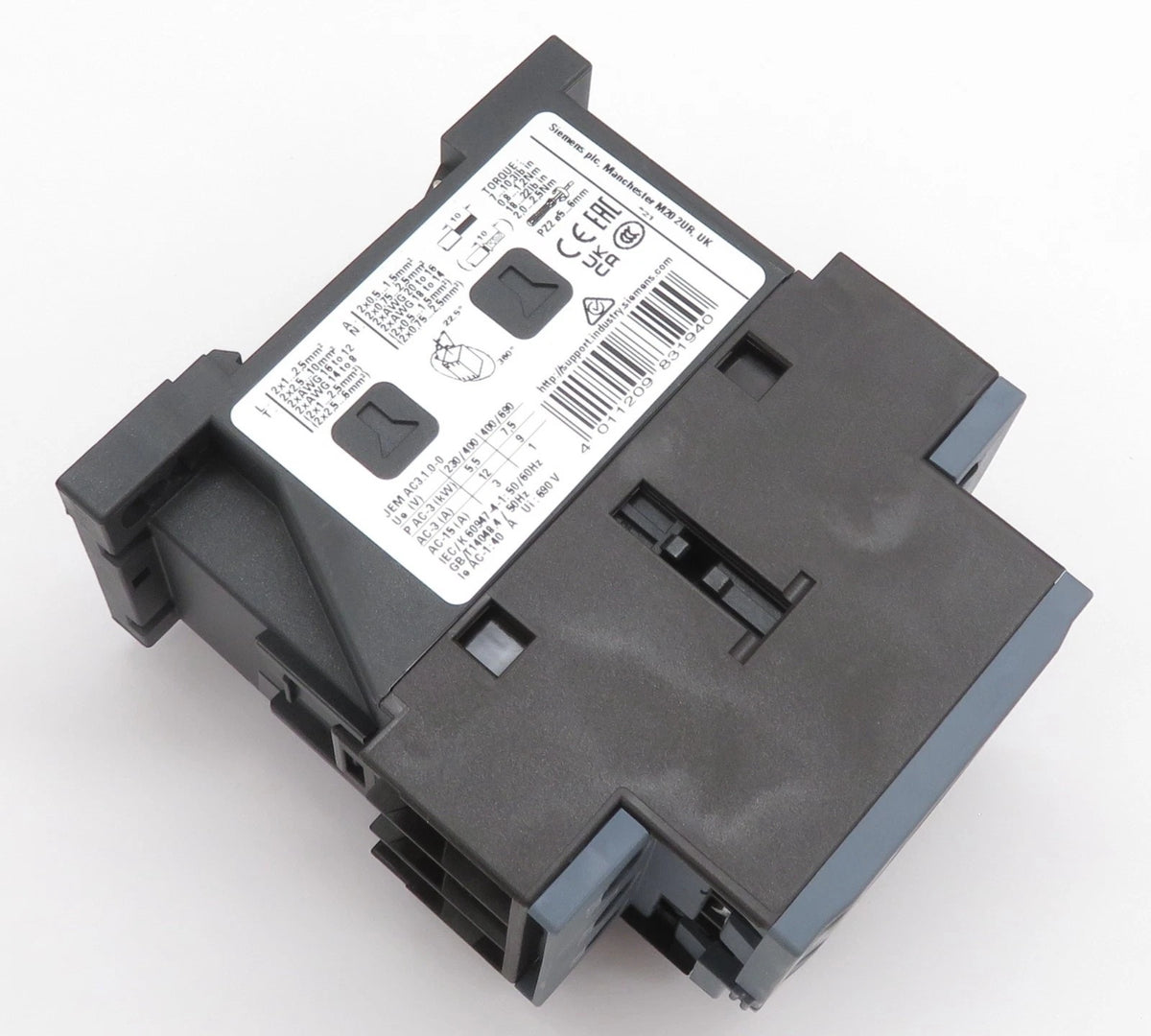

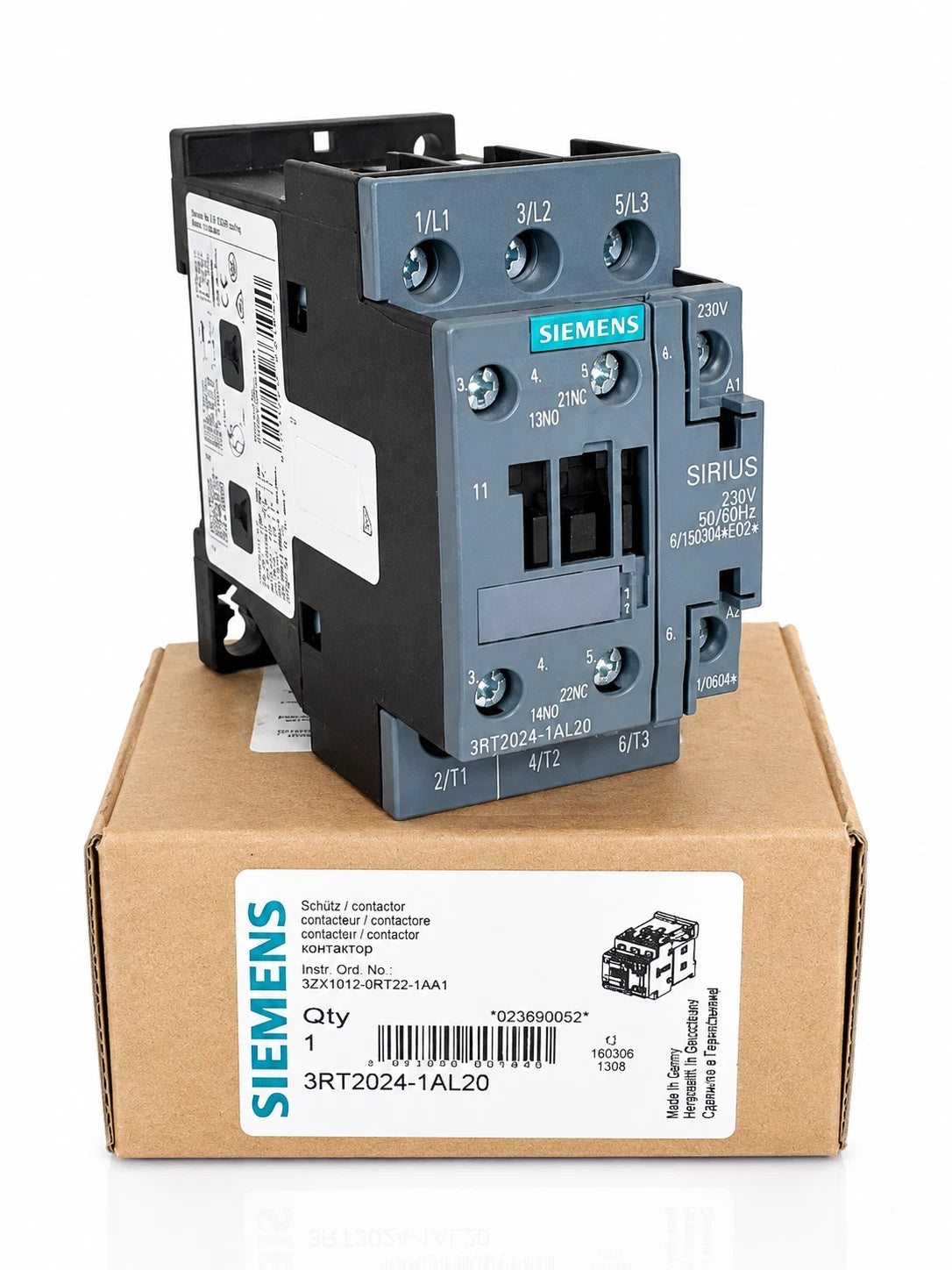

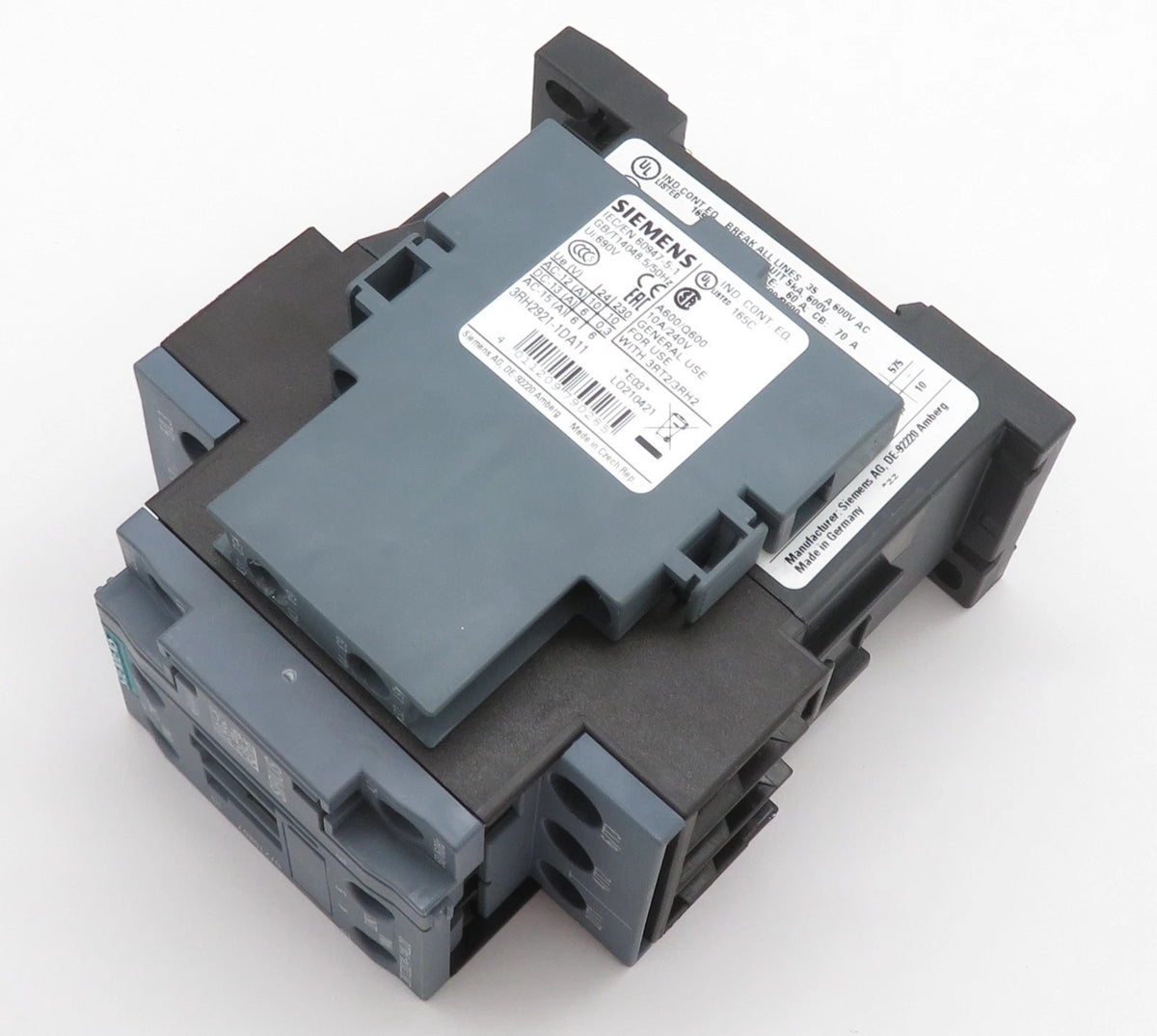

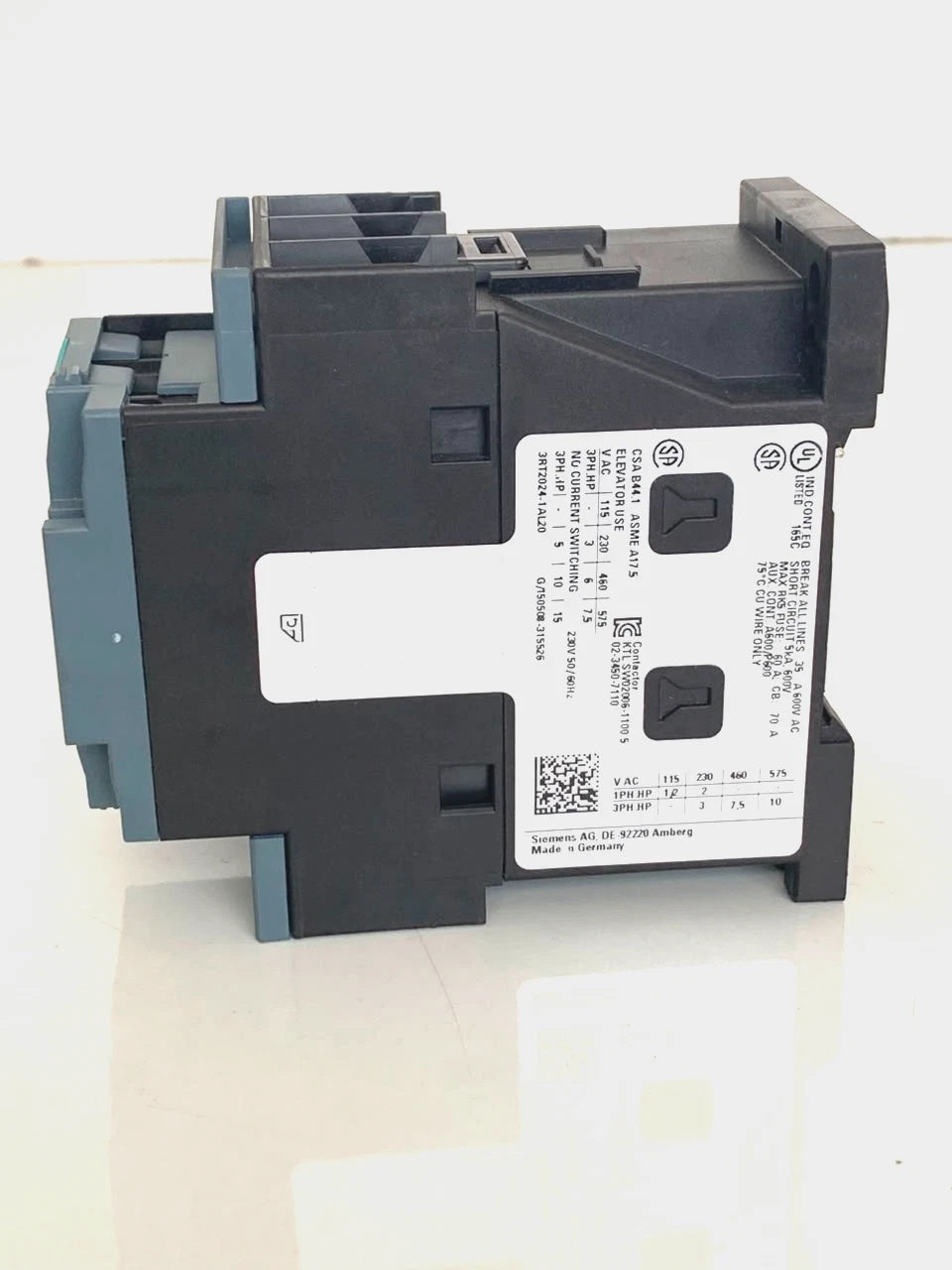

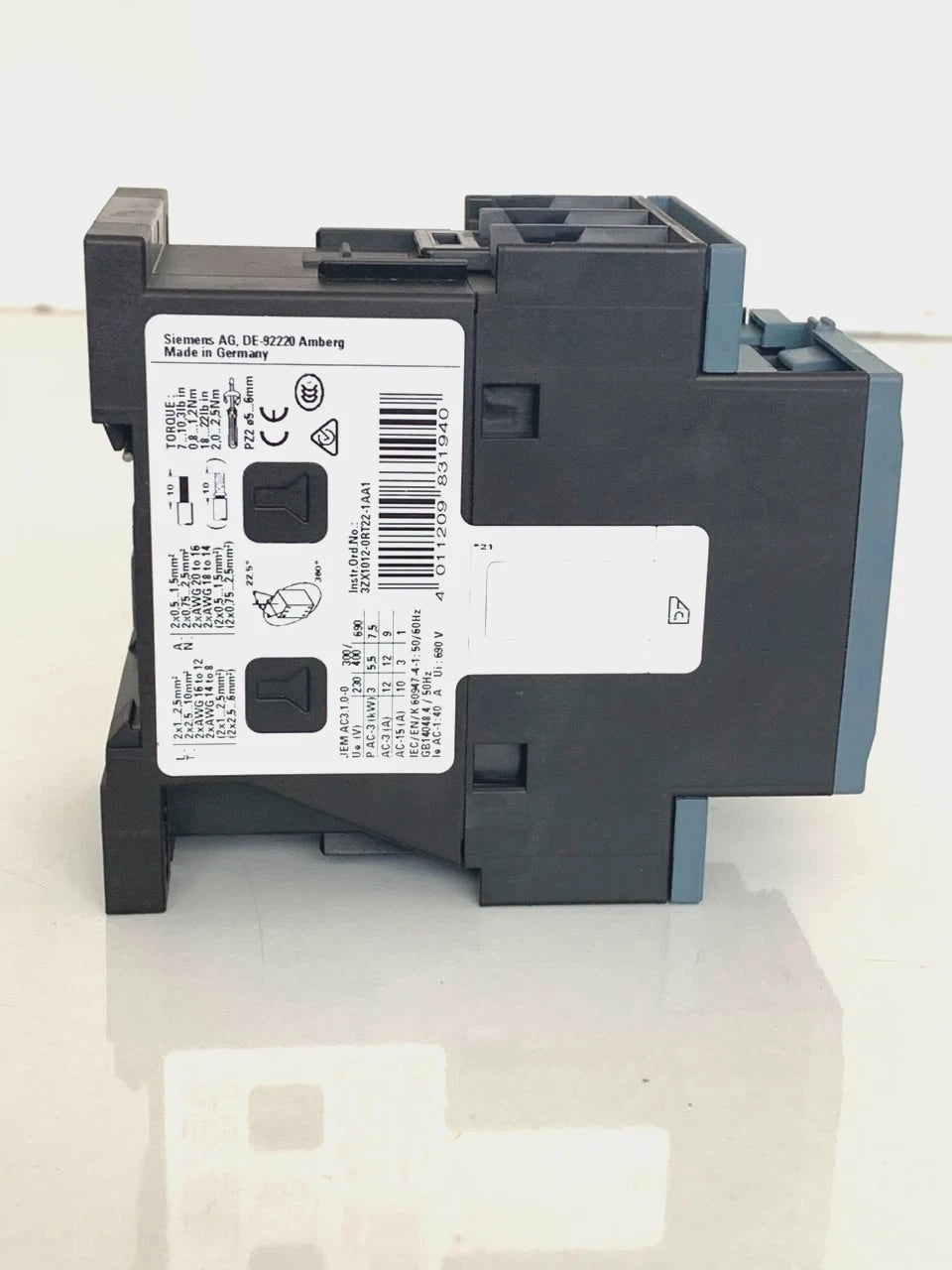

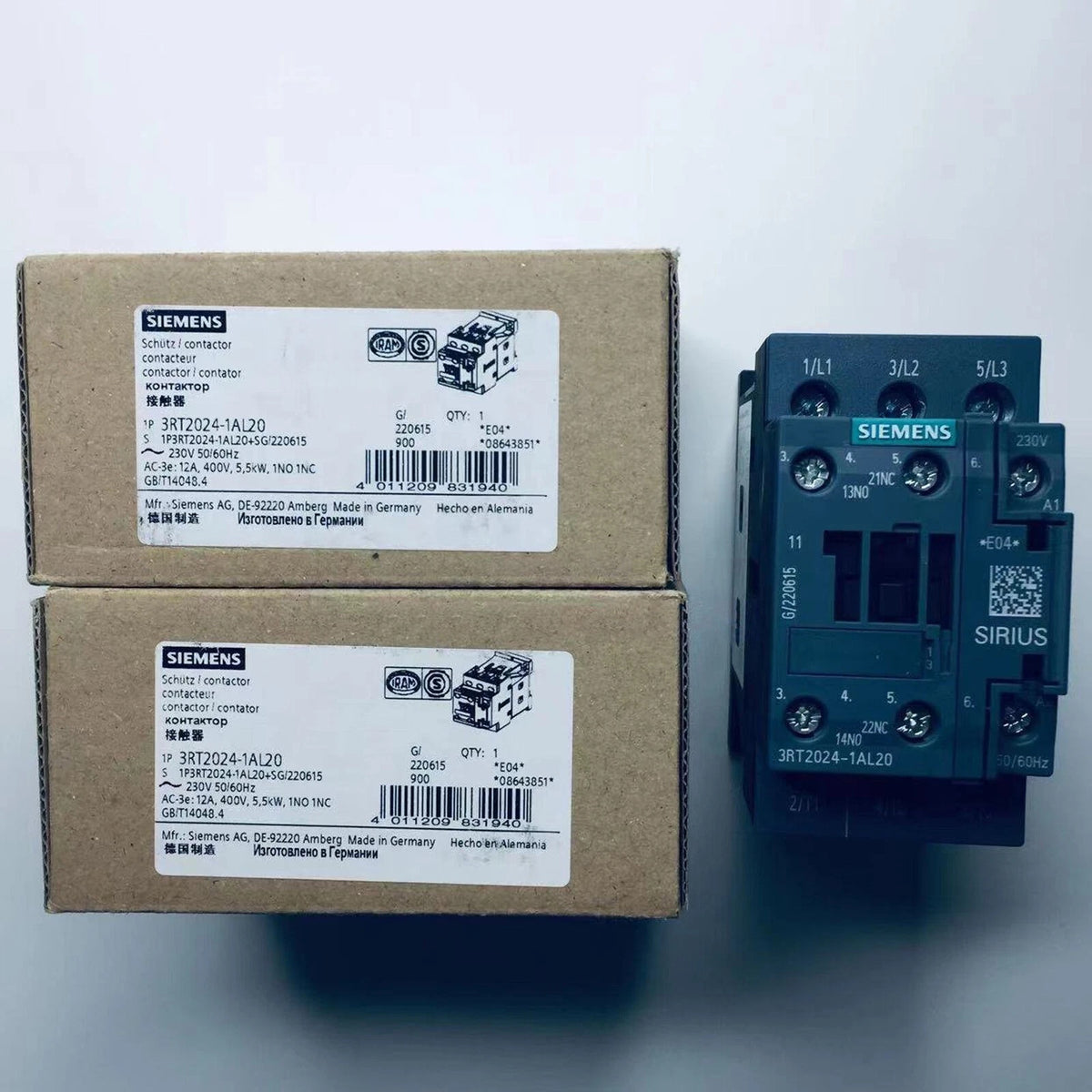

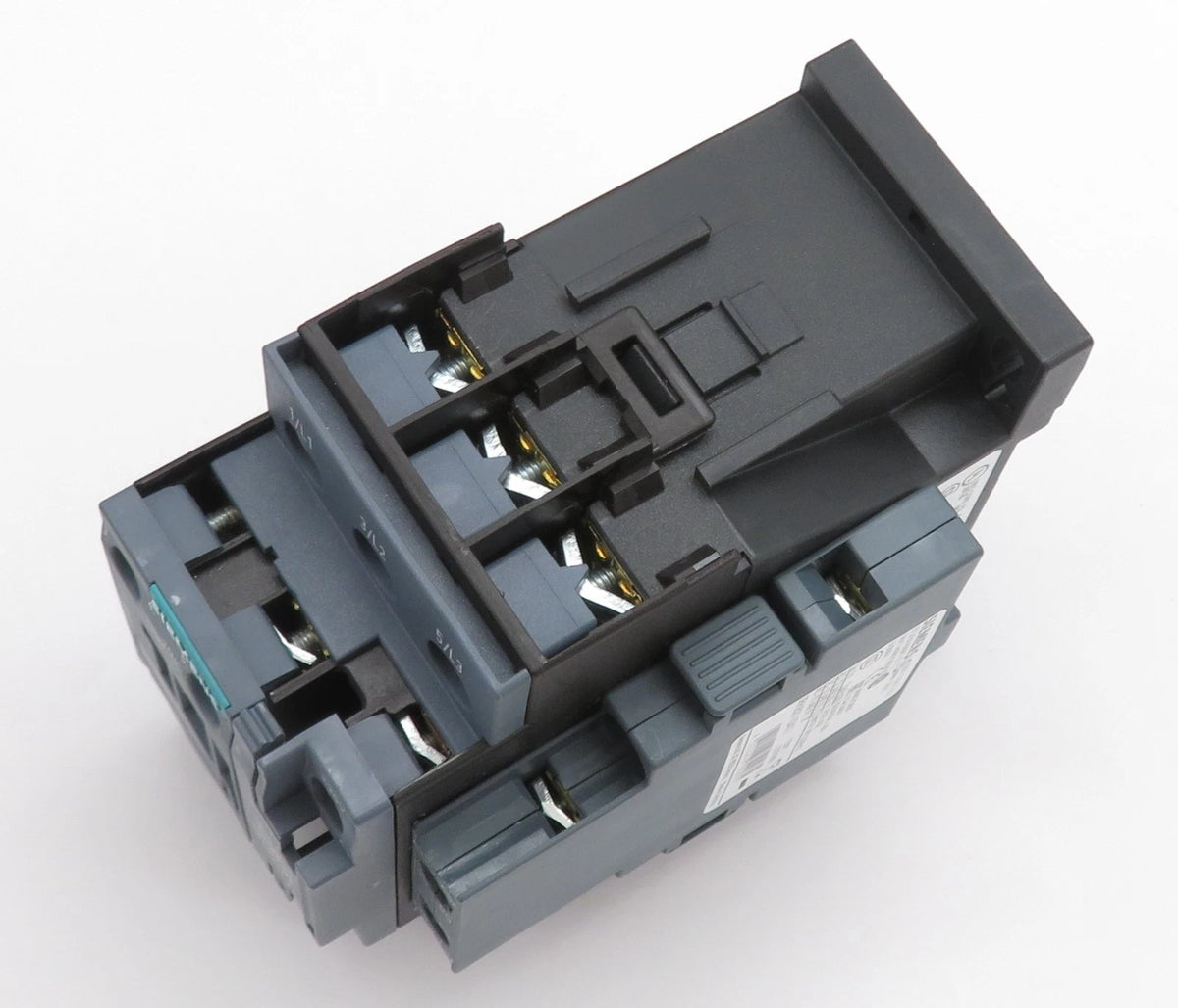

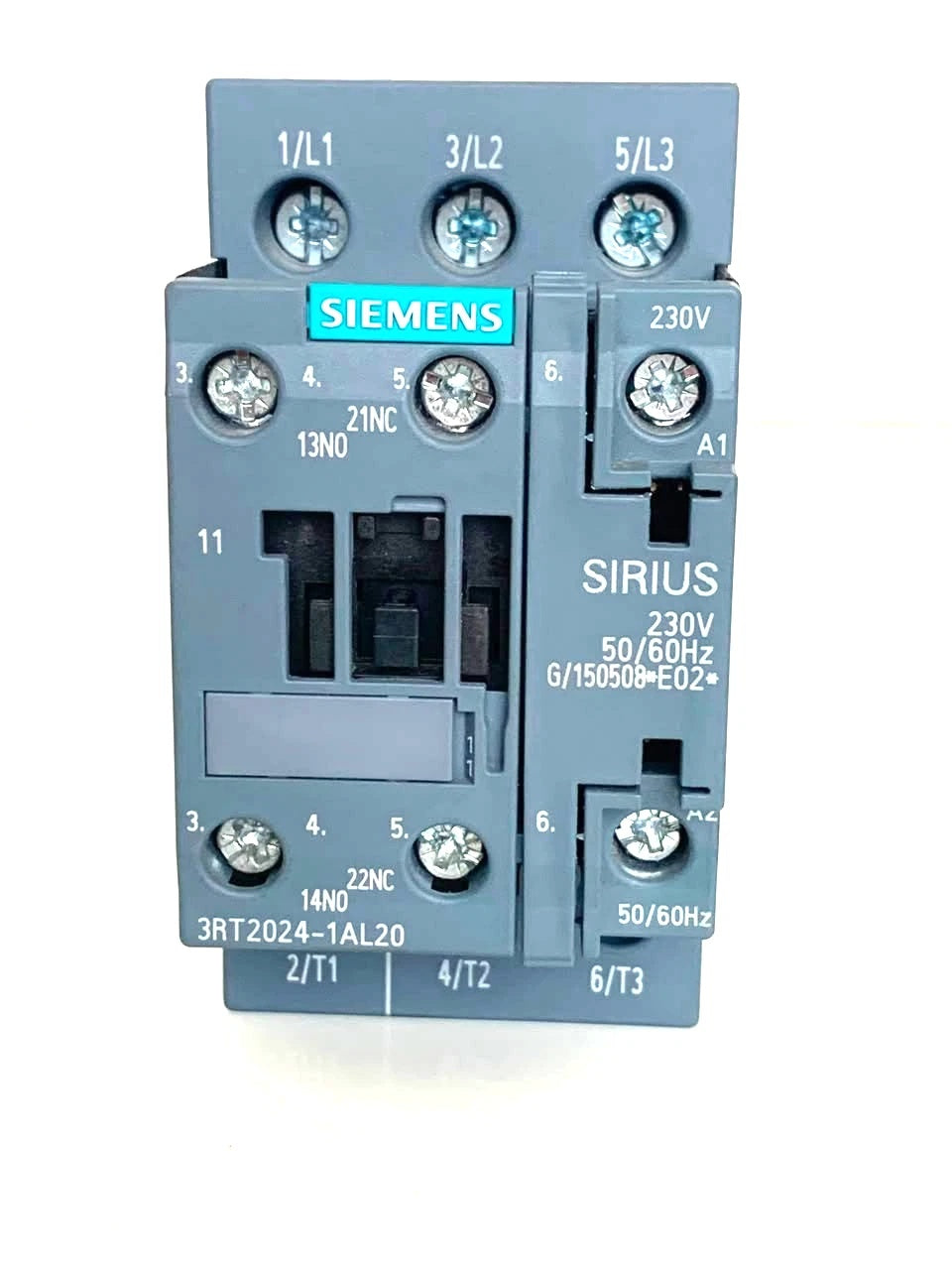

SIEMENS 3RT2024-1AL20 Contactor 12A 5.5kW 230VAC
Available in stock (400)
Regular price
$50.36
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 3RT2024-1AL20 |
| Product Category | Contactor |
| Product Family | SIRIUS 3RT Contactors |
| Product Designation | Power Contactor |
| Utilization Category | AC-3e / AC-3 |
| Rated Operational Current at 400 V | 12 A |
| Motor Rating at 400 V | 5.5 kW |
| Main Poles | 3 |
| Rated Control Supply Voltage | 230 VAC, 50/60 Hz |
| Auxiliary Contacts | 1 NO + 1 NC |
| Terminal Type | Screw Terminals |
| Contactor Size | S0 |
| Operating Temperature | -25°C to +60°C |
Key Features
5.5 kW at 400 V
The documented three-phase motor rating is 5.5 kW at 400 V.
230 VAC Coil
The contactor uses a 230 VAC rated control supply voltage at 50/60 Hz.
3-Pole Main Circuit
The main current circuit is configured with three poles and three normally open main contacts.
1 NO + 1 NC Auxiliary Contacts
The documented auxiliary contact arrangement includes one normally open and one normally closed instantaneous contact.
Screw Terminals
SIEMENS identifies screw-type terminals for the main, auxiliary, control and coil connections.
Applications
- Three-phase motor switching
- Industrial motor control circuits
- Machine control panels
- Motor starter assemblies
- Industrial automation switching
- Control cabinet applications
- Conveyor motor control
- Pump and fan motor control
Purchase Information
We support online purchase of the SIEMENS 3RT2024-1AL20 Contactor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is SIEMENS 3RT2024-1AL20?
SIEMENS 3RT2024-1AL20 is a SIRIUS 3RT three-pole power contactor for motor switching applications.
What is the rated operational current of 3RT2024-1AL20?
SIEMENS specifies 12 A at 400 V for AC-3e and AC-3 utilization categories.
What motor rating is specified at 400 V?
The documented motor rating is 5.5 kW at 400 V.
What control voltage does 3RT2024-1AL20 use?
The rated control supply voltage is 230 VAC at 50/60 Hz.
How many main poles does 3RT2024-1AL20 have?
The contactor has three main poles with three normally open main contacts.
What auxiliary contacts are included?
The documented auxiliary contact arrangement is 1 NO + 1 NC.
What terminal type does 3RT2024-1AL20 use?
SIEMENS specifies screw-type terminals for the main, auxiliary, control and coil connections.
What is the contactor size?
The documented contactor size is S0.
What is the operating temperature range?
SIEMENS specifies an operating ambient temperature range of -25°C to +60°C.
What applications can 3RT2024-1AL20 be considered for?
Its documented contactor function and AC-3e / AC-3 ratings make it applicable to motor switching and industrial motor control circuits when system requirements are matched.
What should be checked before ordering?
Check the complete model number, rated operational current, motor rating, control supply voltage, auxiliary contact arrangement, terminal requirements and installation requirements against the intended control system.
