15 mm Nominal Sensing Distance
The XS630B1PAM12 has a documented nominal inductive sensing distance of 15 mm.

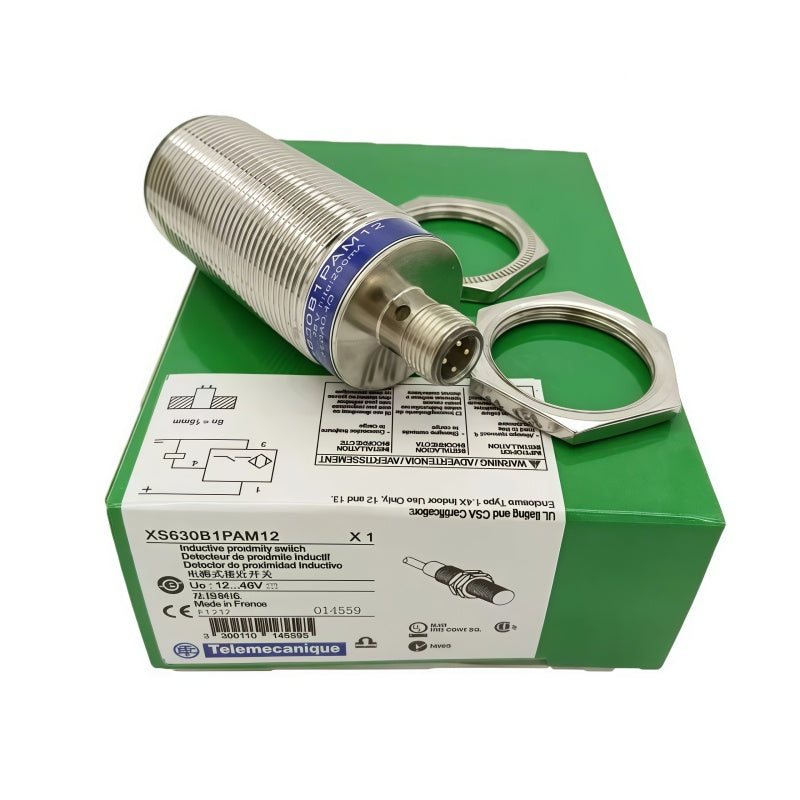

Schneider XS630B1PAM12 Inductive Proximity Sensor 15mm 12-48VDC PNP
Available in stock (200)
Regular price
$10.30
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | XS630B1PAM12 |
| Product Category | Inductive Proximity Sensor |
| Product Range | Inductive Proximity Sensors XS |
| Sensor Name | XS6 |
| Sensor Design | Cylindrical M30 |
| Nominal Sensing Distance | 15 mm |
| Rated Supply Voltage | 12-48 VDC |
| Wiring Technique | 3-Wire |
| Output Type | PNP |
| Output Function | 1 NO |
| Switching Capacity | ≤200 mA DC |
| Electrical Connection | M12 Male Connector, 4 Pins |
| Mounting | Flush Mountable |
| Thread Type | M30 x 1.5 |
| Length | 74 mm |
| Enclosure Material | Nickel-Plated Brass |
| Protection Rating | IP67 / IP69K |
| Switching Frequency | ≤500 Hz |
Key Features
12-48 VDC Supply
The documented rated supply voltage is 12 to 48 VDC with reverse-polarity protection.
PNP Normally Open Output
The sensor uses a three-wire DC configuration with one PNP normally open discrete output.
M30 Cylindrical Design
The documented sensor design is cylindrical M30 with an M30 x 1.5 thread and flush-mountable configuration.
M12 4-Pin Connection
Electrical connection is provided through a male M12 connector with four pins.
IP67 and IP69K
The documented protection ratings are IP67 according to IEC 60529 and IP69K according to DIN 40050.
Applications
- Non-contact metal object detection
- Industrial machine position sensing
- Mobile equipment sensing
- Automated production equipment
- Material handling systems
- Conveyor position detection
- Machine presence detection
- Industrial automation sensing
Purchase Information
We support online purchase of the Schneider XS630B1PAM12 Inductive Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider XS630B1PAM12?
Schneider XS630B1PAM12 is a cylindrical M30 inductive proximity sensor with a discrete PNP normally open output.
What is the nominal sensing distance of XS630B1PAM12?
The documented nominal sensing distance is 15 mm.
What supply voltage does XS630B1PAM12 use?
The documented rated supply voltage is 12 to 48 VDC with reverse-polarity protection.
What output type does XS630B1PAM12 use?
The documented discrete output type is PNP with one normally open output.
What wiring configuration does XS630B1PAM12 use?
The documented wiring technique is three-wire.
What electrical connection does XS630B1PAM12 use?
The sensor uses a male M12 connector with four pins.
Is XS630B1PAM12 flush mountable?
Yes. The documented detector mounting configuration is flush mountable.
What is the switching capacity of XS630B1PAM12?
The documented switching capacity is up to 200 mA DC with overload and short-circuit protection.
What protection ratings does XS630B1PAM12 have?
The documented ratings are IP67 according to IEC 60529 and IP69K according to DIN 40050.
What is the maximum switching frequency?
The documented switching frequency is up to 500 Hz.
What applications can XS630B1PAM12 be considered for?
It can be considered for non-contact metal detection, position sensing and presence detection in industrial machinery and automation equipment after application requirements have been checked.
What should be checked before ordering XS630B1PAM12?
Check the complete model number, 15 mm nominal sensing distance, 12-48 VDC supply, PNP normally open output, M30 mounting arrangement and M12 4-pin electrical connection against the application requirements before purchasing.
