8 mm Nominal Sensing Distance
The XS618B1MAL2 has a documented nominal inductive sensing distance of 8 mm.
1 / 7
Schneider

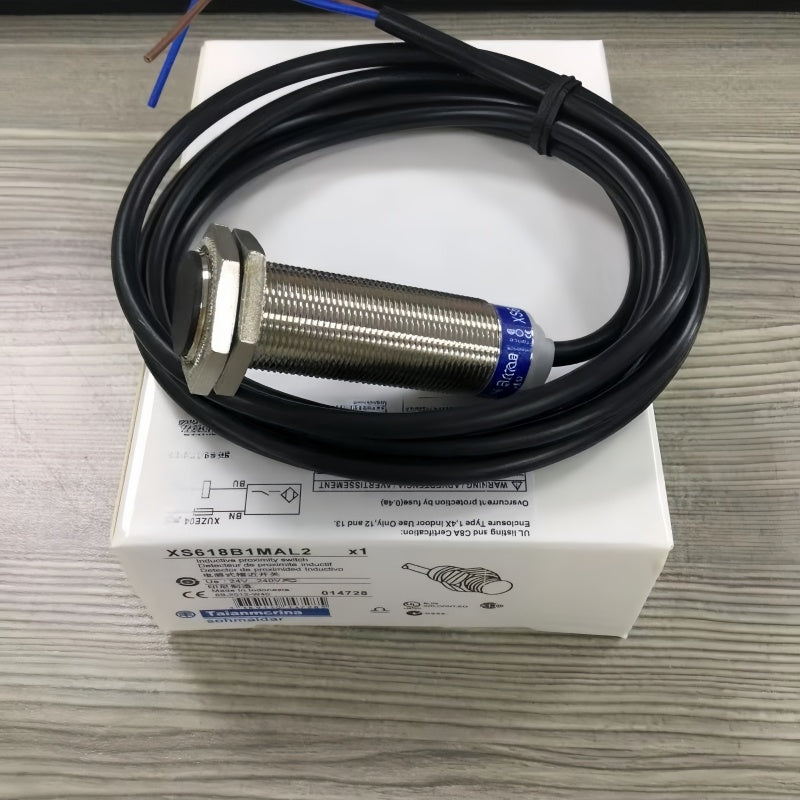

Schneider XS618B1MAL2 Inductive Proximity Sensor 24-240VAC/DC 8mm M18
PRODUCT PRICE
USD
$14.21
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Schneider |
| Model Number | XS618B1MAL2 |
| Product Category | Inductive Proximity Sensor |
| Product Range | OsiSense XS |
| Series | General Purpose |
| Sensor Name | XS6 |
| Sensor Design | Cylindrical M18 |
| Size | 62 mm |
| Nominal Sensing Distance | 8 mm |
| Output Signal | Discrete |
| Wiring Technique | 2-Wire |
| Output Function | 1 NO |
| Output Circuit Type | AC/DC |
| Rated Supply Voltage | 24-240 VAC/DC, 50/60 Hz |
| Electrical Connection | Cable |
| Cable Length | 2 m |
| Switching Capacity | 5-200 mA DC, 5-300 mA AC |
| Mounting | Flush Mountable |
| Thread Type | M18 x 1 |
| Detection Face | Frontal |
| Protection Rating | IP68 / IP69K |
Key Features
24-240 VAC/DC Supply
The documented rated supply voltage is 24 to 240 VAC/DC at 50/60 Hz.
2-Wire Normally Open Output
The sensor uses a two-wire discrete AC/DC output circuit with one normally open output function.
M18 Cylindrical Design
The XS6 sensor has a cylindrical M18 design with M18 x 1 threading and a 62 mm body size.
2 m Cable Connection
The documented electrical connection uses a pre-cabled configuration with a 2 m cable.
IP68 and IP69K
The documented protection ratings include IP68 according to IEC 60529 and IP69K according to DIN 40050.
Applications
- Metal object detection
- Industrial position sensing
- Machine automation sensing
- Conveyor object detection
- Industrial machinery monitoring
- Automated production equipment
- Equipment position detection
- Non-contact metal target detection
Purchase Information
We support online purchase of the Schneider XS618B1MAL2 Inductive Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider XS618B1MAL2?
Schneider XS618B1MAL2 is an XS6 cylindrical M18 inductive proximity sensor for non-contact detection of metal targets.
What supply voltage does XS618B1MAL2 use?
The documented rated supply voltage is 24 to 240 VAC/DC at 50/60 Hz.
What is the nominal sensing distance of XS618B1MAL2?
The documented nominal sensing distance is 8 mm.
What output configuration does XS618B1MAL2 use?
It uses a two-wire discrete AC/DC output circuit with one normally open output function.
What electrical connection does XS618B1MAL2 use?
The documented electrical connection is a cable with a length of 2 m.
What switching capacity is specified for XS618B1MAL2?
The documented switching capacity is 5 to 200 mA DC and 5 to 300 mA AC.
Is XS618B1MAL2 flush mountable?
Yes. The documented sensor configuration is flush mountable.
What thread size does XS618B1MAL2 use?
The documented thread type is M18 x 1.
What protection ratings are specified for XS618B1MAL2?
The documented protection ratings include IP68 according to IEC 60529 and IP69K according to DIN 40050.
What applications can XS618B1MAL2 be considered for?
It can be considered for non-contact metal detection, industrial position sensing and machine automation after the electrical, sensing and installation requirements have been checked.
Can XS618B1MAL2 be considered for an existing machine?
It can be considered after the complete model number, supply voltage, two-wire AC/DC output, 8 mm sensing distance, M18 mounting and cable connection requirements have been checked against the existing system.
What should be checked before ordering XS618B1MAL2?
Check the complete model number, 24-240 VAC/DC supply requirement, normally open two-wire output, 8 mm nominal sensing distance, M18 x 1 mounting and 2 m cable connection before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
