4 mm Sensing Distance
The XS612B1MAL2 has a documented nominal sensing distance of 4 mm with an operating zone of 0 to 3.2 mm.

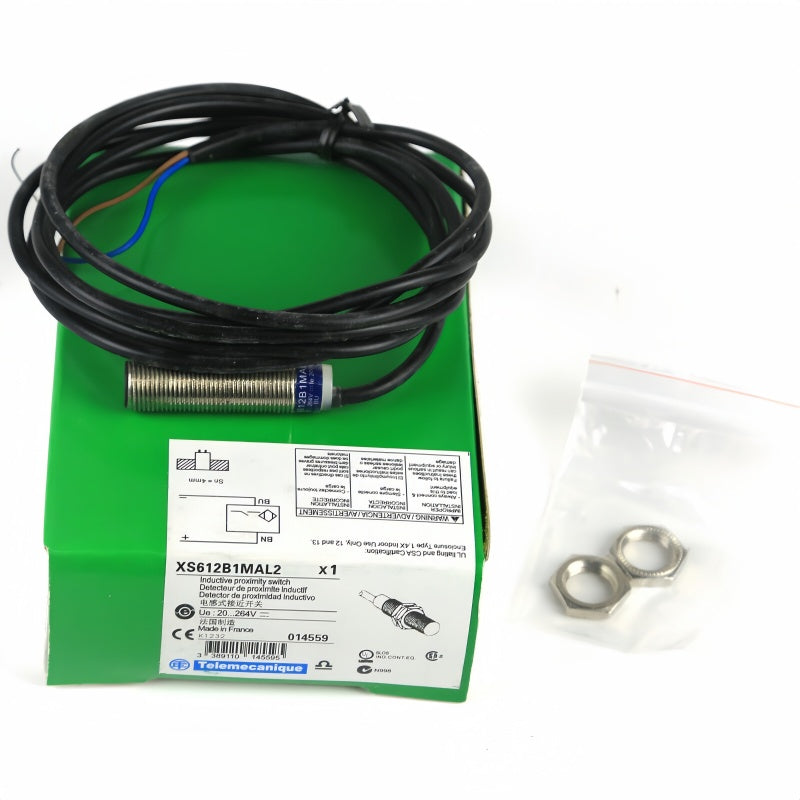

Schneider XS612B1MAL2 Inductive Proximity Sensor 24-240VAC/DC 4mm M12
Available in stock (200)
Regular price
$10.87
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | XS612B1MAL2 |
| Product Category | Inductive Proximity Sensor |
| Product Range | OsiSense XS |
| Series | General Purpose |
| Sensor Name | XS6 |
| Sensor Design | Cylindrical M12 |
| Size | 53 mm |
| Body Type | Fixed |
| Nominal Sensing Distance | 4 mm |
| Operating Zone | 0-3.2 mm |
| Output Signal | Discrete |
| Wiring Technique | 2-Wire |
| Output Function | 1 NO |
| Output Circuit Type | AC/DC |
| Rated Supply Voltage | 24-240 VAC/DC, 50/60 Hz |
| Switching Capacity | 5-200 mA AC/DC |
| Electrical Connection | Cable |
| Cable Length | 2 m |
| Mounting | Flush Mountable |
| Thread Type | M12 x 1 |
| Detection Face | Frontal |
| Enclosure Material | Nickel-Plated Brass |
| Protection Rating | IP68 / IP69K |
Key Features
24-240 VAC/DC Supply
The documented rated supply voltage is 24 to 240 VAC/DC at 50/60 Hz.
2-Wire Normally Open Output
The sensor uses a two-wire discrete AC/DC output circuit with one normally open output function.
M12 Cylindrical Design
The XS6 sensor uses a cylindrical M12 design with M12 x 1 threading and a 53 mm body size.
2 m Cable Connection
The documented electrical connection uses a pre-cabled configuration with a 2 m cable.
IP68 and IP69K
The documented protection ratings are IP68 according to IEC 60529 and IP69K according to DIN 40050.
Applications
- Metal object detection
- Industrial position sensing
- Machine automation sensing
- Conveyor object detection
- Industrial machinery monitoring
- Automated production equipment
- Equipment position detection
- Non-contact metal target detection
Purchase Information
We support online purchase of the Schneider XS612B1MAL2 Inductive Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider XS612B1MAL2?
Schneider XS612B1MAL2 is an XS6 cylindrical M12 inductive proximity sensor for non-contact detection of metal targets.
What supply voltage does XS612B1MAL2 use?
The documented rated supply voltage is 24 to 240 VAC/DC at 50/60 Hz.
What is the nominal sensing distance of XS612B1MAL2?
The documented nominal sensing distance is 4 mm.
What operating zone is specified?
The documented operating zone is 0 to 3.2 mm.
What output configuration does XS612B1MAL2 use?
It uses a two-wire discrete AC/DC output circuit with one normally open output function.
What electrical connection does XS612B1MAL2 use?
The documented electrical connection is a cable with a length of 2 m.
What switching capacity is specified?
The documented switching capacity is 5 to 200 mA AC/DC.
Is XS612B1MAL2 flush mountable?
Yes. The documented sensor configuration is flush mountable.
What thread size does XS612B1MAL2 use?
The documented thread type is M12 x 1.
What protection ratings are specified?
The documented protection ratings are IP68 according to IEC 60529 and IP69K according to DIN 40050.
What applications can XS612B1MAL2 be considered for?
It can be considered for non-contact metal detection, industrial position sensing and machine automation after the electrical, sensing and installation requirements have been checked.
What should be checked before ordering XS612B1MAL2?
Check the complete model number, 24-240 VAC/DC supply requirement, normally open two-wire output, 4 mm nominal sensing distance, M12 x 1 mounting and 2 m cable connection before purchasing.
