10mm Nominal Sensing Distance
The XS1M30MA250 has a documented nominal sensing distance of 10 mm with a published sensing range of 8-15 mm.

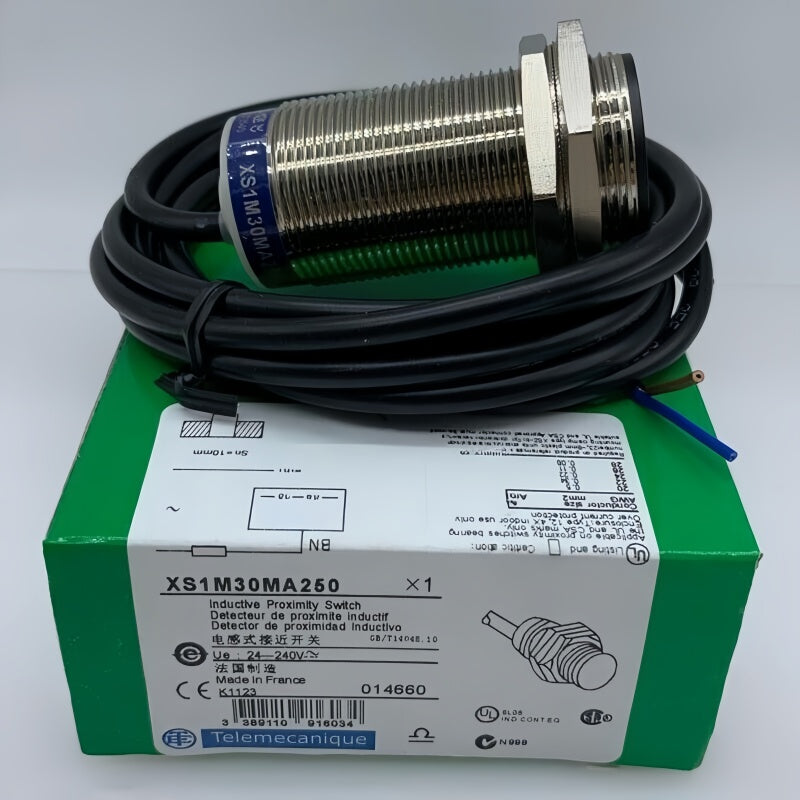

Schneider XS1M30MA250 Inductive Proximity Sensor 24-240VAC/DC 10mm
Available in stock (200)
Regular price
$12.42
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | XS1M30MA250 |
| Product Category | Inductive Proximity Sensor |
| Sensor Type | Inductive Proximity Sensor |
| Sensor Design | Cylindrical M30 |
| Wiring Configuration | 2-Wire |
| Output Signal | Discrete |
| Discrete Output Function | 1 NO |
| Rated Supply Voltage | 24-210 VDC / 24-240 VAC 50/60 Hz |
| Output Circuit Type | AC/DC |
| Nominal Sensing Distance | 10 mm |
| Sensing Range | 8-15 mm |
| Mounting | Flush Mountable |
| Thread Type | M30 x 1.5 |
| Sensor Length | 60 mm |
| Electrical Connection | 2 m Cable |
| Enclosure Material | Nickel-Plated Brass |
| Protection Rating | IP68 |
| Switching Capacity | 5-300 mA AC / 5-200 mA DC |
| Switching Frequency | ≤2000 Hz DC / ≤25 Hz AC |
Key Features
24-240VAC/DC Operation
The sensor supports 24-210 VDC and 24-240 VAC at 50/60 Hz according to the published technical data.
2-Wire 1 NO Output
The sensor uses a 2-wire configuration with one normally open discrete output.
M30 Cylindrical Housing
The XS1M30MA250 uses a cylindrical M30 body with M30 x 1.5 threading and a documented length of 60 mm.
Flush-Mountable Design
The sensing head is documented for flush mounting in applicable metal-detection installations.
IP68 Protection
The published product specifications identify IP68 protection with double insulation according to IEC 60529.
Applications
- Metal object presence detection
- Industrial machine position sensing
- Conveyor object detection
- Factory automation sensing
- Machine tool position monitoring
- Production equipment detection
- Industrial material handling systems
- Automated equipment limit detection
Purchase Information
We support online purchase of the Schneider XS1M30MA250 Inductive Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider XS1M30MA250?
Schneider XS1M30MA250 is a cylindrical M30 inductive proximity sensor with a 2-wire discrete output configuration.
What is the sensing distance of XS1M30MA250?
The documented nominal sensing distance is 10 mm, with a published sensing range of 8-15 mm.
What voltage does XS1M30MA250 use?
The documented supply range is 24-210 VDC or 24-240 VAC at 50/60 Hz.
What output configuration does XS1M30MA250 use?
The sensor uses a 2-wire discrete output with one normally open output function.
Can XS1M30MA250 operate with AC and DC circuits?
Yes. The published specifications identify an AC/DC output circuit and specify both AC and DC supply ranges.
What is the switching capacity of XS1M30MA250?
The documented switching capacity is 5-300 mA for AC operation and 5-200 mA for DC operation.
What mounting type does XS1M30MA250 use?
The sensor is documented as flush mountable and uses an M30 x 1.5 threaded cylindrical body.
What is the protection rating of XS1M30MA250?
The published technical data specifies IP68 protection with double insulation according to IEC 60529.
What cable connection is supplied with XS1M30MA250?
The documented electrical connection is a fixed 2 m cable.
What is the housing material of XS1M30MA250?
The enclosure is documented as nickel-plated brass with a PPS detection face.
What applications can XS1M30MA250 be considered for?
It can be considered for non-contact metal detection and industrial position-sensing applications after the sensing distance, electrical requirements and mounting conditions have been checked.
What should be checked before ordering XS1M30MA250?
Check the complete model number, required AC or DC supply voltage, 10 mm nominal sensing distance, 2-wire normally open output, M30 mounting requirements, cable length and electrical load requirements before ordering.
