3-Position Operation
The XB4BJ33 selector switch provides three operator positions arranged at +/-45°.

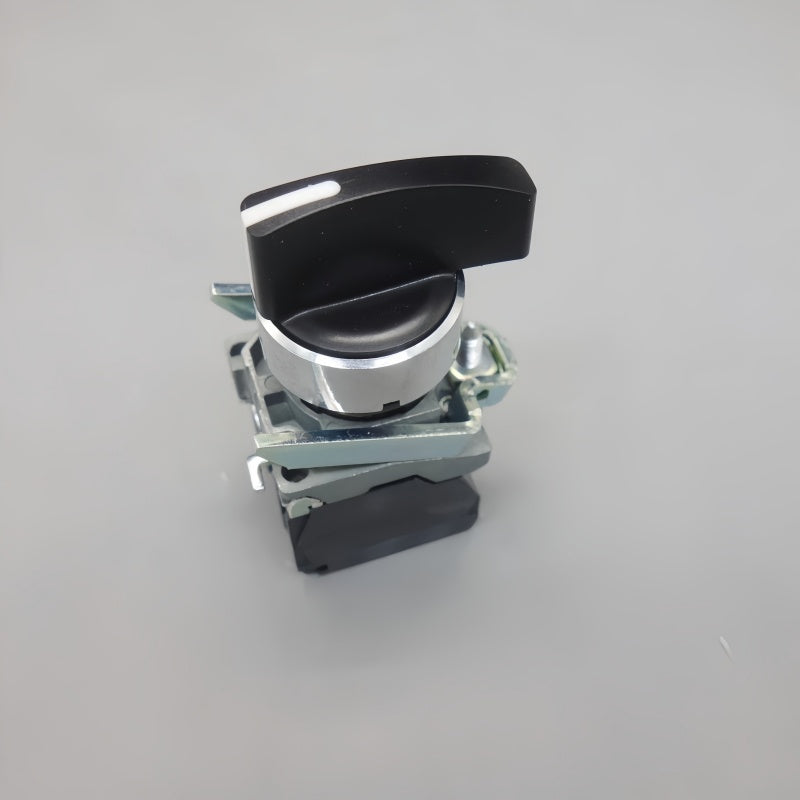

Schneider XB4BJ33 Selector Switch 22mm 3-Position 2NO
Available in stock (200)
Regular price
$13.32
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | XB4BJ33 |
| Product Category | Selector Switch |
| Product Range | Harmony XB4 |
| Device Short Name | XB4 |
| Bezel Material | Chromium Plated Metal |
| Mounting Diameter | 22.5 mm |
| Head Shape | Round |
| Operator Profile | Black Long Handle |
| Operator Type | Stay Put |
| Operator Positions | 3 Positions +/-45° |
| Contacts Type and Composition | 2 NO |
| Contact Operation | Slow-Break |
| Connection Type | Screw Clamp Terminals |
Key Features
2 NO Contacts
The documented contact configuration provides two normally open contacts for control circuit switching.
Stay-Put Operator
The selector uses a maintained stay-put operating mechanism rather than a spring-return action.
Black Long Handle
The documented operator profile is a black long handle for manual selector operation.
22.5mm Mounting
The selector switch is designed for a documented panel mounting diameter of 22.5 mm.
Slow-Break Contacts
The XB4BJ33 uses a slow-break contact operating mechanism with two normally open contacts.
Applications
- Machine operating mode selection
- Industrial control panel functions
- Manual control circuit selection
- Automation equipment controls
- Electrical cabinet operator controls
- Process mode selection
- Machine function selection
- Industrial equipment control stations
Purchase Information
We support online purchase of the Schneider XB4BJ33 Selector Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider XB4BJ33?
Schneider XB4BJ33 is a Harmony XB4 metal selector switch with a black long handle, three maintained positions and two normally open contacts.
How many operating positions does XB4BJ33 have?
The documented configuration provides three positions arranged at +/-45°.
What contact configuration does XB4BJ33 use?
The selector switch provides two normally open contacts, specified as 2 NO.
Is XB4BJ33 spring return or maintained?
XB4BJ33 uses a stay-put operator, meaning the selected position is maintained.
What type of handle does XB4BJ33 use?
Schneider specifies a black long-handle operator profile for this model.
What mounting diameter is specified for XB4BJ33?
The documented mounting diameter is 22.5 mm.
What material is used for the bezel?
Schneider specifies a chromium-plated metal bezel.
What contact operation does XB4BJ33 use?
The documented contact operating principle is slow-break.
What connection type does XB4BJ33 use?
The documented configuration uses screw clamp terminals.
What applications can XB4BJ33 be considered for?
It can be considered for machine mode selection, industrial control panels, operator control stations and other manual control circuit selection functions.
Can XB4BJ33 be considered for an existing control panel?
It can be considered after the complete model number, mounting diameter, three-position operating arrangement, 2 NO contact configuration and wiring requirements have been checked against the existing system.
What should be checked before ordering XB4BJ33?
Check the complete XB4BJ33 model number, 22.5 mm mounting requirement, black long-handle operator, three maintained positions, 2 NO contacts and terminal requirements before purchasing.
