RFID Sensor Technology
The RSS36-D-ST uses RFID technology with standard coding for safety-related position monitoring.

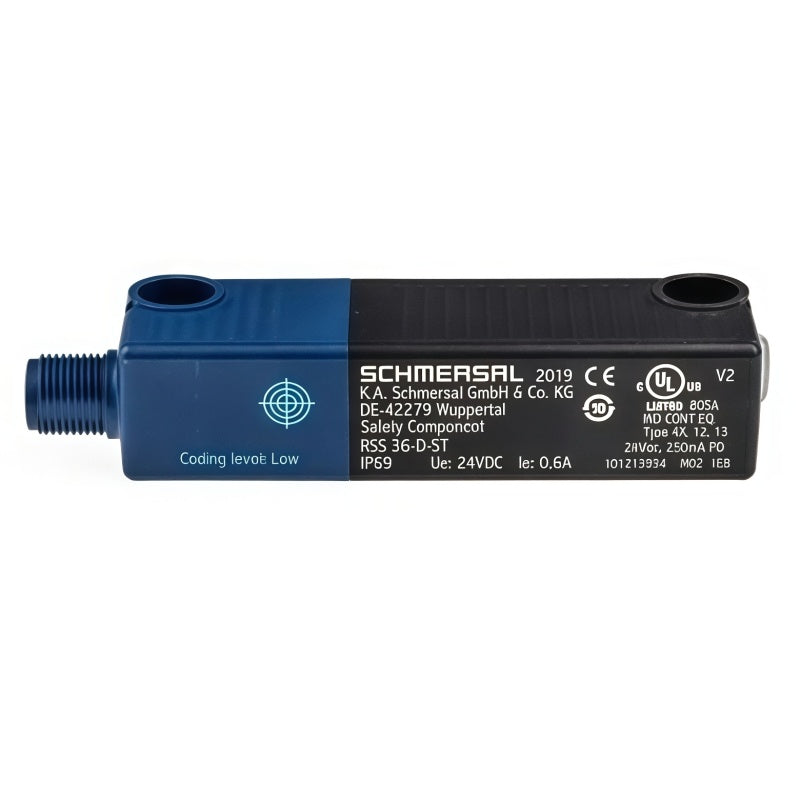

Schmersal RSS36-D-ST RFID Safety Sensor 2 PNP M12 8-Pin
Available in stock (200)
Regular price
$176.12
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schmersal |
| Model Number | RSS36-D-ST |
| Product Category | RFID Safety Sensor |
| Article Number | 101213954 |
| Product Series | RSS36 |
| Sensor Technology | RFID |
| Coding | Standard Coding |
| Safety Outputs | 2 P-Type Short-Circuit-Proof Safety Outputs |
| Diagnostic Type | Conventional |
| Connection Type | M12 Connector Plug, 8-Pole |
| Actuation | From Side |
| Enclosure Material | Thermoplastic |
| Dimensions | 106.3 x 25 x 22 mm |
Key Features
2 Safety Outputs
The sensor provides two p-type short-circuit-proof safety outputs.
M12 8-Pole Connector
The documented connection configuration uses an M12 8-pole connector plug.
Conventional Diagnostics
The RSS36-D-ST uses a conventional diagnostic configuration.
Side Actuation
The documented mechanical configuration supports actuation from the side.
Compact Sensor Housing
The documented enclosure dimensions are 106.3 x 25 x 22 mm with a thermoplastic housing.
Applications
- Movable machine guard monitoring
- Protective door position monitoring
- Industrial machine safety systems
- Automated machinery guarding
- Conveyor safety monitoring
- Machine access point monitoring
- Industrial safety control systems
- Non-contact position monitoring
Purchase Information
We support online purchase of the Schmersal RSS36-D-ST RFID Safety Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schmersal RSS36-D-ST?
Schmersal RSS36-D-ST is an RFID safety sensor designed for non-contact monitoring of movable protective devices in machine safety applications.
What is the article number for RSS36-D-ST?
The documented article number is 101213954.
What sensing technology does RSS36-D-ST use?
The sensor uses RFID technology with standard coding.
How many safety outputs does RSS36-D-ST provide?
It provides two p-type short-circuit-proof safety outputs.
What diagnostic type does RSS36-D-ST use?
The documented configuration uses conventional diagnostics.
What connection does RSS36-D-ST use?
The documented connection is an M12 8-pole connector plug.
How is RSS36-D-ST actuated?
The documented configuration supports actuation from the side.
What are the dimensions of RSS36-D-ST?
The documented enclosure dimensions are 106.3 x 25 x 22 mm.
What is the RSS36-D-ST enclosure made from?
The documented enclosure material is thermoplastic.
What applications can RSS36-D-ST be considered for?
It can be considered for non-contact monitoring of movable protective devices, machine guards and access points after the safety and installation requirements have been checked.
Can RSS36-D-ST be used in an existing safety system?
Its electrical, safety, mechanical, coding and connection requirements should be verified against the existing system requirements before use.
What should be checked before ordering RSS36-D-ST?
Check the complete model number, required RFID coding, safety output configuration, diagnostic type, M12 8-pole connection, actuator arrangement and installation requirements before purchasing.
