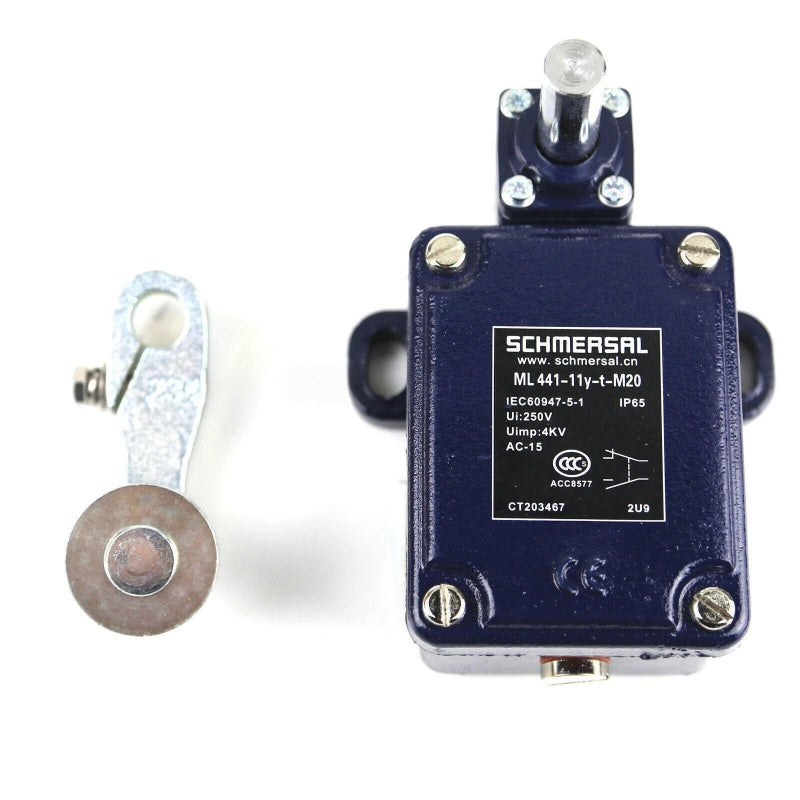

Roller Lever Actuator
The ML441-11Y-T-M20 uses a roller lever actuating element for mechanically operated position detection.
1 / 7
Schneider
Schmersal ML441-11Y-T-M20 Limit Switch IP65 1NO+1NC 250V
PRODUCT PRICE
USD
$50.64
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Schmersal |
| Model Number | ML441-11Y-T-M20 |
| Product Category | Limit Switch |
| Part Number | 101170498 |
| Actuating Element | Roller Lever |
| Switching Principle | Snap Action |
| Contact Configuration | 1 NO + 1 NC |
| Contact Design | Changeover Contact with Double Break |
| Protection Rating | IP65 |
| Rated Insulation Voltage | 250 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Thermal Test Current | 16 A |
| Utilisation Category | AC-15: 250 V / 4 A |
| Cable Entries | 2 x M20 x 1.5 |
| Dimensions | 106 x 192 x 63 mm |
| Roller Diameter | 36 mm |
| Roller Width | 9 mm |
Key Features
1 NO + 1 NC Contacts
The documented switching configuration provides one normally open and one normally closed contact.
Snap-Action Switching
The switch uses a snap-action switching element with a changeover contact and double-break contact design.
IP65 Protection
The documented enclosure protection rating is IP65 according to IEC/EN 60529.
AC-15 Switching Rating
The documented utilisation category is AC-15 with a rating of 250 V / 4 A.
M20 Cable Entries
The documented configuration provides two M20 x 1.5 cable entries for electrical connection.
Applications
- Machine position detection
- Mechanical travel monitoring
- Industrial machinery control
- End-position detection
- Conveyor position monitoring
- Industrial control circuits
- Equipment motion monitoring
- Machine automation applications
Purchase Information
We support online purchase of the Schmersal ML441-11Y-T-M20 Limit Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schmersal ML441-11Y-T-M20?
Schmersal ML441-11Y-T-M20 is a position and limit switch with a roller lever actuator and snap-action switching element.
What is the part number of ML441-11Y-T-M20?
The documented part number is 101170498.
What contact configuration does ML441-11Y-T-M20 use?
The documented configuration includes one normally open contact and one normally closed contact.
What switching principle does ML441-11Y-T-M20 use?
The switch uses a snap-action switching element with a double-break changeover contact.
What is the protection rating of ML441-11Y-T-M20?
The documented protection rating is IP65 according to IEC/EN 60529.
What is the rated insulation voltage?
The documented rated insulation voltage is 250 V.
What is the AC-15 rating of ML441-11Y-T-M20?
The documented AC-15 utilisation rating is 250 V / 4 A.
What cable entries does ML441-11Y-T-M20 use?
The documented configuration provides two M20 x 1.5 cable entries.
What is the operating temperature range?
The documented environmental operating temperature range is -30°C to +90°C.
What applications can ML441-11Y-T-M20 be considered for?
It can be considered for mechanical position detection, travel monitoring, end-position detection and industrial machine control applications after the application requirements have been checked.
Can ML441-11Y-T-M20 be used in an existing machine?
It can be considered after the complete model number, actuator arrangement, contact configuration, electrical ratings, mounting dimensions and cable entry requirements have been checked against the existing system.
What should be checked before ordering ML441-11Y-T-M20?
Check the complete model number, roller lever configuration, 1 NO + 1 NC contacts, IP65 rating, electrical switching requirements, dimensions and M20 cable entry requirements before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
