80A AC-3 Rating
The contactor is specified for 80 A rated operational current at up to 440 VAC in AC-3 applications.

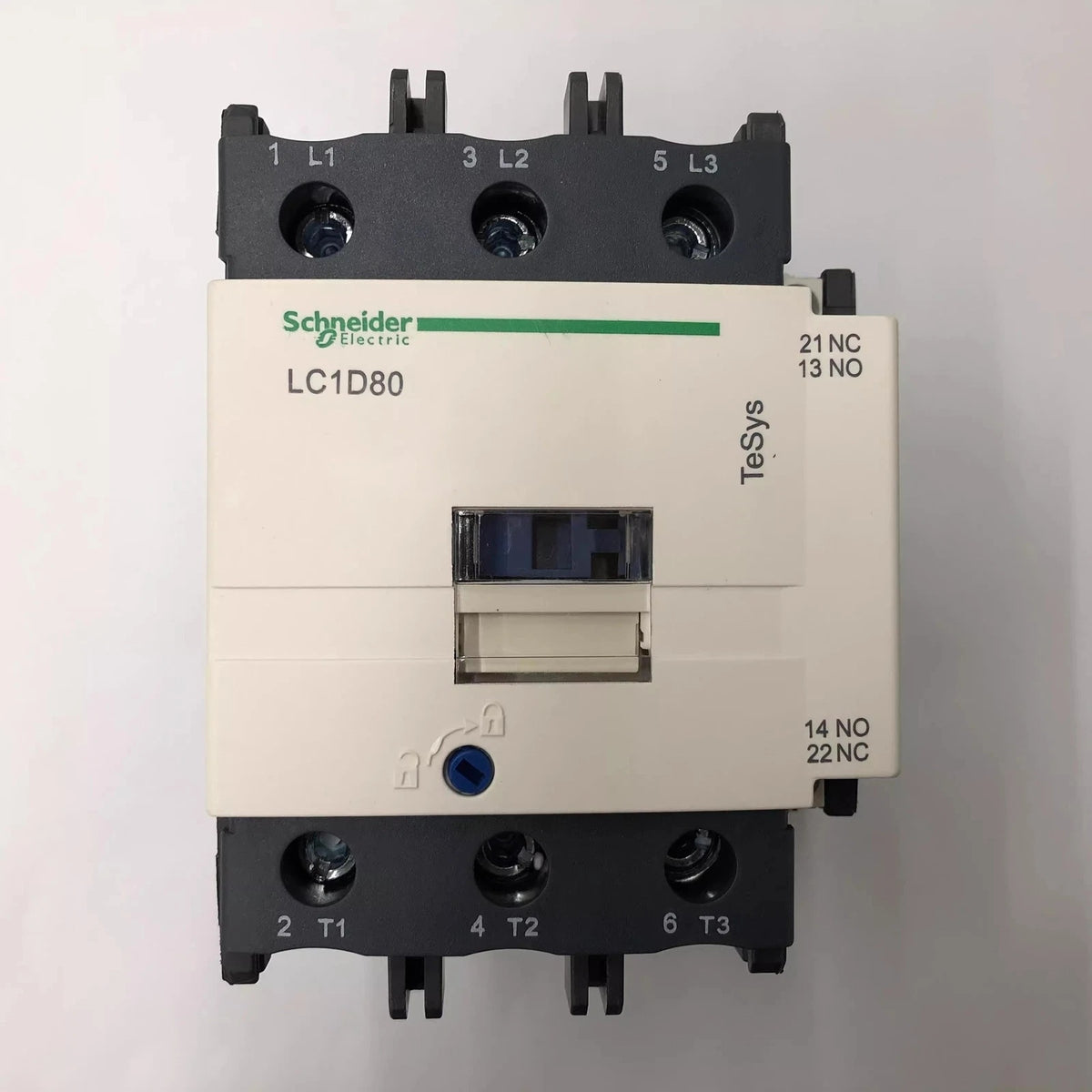

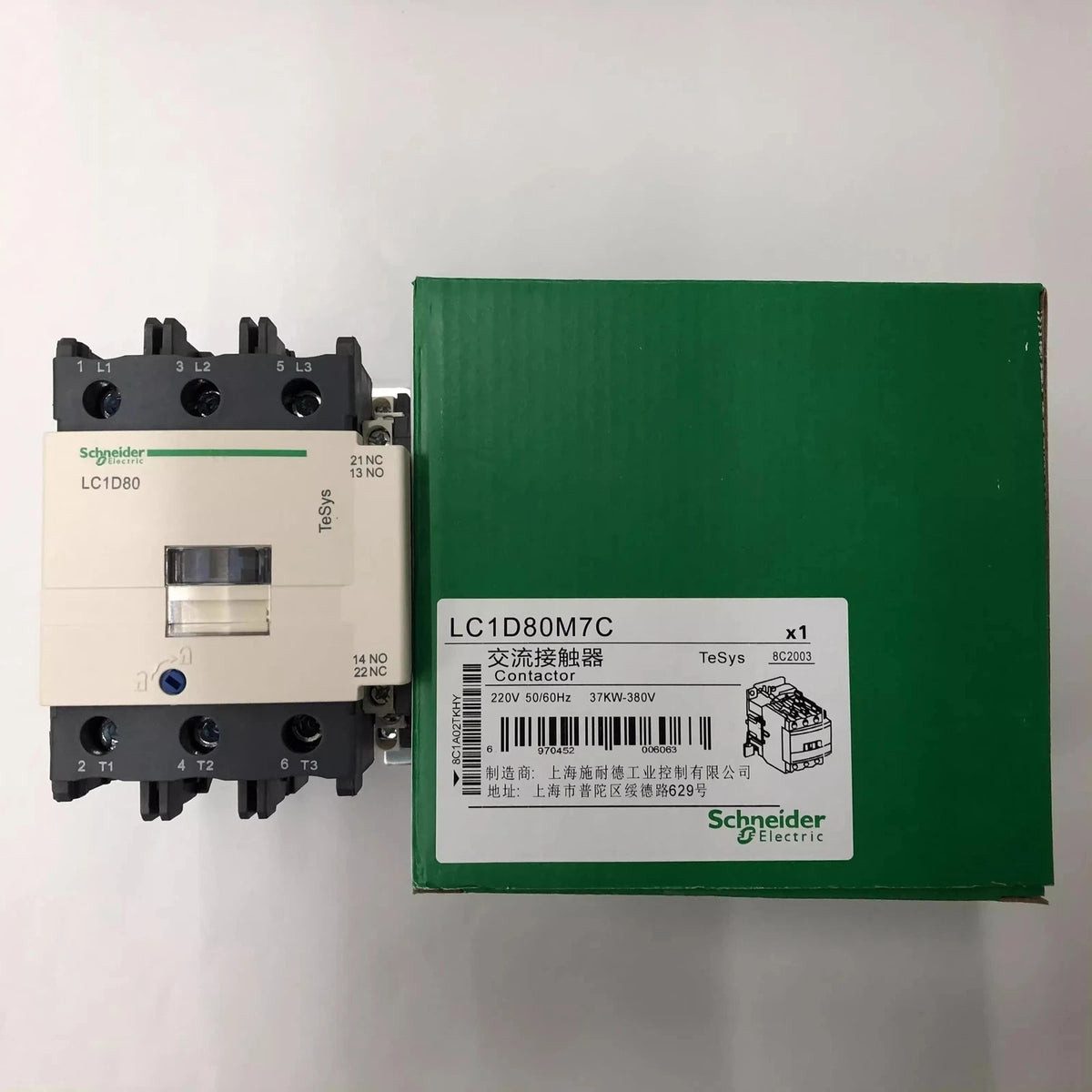

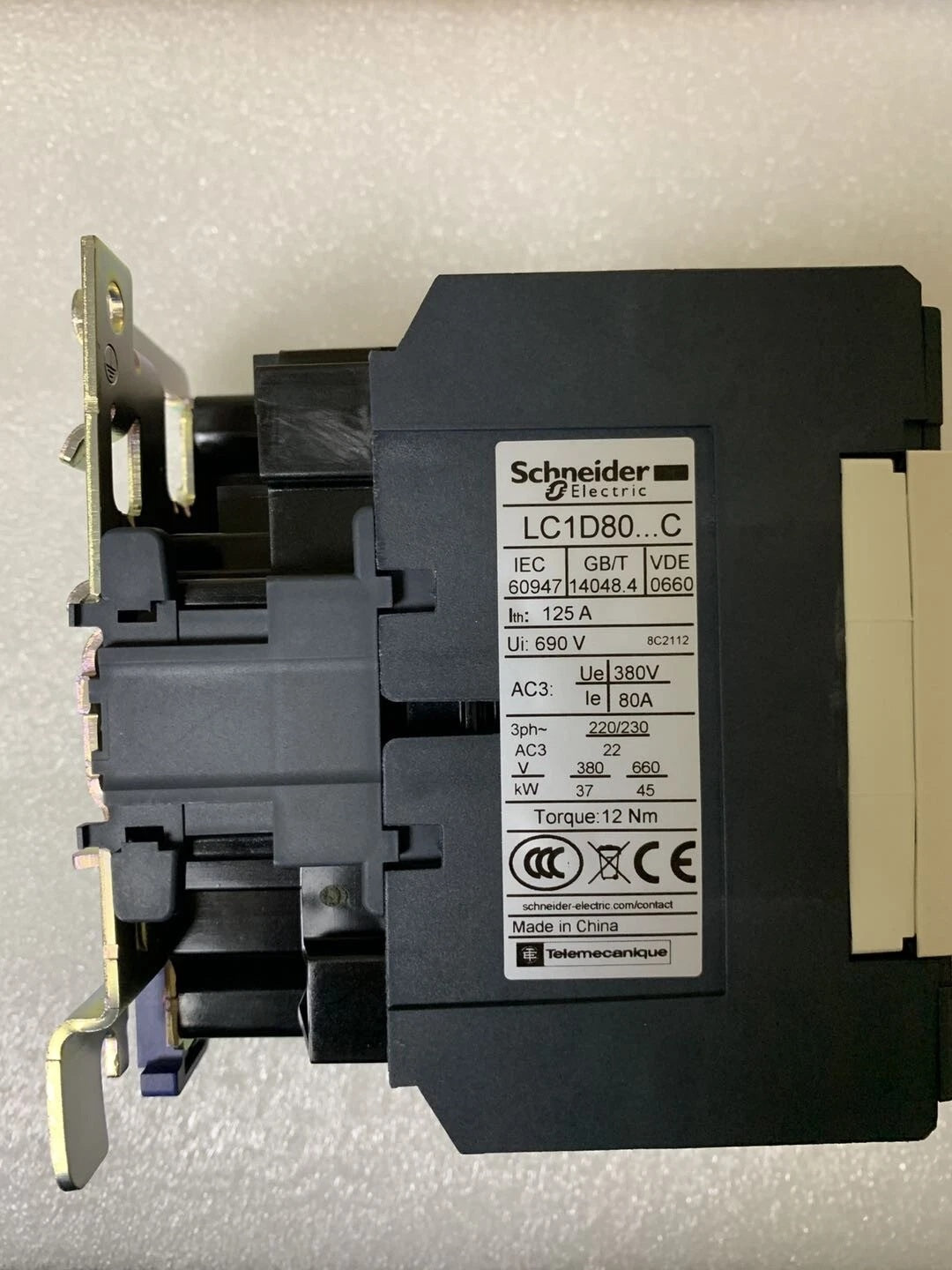

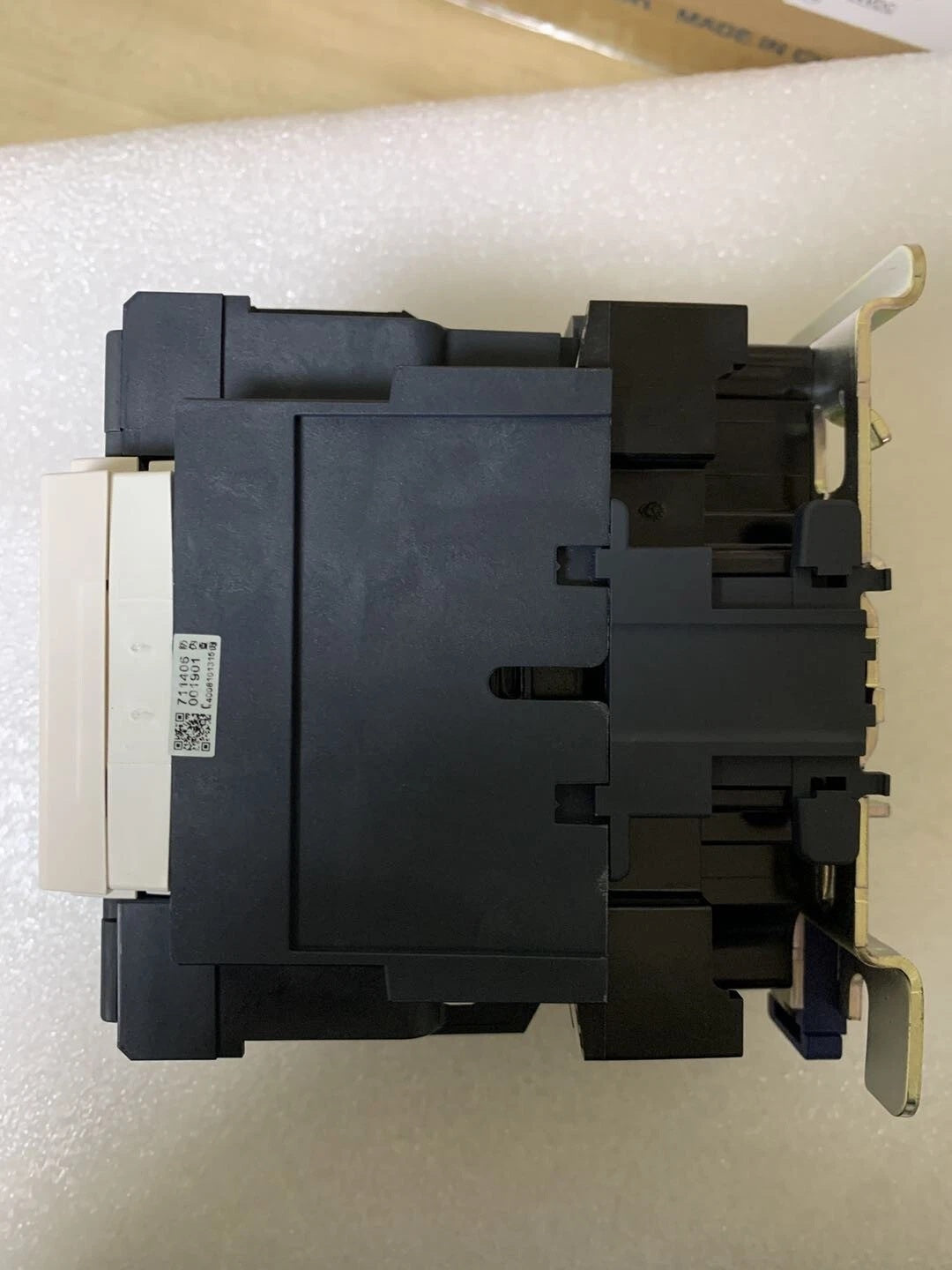

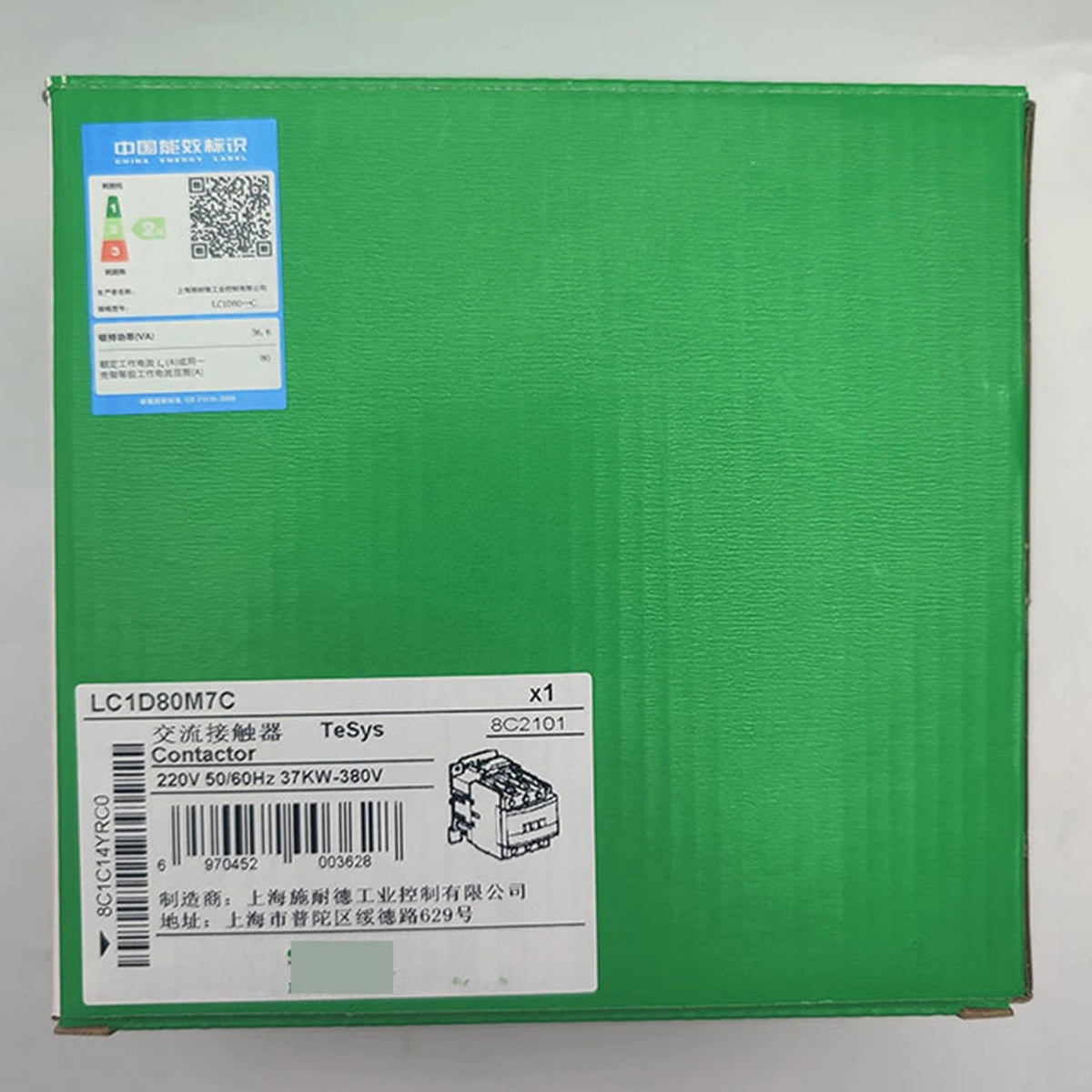

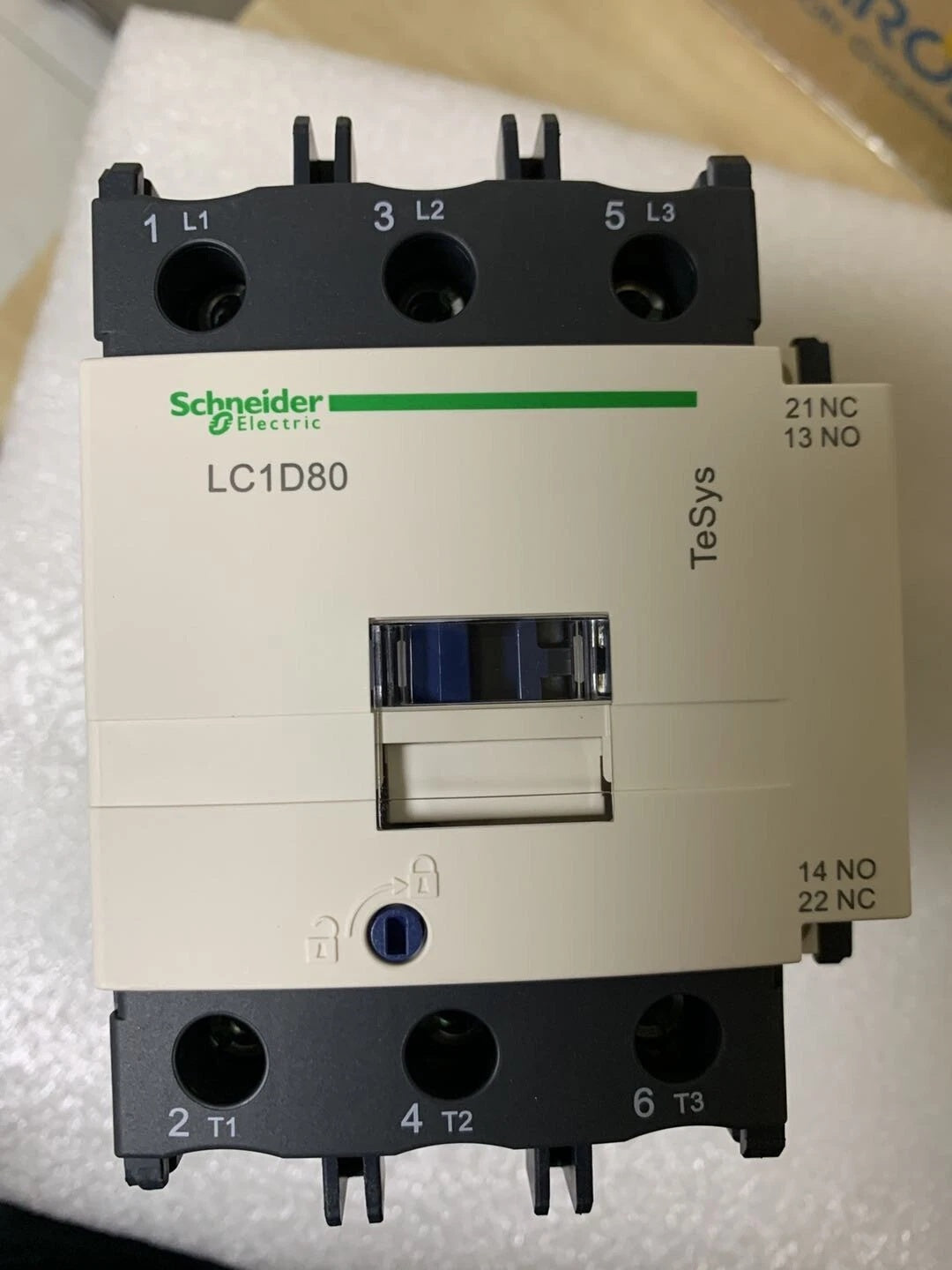

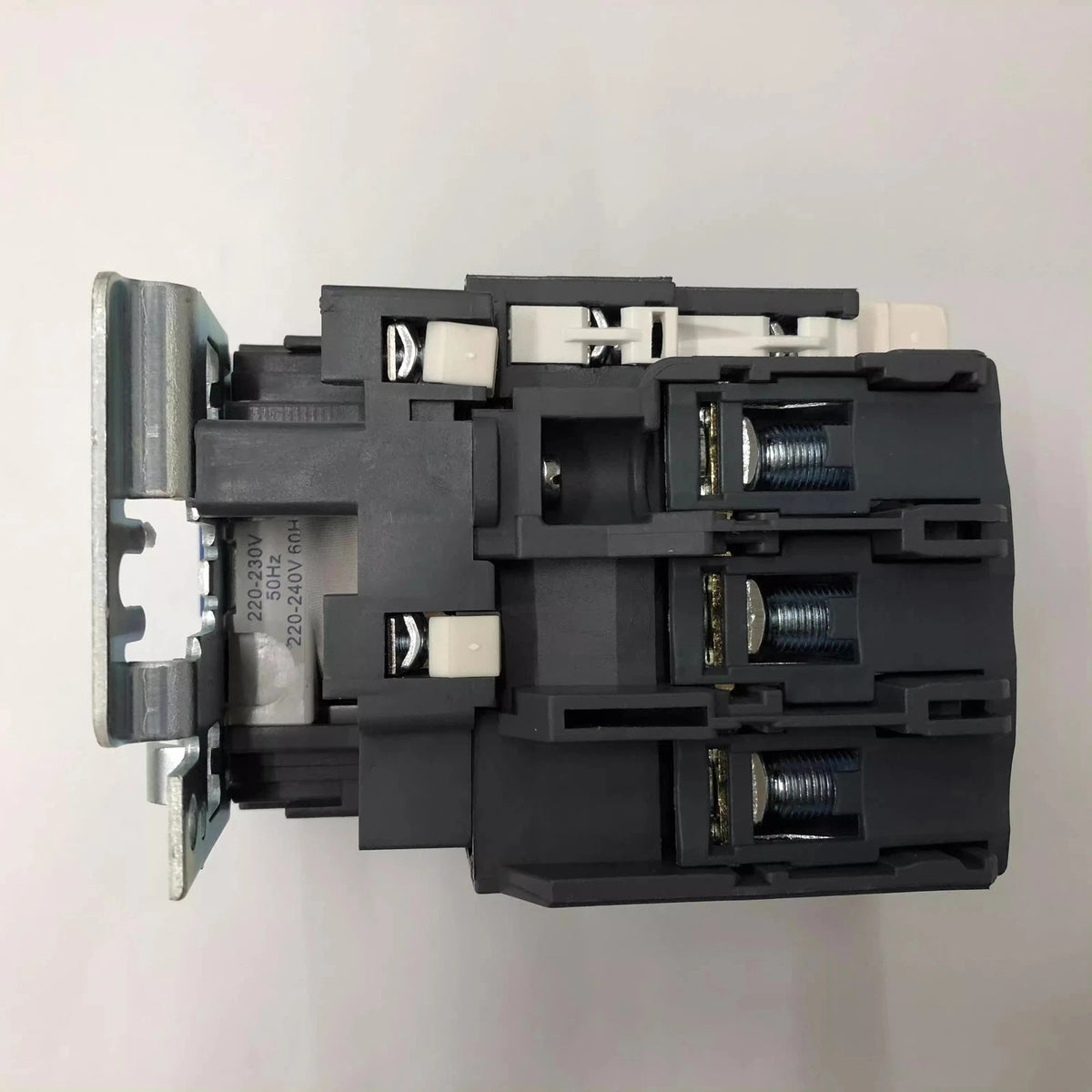

Schneider LC1D80M7C Contactor 80A 220VAC 50/60Hz
Available in stock (400)
Regular price
$76.28
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | LC1D80M7C |
| Product Category | Contactor |
| Product Type | TeSys D Contactor |
| Poles | 3P |
| Pole Contact Composition | 3 NO |
| Utilisation Category | AC-3 |
| Rated Operational Current | 80 A at ≤ 440 VAC (AC-3) |
| Control Circuit Voltage | 220 VAC 50/60 Hz |
Key Features
3-Pole Configuration
The power contact arrangement uses three poles with 3 NO main contacts.
220VAC Coil
The control circuit is specified for 220 VAC at 50/60 Hz.
Motor Control Contactor
The documented contactor configuration is intended for motor control applications.
AC-3 Utilisation
The published product specification identifies AC-3 as a utilisation category for this contactor.
TeSys D Design
LC1D80M7C is identified as a TeSys D contactor configuration.
Applications
- Industrial motor control circuits
- Motor starters and control panels
- Electrical control cabinets
- Machine control systems
- Industrial automation equipment
- Motor switching applications
- Production machinery control
- Electrical maintenance projects
Purchase Information
We support online purchase of the Schneider LC1D80M7C Contactor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider LC1D80M7C?
Schneider LC1D80M7C is a TeSys D contactor with a 3-pole, 3 NO power contact configuration for motor control applications.
What is the rated operational current of LC1D80M7C?
The documented AC-3 rated operational current is 80 A at up to 440 VAC.
What control circuit voltage does LC1D80M7C use?
The specified control circuit voltage is 220 VAC at 50/60 Hz.
How many poles does LC1D80M7C have?
It has a 3P power contact configuration.
What is the pole contact composition?
The documented pole contact composition is 3 NO.
What utilisation category is specified for LC1D80M7C?
The product specification identifies AC-3 for motor control switching.
Can LC1D80M7C be considered for motor control applications?
Yes. The documented product type and utilisation category support consideration for motor control circuits after system requirements have been checked.
What should be checked before ordering LC1D80M7C?
Check the complete model number, required current rating, operating voltage, control circuit voltage, pole configuration and application requirements before ordering.
What should be verified before using LC1D80M7C in an existing system?
Electrical, mechanical, control circuit and installation requirements should be checked against the existing system documentation before use.
Can LC1D80M7C be considered for maintenance or control-panel projects?
It can be considered after the complete model number, electrical ratings, contact configuration and control requirements have been verified for the project.
