0.37 kW Motor Rating
Specified for 0.37 kW motor power in heavy-duty operation.

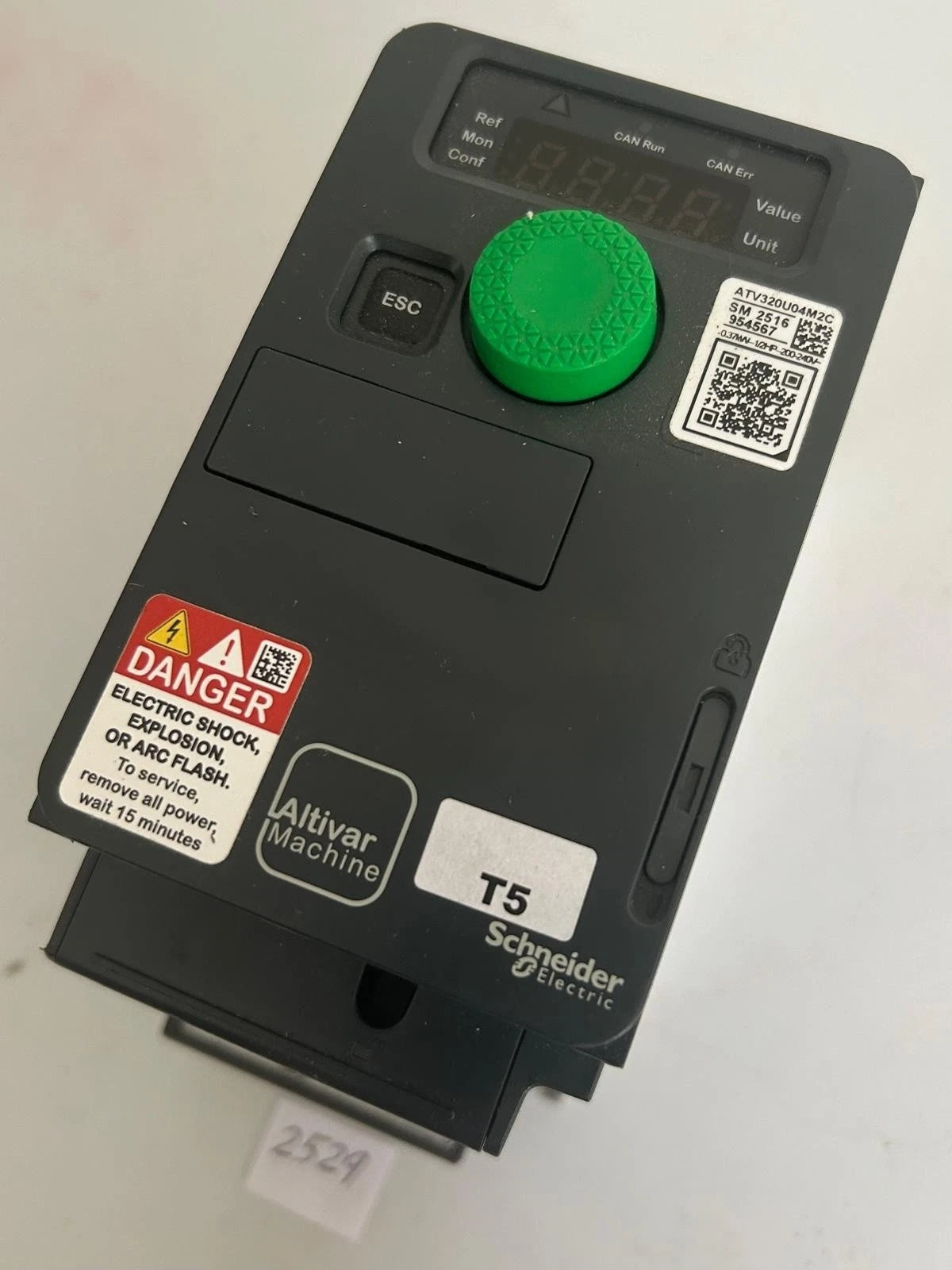

Schneider ATV320U04M2C Variable Frequency Drive 0.37kW 200-240V 1-Phase
Available in stock (400)
Regular price
$146.32
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | ATV320U04M2C |
| Product Category | Variable Frequency Drive |
| Product Family | Altivar Machine ATV320 |
| Product Type | Variable Speed Drive |
| Control Block Format | Compact |
| Supply Phase | 1 Phase |
| Rated Supply Voltage | 200-240 VAC |
| Supply Frequency | 50-60 Hz |
| Motor Power | 0.37 kW Heavy Duty |
| Maximum Horsepower | 0.5 hp Heavy Duty |
| Continuous Output Current | 3.3 A at 4 kHz Heavy Duty |
| Output Frequency | 0.1-599 Hz |
| Nominal Switching Frequency | 4 kHz |
| Communication Protocols | Modbus Serial / CANopen |

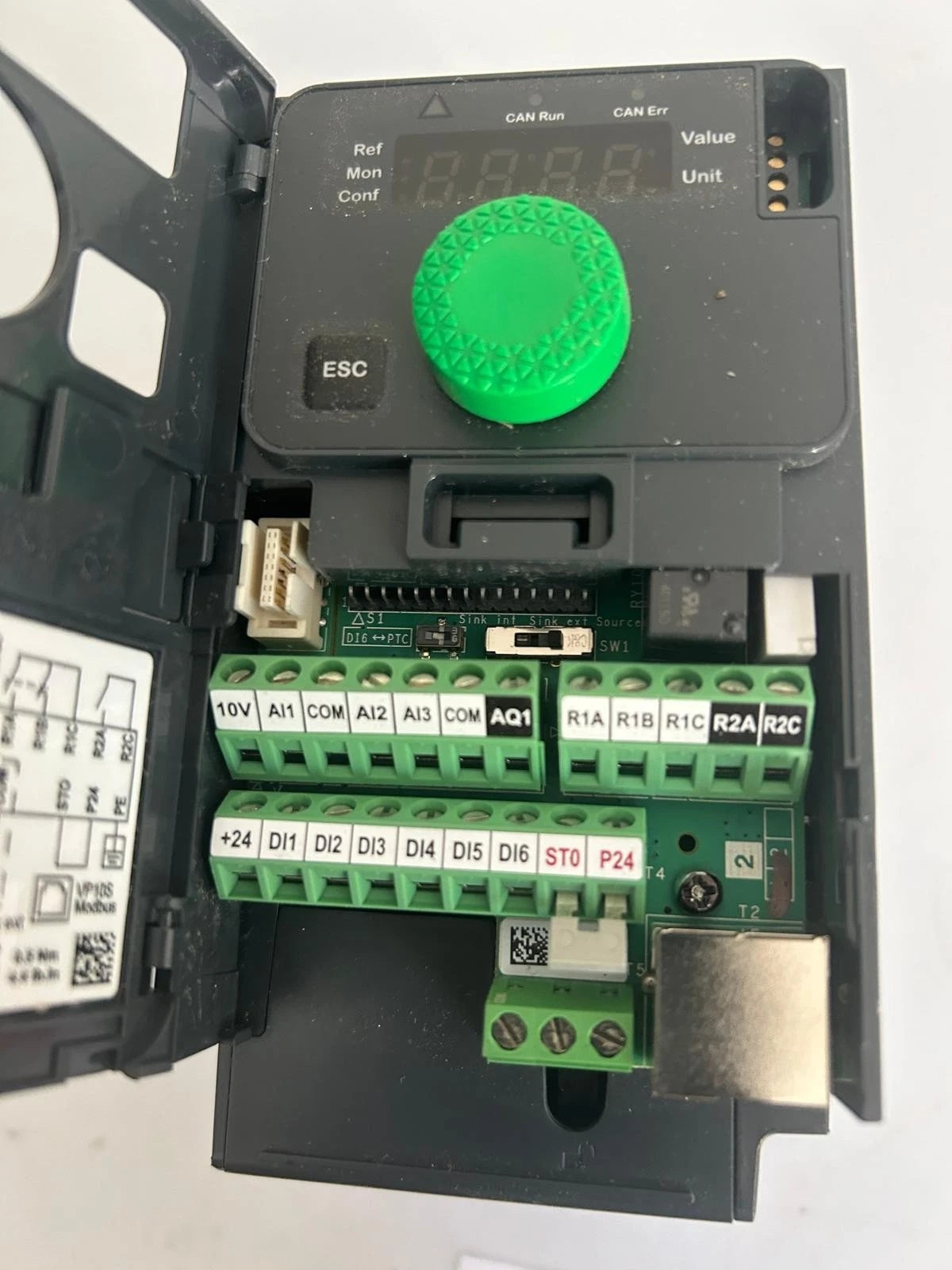

| Analog Inputs | 3 |
| Discrete Inputs | 7 |
| Analog Outputs | 1 |
| Discrete Outputs | 3 |
| Protection Rating | IP20 |
| Cooling Type | Fanless |
| Dimensions | 72 x 143 x 128 mm (W x H x D) |
| Operating Temperature | -10°C to +50°C without derating; +50°C to +60°C with derating |
Key Features
200-240 VAC Input
Uses a single-phase 200-240 VAC supply with a documented 50-60 Hz supply frequency.
3.3 A Continuous Output
Provides a documented continuous output current of 3.3 A at the 4 kHz nominal switching frequency in heavy-duty operation.
0.1-599 Hz Output
The documented drive output frequency range is 0.1-599 Hz.
Modbus and CANopen
Built-in communication protocols include Modbus Serial and CANopen.
Compact Fanless Format
The control block is specified in compact format with fanless cooling and an IP20 degree of protection.
Applications
- Variable-speed control of industrial machinery
- Synchronous motor speed control
- Asynchronous motor speed control
- Machine automation systems
- Conveyor and material-handling machinery
- Pump and fan control applications
- Industrial process equipment
- Machine control system maintenance projects
Purchase Information
We support online purchase of the Schneider ATV320U04M2C Variable Frequency Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider ATV320U04M2C?
Schneider ATV320U04M2C is an Altivar Machine ATV320 variable speed drive in compact format for synchronous and asynchronous motor control.
What motor power is specified for ATV320U04M2C?
The documented motor power is 0.37 kW in heavy-duty operation.
What supply voltage does ATV320U04M2C use?
The rated supply voltage is 200-240 VAC, single phase.
What is the continuous output current?
The documented continuous output current is 3.3 A at 4 kHz in heavy-duty operation.
What output frequency range does ATV320U04M2C provide?
The documented drive output frequency range is 0.1-599 Hz.
Which communication protocols are built into the drive?
The documented communication protocols are Modbus Serial and CANopen.
How many analog and discrete inputs are provided?
The drive has three analog inputs and seven discrete inputs.
What is the protection rating of ATV320U04M2C?
The documented degree of protection is IP20.
What are the dimensions of ATV320U04M2C?
The documented dimensions are 72 mm wide, 143 mm high and 128 mm deep.
What applications can ATV320U04M2C be considered for?
It can be considered for variable-speed motor control in machinery and automation applications after the electrical, motor and installation requirements have been checked.
What should be checked before ordering ATV320U04M2C?
Check the complete model number, 200-240 VAC single-phase supply requirement, 0.37 kW motor rating, output-current requirement, motor type, control requirements and installation conditions before purchasing.
What should be verified before using ATV320U04M2C in an existing system?
The electrical, motor, communication, mechanical and installation requirements should be checked against the existing system requirements before use.
