4-Way Signal Duplication
The MCR-SL-UI-2I-NC provides electrical isolation and duplication of one standard analog input signal to two current outputs.

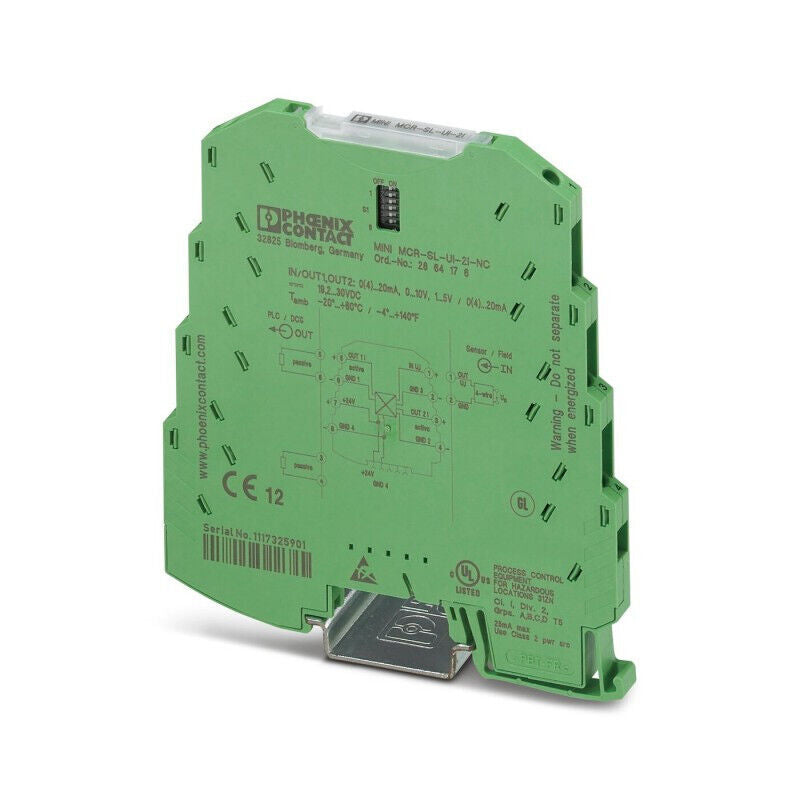

Phoenix MCR-SL-UI-2I-NC 2864176 MINI Signal Duplicator 19.2-30 VDC
Available in stock (200)
Regular price
$150.00
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Phoenix Contact |
| Model Number | MCR-SL-UI-2I-NC |
| Product Category | Signal Duplicator |
| Item Number | 2864176 |
| Product Family | MINI Analog |
| Number of Channels | 2 |
| Input Signals | 0-20 mA / 4-20 mA / 0-10 V / 1-5 V |
| Number of Outputs | 2 |
| Output Signals | 0-20 mA / 4-20 mA |
| Supply Voltage | 19.2-30 VDC |
| Electrical Isolation | 4-Way Isolation |
| Configuration | DIP Switches |
| Limit Frequency | Approx. 35 Hz |
| Step Response | Approx. 10 ms |
| Maximum Transmission Error | ≤0.2% of Final Value |
| Output Load | ≤250 Ω at 20 mA |
| Connection | Screw Connection |
| Degree of Protection | IP20 |
Key Features
Multiple Analog Inputs
Selectable input ranges include 0-20 mA, 4-20 mA, 0-10 V and 1-5 V analog signals.
Two Current Outputs
Two electrically isolated current outputs can be configured independently for 0-20 mA or 4-20 mA signals.
19.2-30 VDC Supply
The documented operating supply range is 19.2-30 VDC through the module terminals or DIN rail connector arrangement.
DIP Switch Configuration
The input and output signal ranges are configured using DIP switches accessible from the side of the housing.
6.2 mm Module Width
The signal duplicator uses a documented housing width of 6.2 mm for compact control cabinet installation.
Applications
- 4-20 mA signal duplication
- 0-20 mA signal distribution
- Analog signal electrical isolation
- PLC analog signal interfacing
- Process instrumentation systems
- Measurement signal distribution
- Industrial control cabinets
- Process control signal conditioning
Purchase Information
We support online purchase of the Phoenix Contact MCR-SL-UI-2I-NC 2864176 Signal Duplicator. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Phoenix Contact MCR-SL-UI-2I-NC 2864176?
Phoenix Contact MCR-SL-UI-2I-NC, item number 2864176, is a configurable 4-way signal duplicator for electrical isolation, conversion, amplification, filtering and duplication of standard analog signals.
What is the item number for MCR-SL-UI-2I-NC?
The documented Phoenix Contact item number is 2864176.
What input signals does MCR-SL-UI-2I-NC support?
The selectable input signals are 0-20 mA, 4-20 mA, 0-10 V and 1-5 V.
How many outputs does MCR-SL-UI-2I-NC provide?
The module provides two current outputs.
What output signals are supported?
Each current output can be configured for 0-20 mA or 4-20 mA operation.
What supply voltage does MCR-SL-UI-2I-NC require?
The documented supply voltage range is 19.2-30 VDC.
Does MCR-SL-UI-2I-NC provide electrical isolation?
Yes. Phoenix Contact specifies 4-way electrical isolation.
How is the signal range configured?
Input and output signal ranges are configured using DIP switches located on the side of the housing.
What is the maximum transmission error?
The documented maximum transmission error is ≤0.2% of the final value.
What is the protection rating?
The documented degree of protection is IP20.
What applications can MCR-SL-UI-2I-NC be considered for?
It can be considered for analog signal duplication, 4-20 mA distribution, electrical isolation and process-control signal conditioning after the input, output and supply requirements have been checked.
What should be checked before ordering MCR-SL-UI-2I-NC 2864176?
Check item number 2864176, the required analog input range, two current-output requirements, 19.2-30 VDC supply, screw connection, isolation requirements and available installation space before purchasing.
