2 Analog Voltage Outputs
The NX1W-DAB21V provides two analog voltage output channels for control applications requiring analog output signals.
1 / 7
Omron

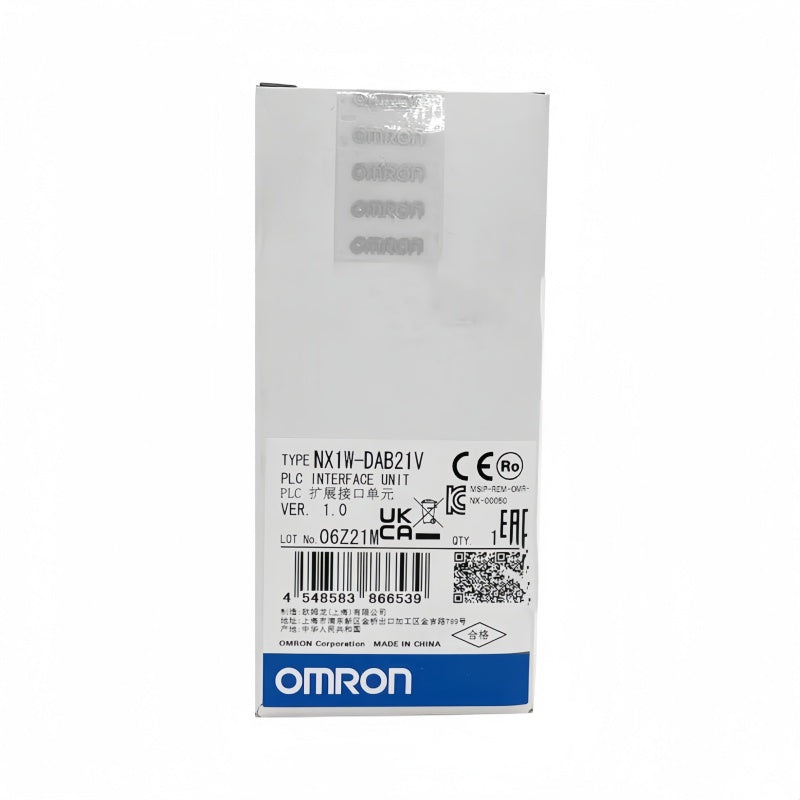

Omron NX1W-DAB21V Analog Output Option Board 2-Channel 0-10V
PRODUCT PRICE
USD
$77.60
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | NX1W-DAB21V |
| Product Category | Analog Output Option Board |
| Output Type | Analog Voltage Output |
| Number of Outputs | 2 |
| Output Range | 0 to 10 V |
| Output Conversion Range | 0 to 10.24 V |
| Resolution | 1/4,000 Full Scale |
| Allowable Load Resistance | 2 kΩ min. |
| Output Impedance | 0.5 Ω max. |
| Overall Accuracy at 25°C | ±0.5% Full Scale |
| Overall Accuracy at 0 to 55°C | ±1.0% Full Scale |
| Internal Sampling Time | 2 ms per Point |
| Connection Type | Screwless Clamping Terminal Block |
| Number of Terminals | 3 |
Key Features
0-10V Output Range
Omron specifies a 0 to 10 V analog output range with an output conversion range extending to 10.24 V.
1/4,000 Resolution
The analog voltage output has a documented resolution of 1/4,000 full scale.
2ms Sampling per Point
The published specifications identify an internal sampling time of 2 ms per output point.
2kΩ Minimum Load
The documented allowable load resistance for the voltage output is 2 kΩ minimum.
Screwless Terminal Block
The option board uses a screwless clamping terminal block with three terminals for its analog output connections.
Applications
- Analog reference signal output
- Industrial process control
- Variable-speed drive reference signals
- Actuator command signal output
- Industrial automation control
- Analog equipment control signals
- Machine automation systems
- Process equipment control
Purchase Information
We support online purchase of the Omron NX1W-DAB21V Analog Output Option Board. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron NX1W-DAB21V?
Omron NX1W-DAB21V is an analog output option board that provides two analog voltage output channels.
How many analog outputs does NX1W-DAB21V provide?
The option board provides two analog output channels.
What output range does NX1W-DAB21V support?
Omron specifies a voltage output range of 0 to 10 V.
What is the output conversion range of NX1W-DAB21V?
The documented output conversion range is 0 to 10.24 V.
What is the resolution of NX1W-DAB21V?
The voltage output resolution is documented as 1/4,000 full scale.
What load resistance is specified for NX1W-DAB21V?
The allowable load resistance is specified as 2 kΩ minimum.
What is the output impedance of NX1W-DAB21V?
The documented output impedance is 0.5 Ω maximum.
What is the accuracy of NX1W-DAB21V?
Omron specifies overall accuracy of ±0.5% full scale at 25°C and ±1.0% full scale from 0 to 55°C.
What is the sampling time of NX1W-DAB21V?
The documented internal sampling time is 2 ms per point.
What connection type does NX1W-DAB21V use?
The option board uses a screwless clamping terminal block with three terminals.
What applications can NX1W-DAB21V be considered for?
It can be considered for industrial automation applications requiring two 0 to 10 V analog output signals after the controller configuration, signal requirements and electrical load conditions have been checked.
What should be checked before ordering NX1W-DAB21V?
Check the complete model number, required number of analog outputs, 0 to 10 V signal range, load resistance, terminal requirements and controller configuration before ordering.
