6-Digit Counter
The H7CX-AD-N is a six-digit electronic preset counter for pulse counting and preset control functions.

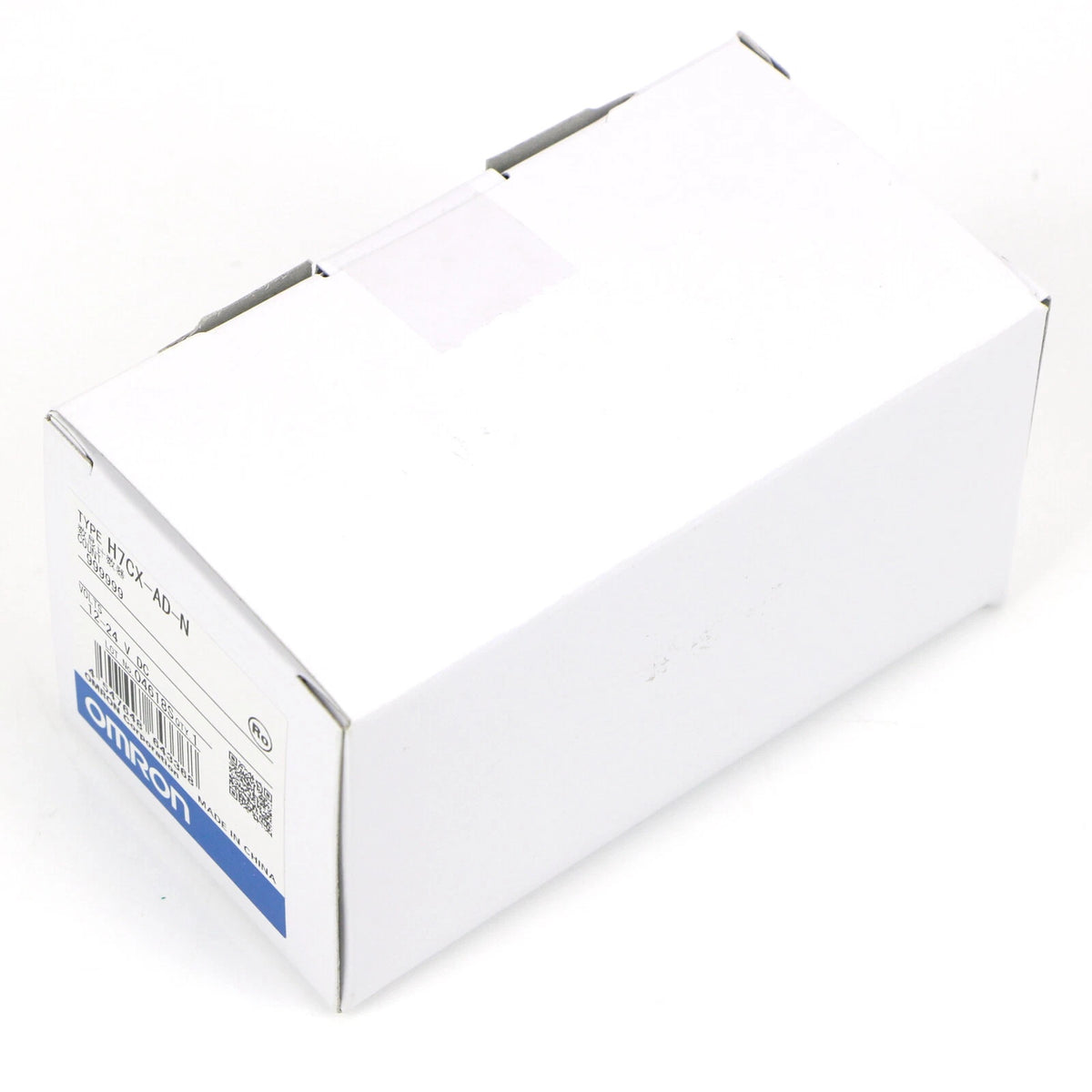

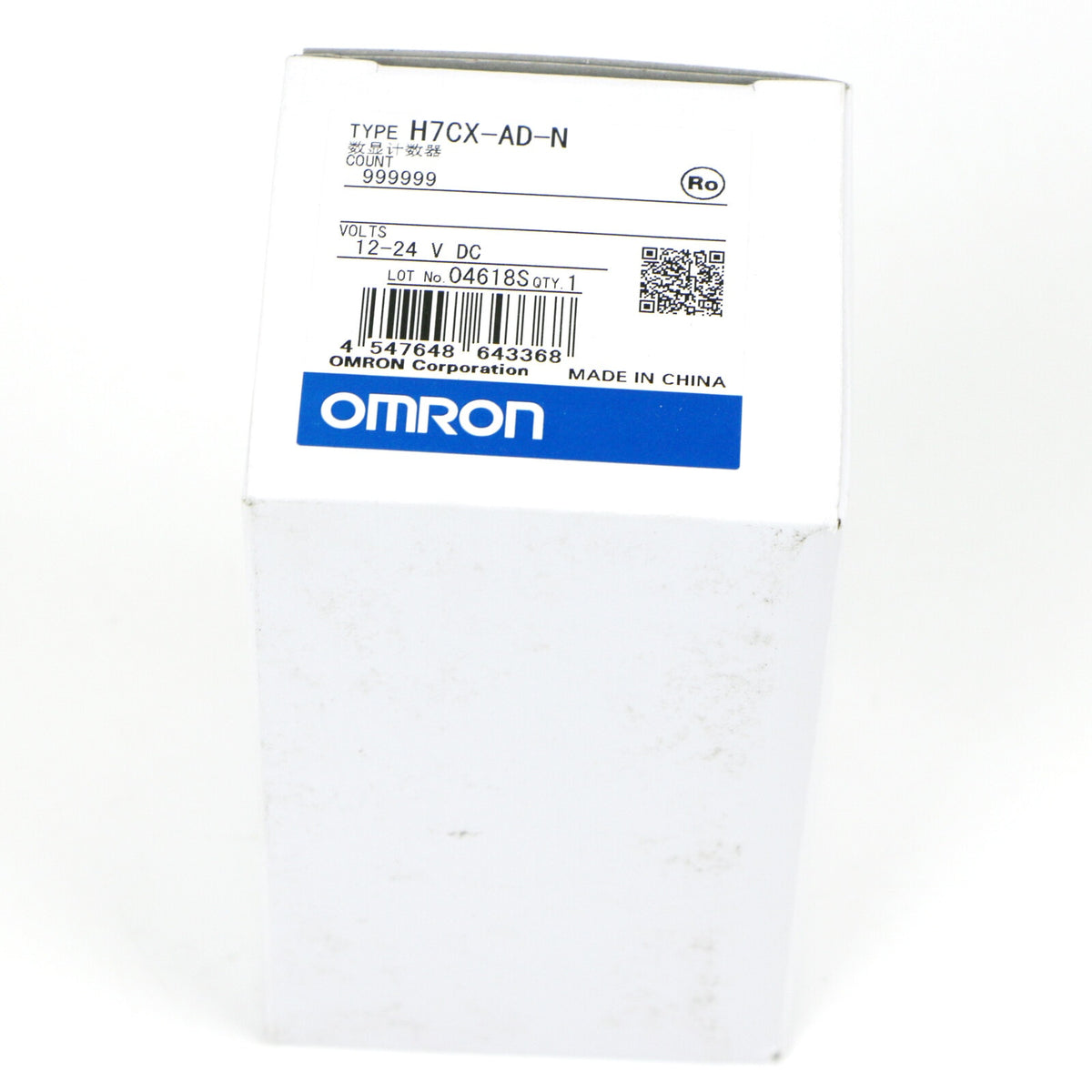

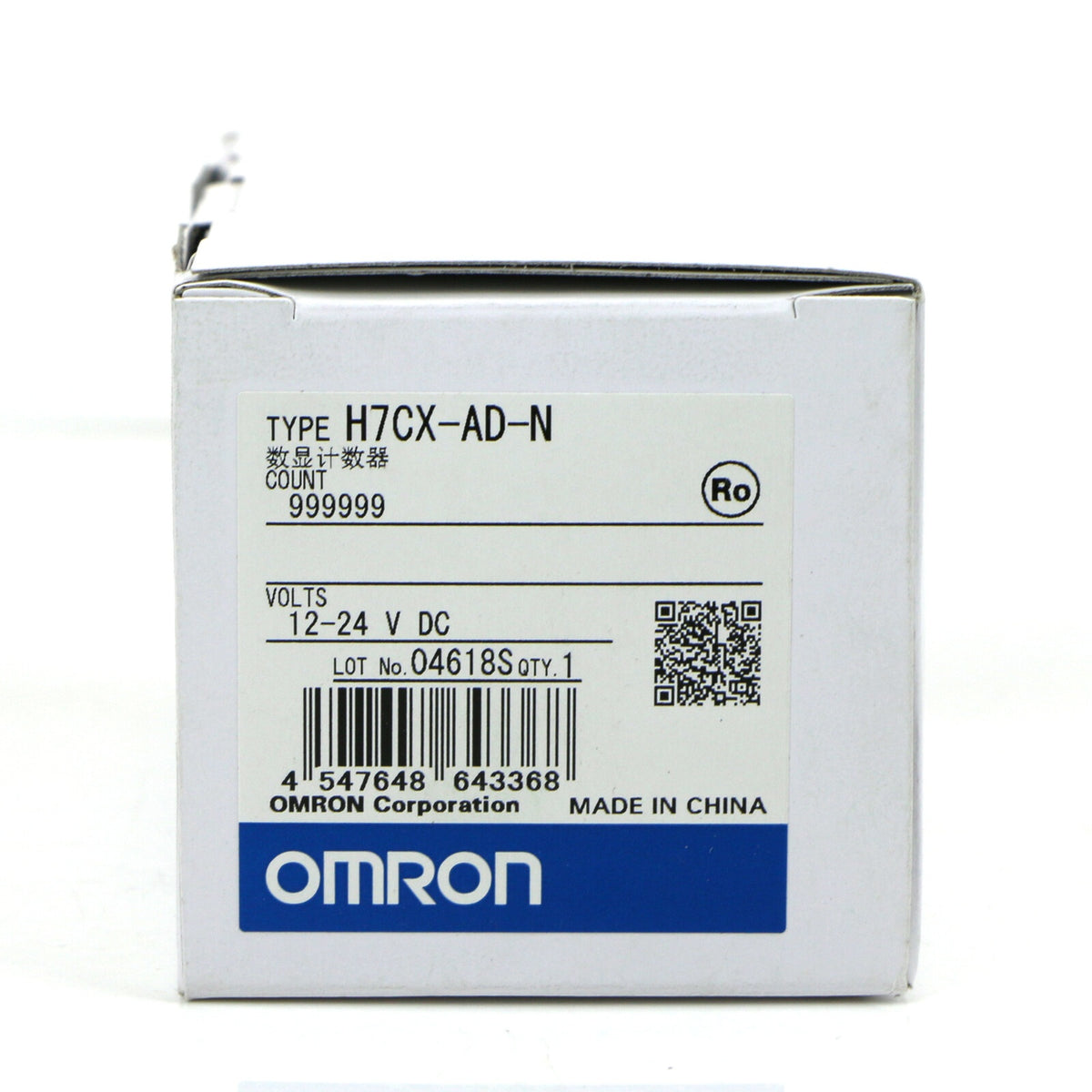

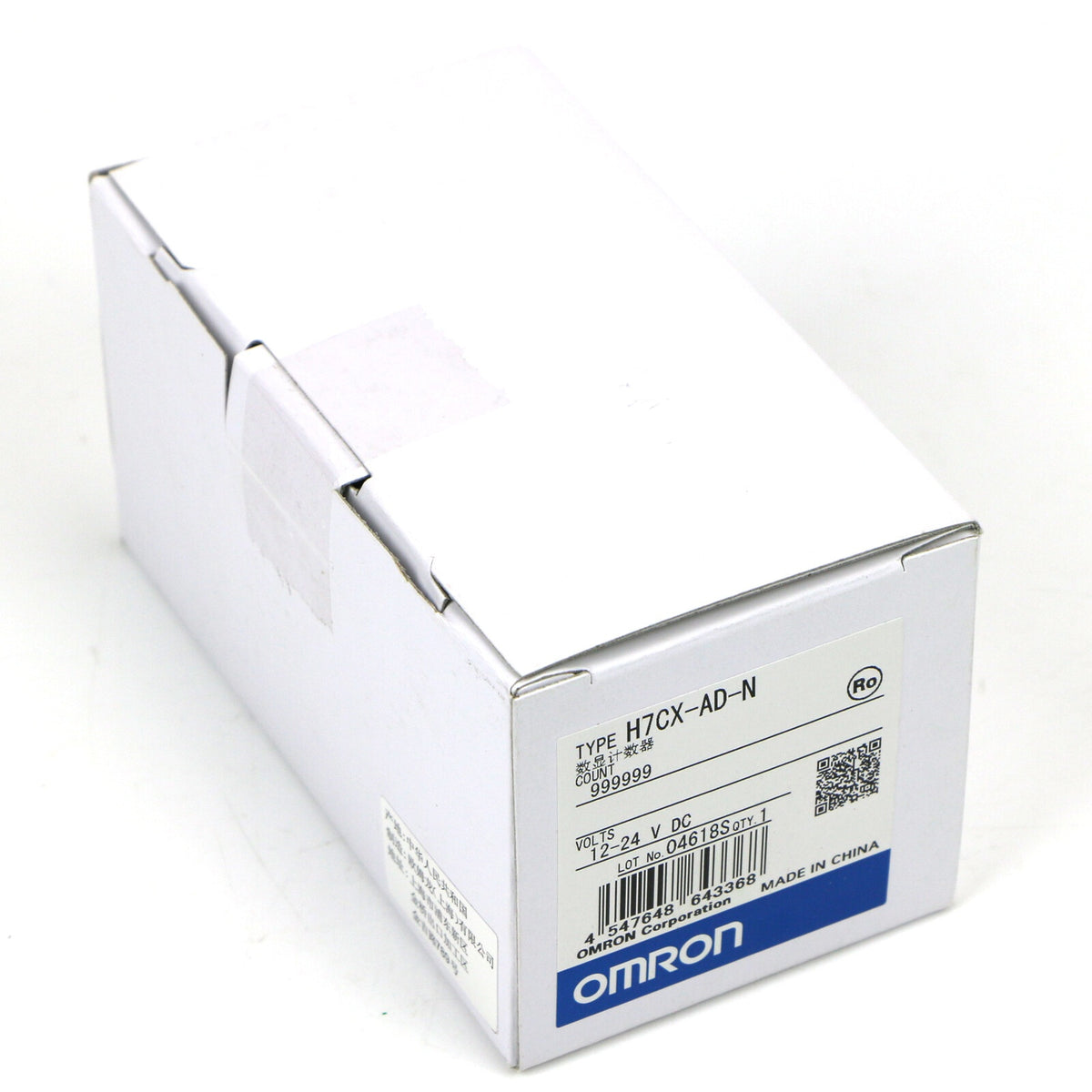

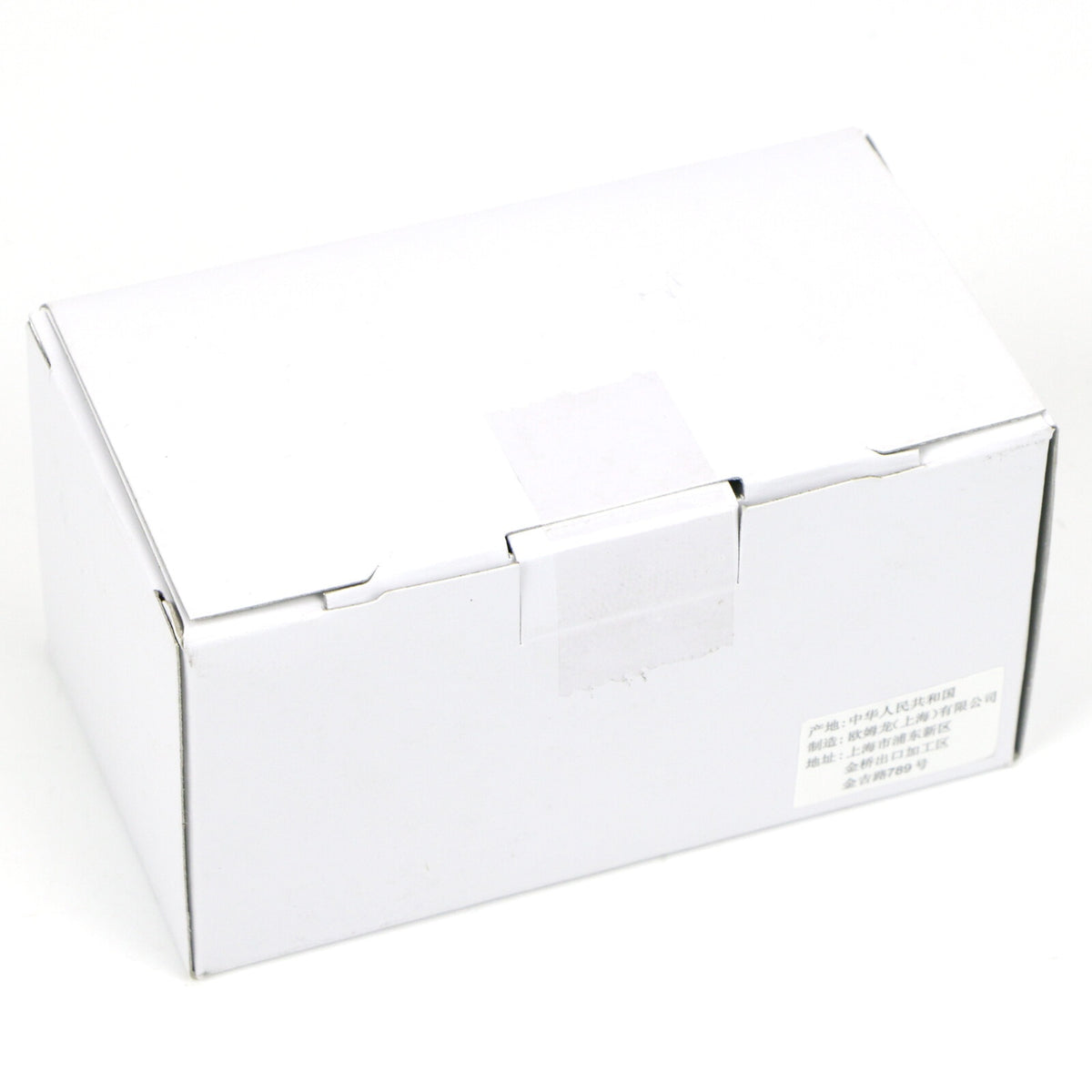

Omron H7CX-AD-N Preset Counter 6-Digit 12-24VDC SPDT
Available in stock (200)
Regular price
$110.35
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | H7CX-AD-N |
| Product Category | Preset Counter |
| Series | H7CX-A |
| Configuration | 1-Stage Preset Counter |
| Display Digits | 6 Digits |
| Power Supply Voltage | 12 to 24 VDC |
| Output | Contact Output, SPDT |
| Contact Output Rating | 3 A at 250 VAC |
| Input | No-Voltage/Voltage Input Selectable |
| Counting Frequency | 30 Hz or 5 kHz Selectable |
Key Features
12 to 24 VDC Supply
This DC-powered configuration operates from a documented 12 to 24 VDC power supply.
SPDT Contact Output
The H7CX-AD-N provides a one-stage SPDT contact output with a documented rating of 3 A at 250 VAC.
Selectable Input
No-voltage and voltage input operation can be selected to suit the connected counting signal.
Selectable Counting Frequency
The counter supports selectable 30 Hz and 5 kHz counting frequencies for different pulse-input applications.
48 × 48 mm Panel Format
The H7CX-AD-N uses a DIN 48 × 48 mm front format with screw-terminal connections for panel mounting.
Applications
- Production quantity counting
- Machine cycle counting
- Conveyor pulse counting
- Packaging equipment counting
- Industrial automation panels
- Batch process counting
- Equipment operation monitoring
- Preset quantity control
Purchase Information
We support online purchase of the Omron H7CX-AD-N Preset Counter. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron H7CX-AD-N?
Omron H7CX-AD-N is a six-digit, one-stage preset electronic counter with a 12 to 24 VDC power supply and SPDT contact output.
What power supply does H7CX-AD-N require?
The documented power supply voltage is 12 to 24 VDC.
How many display digits does H7CX-AD-N have?
The H7CX-AD-N has a six-digit display.
What output does H7CX-AD-N use?
This model uses a one-stage SPDT contact output.
What is the contact output rating?
The documented contact output rating is 3 A at 250 VAC.
What counting frequencies are available?
The counter supports selectable 30 Hz and 5 kHz counting frequencies.
What is the counting range?
The documented counting range is -99999 to 999999.
What input types can be used?
The H7CX-AD-N supports selectable no-voltage and voltage inputs.
How is H7CX-AD-N connected?
This configuration uses screw terminals for external electrical connections.
What is the panel size?
The counter has a 48 × 48 mm front format and uses a 45 × 45 mm panel cutout.
Is H7CX-AD-N still in production?
Omron lists H7CX-AD-N as discontinued in March 2023. Product selection should account for lifecycle status and the requirements of the existing control system.
What should be checked before ordering H7CX-AD-N?
Check the complete H7CX-AD-N model number, 12 to 24 VDC supply, six-digit display, SPDT contact output, screw-terminal configuration, panel dimensions and required counting functions before purchasing.
