15m Through-Beam Detection
The E3Z-T61-M1J is a through-beam photoelectric sensor configuration with a documented sensing distance of 15 m.

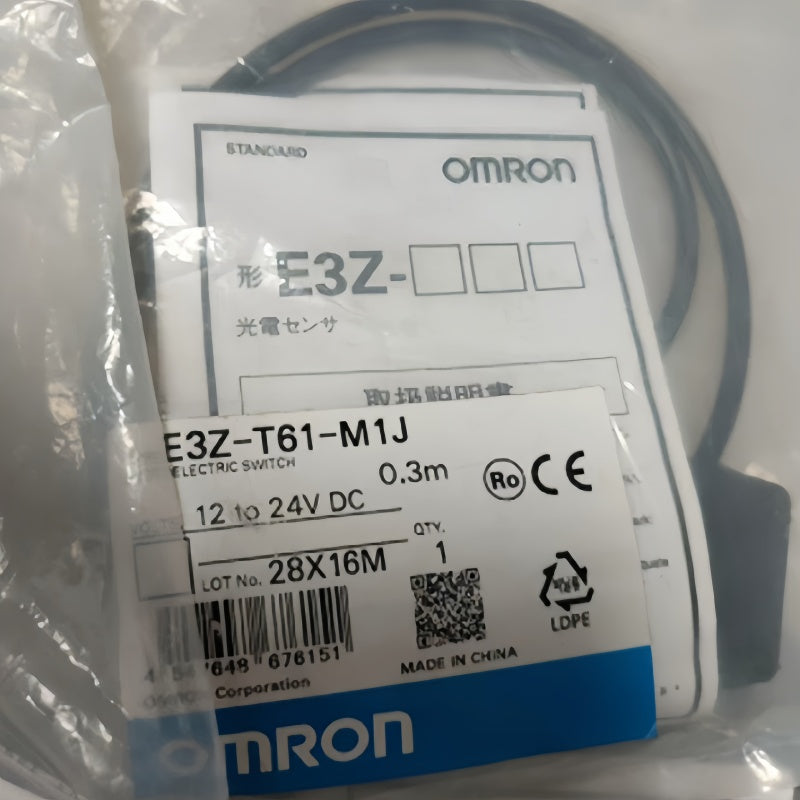

Omron E3Z-T61-M1J Photoelectric Sensor 15m 12-24VDC NPN
Available in stock (200)
Regular price
$33.56
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | E3Z-T61-M1J |
| Product Category | Photoelectric Sensor |
| Product Series | E3Z |
| Sensing Method | Through-Beam |
| Output Type | NPN Open Collector |
| Sensing Distance | 15 m |
| Standard Sensing Object | Opaque Object, Ø12 mm min. |
| Light Source | Infrared LED, 870 nm |
| Power Supply Voltage | 12-24 VDC ±10% |
| Current Consumption | 35 mA max. |
| Control Output | 100 mA max. |
| Output Operation | Light-ON / Dark-ON Selectable |
| Response Time | 1 ms max. |
| Protection Rating | IP67 |
| Case Material | PBT |
| Lens Material | Modified Polyarylate |
| Connection Type | M12 Standard Pre-Wired Connector |
| Cable Length | 0.3 m |
| Connector Series | XS2 |
Key Features
12-24VDC NPN Output
The sensor operates from a 12 to 24 VDC supply and uses an NPN open-collector control output.
870nm Infrared LED
The through-beam optical system uses an infrared LED with a documented wavelength of 870 nm.
1ms Response Time
The documented operate or reset response time is 1 ms maximum.
Selectable Light-ON / Dark-ON
The output operation can be selected between Light-ON and Dark-ON according to the control requirement.
M12 Pre-Wired Connector
The M1J configuration uses a 0.3 m pre-wired cable with an M12 standard connector for use with the applicable XS2 Sensor I/O Connector series.
Applications
- Conveyor object detection
- Production line presence detection
- Packaging machinery sensing
- Material handling systems
- Industrial passage detection
- Machine automation sensing
- Parts counting applications
- Through-beam object detection
Purchase Information
We support online purchase of the Omron E3Z-T61-M1J Photoelectric Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron E3Z-T61-M1J?
Omron E3Z-T61-M1J is an E3Z series through-beam photoelectric sensor configuration with an NPN output and M12 standard pre-wired connector.
What is the sensing distance of E3Z-T61-M1J?
The documented sensing distance is 15 m.
What output type does E3Z-T61-M1J use?
The E3Z-T61 configuration uses an NPN open-collector control output.
What voltage does E3Z-T61-M1J use?
The documented power-supply voltage is 12 to 24 VDC ±10%.
What light source does E3Z-T61-M1J use?
The sensor uses an infrared LED with a documented wavelength of 870 nm.
What is the response time of E3Z-T61-M1J?
The documented operate or reset response time is 1 ms maximum.
What is the maximum control-output current?
The documented load-current rating for the control output is 100 mA maximum.
Can the output operation be changed?
Yes. The E3Z series provides selectable Light-ON or Dark-ON output operation.
What connector does E3Z-T61-M1J use?
The M1J configuration uses an M12 standard pre-wired connector with a 0.3 m cable and is documented for the applicable XS2 Sensor I/O Connector series.
What protection rating does E3Z-T61-M1J have?
The documented degree of protection for the E3Z sensor is IP67.
What applications can E3Z-T61-M1J be considered for?
It can be considered for industrial through-beam object and presence detection after the 15 m sensing distance, target size, NPN interface, supply voltage and installation arrangement have been checked.
What should be checked before ordering E3Z-T61-M1J?
Check the complete model number, 15 m through-beam sensing requirement, 12 to 24 VDC supply, NPN output, M12 connector requirement, emitter and receiver arrangement and installation conditions before ordering.
