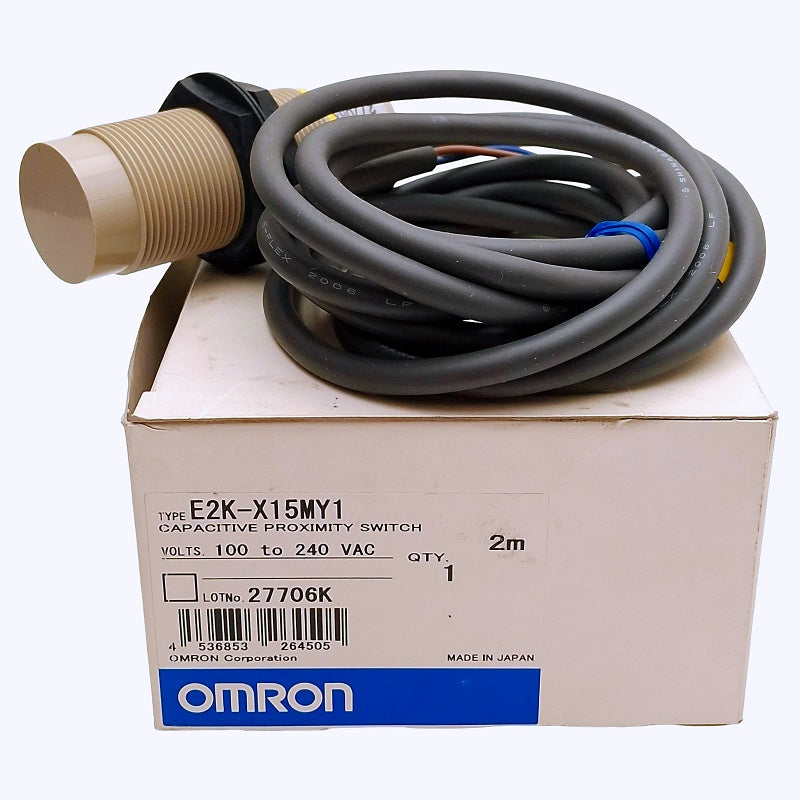

Omron E2K-X15MY1 Switch 15 mm Capacitive Sensor for Machine Control

Product Overview

Buy Omron E2K-X15MY1 Switch online. The Omron E2K-X15MY1 is an E2K-X Series cylindrical capacitive proximity switch with an M30 threaded sensing head, 15 mm sensing distance, AC 2-wire output, and normally open operation. It provides non-contact detection of conductors and dielectric objects for Industrial Automation, Industrial Control, and Machine Control systems.

The unshielded pre-wired design integrates with compatible Electrical Equipment and Automation Components, while the fixed sensing distance requires no sensitivity adjustment. This configuration supports OEM equipment builders and maintenance teams selecting Replacement Parts for Industrial Applications.

Technical Specifications & Features

• Brand: Omron
• Manufacturer Part Number: E2K-X15MY1 2M
• Category: Switch
• Product Series: E2K-X
• Rated Current: 10 to 200 mA control output switching capacity
• Rated Voltage: 100 to 220 VAC
• Frequency: 10 Hz response frequency
• Mounting Type: M30 threaded cylindrical, unshielded
• Connection Type: AC 2-wire, pre-wired 2 m cable
• Material: Heat-resistant ABS resin case and sensing surface; polyacetal clamping nuts
• Dimensions: M30 sensing head size
• Weight: Approx. 205 g packaged
• Operating Temperature: -10 to 55 °C
• Protection Rating: IP66 according to IEC; oil-proof company standard

With a 15 mm ±10% sensing distance and a 0 to 10 mm setting distance, the E2K-X15MY1 detects conductors and dielectrics through capacitive sensing. Its fixed sensing distance eliminates the need for sensitivity adjustment.

The AC 2-wire normally open configuration includes a surge suppressor and red operation indicator. The pre-wired construction supports straightforward installation and replacement in compatible industrial systems.

Applications

The Omron E2K-X15MY1 can be applied in Industrial Automation and Industrial Control installations that require non-contact detection of conductive or dielectric objects. Its AC 2-wire output is intended for integration with compatible Machine Control circuits and Electrical Equipment.

This switch is suitable for OEM equipment, maintenance, and Replacement Parts programs involving pre-wired capacitive Automation Components. Electrical, environmental, and sensing-object requirements should be confirmed before use in specific Industrial Applications.

Bulk purchase and RFQ are available. Contact us for quantity pricing, lead time, and shipping options.
