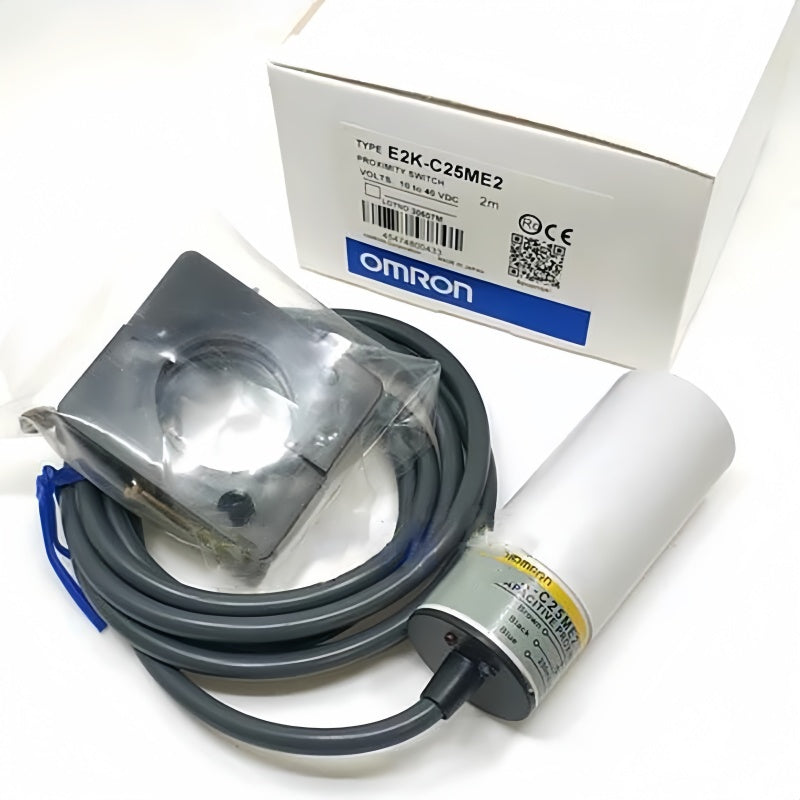

Omron E2K-C25ME2 Capacitive Proximity Switch 25 mm for Machine Control

PRODUCT PRICE USD

$20.25

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.

View Our Return Policy

Payments

Available payment methods

Bank transfer

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Omron E2K-C25ME2 Capacitive Proximity Switch 25 mm for Machine Control

Product Overview

Buy Omron E2K-C25ME2 Switch online. The Omron E2K-C25ME2 is an E2K-C Series long-distance capacitive proximity switch designed for non-contact detection in Industrial Automation and Machine Control systems. Its 25 mm sensing distance can be adjusted from 3 to 25 mm for detecting conductors and dielectric materials.

This DC three-wire NPN model provides normally closed operation and a red detection indicator. Reverse-polarity protection, a surge suppressor, and an IP66 enclosure support dependable integration with Industrial Control equipment, control panels, manufacturing machinery, and other Automation Components.

Technical Specifications & Features

Brand: Omron
Manufacturer Part Number: E2K-C25ME2
Category: Switch
Product Series: E2K-C
Sensing Method: Capacitive
Sensing Distance: 25 mm
Adjustable Sensing Range: 3 to 25 mm
Detectable Objects: Conductors and dielectrics
Output Configuration: DC 3-wire NPN
Operation Mode: Normally closed
Power Supply Voltage: 12 to 24 VDC, operating range 10 to 30 VDC
Control Output Load Current: 200 mA maximum
Response Frequency: 70 Hz
Connection Type: Pre-wired
Material: Heat-resistant ABS
Sensor Diameter: 34 mm
Weight: Approximately 200 g packed
Operating Temperature: -25 to 70°C with no icing or condensation
Protection Rating: IEC 60529 IP66
Certification: CE Marking

The adjustable sensitivity enables the sensing range to be configured for different target materials and installation conditions. The unshielded sensing head provides long-distance capacitive detection without mechanical contact.

The pre-wired construction simplifies installation in Electrical Equipment and OEM machinery. Integrated reverse-polarity protection and surge suppression help protect the sensor when used in demanding Industrial Applications.

Applications

The Omron E2K-C25ME2 is suitable for Industrial Automation, Industrial Control, Machine Control, factory automation equipment, control panels, material detection systems, and production machinery. It can detect conductive and dielectric targets in applications requiring non-contact sensing.

This proximity switch can also support OEM equipment production, maintenance projects, and compatible Replacement Parts requirements. Typical uses include presence detection, position confirmation, process monitoring, and integration with PLC systems and other Automation Components.

Bulk purchase and RFQ are available. Contact us for quantity pricing, lead time, and shipping options.
