3 mm Sensing Distance
The E2E-X3D1-M1G-Z has a documented sensing distance of 3 mm ±10% with a setting distance of 0-2.4 mm.

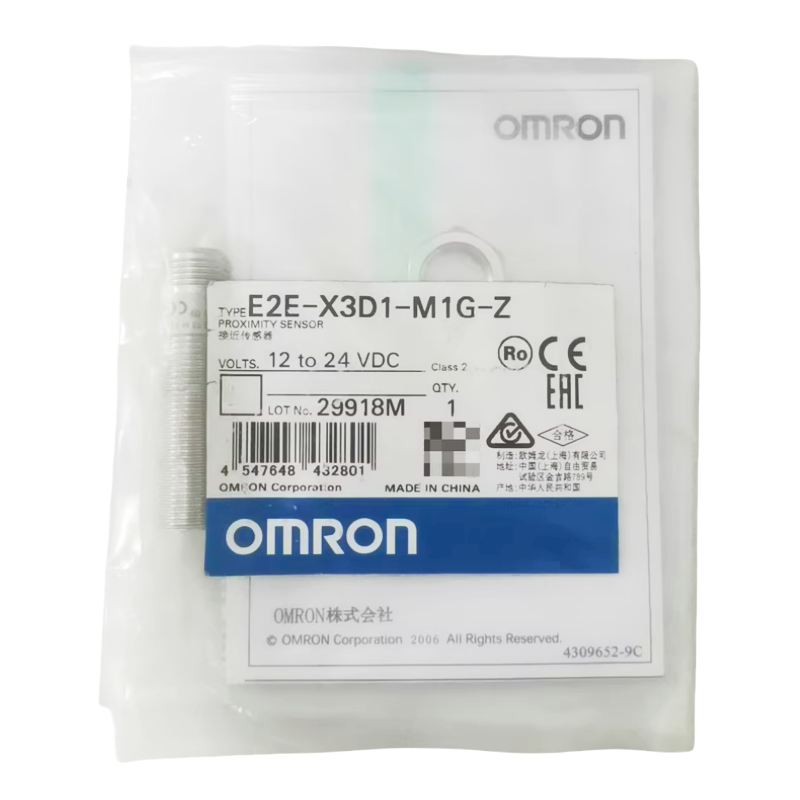

Omron E2E-X3D1-M1G-Z Proximity Sensor 3 mm 12-24 VDC M12
Available in stock (200)
Regular price
$25.27
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | E2E-X3D1-M1G-Z |
| Product Category | Proximity Sensor |
| Product Series | E2E |
| Sensor Type | Inductive Proximity Sensor |
| Detection Method | Shielded |
| Body Size | M12 |
| Sensing Distance | 3 mm ±10% |
| Setting Distance | 0-2.4 mm |
| Detectable Object | Ferrous Metal |
| Standard Sensing Object | Iron, 12 x 12 x 1 mm |
| Operation Mode | Normally Open |
| Power Supply Voltage | 12-24 VDC |
| Output Configuration | DC 2-Wire |
| Load Current | 3-100 mA |
| Leakage Current | 0.8 mA Max. |
| Residual Voltage | 3 V Max. |
| Response Frequency | 1 kHz |
| Connection Method | M12 Connector |
| Pin Arrangement | Pin 1: +V, Pin 4: 0 V |
Key Features
M12 Shielded Design
The sensor uses an M12 cylindrical shielded configuration for inductive detection of ferrous metal targets.
12-24 VDC Operation
The documented power supply rating is 12-24 VDC including the specified ripple allowance.
DC 2-Wire Output
The E2E-X3D1 configuration uses a polarized DC 2-wire circuit with normally open operation.
1 kHz Response Frequency
The documented response frequency for the standard M12 E2E-X3D model is 1 kHz.
M12 Connector
The M1G configuration uses an M12 connector with pin 1 assigned to +V and pin 4 assigned to 0 V.
Applications
- Metal workpiece detection
- Machine position sensing
- Production line object detection
- Industrial automation sensing
- Equipment position confirmation
- Conveyor object detection
- Automated assembly systems
- Machine control feedback
Purchase Information
We support online purchase of the Omron E2E-X3D1-M1G-Z Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron E2E-X3D1-M1G-Z?
Omron E2E-X3D1-M1G-Z is an E2E Series M12 shielded inductive proximity sensor with DC 2-wire normally open operation.
What is the sensing distance of E2E-X3D1-M1G-Z?
The documented sensing distance is 3 mm ±10%.
What is the recommended setting distance?
The documented setting distance is 0-2.4 mm.
What objects can E2E-X3D1-M1G-Z detect?
The sensor is specified for detecting ferrous metal objects, with sensing distance affected when non-ferrous metal is used.
What power supply voltage does E2E-X3D1-M1G-Z use?
The documented power supply voltage is 12-24 VDC.
What output configuration does E2E-X3D1-M1G-Z use?
The sensor uses a polarized DC 2-wire output configuration with normally open operation.
What is the load current range?
The documented load current range is 3-100 mA.
What is the response frequency?
The documented response frequency for this M12 standard-distance configuration is 1 kHz.
What connector does E2E-X3D1-M1G-Z use?
The M1G configuration uses an M12 connector.
What is the connector pin arrangement?
For the normally open M1G configuration, pin 1 is +V and pin 4 is 0 V.
What applications can E2E-X3D1-M1G-Z be considered for?
It can be considered for metal detection, machine position sensing, production-line object detection and related industrial automation applications after the sensing and electrical requirements have been checked.
What should be checked before ordering E2E-X3D1-M1G-Z?
Check the complete model number, 3 mm sensing distance, M12 sensor size, shielded mounting requirement, DC 2-wire normally open circuit, 12-24 VDC supply and M12 connector requirements against the existing machine documentation before purchasing.
