Technical specifications, features, applications and purchasing information.
| Brand | OMRON |
| Model Number | E2E-X2F1 |
| Product Category | Inductive Proximity Sensor |
| Product Series | E2E Standard Proximity Sensor |
| Sensing Method | Inductive, Non-Contact Metal Detection |
| Housing Design | M12 Threaded Cylindrical |
| Thread Specification | M12 × 1 mm |
| Shielding | Shielded, Flush-Mounting Type |
| Rated Sensing Distance | 2 mm ±10% |
| Recommended Setting Distance | 0 to 1.6 mm |
| Differential Travel | 10% Maximum of Sensing Distance |
| Detectable Objects | Ferrous Metals; Reduced Detection Distance for Non-Ferrous Metals |
| Standard Sensing Target | Iron, 12 × 12 × 1 mm |
| Rated Power Supply | 12 to 24 VDC |
| Operating Voltage Range | 10 to 30 VDC |
| Permissible Supply Ripple | 10% Peak-to-Peak Maximum |
| Electrical Configuration | DC 3-Wire |
| Output Type | PNP Transistor Output |
| Switching Function | Normally Open (NO) |
| Maximum Output Load Current | 200 mA |
| Maximum Current Consumption | 13 mA |
| Maximum Output Residual Voltage | 2 V at Rated Load, According to Model Test Conditions |
| Response Frequency | 1.5 kHz, Average Reference Value |
| Operation Indicator | Red LED |
| Protection Circuits | Output Short-Circuit Protection, Reverse Supply Polarity Protection and Surge Suppression |
| Connection Method | Pre-Wired Cable |
| Standard Cable Length | 2 m for E2E-X2F1 2M; Verify Complete Ordering Designation |
| Housing Material | Nickel-Plated Brass |
| Sensing Surface Material | Polybutylene Terephthalate (PBT) |
| Mounting Accessories | Nickel-Plated Brass Nuts and Zinc-Plated Iron Toothed Washer |
| Protection Rating | IEC 60529 IP67 |
| Oil Resistance | Manufacturer-Specified Oil-Resistant Construction; Verify Compatibility with Actual Fluids |
| Operating Temperature | -40 to +85°C, Without Icing or Condensation |
| Storage Temperature | -40 to +85°C |
| Operating Humidity | 35 to 95% RH, Noncondensing |
| Insulation Resistance | 50 MΩ Minimum at 500 VDC Between Current-Carrying Parts and Case |
| Dielectric Strength | 1000 VAC, 50/60 Hz for 1 Minute Between Current-Carrying Parts and Case |
| Approximate Packaged Weight | 75 g for 2 m Pre-Wired Model |
| Manufacturer Technical Reference | OMRON E2E Standard Inductive Proximity Sensor Datasheet, E2E-X2F1 2M |

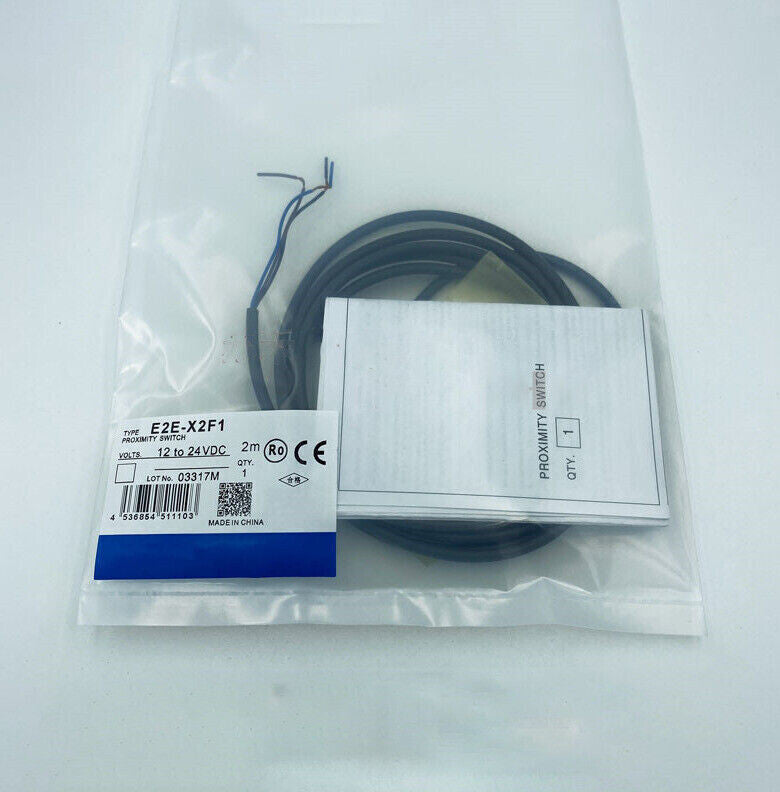

The OMRON E2E-X2F1 detects metallic objects through inductive sensing without mechanical contact. Its nominal 2 mm detection distance and recommended 0 to 1.6 mm setting range support precise metal presence and position sensing.
The sensor provides a three-wire PNP normally open output with a maximum switching current of 200 mA, suitable for appropriately matched sourcing-signal input circuits on industrial controllers.
Designed for nominal 12 to 24 VDC systems, the E2E-X2F1 accepts operating voltages from 10 to 30 VDC and has a maximum specified current consumption of 13 mA.
The M12 × 1 mm threaded housing incorporates shielding for compatible flush-mounting arrangements. A nickel-plated brass body and PBT sensing surface support industrial installation.
The E2E-X2F1 is specified to IEC IP67 with manufacturer-defined oil-resistant construction. The permitted ambient temperature range is -40 to +85°C under the stated conditions.
A red LED indicates sensor operation, while the published 1.5 kHz average response frequency supports appropriately configured automated detection systems. The sensor includes electrical protection against short circuits, reverse supply polarity and surges.
We support online purchase of the OMRON E2E-X2F1 Inductive Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
What is the OMRON E2E-X2F1?
It is an OMRON E2E series M12 shielded inductive proximity sensor with a 2 mm sensing distance, DC three-wire electrical configuration and PNP normally open output.
What is the sensing distance of E2E-X2F1?
The rated sensing distance is 2 mm ±10%. OMRON recommends a setting distance from 0 to 1.6 mm for reliable detection under the specified conditions.
Is E2E-X2F1 a PNP or NPN sensor?
The E2E-X2F1 uses a PNP transistor output. The corresponding E2E-X2E1 is an NPN output version and must not be assumed electrically interchangeable.
Is the switching function normally open or normally closed?
The sensor has a normally open (NO) output. The E2E-X2F2 is the corresponding PNP normally closed variant.
What power supply does the sensor require?
The nominal supply range is 12 to 24 VDC, with a permitted operating range of 10 to 30 VDC and supply ripple not exceeding 10% peak-to-peak.
What is the maximum output current?
The control output supports a maximum switching load of 200 mA. Confirm the connected input or load requirements before installation.
Can E2E-X2F1 detect aluminum or copper?
The sensor is primarily specified for ferrous metals. Non-ferrous materials such as aluminum and copper may be detected at shorter distances depending on their size, shape and material properties.
Can the E2E-X2F1 be mounted flush with a metal surface?
Yes. It is a shielded M12 proximity sensor intended for compatible flush-mounting installations. Follow OMRON specifications for surrounding metal and spacing between sensors.
What is the response frequency?
The published reference response frequency is approximately 1.5 kHz under standard testing conditions. Actual detection performance depends on the target and installation.
What cable length does E2E-X2F1 have?
The E2E-X2F1 2M configuration includes a 2 m pre-wired cable. Confirm the full ordering designation and cable length of the actual item before purchasing.
What is the environmental protection rating?
The manufacturer specifies IEC IP67 protection and an operating temperature range of -40 to +85°C. Suitability for particular cutting oils, chemicals or washdown procedures must be verified separately.
What should be checked before ordering?
Confirm the exact model E2E-X2F1, complete cable-length designation, M12 × 1 mm shielded body, 2 mm sensing distance, PNP normally open three-wire output, 10–30 VDC operating range, 200 mA maximum load, wiring, installation clearance and environmental requirements.
