1.5 mm Sensing Distance
The E2E-X1R5F1-M1 provides a documented sensing distance of 1.5 mm ±10% for ferrous-metal detection.

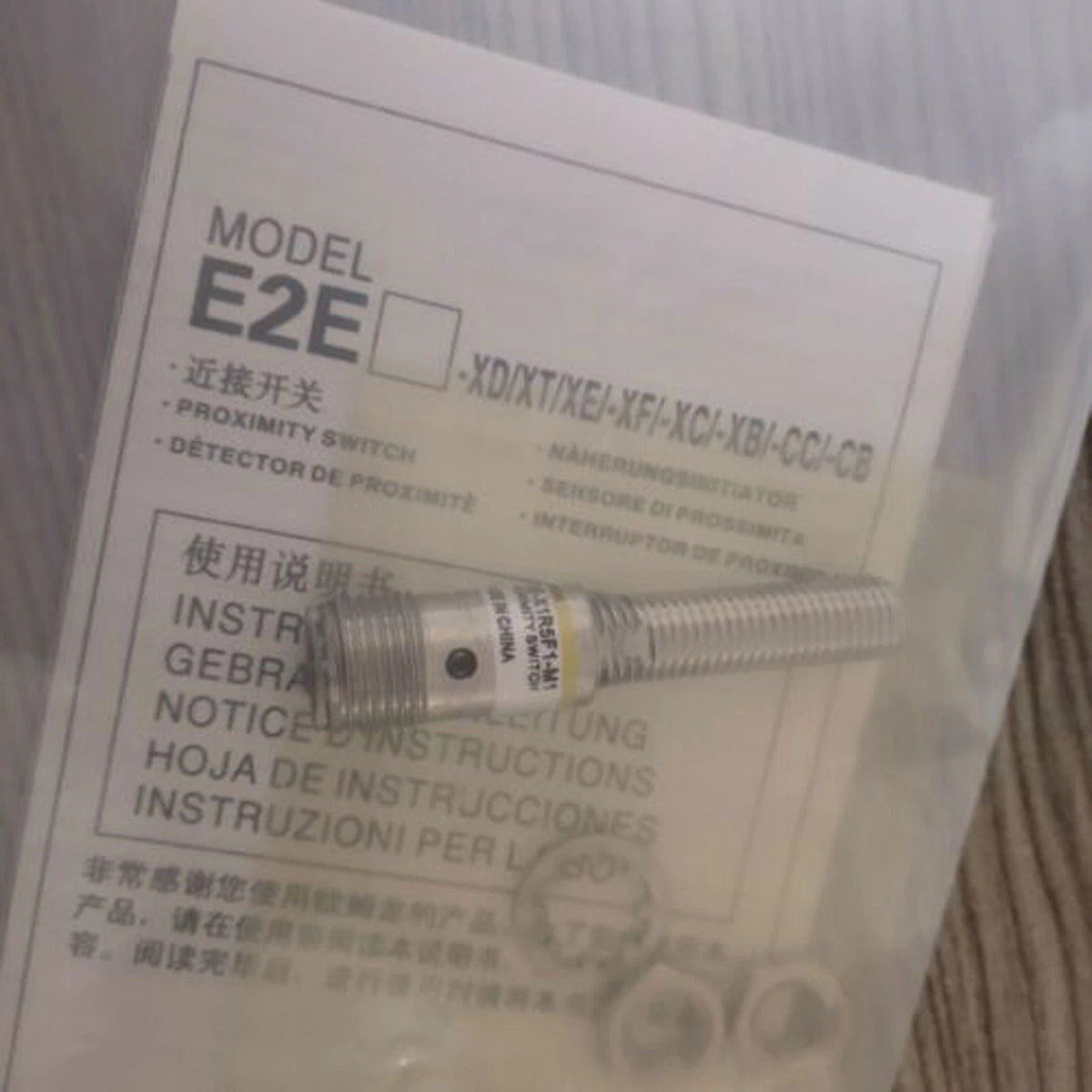

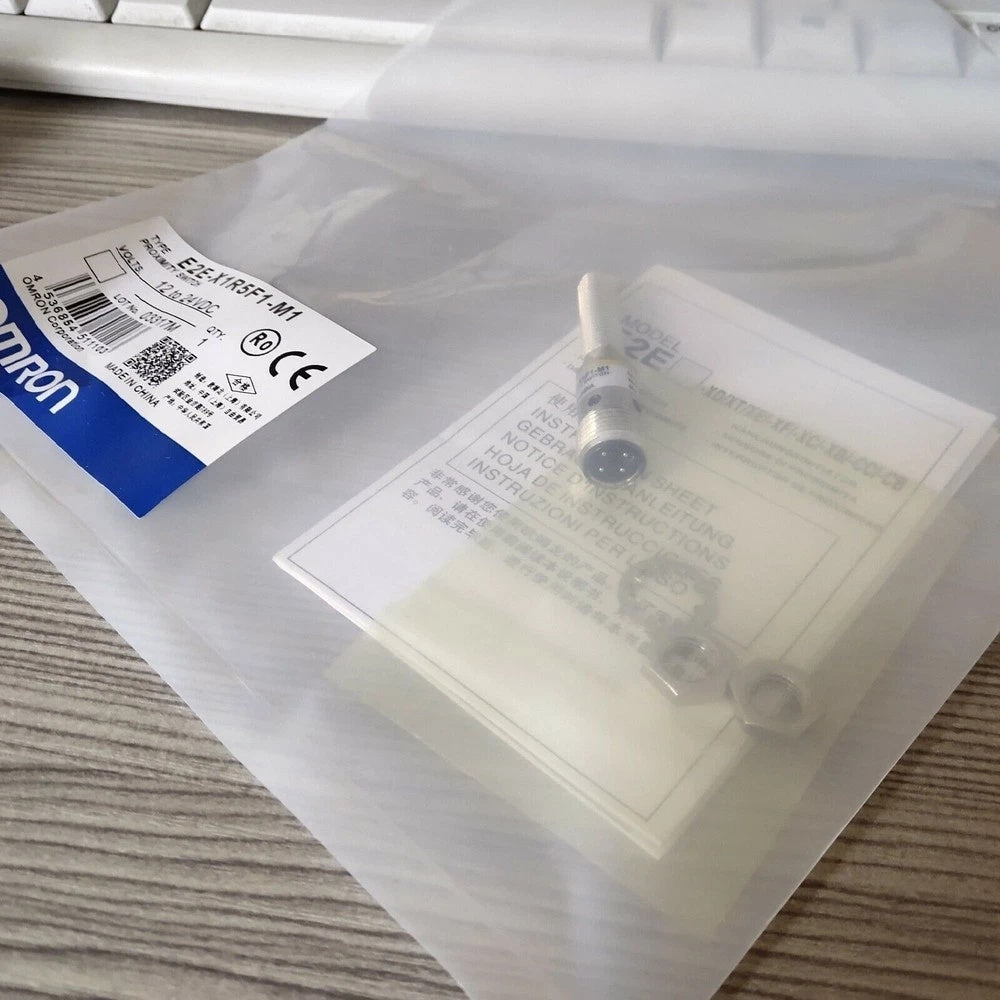

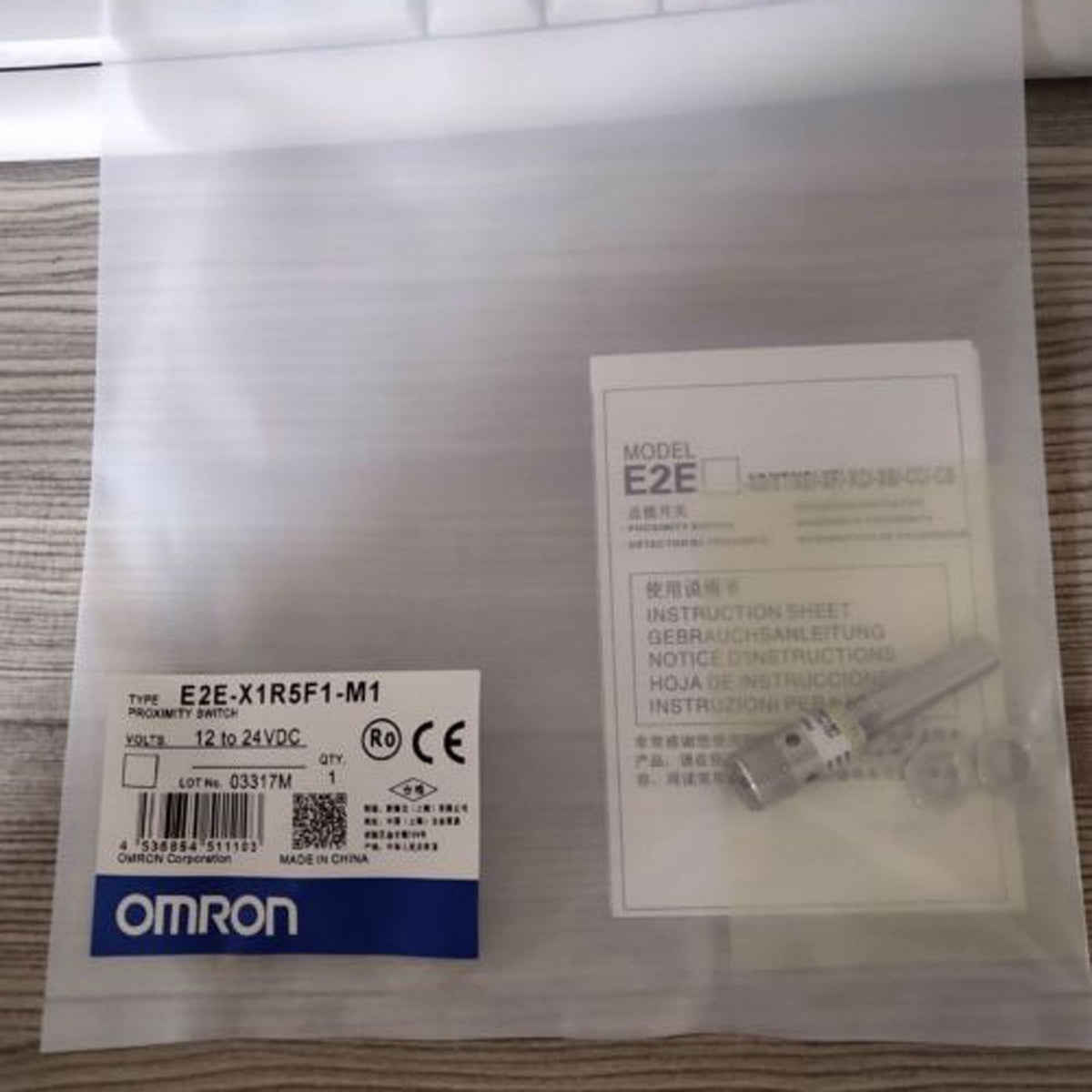

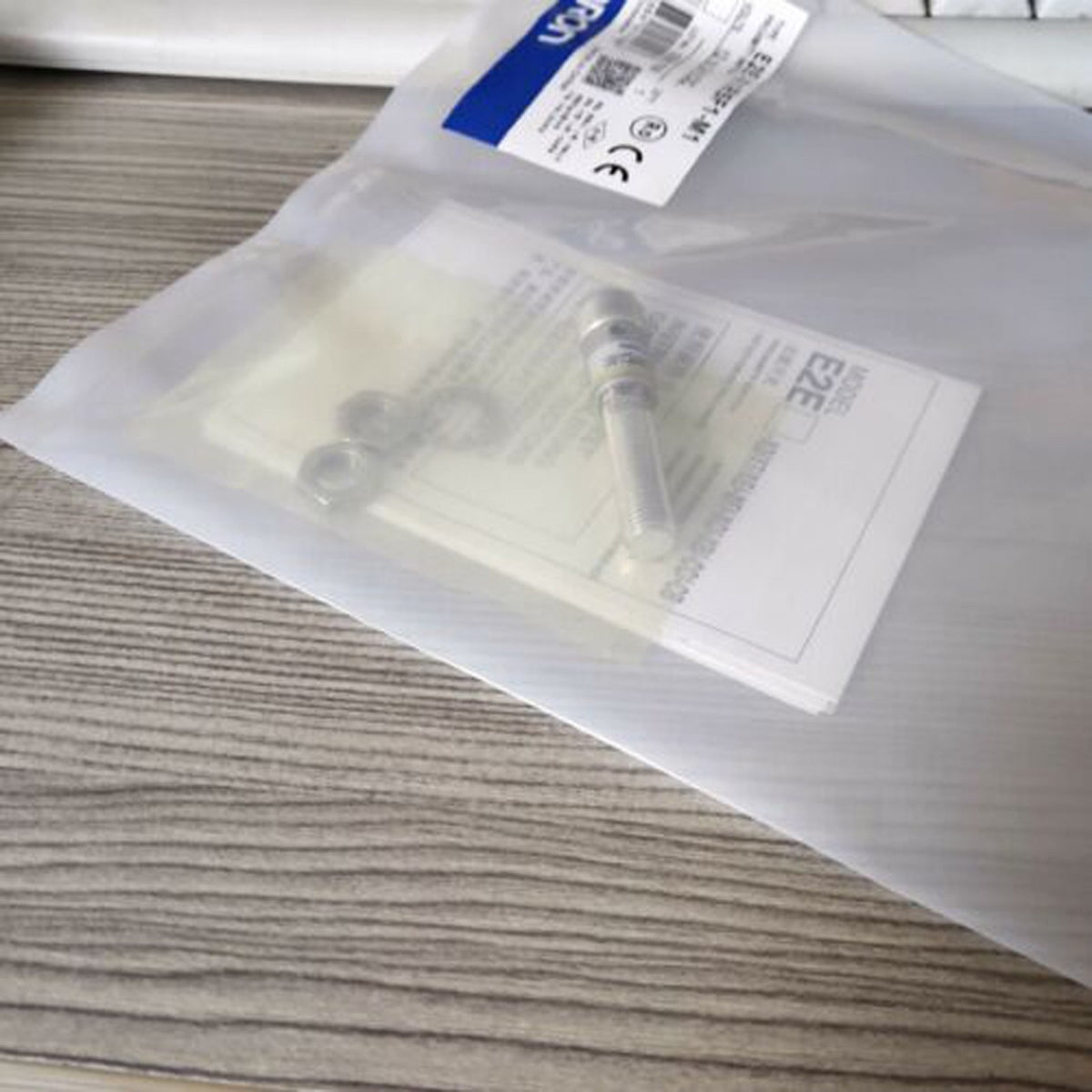

Omron E2E-X1R5F1-M1 Proximity Sensor 1.5mm PNP-NO 10-30VDC
Available in stock (200)
Regular price
$11.41
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | E2E-X1R5F1-M1 |
| Product Category | Proximity Sensor |
| Series | E2E |
| Sensor Type | Inductive |
| Body Size | M8 |
| Shielding | Shielded |
| Sensing Distance | 1.5 mm ±10% |
| Setting Distance | 0 to 1.2 mm |
| Output Configuration | PNP Open Collector, Normally Open |
| Power Supply Voltage | 12 to 24 VDC |
Key Features
M8 Shielded Body
The sensor uses a compact cylindrical M8 threaded body with a shielded sensing configuration.
PNP Normally Open Output
The E2E-X1R5F1-M1 uses a PNP open-collector output with normally open operation.
10 to 30 VDC Range
The nominal supply is 12 to 24 VDC with a documented operating voltage range of 10 to 30 VDC.
M12 Connector
The -M1 configuration provides an M12 connector for connection to compatible industrial sensor cabling.
1 kHz Response Frequency
The documented response frequency is 1 kHz for this M8 shielded proximity sensor configuration.
Applications
- Ferrous metal object detection
- Machine position sensing
- Small-part presence detection
- Industrial automation equipment
- Machine tool position detection
- Assembly equipment sensing
- Material handling systems
- Production line position monitoring
Purchase Information
We support online purchase of the Omron E2E-X1R5F1-M1 Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron E2E-X1R5F1-M1?
Omron E2E-X1R5F1-M1 is a cylindrical inductive proximity sensor with an M8 shielded body, PNP normally open output and M12 connector.
What is the sensing distance?
The documented sensing distance is 1.5 mm ±10%.
What is the setting distance?
The documented setting distance is 0 to 1.2 mm.
What type of objects can E2E-X1R5F1-M1 detect?
The sensor is specified for detecting ferrous metal. Sensing distance decreases with non-ferrous metals.
What output does E2E-X1R5F1-M1 use?
It uses a PNP open-collector output with normally open operation.
What is the operating voltage range?
The nominal supply is 12 to 24 VDC and the documented operating range is 10 to 30 VDC.
What is the maximum control-output current?
The documented control-output capacity is 100 mA maximum.
What is the response frequency?
The documented response frequency is 1 kHz.
What body size does E2E-X1R5F1-M1 use?
The sensor uses an M8 cylindrical threaded body with a shielded sensing configuration.
What connector does E2E-X1R5F1-M1 use?
The -M1 configuration uses an M12 connector.
What is the protection rating?
The documented enclosure protection rating is IP67.
What should be checked before ordering E2E-X1R5F1-M1?
Check the complete E2E-X1R5F1-M1 model number, 1.5 mm sensing distance, M8 shielded body, PNP normally open output, 10 to 30 VDC operating range and M12 connector requirement before purchasing.
