10 mm Sensing Distance
The E2E-X10D1-N provides a documented sensing distance of 10 mm ±10% for ferrous-metal detection.

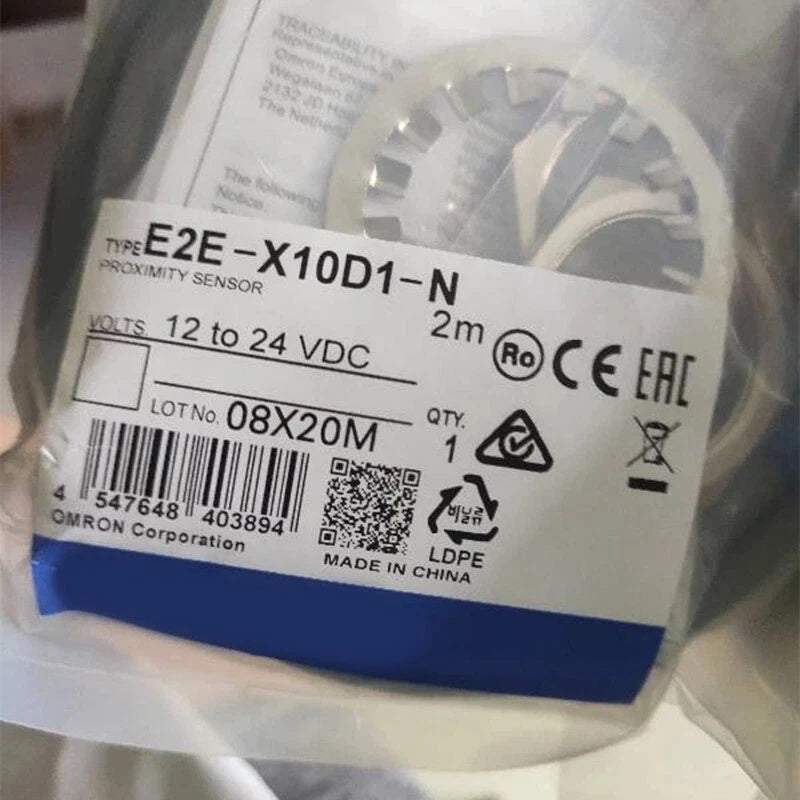

Omron E2E-X10D1-N Proximity Sensor 10mm NPN-NO 10-30VDC
Available in stock (200)
Regular price
$12.36
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | E2E-X10D1-N |
| Product Category | Proximity Sensor |
| Series | E2E |
| Sensor Type | Inductive |
| Body Size | M30 |
| Shielding | Shielded |
| Sensing Distance | 10 mm ±10% |
| Setting Distance | 0 to 8 mm |
| Output Configuration | DC 2-Wire, Normally Open |
| Power Supply Voltage | 12 to 24 VDC |
| Operating Voltage Range | 10 to 30 VDC |
| Load Current | 3 to 100 mA |
| Leakage Current | 0.8 mA max. |
| Residual Voltage | 3 V max. |
| Response Frequency | 0.4 kHz |
Key Features
M30 Shielded Body
The sensor uses a cylindrical M30 threaded body with a shielded sensing configuration.
DC 2-Wire NO Output
The E2E-X10D1-N uses a polarized DC two-wire normally open output configuration.
10 to 30 VDC Range
The nominal power supply is 12 to 24 VDC with a documented operating voltage range of 10 to 30 VDC.
100 mA Load Capacity
The documented control-output load current range is 3 to 100 mA.
IP67 Protection
The cylindrical sensor enclosure is rated IP67 for industrial proximity-detection applications.
Applications
- Metal object detection
- Machine position sensing
- Conveyor object detection
- Industrial automation equipment
- Machine tool position detection
- Material handling systems
- Assembly equipment sensing
- Production line position monitoring
Purchase Information
We support online purchase of the Omron E2E-X10D1-N Proximity Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron E2E-X10D1-N?
Omron E2E-X10D1-N is an E2E series cylindrical inductive proximity sensor with an M30 shielded body and DC two-wire normally open output.
What is the sensing distance?
The documented sensing distance is 10 mm ±10%.
What is the setting distance?
The documented setting distance is 0 to 8 mm.
What objects can E2E-X10D1-N detect?
The sensor is specified for detecting ferrous metal. Sensing distance decreases with non-ferrous metals.
What is the output configuration?
The E2E-X10D1-N uses a polarized DC two-wire normally open output.
What is the operating voltage range?
The nominal supply is 12 to 24 VDC and the documented operating range is 10 to 30 VDC.
What is the load current range?
The documented load current range is 3 to 100 mA.
What is the response frequency?
The documented response frequency for the M30 shielded E2E-X10D series is 0.4 kHz.
What is the body size?
The E2E-X10D1-N uses an M30 cylindrical threaded body.
What is the protection rating?
The sensor is rated IP67.
Does E2E-X10D1-N use a pre-wired connection?
Yes. E2E-X10D1-N is a pre-wired model using an oil-resistant PVC cable. Cable length depends on the complete ordering designation.
What should be checked before ordering E2E-X10D1-N?
Check the complete E2E-X10D1-N ordering designation, required cable length, 10 mm sensing distance, M30 shielded body, DC two-wire normally open output and 10 to 30 VDC operating range before purchasing.
