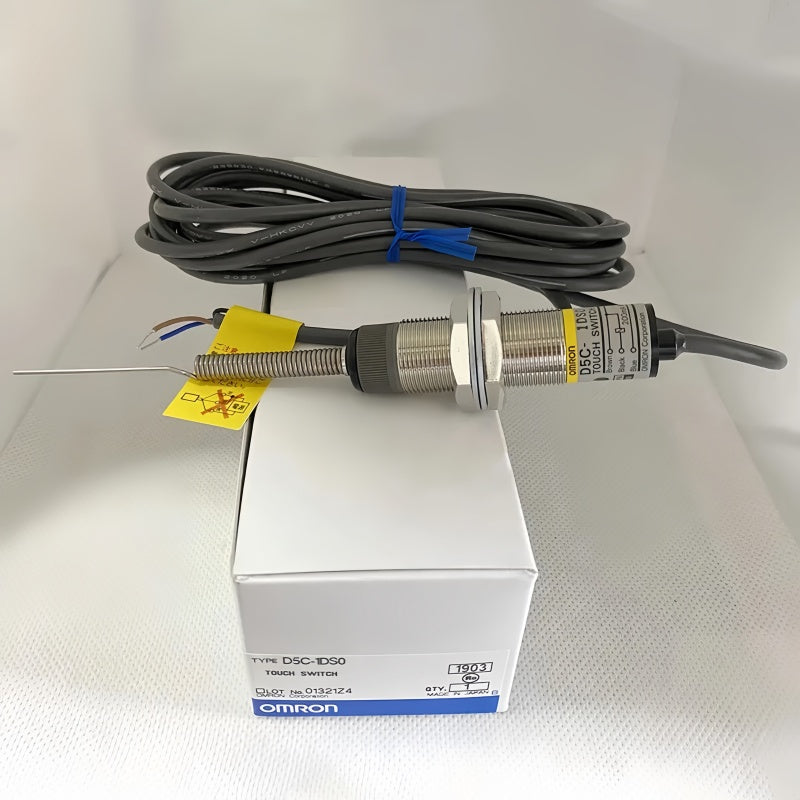

Omron D5C-1DS0 Touch Switch with Coil Spring for Precision Position Detection
Product Overview
Buy Omron D5C-1DS0 Switch online. The Omron D5C-1DS0 is a D5C series capacitive touch switch with a coil spring actuator, designed for precise contact detection in Industrial Automation and Machine Control systems. Its compact 18 mm diameter body incorporates an amplifier, LED operation indicator, and sensitivity adjustment for detecting very slight physical contact.
The stainless steel coil spring actuator can move in any direction and permits up to 20 mm of overtravel from its free position. The switch operates from a 12 to 24 VDC power supply and provides a maximum output current of 200 mA for resistive loads, supporting reliable use with compatible Industrial Control and Electrical Equipment.
The D5C-1DS0 can detect micro deflections, fine wires, thin conductive plates, loose components, press positions, and the edges or seams of paper and cloth when correctly installed. Its threaded construction and integrated cable support installation in OEM machinery and other Industrial Applications.
Technical Specifications & Features
- Brand: Omron
- Manufacturer Part Number: D5C-1DS0
- Category: Touch Switch
- Product Series: D5C
- Rated Current: 200 mA maximum output current for resistive loads
- Rated Voltage: 12 to 24 VDC supply voltage, 10 to 30 VDC operating voltage
- Mounting Type: M18 × 1 threaded mounting with clamping nuts
- Connection Type: 3 m vinyl-insulated round cable, oil- and shock-resistant type, three conductors × 0.2 mm²
- Material: Stainless steel coil spring actuator
- Dimensions: 18 mm diameter body
- Weight: Approximately 110 g
- Operating Temperature: −25°C to +70°C with no icing
- Protection Rating: Equivalent to IP67
The D5C-1DS0 has a sensitivity setting range of 30 to 100 pF and a maximum response time of 2 ms. Its mechanical durability is rated at a minimum of 10,000,000 operations at the rated overtravel value, supporting repetitive precision-detection tasks.
The replaceable antenna uses screw mounting, while the built-in LED provides a visible operation indication. These features simplify installation, adjustment, inspection, and maintenance in compatible industrial systems.
Applications
The Omron D5C-1DS0 is designed for precision detection tasks such as press-position confirmation, detection of incorrectly positioned workpieces, bent drills, fine wire, thin plate, loose screws, loose wires, and paper or cloth edges. These capabilities make it suitable for manufacturing equipment, factory automation, and specialized Machine Control processes.
The switch can be integrated as one of the Automation Components used in OEM equipment and compatible Industrial Control systems. Maintenance teams may also consider it for Replacement Parts requirements after verifying the model, power supply, wiring, mounting, load, and application environment.
Bulk purchase and RFQ are available. Contact us for quantity pricing, lead time, and shipping options.
