2NC/1NO Contact Configuration
Provides a 2NC/1NO contact configuration suitable for safety interlock applications.

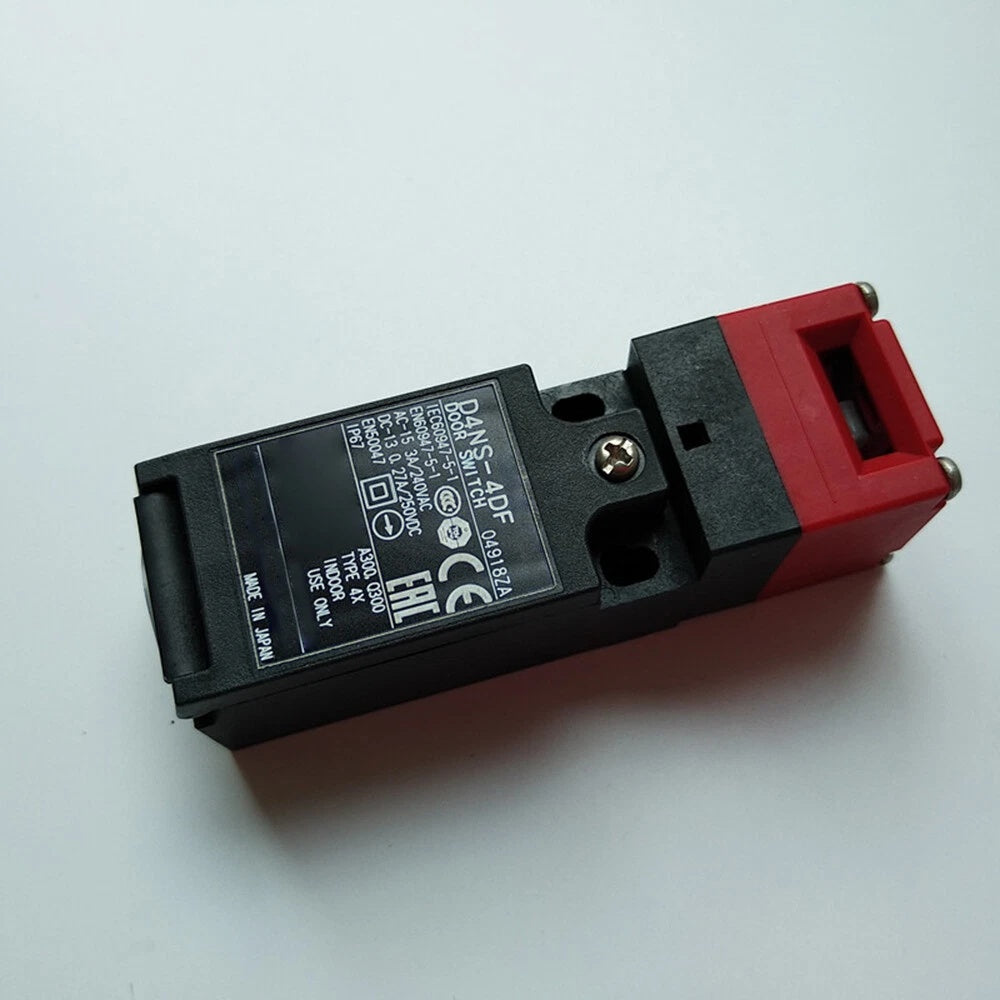

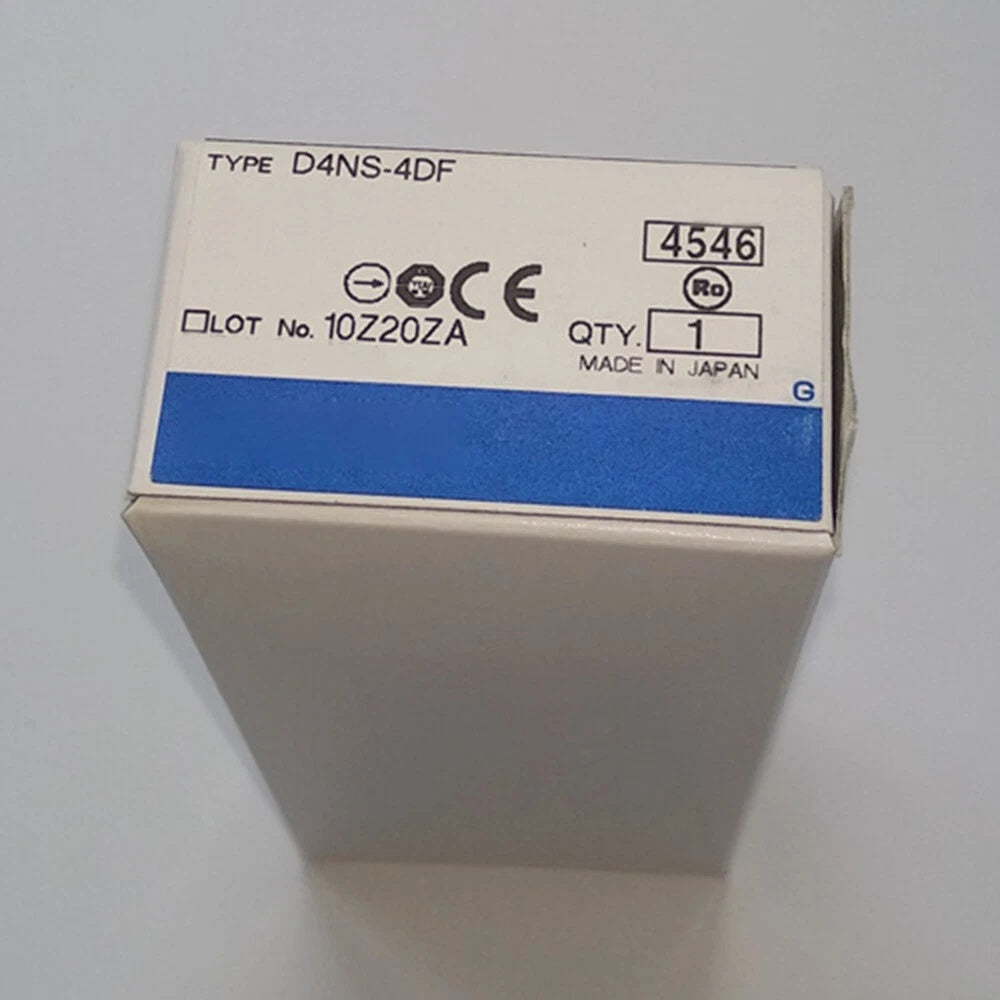

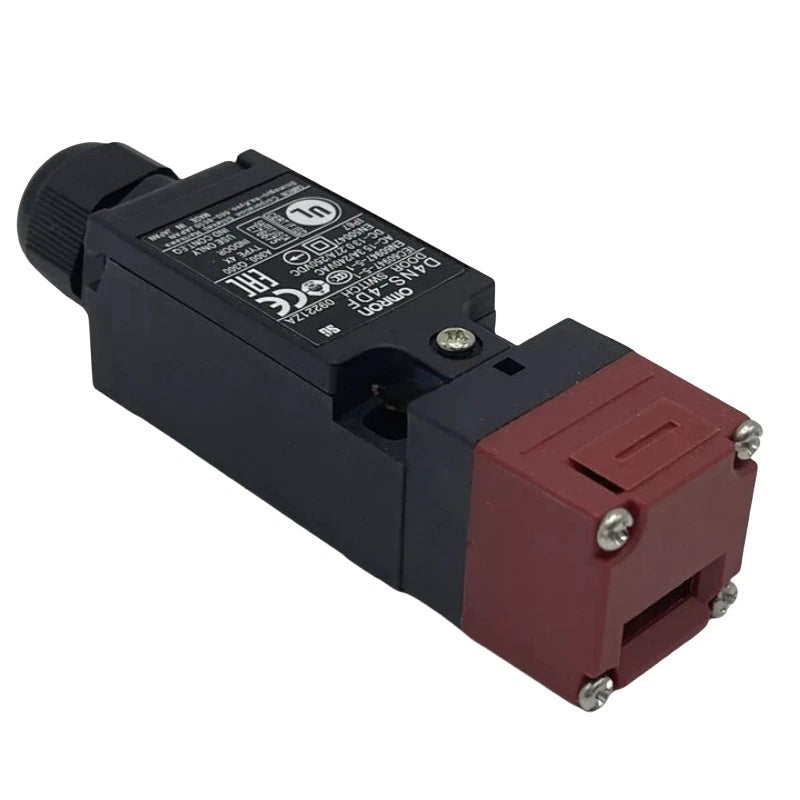

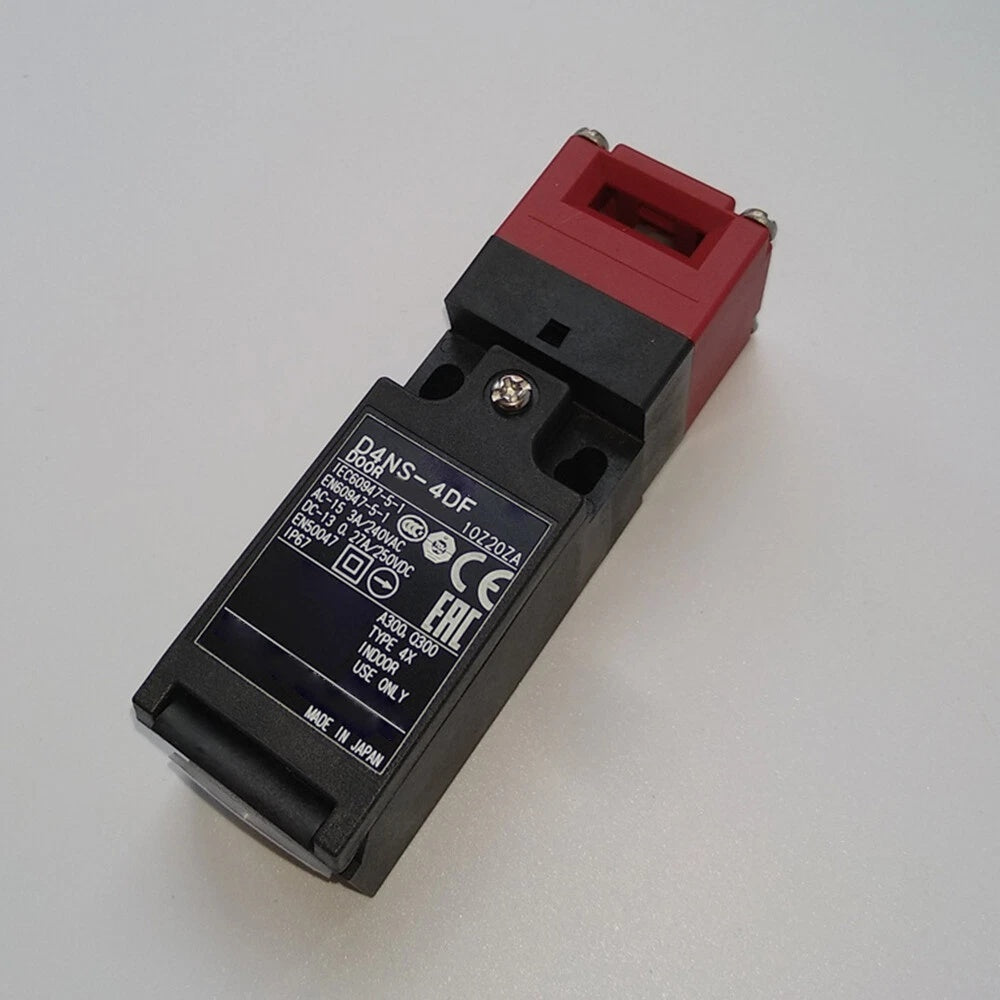

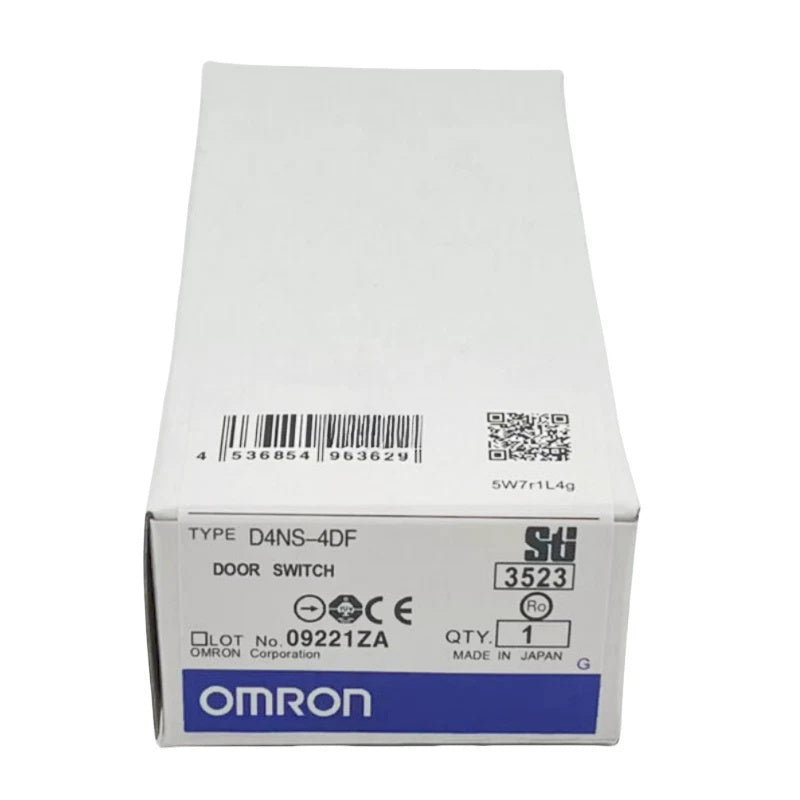

Omron D4NS-4DF Safety Door Switch 230VAC 3A Key
Available in stock (400)
Regular price
$21.54
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | D4NS-4DF |
| Product Category | Safety Door Switch |
| Contact Configuration | 2NC/1NO |
| Direct Opening Mechanism | Yes |
| Actuator | Flexible |
| Protection Rating | IP67 |
| Operating Temperature | -30°C to +70°C |
Key Features
Direct Opening Mechanism
Incorporates a direct opening mechanism to provide forced opening of NC contacts for safety applications.
Flexible Actuator
Uses a flexible actuator design for versatile mounting and door operation.
IP67 Protection Rating
Rated IP67 per IEC 60529, indicating protection against dust and temporary immersion in water.
Wide Operating Temperature Range
Rated for operation between -30°C and +70°C, supporting a range of industrial environments.
Applications
- Machine guarding safety interlock
- Industrial equipment door monitoring
- Automation cell access protection
- Conveyor system safety barriers
- Packaging machinery safety
- Material handling equipment interlocking
- Robotic workcell safety access
Purchase Information
We support online purchase of the Omron D4NS-4DF Safety Door Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron D4NS-4DF?
Omron D4NS-4DF is a safety door switch designed with a 2NC/1NO contact configuration and a direct opening mechanism.
What is the contact configuration of D4NS-4DF?
The D4NS-4DF has a 2NC/1NO contact configuration.
Does D4NS-4DF have a direct opening mechanism?
Yes. The D4NS-4DF incorporates a direct opening mechanism for forced opening of the NC contacts.
What type of actuator does D4NS-4DF use?
The D4NS-4DF uses a flexible actuator.
What is the protection rating of D4NS-4DF?
The D4NS-4DF is rated IP67 per IEC 60529.
What is the operating temperature range for D4NS-4DF?
The D4NS-4DF has an operating temperature range of -30°C to +70°C.
What applications can D4NS-4DF be considered for?
D4NS-4DF can be considered for machine guarding, industrial door monitoring, automation cell access protection, and other safety interlock applications where its electrical and mechanical specifications are suitable.
What should be checked before ordering D4NS-4DF?
Before ordering, verify the contact configuration, actuator type, protection rating, operating temperature, and mounting requirements against the existing installation.
