Snap Action Mechanism
Provides fast switching response with a snap action mechanism for precise control in industrial limit switch applications.

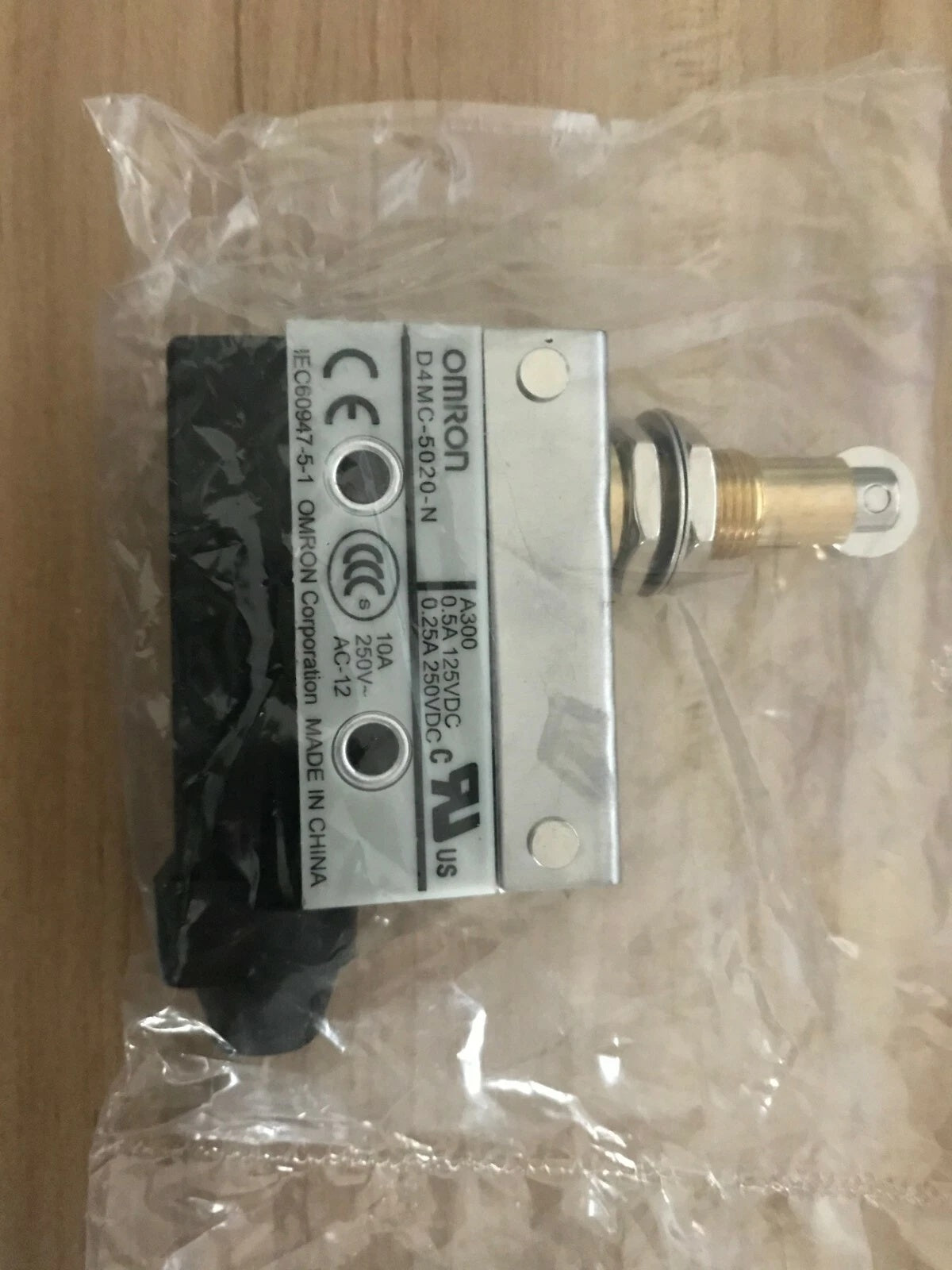

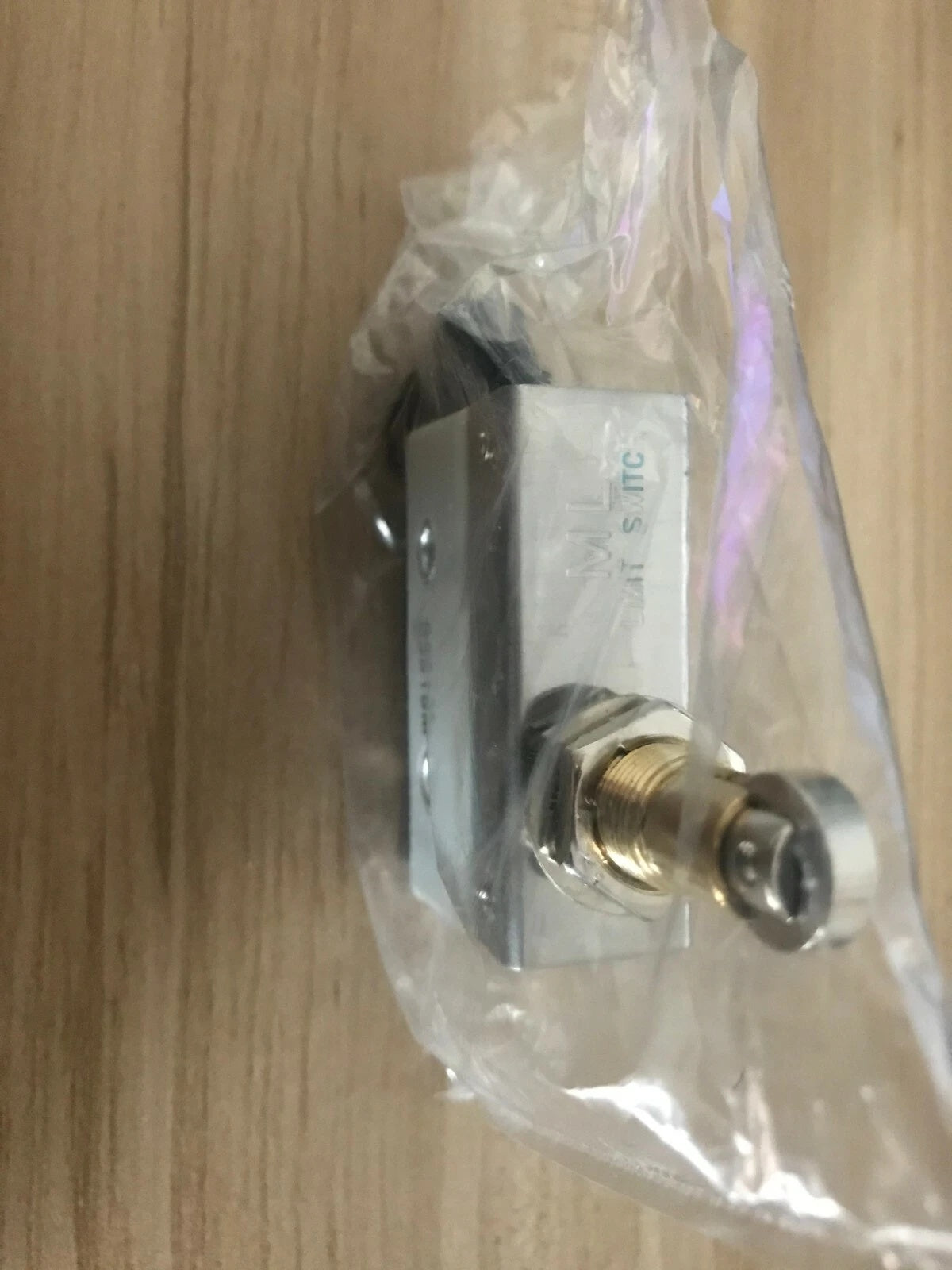

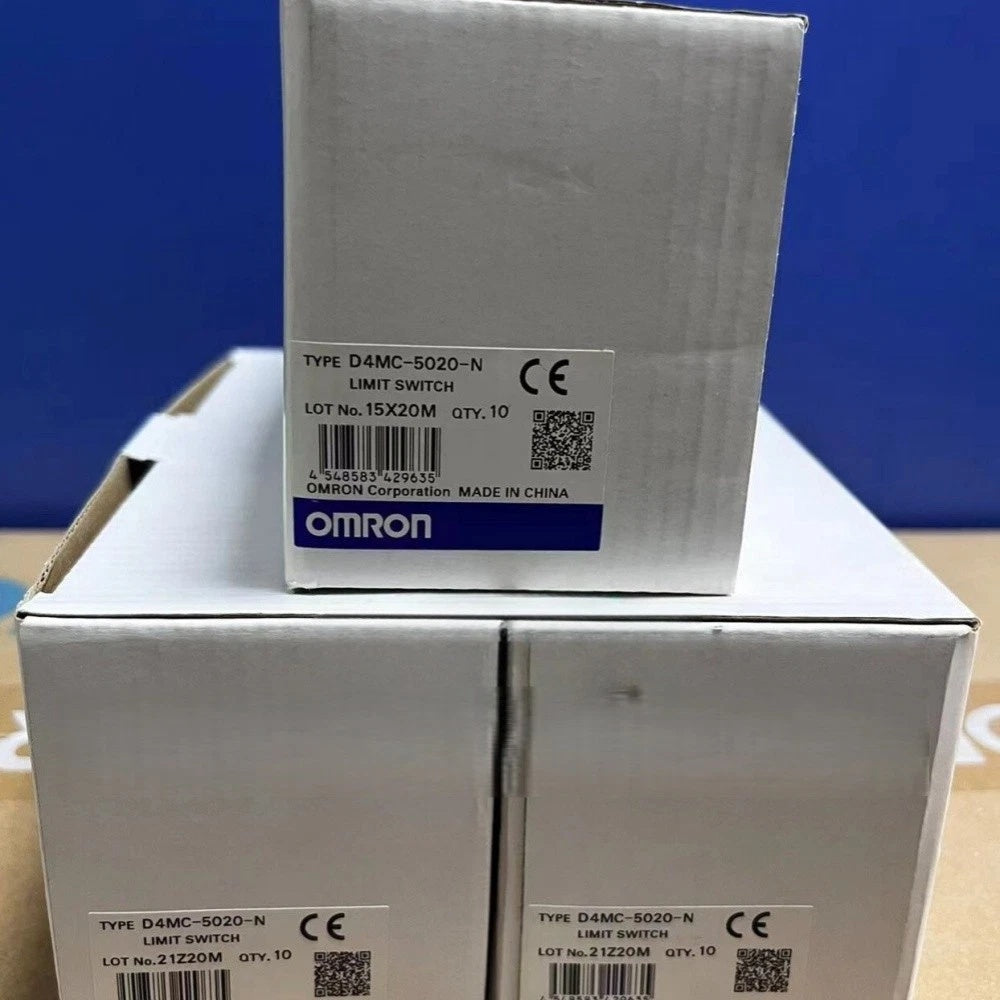

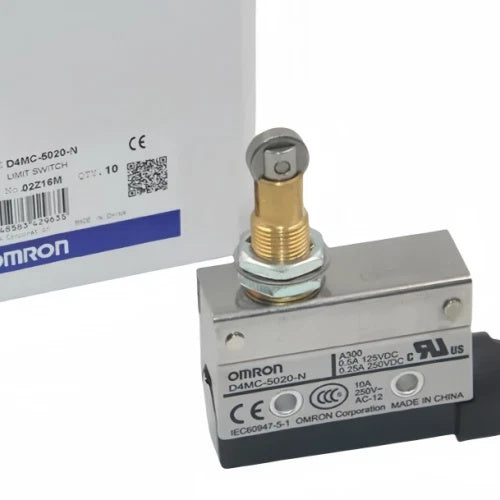

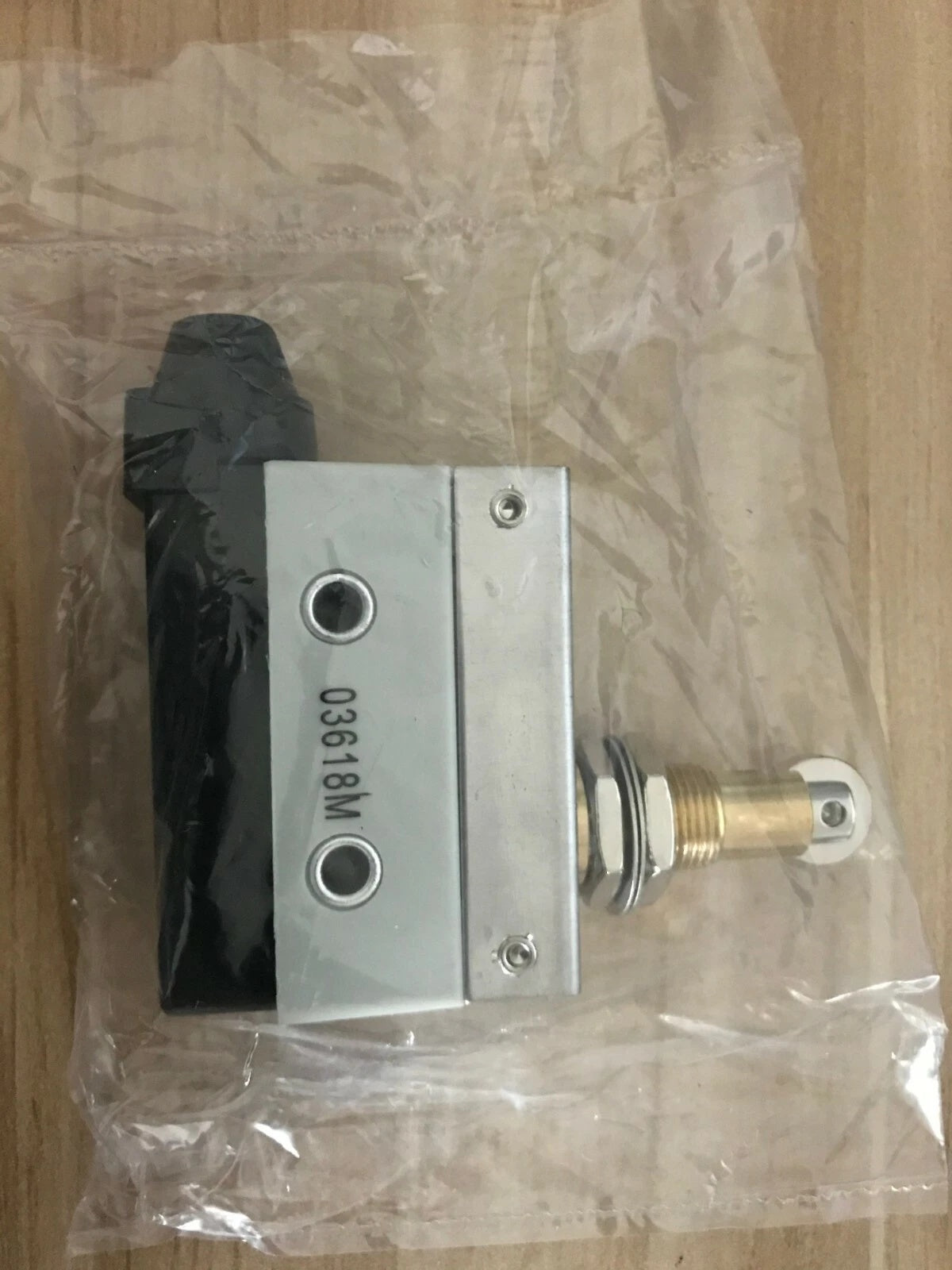

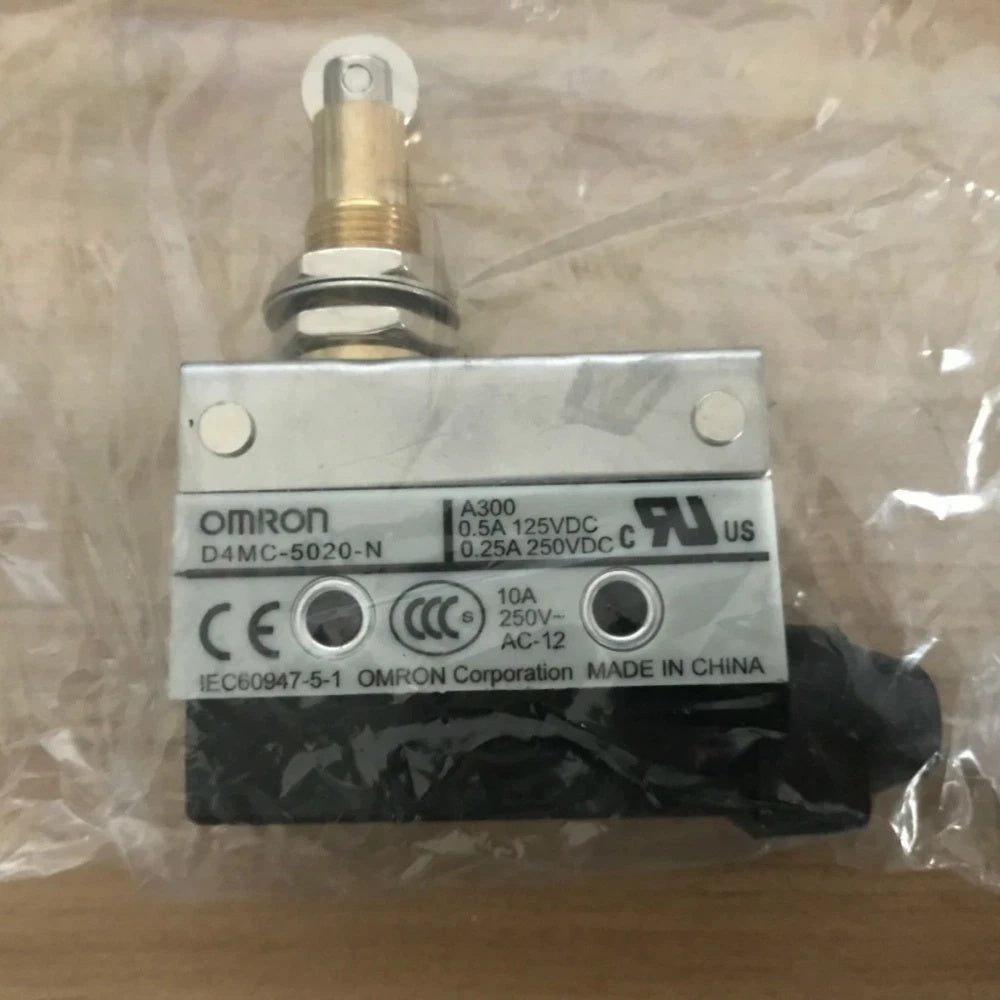

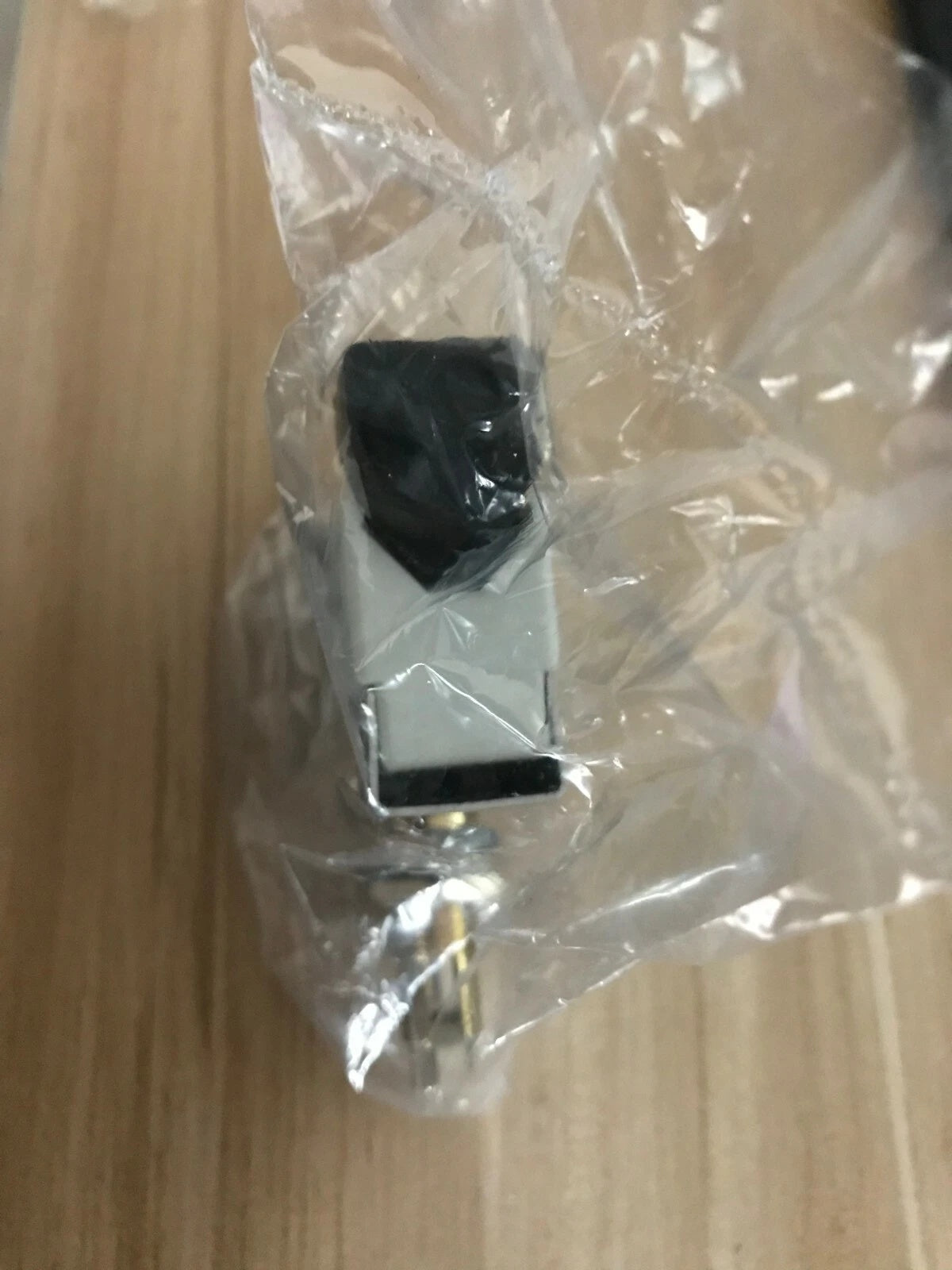

Omron D4MC-5020-N Limit Switch 250VAC 10A Roller Lever
Available in stock (400)
Regular price
$8.19
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | D4MC-5020-N |
| Product Category | Limit Switch |
| Switch Type | Snap Action Limit Switch |
| Actuator Type | Roller Lever |
| Contact Form | SPDT (Single Pole Double Throw) |
| Contact Rating | 10A at 250 VAC |
| Operating Force | Maximum 8.83 N |
| Release Force | Minimum 1.18 N |
| Pretravel | Maximum 8° |
| Overtravel | Minimum 40° |
| Degree of Protection | IP67 |
| Operating Temperature | -10°C to +80°C |
Key Features
Roller Lever Actuator
Roller lever actuator design suitable for applications requiring mechanical detection of cam or slide motion.
SPDT Contact Form
Single Pole Double Throw contact configuration for versatile circuit switching in control systems.
10A Contact Rating
Rated for 10A at 250 VAC, suitable for switching industrial control loads.
IP67 Environmental Rating
IP67 degree of protection identified in Omron documentation for use in environments with dust and water ingress.
Wide Temperature Range
Specified operating temperature range of -10°C to +80°C for use in varied industrial environments.
Applications
- Industrial machinery position detection
- Conveyor system limit sensing
- Automated equipment end-stop detection
- Packaging machinery positioning
- Material handling equipment
- Machine tool safety interlock
- Door and guard position sensing
- General industrial automation limit control
Purchase Information
We support online purchase of the Omron D4MC-5020-N Limit Switch. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron D4MC-5020-N?
Omron D4MC-5020-N is a snap action limit switch from the D4MC series, featuring a roller lever actuator and SPDT contact configuration.
What is the contact rating of D4MC-5020-N?
Omron documentation specifies a contact rating of 10A at 250 VAC for the D4MC-5020-N.
What actuator type does D4MC-5020-N use?
The D4MC-5020-N uses a roller lever actuator for mechanical position sensing.
Is D4MC-5020-N suitable for outdoor use?
The module is specified with an IP67 degree of protection, which can be considered for locations where dust and temporary water ingress are concerns, but the complete installation environment should always be verified against the application requirements.
What is the operating temperature range of D4MC-5020-N?
Omron product information specifies an operating temperature range of -10°C to +80°C.
What is the operating force for D4MC-5020-N?
Omron documentation identifies a maximum operating force of 8.83 N.
What pretravel is specified for D4MC-5020-N?
The pretravel is specified as 8° maximum in Omron documentation.
What overtravel does D4MC-5020-N provide?
Overtravel is specified as 40° minimum.
Can D4MC-5020-N be considered for replacement in an existing system?
It can be considered after the complete catalog number, switch type, actuator, contact rating, electrical ratings and mechanical dimensions have been checked against the existing installation.
What should be checked before ordering D4MC-5020-N?
Check the complete D4MC-5020-N catalog number, required actuator type, contact rating, operating force, pretravel and overtravel travel specifications, IP protection requirements and mounting dimensions before purchasing.
