Omron D4C-3202 Switch with Roller Plunger for Machine Control

Product Overview

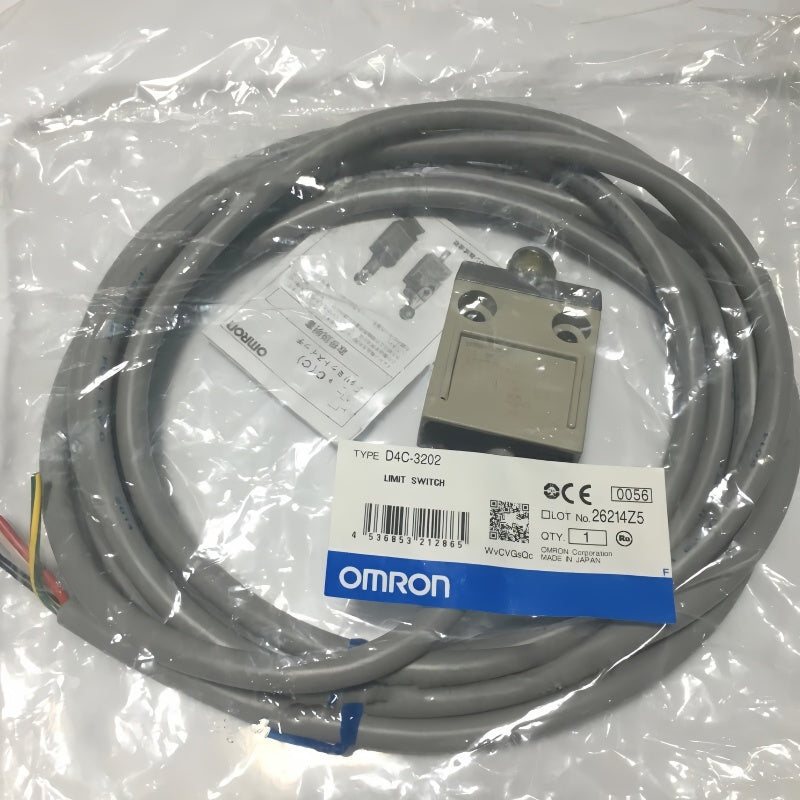

Buy Omron D4C-3202 Switch online. The Omron D4C-3202 is a compact enclosed limit switch designed for position detection and mechanical presence sensing in Industrial Automation and Machine Control systems. It features a roller-plunger actuator, a red operation indicator, and a 3 m VCTF oil-resistant cable for integration with industrial machinery and Electrical Equipment.

As part of the Omron D4C series, this switch combines a slim metal housing with triple-sealed construction and IEC IP67 protection. The red LED indicator provides convenient visual confirmation of switch status and is configured to illuminate during non-operation.

The D4C-3202 is suitable for Industrial Control equipment, OEM machinery, Automation Components, and Replacement Parts applications where the specified model and electrical ratings match the original system requirements.

Technical Specifications & Features

• Brand: Omron
• Manufacturer Part Number: D4C-3202
• Category: Switch
• Product Series: D4C
• Rated Current: 4 A
• Rated Voltage: 30 VDC
• Connection Type: 3 m VCTF oil-resistant cable, 4 conductors
• Actuator: Roller plunger
• Operation Indicator: Red LED
• Roller Material: Stainless sintered metal
• Dimensions: 40 mm maximum width × 16 mm body depth × 67 mm maximum overall height
• Operating Temperature: -10°C to +70°C with no icing
• Protection Rating: IP67 according to EN60947-5-1

The compact and slim D4C enclosure supports installation in space-constrained industrial equipment. Its roller-plunger mechanism is intended for mechanical actuation by moving machine components, cams, or workpieces.

Triple-sealed construction protects the plunger section, internal switch section, and cable entrance, supporting stable operation in demanding Industrial Applications. The oil-resistant cable also facilitates direct wiring into control circuits and machine assemblies.

Applications

The Omron D4C-3202 is used for position confirmation, travel detection, and sequence control in Industrial Automation, Industrial Control, factory machinery, production equipment, material-handling systems, and automated assembly lines.

It is also suitable for Machine Control panels, OEM equipment, maintenance programs, and Replacement Parts inventories when the D4C-3202 model, roller-plunger actuator, cable configuration, and 30 VDC rating are required by the application.

Bulk purchase and RFQ are available. Contact us for quantity pricing, lead time, and shipping options.
