100-240 VAC Input
The CQM1-PA206 is an AC power supply unit specified for a 100-240 VAC input supply.

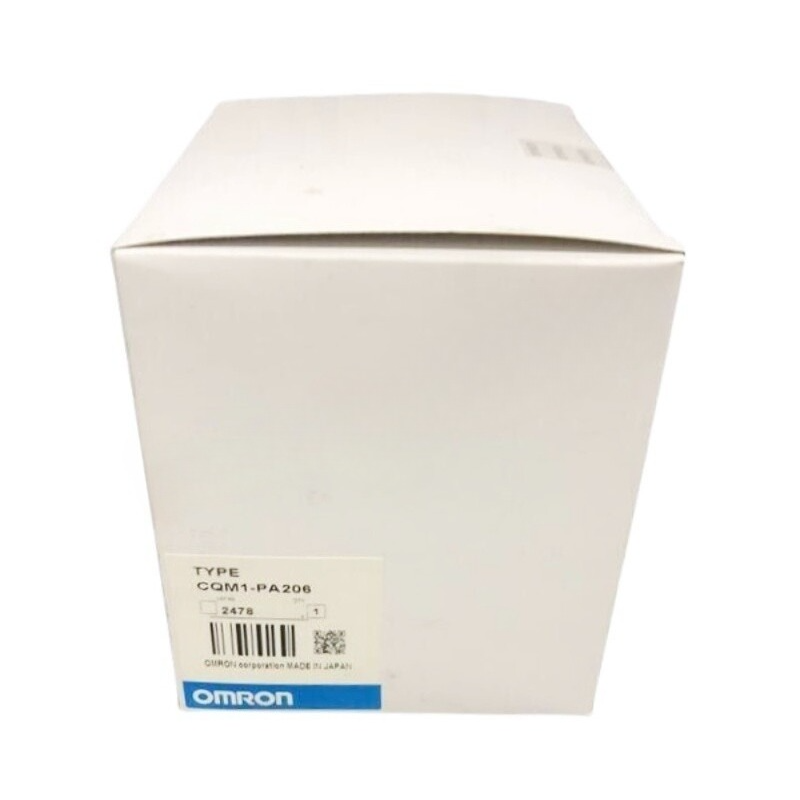

Omron CQM1-PA206 Power Supply Unit 100-240 VAC 5 VDC 6 A 24 VDC 0.5 A
Available in stock (200)
Regular price
$87.00
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | CQM1-PA206 |
| Product Category | Power Supply Unit |
| Product Series | CQM1 |
| Input Voltage | 100-240 VAC |
| Output Capacity | 5 VDC, 6 A |
| 24 VDC Service Output | 0.5 A |
| Total Output Power | 30 W |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Dimensions | 85.5 x 110 x 107 mm |
| Weight | 560 g Max. |
Key Features
5 VDC 6 A Output
The documented internal 5 VDC output capacity is 6 A for supplying the configured CQM1 system units.
24 VDC 0.5 A Service Output
The CQM1-PA206 provides a documented 24 VDC service output with a maximum current of 0.5 A.
30 W Total Capacity
The combined documented output capacity of the 5 VDC supply and 24 VDC service output is limited to 30 W.
Screw Terminal Connection
The power supply unit uses screw-terminal connections for external power wiring.
CQM1 Power Supply Function
The CQM1-PA206 supplies operating power to the CPU and installed I/O or dedicated units in a configured CQM1 control system.
Applications
- CQM1 programmable controller systems
- Industrial machine control panels
- PLC control system power supply
- Factory automation control systems
- Industrial I/O system power supply
- Production equipment control
- Control cabinet applications
- PLC system maintenance projects
Purchase Information
We support online purchase of the Omron CQM1-PA206 Power Supply Unit. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron CQM1-PA206?
Omron CQM1-PA206 is an AC Power Supply Unit for a CQM1 programmable controller system.
What input voltage does CQM1-PA206 use?
The documented input supply rating is 100-240 VAC.
What 5 VDC output capacity does CQM1-PA206 provide?
The documented 5 VDC output capacity is 6 A.
Does CQM1-PA206 provide a 24 VDC output?
Yes. The unit provides a documented 24 VDC service output rated at 0.5 A.
What is the total output capacity?
The combined 5 VDC and 24 VDC output power must remain within the documented 30 W total capacity.
How is CQM1-PA206 connected?
The documented termination style uses screw terminals for external wiring.
How is CQM1-PA206 mounted?
The power supply unit is used as part of the DIN-rail-mounted CQM1 controller configuration.
What is the operating temperature range?
The documented operating temperature range is 0°C to +55°C.
What are the dimensions of CQM1-PA206?
The documented dimensions are approximately 85.5 x 110 x 107 mm.
What is the maximum weight of CQM1-PA206?
Omron documentation specifies a maximum weight of 560 g.
What applications can CQM1-PA206 be considered for?
It can be considered for supplying power to CQM1 PLC control configurations after the total 5 VDC and 24 VDC current requirements of the installed units have been calculated.
What should be checked before ordering CQM1-PA206?
Check the complete model number, 100-240 VAC input requirement, required 5 VDC system current, 24 VDC service-output demand, 30 W total capacity and the existing CQM1 controller configuration before purchasing.
