20 Built-In I/O Points
The CP1L-EL20DT-D provides 12 built-in inputs and 8 built-in transistor outputs for compact machine-control applications.

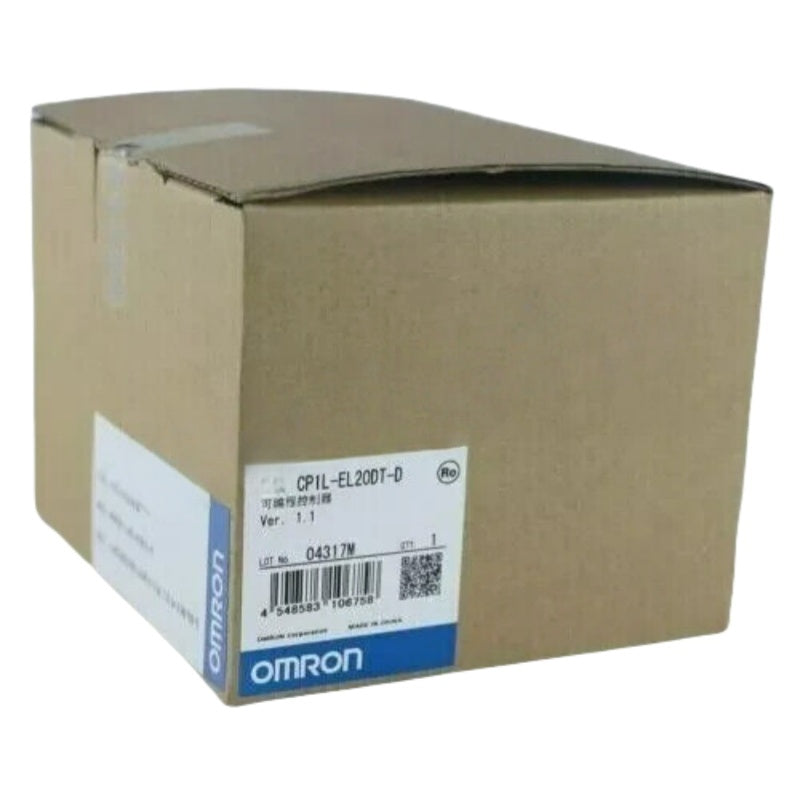

Omron CP1L-EL20DT-D PLC CPU Unit 24 VDC 12 DI 8 DO Ethernet
Available in stock (200)
Regular price
$244.80
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Omron |
| Model Number | CP1L-EL20DT-D |
| Product Category | PLC CPU Unit |
| Product Series | CP1L |
| CPU Type | CP1L-EL, 20 Points |
| Power Supply | 24 VDC |
| Operating Voltage Range | 20.4-26.4 VDC |
| Power Consumption | 13 W Max. |
| Built-In Inputs | 12 |
| Built-In Outputs | 8 |
| Output Method | Transistor Output, Sinking |
| Program Capacity | 5K Steps |
| Maximum I/O Points | 60 |
| Connectable Expansion Units | 1 Max. |
| High-Speed Counters | 4 Inputs / 2 Axes |
| High-Speed Counter Frequency | 100 kHz Single-Phase / 50 kHz Differential Phase |
| Pulse Outputs | 2 Outputs, 1 Hz to 100 kHz |
| Analog Inputs | 2 |
| Analog Input Range | 0-10 V |
| Analog Input Resolution | 1/1000 |
| Communication | Built-In Ethernet |
Key Features
24 VDC Power Supply
The CPU Unit uses a 24 VDC power supply with a documented operating voltage range of 20.4-26.4 VDC.
Sinking Transistor Outputs
The DT-D configuration provides sinking transistor outputs for the eight built-in output points.
Built-In Ethernet
The CP1L-EL CPU Unit includes an embedded Ethernet port for supported industrial network communication functions.
5K-Step Program Capacity
The documented program capacity for the CP1L-EL20 CPU Unit is 5K steps.
100 kHz Pulse Outputs
The transistor-output model supports two pulse outputs with a documented frequency range from 1 Hz to 100 kHz.
Applications
- Compact machine control
- Factory automation systems
- Production equipment control
- Digital input and output control
- Motion and pulse control applications
- 0-10 V analog signal monitoring
- Ethernet-connected automation systems
- Control system expansion projects
Purchase Information
We support online purchase of the Omron CP1L-EL20DT-D PLC CPU Unit. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Omron CP1L-EL20DT-D?
Omron CP1L-EL20DT-D is a CP1L-EL Series PLC CPU Unit with 20 built-in I/O points, 24 VDC power supply, sinking transistor outputs and built-in Ethernet.
How many built-in inputs does CP1L-EL20DT-D provide?
The CPU Unit provides 12 built-in inputs.
How many built-in outputs does CP1L-EL20DT-D provide?
The CPU Unit provides 8 built-in outputs.
What output type does CP1L-EL20DT-D use?
The model uses sinking transistor outputs.
What power supply does CP1L-EL20DT-D require?
The documented power supply is 24 VDC with an operating voltage range of 20.4-26.4 VDC.
What is the program capacity?
The documented program capacity for the CP1L-EL20 CPU Unit is 5K steps.
Does CP1L-EL20DT-D have built-in Ethernet?
Yes. The CP1L-EL CPU Unit includes a built-in Ethernet port.
Does CP1L-EL20DT-D support pulse outputs?
Yes. The transistor-output model supports two pulse outputs with a documented frequency range of 1 Hz to 100 kHz.
Does CP1L-EL20DT-D include analog inputs?
Yes. The CPU Unit provides two non-isolated analog inputs with a 0-10 V range and 1/1000 resolution.
How many expansion units can be connected?
One CP-series Expansion Unit or Expansion I/O Unit can be connected, providing a documented maximum system capacity of 60 I/O points.
What applications can CP1L-EL20DT-D be considered for?
It can be considered for compact machine control, digital I/O control, pulse control, analog monitoring and Ethernet-connected automation applications after the system requirements have been checked.
What should be checked before ordering CP1L-EL20DT-D?
Check the complete model number, 24 VDC power requirement, 12-input and 8-output configuration, sinking transistor output requirement, Ethernet needs, analog input requirements and expansion capacity against the existing control system documentation before purchasing.
