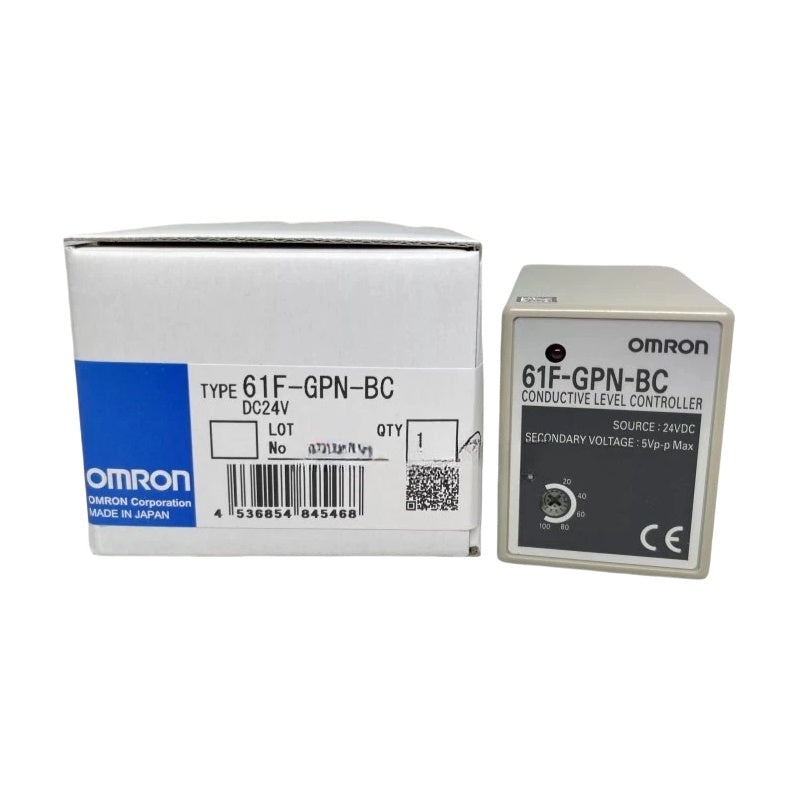

Omron 61F-GPN-BC Conductive Level Controller 24 VDC

Product Overview

Buy Omron 61F-GPN-BC Conductive Level Controller online. This 24 VDC controller provides conductive liquid level detection and relay-based control for automatic water supply and drainage systems. Its adjustable operating resistance from 0 to 100 kΩ supports level detection across a wide range of conductive liquids.

Part of the Omron 61F-GPN-BT/-BC series, the 61F-GPN-BC uses AC sine-wave voltage between the electrodes to provide stable detection while helping prevent electric corrosion. The controller is designed for industrial automation, industrial control, electrical equipment, OEM systems, machine control, and other industrial applications requiring dependable liquid level supervision.

Technical Specifications & Features

• Brand: Omron
• Manufacturer Part Number: 61F-GPN-BC
• Category: Conductive Level Controller
• Product Series: 61F-GPN-BT/-BC
• Rated Voltage: 24 VDC
• Allowable Voltage Range: 85% to 110% of rated voltage
• Power Rating: 2 W max. power consumption
• Mounting Type: Socket mounting with PF113A-E front socket
• Output Configuration: SPST-NO relay output
• Output Contact Rating: 5 A at 240 VAC resistive load; 5 A at 30 VDC
• Interelectrode Voltage: 5 VAC max.
• Operating Resistance: Adjustable from 0 to 100 kΩ
• Wiring Distance: 100 m max.
• Response Time: Operating 1.5 s max.; releasing 3.0 s max.
• Operating Temperature: -10 to 55°C
• Certification: CE marking, UL Recognized Component, UL 61010-1, CAN/CSA C22.2 No. 61010-1, EN 61010-1 and EN 61326-1

The 61F-GPN-BC supports automatic drainage when terminals 7 and 8 are open and automatic water supply when the terminals are shorted. Its SPST-NO relay output provides direct switching capability for compatible pumps, valves, contactors, and control circuits.

Power and detection circuits are isolated, allowing multiple controllers to operate within the same tank for multi-point level sensing. The included PFC-N8 hold-down clip helps secure the controller when installed with the compatible socket, supporting straightforward installation and maintenance.

Applications

The Omron 61F-GPN-BC is suitable for liquid level control in solar power generation systems, semiconductor wafer cleaning installations, remote locations without an AC power supply, and waste-heat recovery boilers in cogeneration systems. It can also support DC-powered control panels requiring automatic water supply or drainage control.

Typical uses include industrial automation systems, industrial control panels, machine control equipment, manufacturing equipment, OEM machinery, pump control systems, and maintenance projects involving compatible replacement parts. Correct socket, electrode, wiring, load, and operating conditions should be verified when integrating this controller with other automation components and electrical equipment.
