5 A Current Rating
The FLQ-5 has a documented current rating of 5 A within the Littelfuse FLQ midget fuse series.

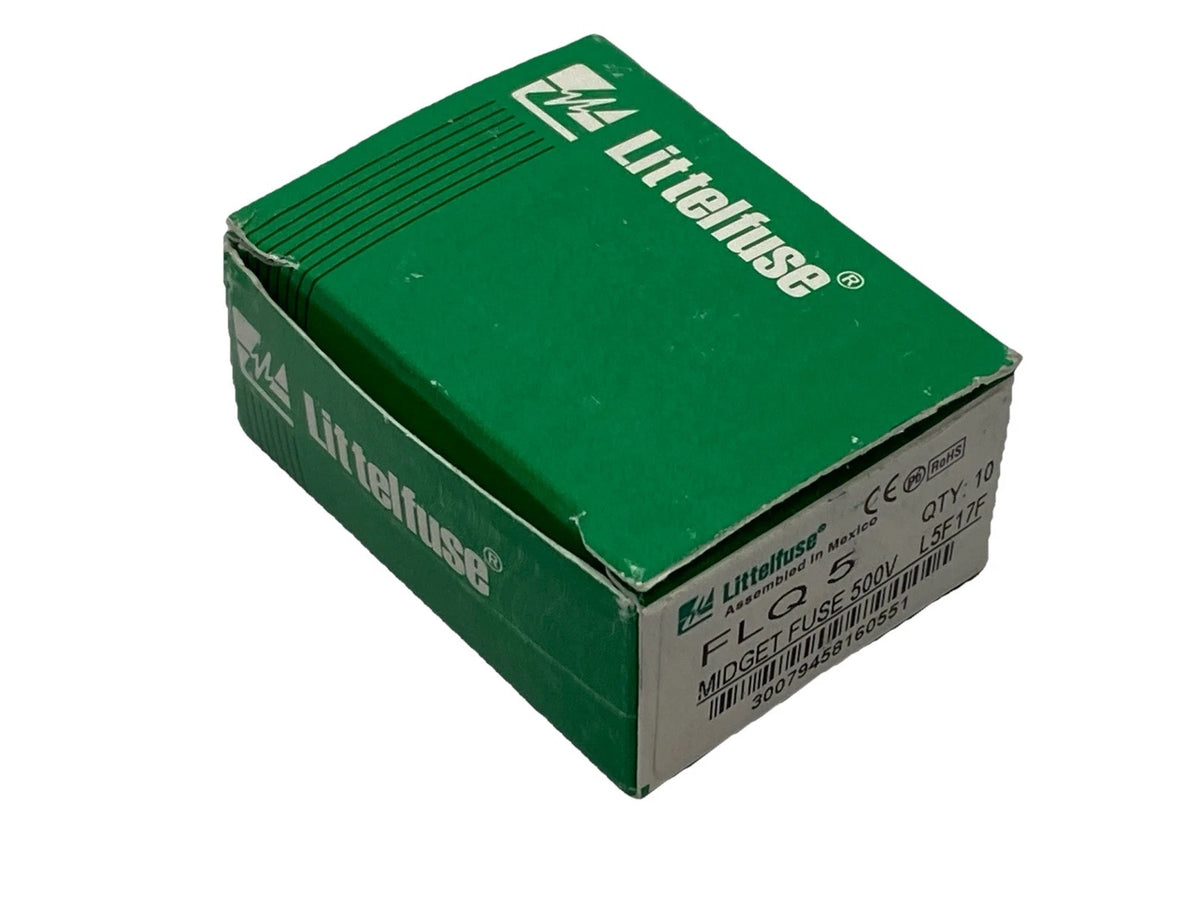

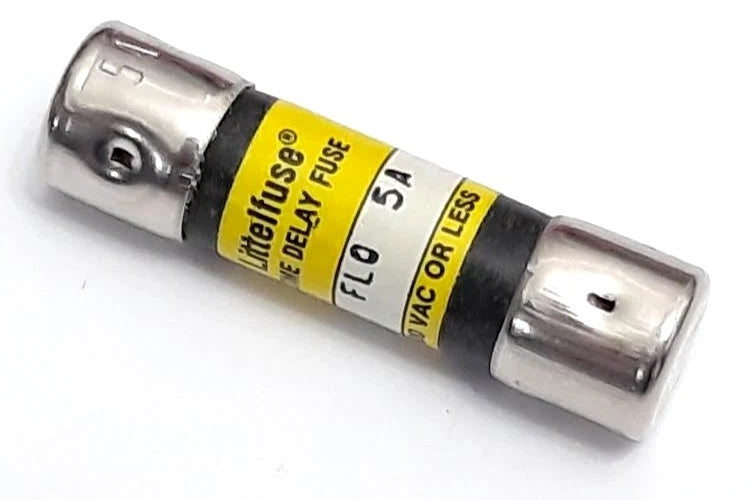

Littelfuse FLQ-5 Midget Fuse 5A 500VAC 300VDC Time-Delay
Available in stock (2000)
Regular price
$6.98
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Littelfuse |
| Model Number | FLQ-5 |
| Product Category | Midget Fuse |
| Series | FLQ |
| Fuse Type | Time-Delay Fuse |
| Current Rating | 5 A |
| AC Voltage Rating | 500 VAC |
| DC Voltage Rating | 300 VDC |
| AC Interrupting Rating | 10 kA RMS Symmetrical |
| DC Interrupting Rating | 10 kA Self-Certified |
| Dimensions | 10 × 38 mm |
| Termination | Ferrule |
| Body Material | Paper |
| End Cap Material | Nickel-Plated Copper Alloy |
| UL Listing | UL Listed, File E10480 |
| CSA Certification | CSA Certified, File LR29862 |
| Environmental Compliance | RoHS Compliant |
Key Features
500 VAC and 300 VDC
The FLQ-5 is rated for circuits up to 500 VAC and 300 VDC.
Time-Delay Characteristics
The FLQ series uses time-delay characteristics for circuits where temporary inrush currents can occur.
10 kA Interrupting Rating
The documented interrupting rating is 10 kA RMS symmetrical on AC circuits and 10 kA self-certified on DC circuits.
10 × 38 mm Format
The FLQ-5 uses the compact 10 × 38 mm midget fuse format with ferrule terminations.
Control Circuit Applications
The FLQ series is specified for applications including control power transformers and solenoid circuits with inrush current.
Applications
- Control power transformers
- Solenoid circuits
- Circuits with high inrush current
- Industrial control circuits
- Electrical control equipment
- 500 VAC midget fuse circuits
Purchase Information
We support online purchase of the Littelfuse FLQ-5 Midget Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Littelfuse FLQ-5?
Littelfuse FLQ-5 is a 5 A time-delay midget fuse from the FLQ series.
What is the current rating of FLQ-5?
The documented current rating is 5 A.
What is the AC voltage rating of FLQ-5?
The documented AC voltage rating is 500 VAC.
What is the DC voltage rating of FLQ-5?
The documented DC voltage rating is 300 VDC.
Is FLQ-5 a time-delay fuse?
Yes. Littelfuse specifies the FLQ series as time-delay midget fuses.
What is the AC interrupting rating of FLQ-5?
The documented AC interrupting rating is 10 kA RMS symmetrical.
What is the DC interrupting rating of FLQ-5?
Littelfuse specifies a 10 kA self-certified DC interrupting rating.
What are the dimensions of FLQ-5?
The FLQ-5 uses the 10 × 38 mm midget fuse format.
What termination type does FLQ-5 use?
The FLQ-5 uses ferrule terminations.
What applications are specified for the FLQ series?
Littelfuse specifies applications including control power transformers, solenoids and circuits with high inrush current.
Why does the FLQ series use time-delay characteristics?
The time-delay characteristic allows the fuse to accommodate temporary inrush conditions within its documented time-current performance while providing circuit protection.
What should be checked before ordering FLQ-5?
Check the FLQ-5 model marking, 5 A current rating, required 500 VAC or 300 VDC rating, 10 × 38 mm dimensions, ferrule termination and circuit protection requirements before purchasing.
