22 mm Sensing Range
The II5785 provides a documented sensing range of 22 mm with non-flush mounting.

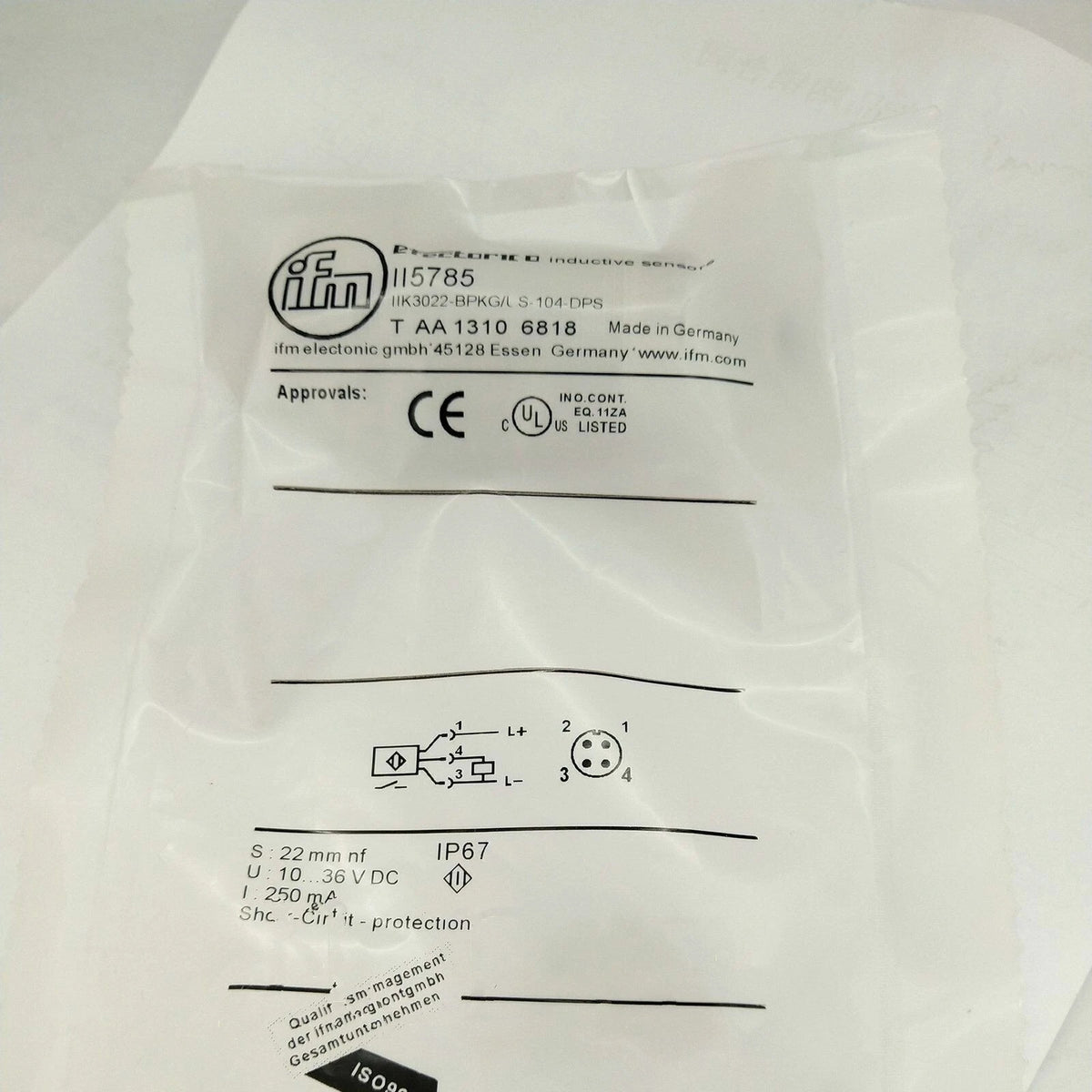

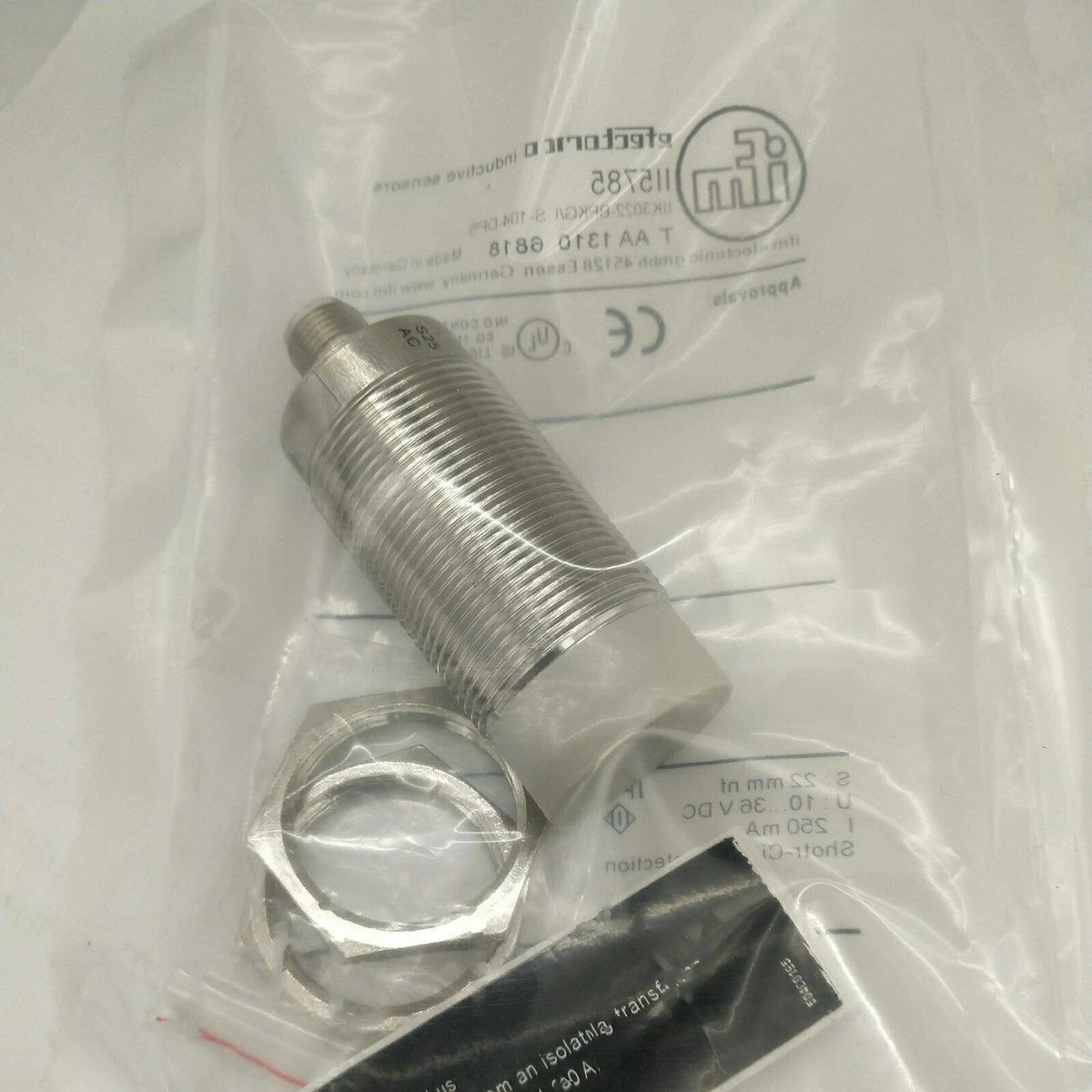

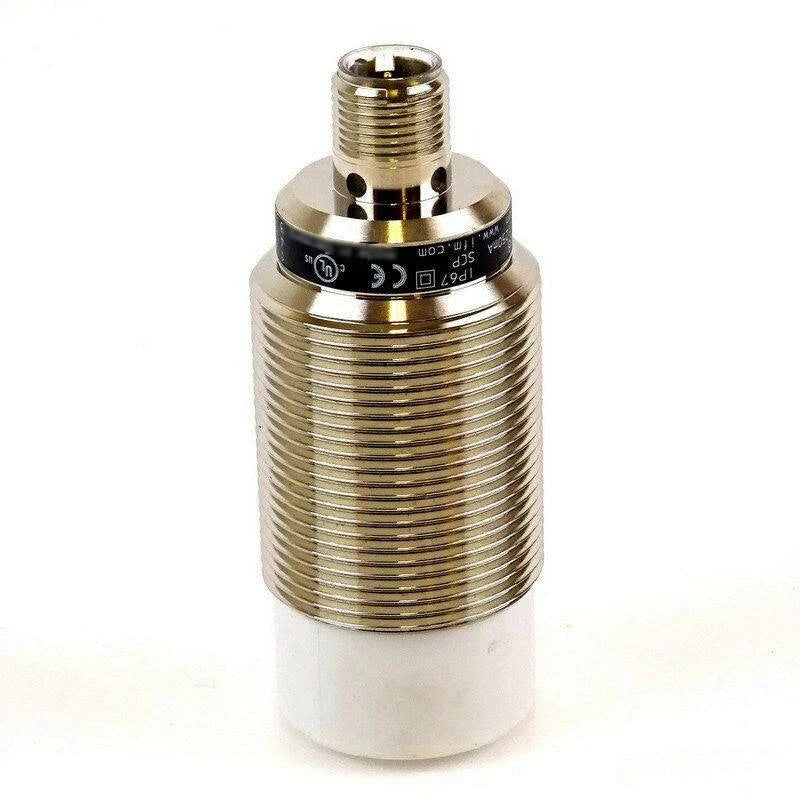

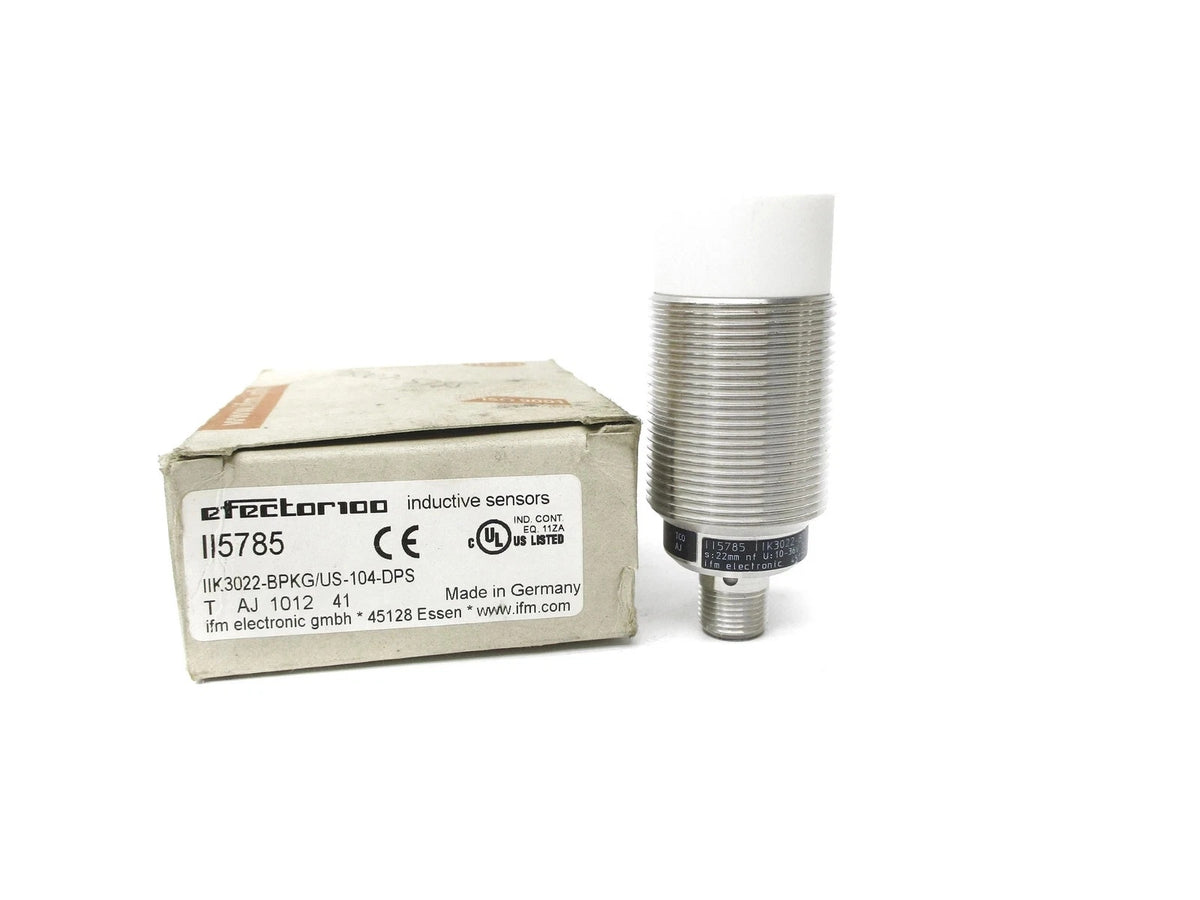

IFM II5785 Inductive Sensor 22mm 10-36VDC PNP NO
Available in stock (400)
Regular price
$17.60
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | IFM |
| Model Number | II5785 |
| Product Category | Inductive Sensor |
| Product Designation | IIK3022-BPKG/US-104-DPS |
| Housing Thread | M30 x 1.5 |
| Mounting | Non-Flush Mountable |
| Sensing Range | 22 mm |
| Operating Distance | 0-17.6 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10-36 VDC |
| Current Consumption | 15 mA at 24 V |
| Output Function | Normally Open |
| Voltage Drop | <2.5 V |
| Current Rating | 250 mA |
| Switching Frequency | 50 Hz |
| Protection Class | II |
| Protection Rating | IP67 |
| Ambient Temperature | -25°C to 70°C |
| Housing Material | White Bronze-Coated Brass |
| Active Face Material | PBT |
| Connection | M12 Connector |
| Weight | 0.18 kg |
Key Features
10-36 VDC Operation
The sensor operates from a documented DC supply range of 10-36 VDC.
PNP Normally Open Output
The electrical design is DC PNP with a normally open switching output.
M30 Threaded Housing
The sensor uses an M30 x 1.5 threaded housing with a white bronze-coated brass body.

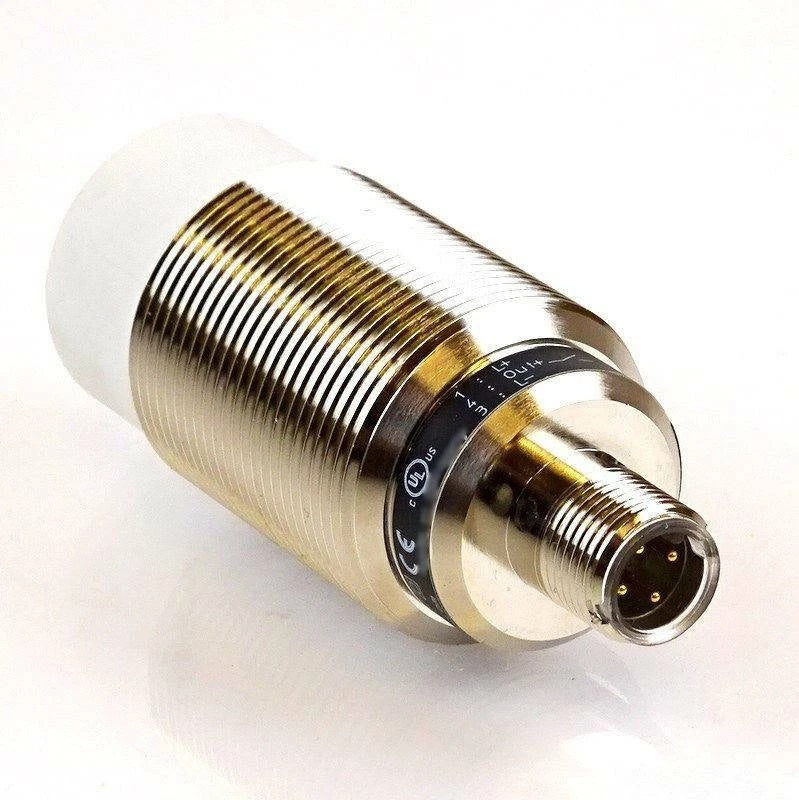

M12 Connector
Electrical connection is provided through an M12 connector and output status is indicated by a yellow LED.
IP67 Protection
The documented enclosure protection rating is IP67 for industrial sensing applications.
Applications
- Industrial machine position detection
- Metal object presence detection
- Conveyor position sensing
- Machine tool position monitoring
- Production equipment sensing
- Automated material handling systems
- Industrial automation switching
- Equipment position monitoring
Purchase Information
We support online purchase of the IFM II5785 Inductive Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is IFM II5785?
IFM II5785 is an inductive sensor with an M30 x 1.5 threaded housing, DC PNP electrical design and normally open output.
What is the sensing range of II5785?
The documented sensing range is 22 mm.
What is the operating distance of II5785?
The documented operating distance is 0-17.6 mm.
What operating voltage does II5785 use?
The documented operating voltage range is 10-36 VDC.
What output type does II5785 provide?
The sensor uses a DC PNP electrical design with a normally open switching output.
What is the current rating of the switching output?
The documented current rating is 250 mA.
What is the switching frequency?
The documented switching frequency is 50 Hz.
What connection does II5785 use?
The II5785 uses an M12 connector for electrical connection.
What is the protection rating of II5785?
The documented protection rating is IP67.
What is the ambient temperature range?
The documented ambient temperature range is -25°C to 70°C.
Can II5785 be considered for industrial position sensing?
It can be considered for inductive metal detection and machine position sensing after the sensing distance, mounting arrangement and electrical requirements have been checked.
What should be checked before ordering II5785?
Check the complete II5785 model number, 22 mm sensing range, non-flush mounting requirement, 10-36 VDC supply, PNP normally open output, M30 x 1.5 housing and M12 connection requirements before purchasing.
